SC&T HE01S Manuel utilisateur
Smart Cabling & Transmission Corp. V1.0
HDMI Extender
User Manual
Model : HE01S
4K60Hz HDMI & USB/IR/RS232 KVM Fiber Optic Extender
1
User Manual
HE01S
Introduction
HE01S is an HDMI extender that can use Ethernet cable to send an HDMI signal for up to 50 meters. Its RX
unit requires no power when the transmissions distance less than 30M. Its transmitter unit has EDID auto
backup function that can save desired resolution and restore it whenever.
Features
Resolution up to 1080p@60Hz.
Signal extension up to 50M over CAT5e cable.
No external power required at RX unit under a distance of 30M.
Installation view:
Transmission Distance
The transmission distance may vary by different HDMI equipment and cable quality.
Cable
Resolution
Distance (HE01ST to HE01SR)
CAT5e
1080p
40M
CAT6
1080p
45M
CAT5e
1080i/ 720p
70M
RJ45 Define
Video Link (use TIA/EIA-568-B)
No.
Wire Color
Pin Define
1
Orange-white
TMDS DATA2 +
2
Orange
TMDS DATA2 -
3
Green-white
TMDS CLOCK + / HDMI 5V
4
Blue
TMDS DATA1 +
5
Blue-white
TMDS DATA1 -
6
Green
TMDS CLOCK - / HDMI 0V
7
Brown-white
TMDS DATA0 +
8
Brown
TMDS DATA0 -
2
User Manual
HE01S

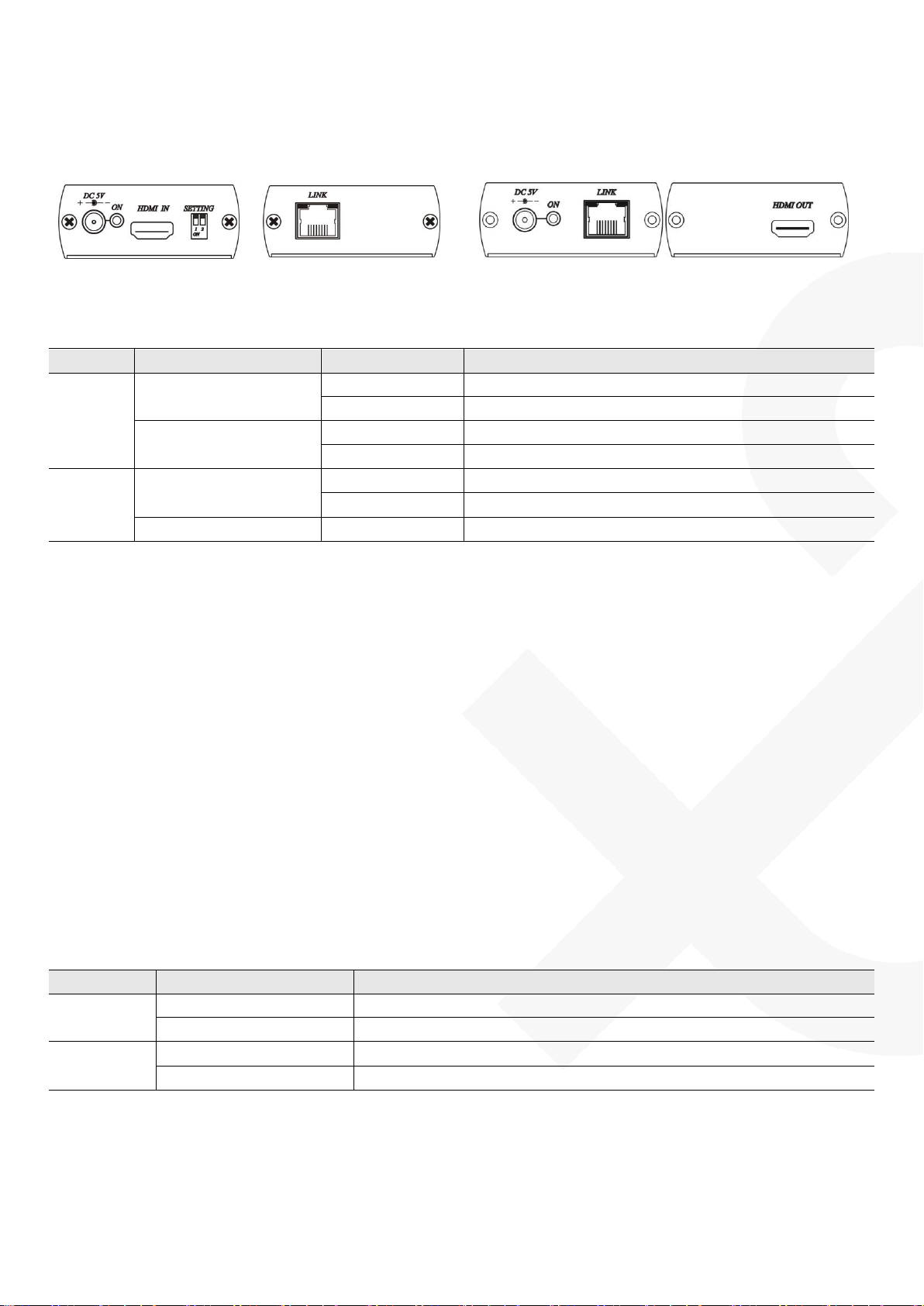

Panel View
HE01ST HE01SR
LED Indication
Model
LED
LED Color
Description
HE01ST
ON
BLUE ON
Power On
Flash
TV EDID backup completed
LINK
GREEN ON
Power or video transmitting
YELLOW ON
No data input or video format unsupported
HE01SR
ON
BLUE ON
Using external power adapter
GREEN ON
Power or video signal receiving
LINK
YELLOW ON
No data input or signal too weak
EDID Setup
Default EDID
1. move DIP switch 1 off ↑
2. move DIP switch 2 off ↑Select the first default EDID: support 1080i / LPCM 2 Channel.
3. move DIP switch 2 on ↓Select the second default EDID: support 1080p / LPCM 5.1 Channel.
Copy EDID
1. move DIP switch 1 on ↓, HE01ST unplug the power.
2. HE01ST connect to HDMI connector of TV for auto backup.
3. Plug the power for HE01ST, TV EDID back up completed (Blue Power LED keep flash)
4. After complete TV EDID backup, HE01ST power must be reset (unplug and plug) to activate the new
EDID.
DIP Switch
DIP Switch
Position
Description
1
↑
Enable the default EDID
↓
Copy the TV EDID
2
↑
Select the first default EDID: 1080i / LPCM 2 Channel.
↓
Select the second default EDID: 1080p / LPCM 5.1 Channel.
After complete Dip Switch setting, power must be reset (unplug and plug) to activate the new EDID.
3
User Manual
HE01S
Caution
The cabling must be away from any equipment with electromagnetic wave, such as microwave
ovens, mobile phones, radio equipment, power lines.
It’s recommended using high quality CAT5e UTP or CAT6 UTP cable for link cable.
If distance exceeds 30 meters, using CAT6 cables is recommend.
DD NOT use STP cable, or it will caused no picture.
Specification
ITEM NO.
HE01ST
HE01SR
Support
Compliance
HDMI 1.3, HDCP, 3D
Max. Video Resolution
1080p@60Hz
Max. Transmission Distance
60M at 1080i, 40M at 1080p
Video Bandwidth
2.25 Gbps
Ports & Interfaces
Video Input
1 x HDMI Type A
1 x RJ45
Video Output
1 x RJ45
1 x HDMI Type A
Power
Power Supply
DC 5V 1A
DC 5V 1A
Power Consumption
600mA
400mA
Ambient Temperature
Operation
0 to 55℃
Storage
-20 to 85℃
Humidity
up to 95%
Physical Characteristics
Dimensions
67 x 91 x 27mm
67 x 120 x 27mm
Weight
140g
175g
