SC&T CA101HDP Manuel utilisateur

1

HD-TVI/AHD/HDCVI/CVBS Video & Power over One Coax

ITEM NO.: CA101HDP

CA101HDP HDTVI/AHD/HDCVI/CVBS Video & Power over One Coax

Features:

To send HD video and camera power over one coaxial cable.

Transmission distance: up to 300M for TVI and up to 400M for AHD/CVI/CVBS.

Support power input: DC 24V –DC40V

Support camera power output: DC12V

Package included one DC24V or DC40V(MODEL NO:CA101HDP-40V) power

adapter selection.

Installation View:

★To avoid any damage, before power on, please make sure the coax cable

connected with CA101HDPT, CA101HDPR

Transmission Distance Chart based on Power Input Voltage/Current：

The output current will be slightly different based on different cable.

Cable Type

CA101HDPR Receiver

Power Input

Distance

CA101HDPT Transmitter

DC12V Output for Camera

RG59

DC24V 1.25Amp

50M

DC12V

370mA

100M

350mA

150M

320mA

200M

300mA

300M

190mA

400M

140mA

Cable Type

CA101HDPR Receiver

Power Input

Distance

CA101HDPT Transmitter

DC12V Output for Camera

RG59

DC40V 1Amp

50M

DC12V

650mA

100M

650mA

150M

630mA

200M

600mA

300M

570mA

400M

470mA

HD-TVI300M (MAX.)

AHD/HDCV/CVBS 400M(MAX.)

2

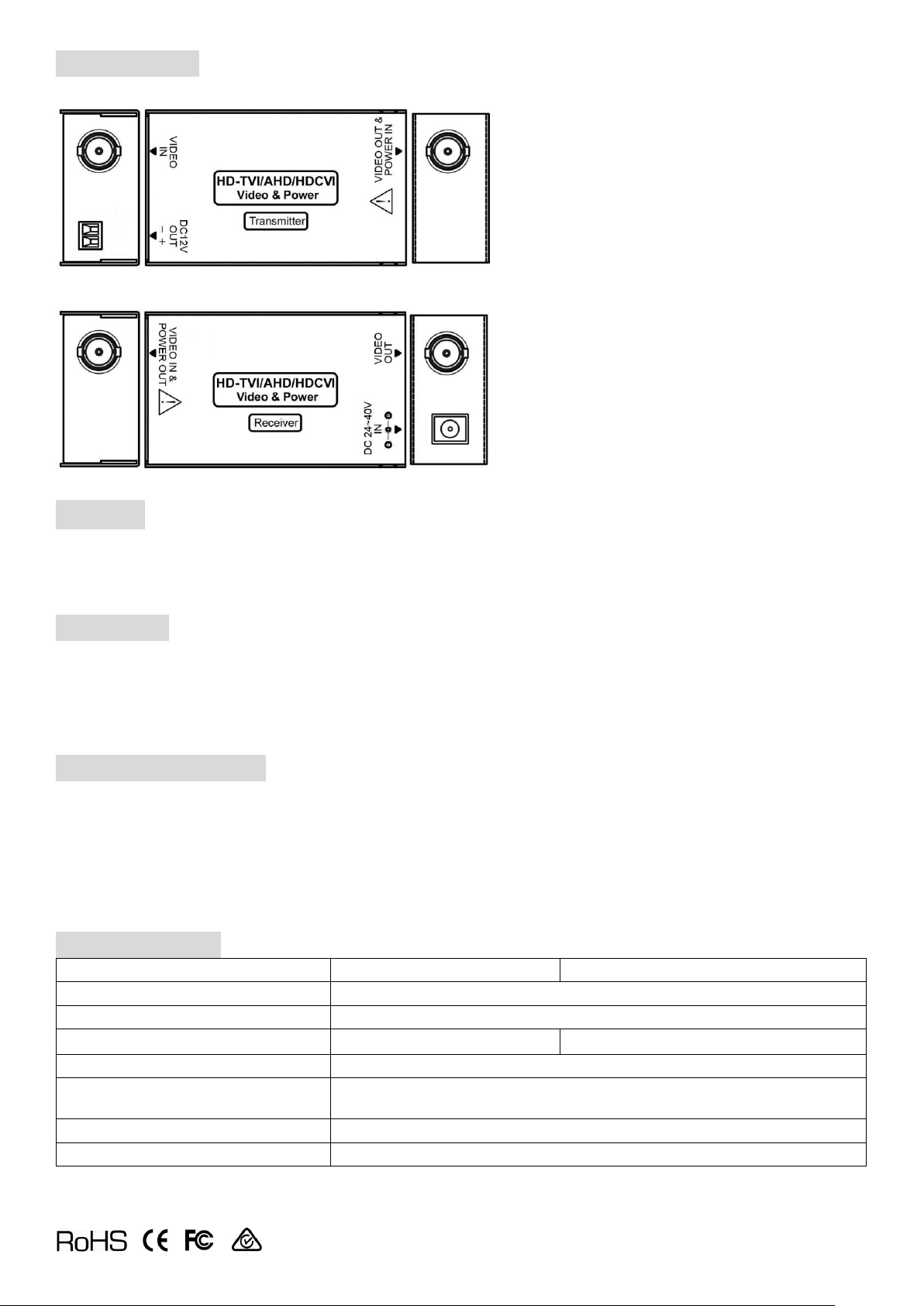

Panel View:

CA101HDPT

CA101HDPR

Cable：

Link cable recommend use high quality RG59 or RG6U cable. Poor quality cable or improper

construction will cause unstable connection, video or sound disruptions, picture noise

appears.

Caution:

1. Input/output power cord DC jack is 2.0mm.

2. Before sending power, please make sure the voltage polarity and input/output

terminal are installed correctly.

Package Include:

CA101HDPT x 1pcs

CA101HDPR x 1pcs

DC24V 1.25Amp power adapter x 1 or DC40V 1Amp (MODEL NO: CA101HDP-40V)

DC plug to Stripping bare wire power cord x 1

Mounting screw pack x 1

Specification:

ITEM NO

CA101HDPT

CA101HDPR

Power Input/output

DC JACK 2.0 mm

Video & Power Input/output

BNC

Input/Output Voltage

DC 12V Output

DC24V～40V Input

Distance (Max.)

400M (Max)

Temperature

Operation: 0 to 70℃, Storage: -20 to 85℃, Humidity:

up to 95%

Dimensions mm

49.2 x 112.5 x 25.2

Weight g

150

Rev.B
