Savant Netgear M4300 8x8F Manuel utilisateur

45 Perseverance Way, Hyannis, MA 02601

Savant.com | 508.683.2500

Video over IP Network

Netgear M4300 8x8F | M4300 12x12F | M4300 24x24F

Configuration Guide

Document Number:

009-1552-00

Document Date:

November 2017

Document Supports:

da Vinci 8.7

Video over IP Network Configuration Guide

009-1552-00 | 171128

2of 13

Contents

1!Overview ...........................................................................................................................................................3!

2!Network Topology ........................................................................................................................................3!

3!Switch Configuration (Script).................................................................................................................. 4!

4!Switch Configuration (Manual) ................................................................................................................5!

4.1!VLAN Setup............................................................................................................................................................................. 5!

4.2!Multicast.................................................................................................................................................................................... 5!

4.3!Access Control List (ACL) Creation............................................................................................................................... 8!

4.4!Save Configuration ..............................................................................................................................................................10!

Appendix A: 10G Switch Requirements ..................................................................................................... 11!

Appendix B: Static IP........................................................................................................................................ 12!

Video over IP Network Configuration Guide

009-1552-00 | 171128

3of 13

1 Overview

This document provides the necessary features/capabilities that any 10G switch needs to have to work correctly

with the Savant Video over IP System. It also provides information on how to enable these features for the 10G

switches that Savant has qualified.

2 Network Topology

Savant recommends that the 10G Switch is connected to the same switch that the Host is connected to. Unmanaged

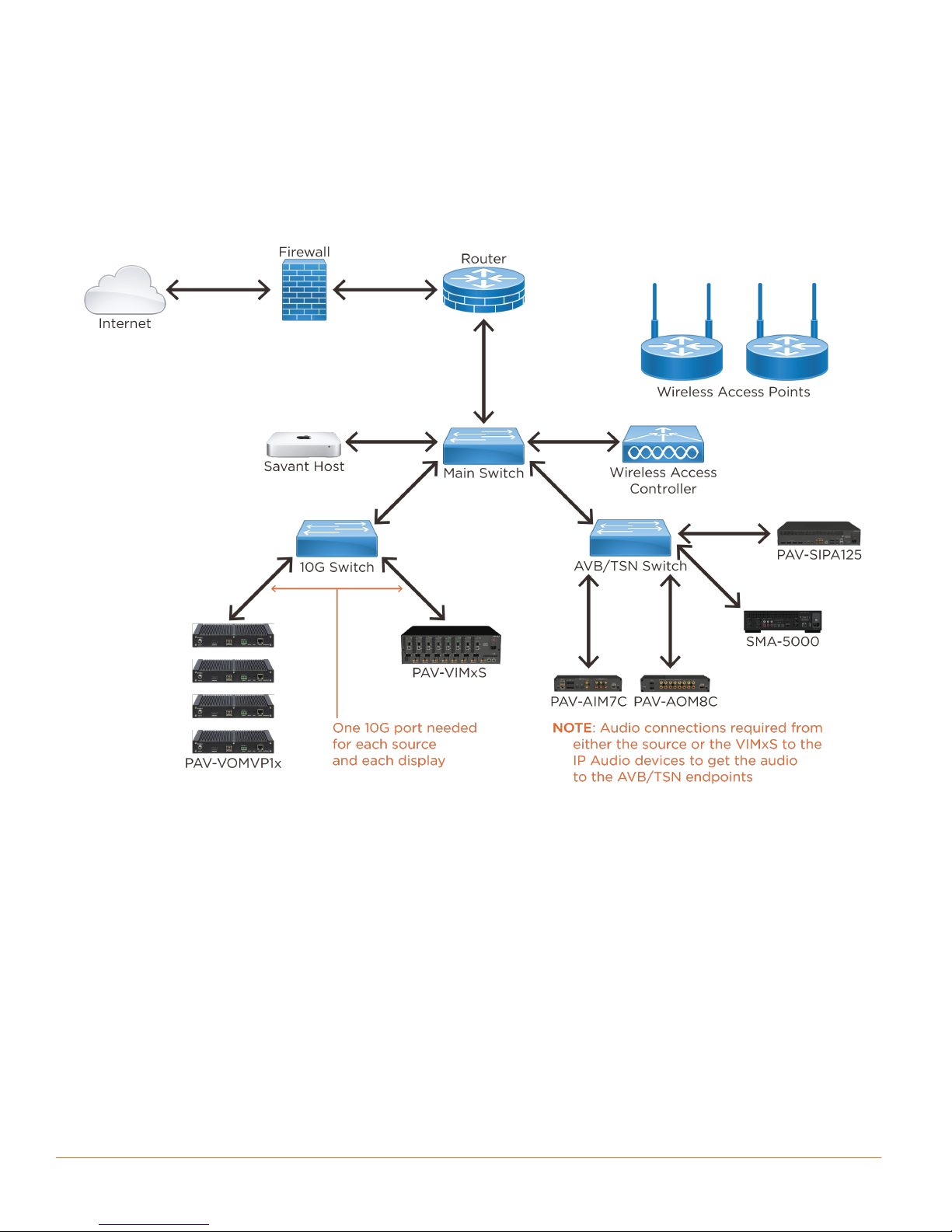

switches should not be connected to the 10G Switch that the Video over IP system is using. The image below is a

basic network diagram.

– 10G connections to the PAV-VIMxS devices use SFP+ ports either fiber or Direct Attach Copper cables can be

used.

– 10G connections to the PAV-VOMVP1x can use either SFP+ ports with fiber cabling or RJ-45 ports with CAT-6

or above cabling, depending on the cable length.

Video over IP Network Configuration Guide

009-1552-00 | 171128

4of 13

3 Switch Configuration (Script)

This is the recommended method for configuring the Netgear ProSafe switches. These steps are to be done with the

switch at its Factory default settings.

1. Download the Configuration scripts, use the Link below:

http://cdn.software.s3.amazonaws.com/scripts/Netgear/ConfigScripts.zip

2. Using Finder navigate to the download location.

3. Move the ConfigScript.zip to the Desktop of your SDE.

4. Double click on the ConfigScripts.zip to unzip the folder

5. Open the ConfigScripts folder

6. Move the Script for the switch that is in use to the Desktop.

7. Connect the upper left RJ-45 port on the Netgear switch to the main switch. Below see the port number based

on the model in use.

M4300-8X8F port 9

M4300-12X12F port 13

M4300-24X24F port 25

8. Use a network scanning software to find the IP address of the switch

9. Open Terminal on the SDE

10. Type: sh ~/Desktop/<NameOfScriptFile>.sh

Example: sh ~/Desktop/M4300-24X24F-Config.sh

11. Enter the IP Address of the Netgear switch.

Once enter is pressed the script will run and configure the switch.

Video over IP Network Configuration Guide

009-1552-00 | 171128

5of 13

4 Switch Configuration (Manual)

This section gives the settings for the Savant qualified Netgear 10G ProSafe M4300 switches. Only the settings

needed for the Audio Video over IP environment are described and no other setting are noted. These steps are to

be done with the switch at its Factory default settings.

4.1 VLAN Setup

1. Connect to the Switch via a web browser.

2. Enter the User ID and Password:

Default: admin

Password: (leave, blank there is no password by default)

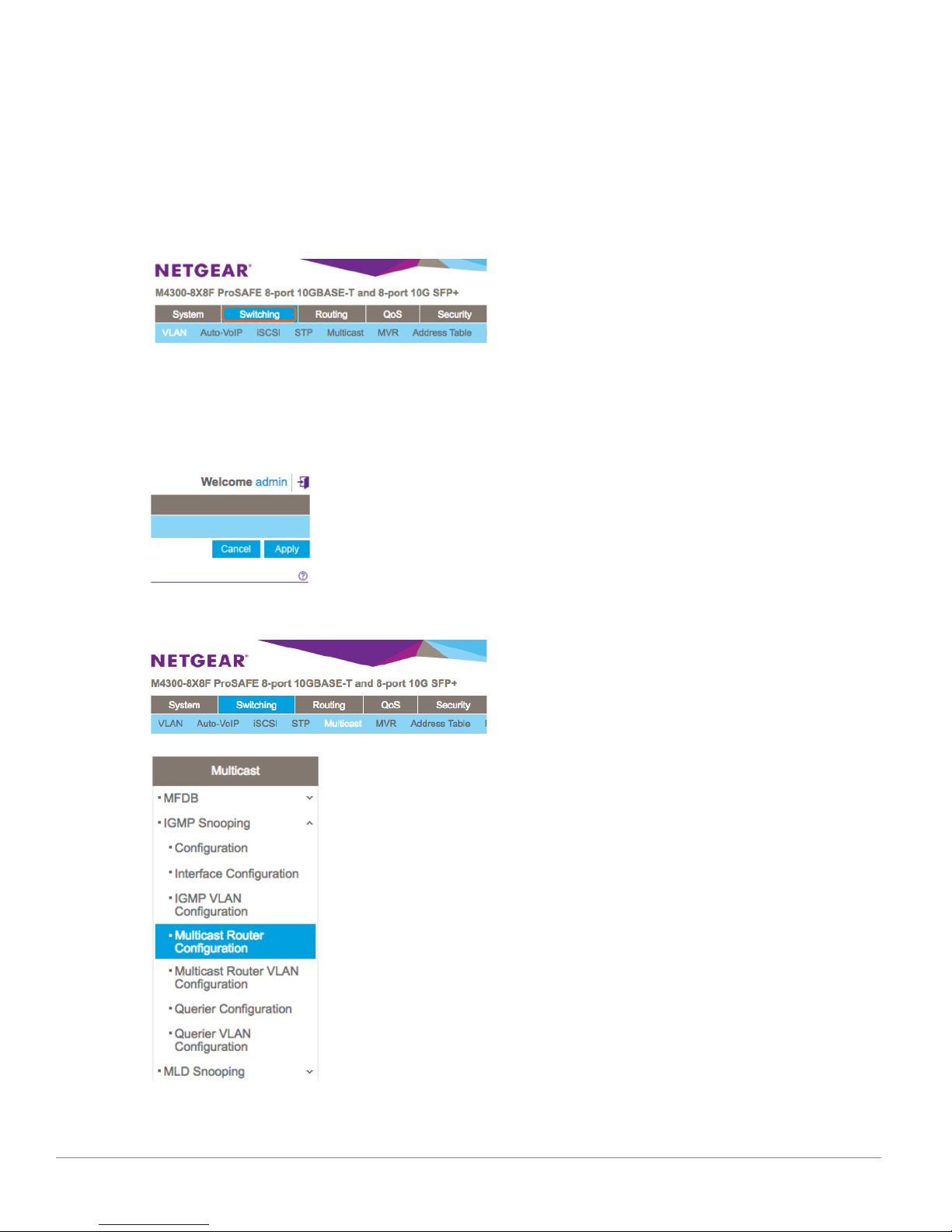

3. Go to Switching > VLAN

4. Add a VLAN.

5. Enter VLAN ID and VLAN Name. Below are Savant’s recommendations.

VLAN ID: 1

VLAN Name: default

6. Click Apply in the upper right corner of the browser window.

4.2 Multicast

1. Go to Switching > Multicast.

2. Click on IGMP Snooping > Multicast Router Configuration.

Video over IP Network Configuration Guide

009-1552-00 | 171128

6of 13

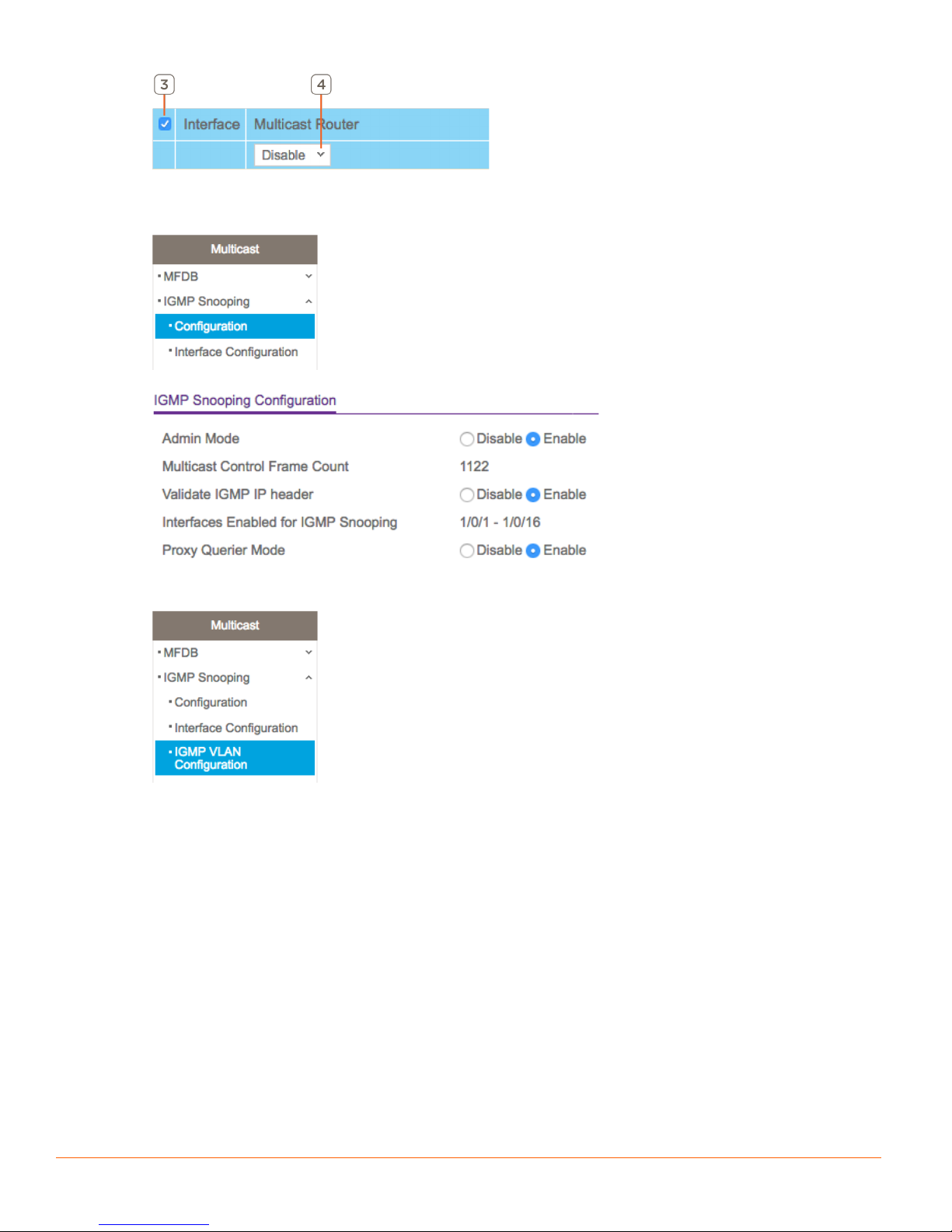

3. Click the Check box to select all

4. Select Disable in Multicast Router.

5. Click Apply in the upper right corner of the browser window.

6. Still inside Switching > Multicast, go to IGMP Snooping > Configuration.

7. Enable Admin Mode, Validate IGMP IP header, and Proxy Querier Mode.

8. Click Apply in the upper right corner of the browser window.

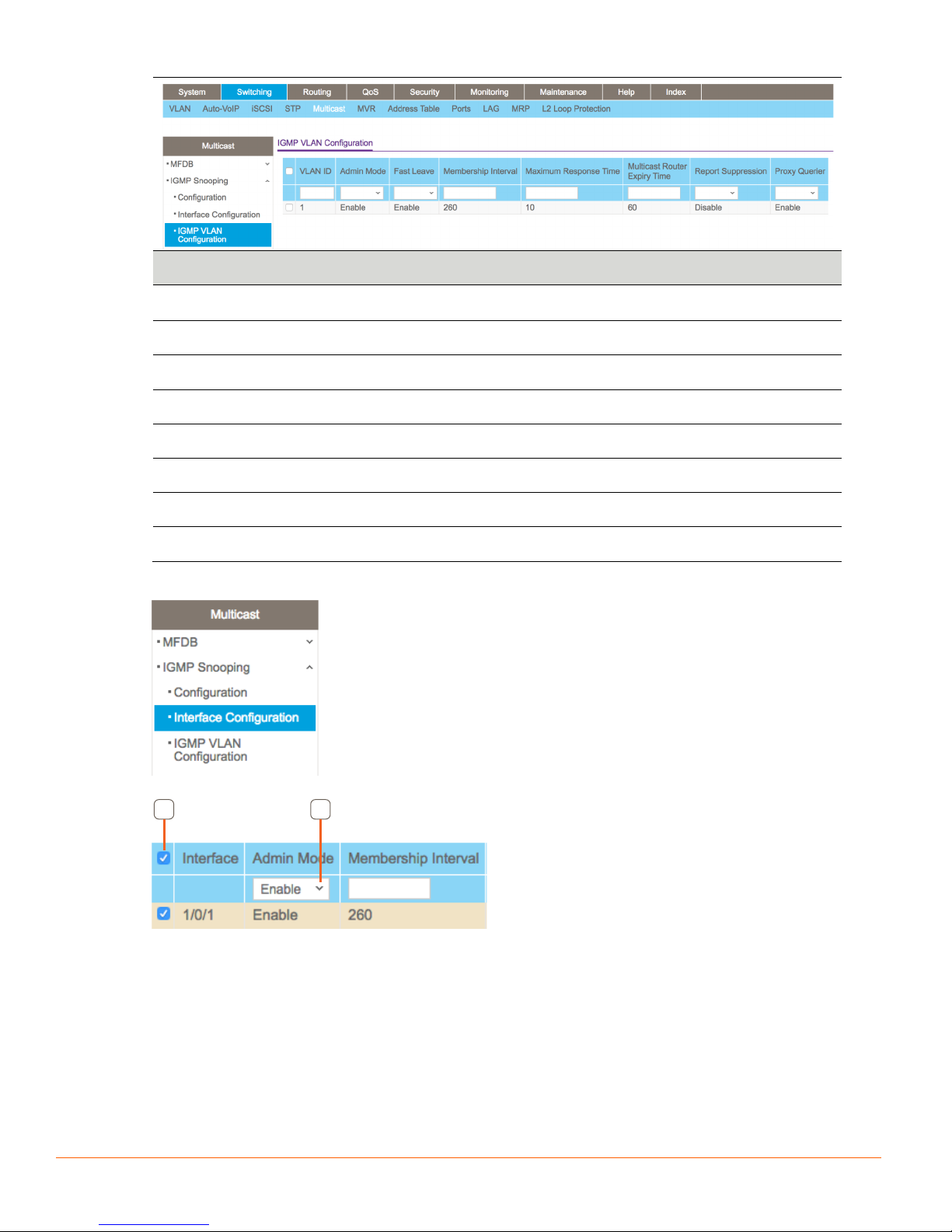

9. Still inside Switching > Multicast, go to IGMP Snooping > IGMP VLAN Configuration.

Video over IP Network Configuration Guide

009-1552-00 | 171128

7of 13

10. Adjust to the setting in the table below.
