Savant Optical Light Source Manuel utilisateur
FTK-FTEST-00
Fiber Testing Kit
Manual
1
Contents
Handheld Light Source
Overview 3
Features 3
Accessories 3
Specifications 4
Functions 5
Powering the Light Source 8
Power Supply Options 8
AA Battery 8
Replacing Batteries 8
Power Supply Unit 9
Turning the Light Source On or Off 10
Turning the Light Source On 10
Auto Shutdown Function 10
Turning the Light Source Off 10
Backlight Control 11
LDR: Intelligent Backlight Control Mode 11
Key Control Mode 11
Changing Backlight Mode 11
Laser Settings 12
Activating the Laser 12
Selecting Wavelength 12
Selecting Frequency 13
Output Power 14
Automatic Wavelength Identification 15
Automatic Frequency Detection 16
Maintenance and Troubleshooting 17
Troubleshooting 17
Warranty 18
WARNING
To avoid the risk of serious eye damage, do not look into the
laser at any time.
2
Handheld Power Meter
Overview 20
Features 20
Accessories 20
Specifications 21
Functions 22
Powering the Meter 25
Power Supply Options 25
AA Battery 25
Replacing Batteries 25
Power Supply Unit 26
Connecting Cables 27
Connecting USB Cable 27
Connecting Patch Cable 27
Turning the Power Meter On or Off 28
Turning the Power Meter On 28
Auto Shutdown Function 28
Turning the Power Meter Off 28
Backlight Control 29
LDR: Intelligent Backlight Control Mode 29
Key Control Mode 29
Changing Backlight Mode 29
Wavelength 30
Calibrating Wavelength 30
Automatic Wavelength Detection 30
Automatic Wavelength Identification Configuration 31
Automatic Frequency Detection 32
Choosing Units 33
Setting Reference Value 34
Managing Data Records 35
Saving Records 35
Viewing and Deleting Records 35
Downloading and Installing Software 36
Software Set-Up 37
Connecting the Power Meter 37
Using Test Kit Software 39
Maintenance and Troubleshooting 40
Troubleshooting 40
Warranty 41
Handheld Optical Light Source
3
Overview
This handheld optical light source is designed for fiber optic network
installation, evaluation, and maintenance. Used with its matched
optical power meter, it provides an accurate fiber network testing
solution. This light source can provide 1-4 wavelengths with stable
output power and features continuous adjustable output power. The
intelligent backlight control function reduces power usage. The opti-
cal light source has a rugged appearance and comfortable design to
clients’ requirements.
Features
• Wave ID information can be transmitted when used with the
matched optical power meter.
• Tone generation: 270HZ, 330HZ, 1KHZ, 2KHZ
• Adjustable output power
• Output power value shown on LCD display
• Intelligent backlight control (light intensity can be adjusted
according to ambient light, greatly reducing power
consumption)
• AA alkaline batteries and AC adapter for power supply
• Low battery indicator
Accessories
(1) Operation Manual
(1) Cleaning Swabs
(3) 1.5V AA battery
(1) AC Power Supply Adapter
(1) Carrying Case
Handheld Optical Light Source
4
Model Optical Light Source
Operating wavelength (nm) 850/1300/1310/1550
Applicable fiber SM, MM
Laser type FP-LD
Maximum Output Power
(dBm) -5 (adjustable)
Adjustable step size (dBm) < 0.5 (adjustable between -5-12dBm)
Stability (dB, 15min, 20°C) ±0.1
Stability (dB, 30min, 20°C) ±0.05
Modulation (Hz) CW, 270, 330,1K, 2K
Fiber Port FC/PC or FC, SC, ST interchangeable
Alkaline Battery 3*AA,1.5V
Power Supply Adapter (V) 8.4
Battery Operating time (h) 45
Operation Temperature (°C) -10 - +60
Storage Temperature (°C) -25 - +70
Dimensions (mm) / Weight 175x90x44.5 / 255g
Specifications
Handheld Optical Light Source
5
1
Power On/Off: Press to turn the unit on or off.
Auto Shut-Off Selection: Press this key quickly to turn
the auto shut-off function on or off.
2Wavelength Selection: Press to activate laser and
select wavelength.
3Backlight control: Press to select LDR (intelligent
backlight control) or backlight key mode.
4Rated power: Select default output power (dBM)
(maximum value) for wavelength in use
5Decrease: Press to decrease the rated output power
6
Frequency modulation / Wavelength identification:
Press quickly to adjust the frequency.
Press and hold to enter/exit wavelength identification
mode.
7Increase: Press to increase the output power
8B/L Set Backlight indicator
9LDR Intelligent backlight control sensor
Functions
1
2
3
4
5
6
7
8
9
Handheld Optical Light Source
6

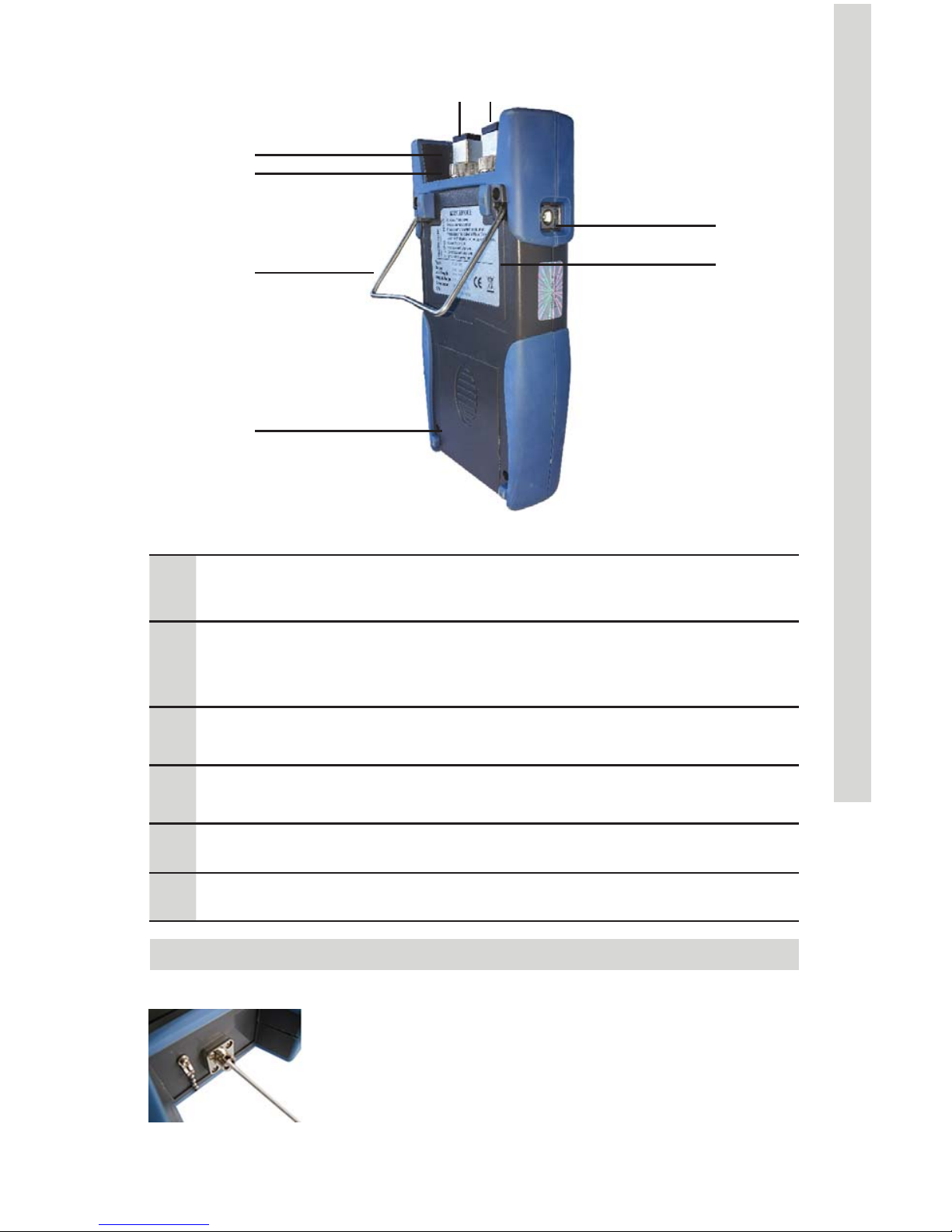

1Dust Cap: Place the dust cap over the connectors to
protect the optical connector when not in use
2
Optical Connector: SC/PC optical connector.
2A: Port 1: 1310/1550nm Output
2B: Port 2: 850/1300nm Output
3Bracket: Collapsible metal bracket can be adjusted
0-90 degrees
4Battery Pack:
Contains 3 x 1.5 AA Batteries
5Label: Basic function and instruction information
6AC Adapter Port: Connect AC adapter
Back/Side
1
2
3
4
5
6
Small amounts of dust on the connector will
affect the accuracy of the measurement. Use
isopropyl alcohol and a cotton swab to clean the
connector. Moisten the cotton swab with alcohol,
insert the cotton swab in the connector, slightly
rotating the cotton swab. Always dry using a
second dry cotton swab.
Note
2A 2B
Handheld Optical Light Source
7
1
Battery Indicator: displays when battery power in use.
The capacity shown will decrease with battery power.
Replace batteries as needed.
2AC Adapter Indicator: displays when AC power in use
3Auto-off
Auto-off: the light source will automatically shut off
when idle for ten minutes. Press power button ( )
quickly to turn Auto-Off function on or off.
4
nm
Wavelength: (nm)
850/1300: Multimode fiber testing
1310/1550: Single mode fiber testing
5Modulated Frequency: (Hz)
Dashed line indicates laser is off.
6Output Power Value: (dBm)
1
2
3
5
6
4
Screen
Handheld Optical Light Source
8
Powering the Light Source
Power Supply Options
The light source can be powered by either battery or AC adapter
power, allowing total flexibility for most testing sites and situations.
AA Battery
When batteries are in use, will display on the top left of the
screen (Screen, page 7).
There are five levels of battery power:
70%-100% power
40%-70% power
20%-40% power
Less than 20%. The power meter will shut down.
Replace batteries
Replacing Batteries
1. Push the clip fastener on the battery compartment cover down.
2. Remove the battery compartment cover and remove all three
batteries, noting their positive and negative orientation. The
negative battery connector should be against the spring.
3. Insert 3 new 1.5VV AA batteries. Be sure to align correctly.
4. Refit the battery compartment cover. The clip fastener should
click shut.
Handheld Optical Light Source
9
Power Supply Unit
AC power can be used when the batteries are empty. The AC
adapter indicator, , will display on the left of the screen when AC
power is in use (Screen, page 7). The light souce will default to AC
power supply if charged batteries are present in the unit when it is
plugged in.
When using the AC adapter, connect the power plug (pictured) and
insert it into the AC adapter port
Note
Only use the power supply unit supplied with the tester. Using
another type of power supply may damage the instrument.
AC Adapter Port
