DR308e Quick Guide

DR308e

Quick Guide

STATUS

LINE

FEED

Korean

English

First Edition December, 2007 Q02147000

Introduction

This manual is intended to help you become familiar with the basic operation of DR308e the barcode printer in a short time.

Please read this manual carefully to make full use of the functions of DR308e.

Notes

1. Reproduction of all or part of this manual is prohibited without permission of the copyright owner.

2. The information in this manual is subject to change without notice.

3. If you find any ambiguous or erroneous information in this manual, please contact your nearest

dealer or service center.

SBPL(SATO 바코드 프린터 언어)

UPC-A/UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN-128),

CODABAR (NW-7), ITF, Industrial2of5, Matrix2of5, MSI, BOOKLAND, POSTNET,

GS1 DataBar (RSS)

QR 코드, Micro QR, PDF417, Micro PDF, MAXI code, GS1 DataMatrix (ECC200)

합성기호 (JAN/EAN, UPC-A/UPC-E, GS1-128, GS1 DataBar (RSS))

(1) XU 텍스트 5 ×9 (문자 및 숫자, 기호)

(2) XS 텍스트 17 ×17(문자 및 숫자, 기호)

(3) XM 텍스트 24 ×24(문자 및 숫자)

(4) XB 텍스트 48 ×48(문자 및 숫자, 기호)

(5) XL 텍스트 48 ×48(문자 및 숫자, 기호)

(6) OCR-A 15 ×22(문자 및 숫자, 기호)

(7) OCR-B 20 ×24(문자 및 숫자, 기호)

(8) 가격 글꼴 24 ×36(숫자, 콤마, 소수점, 통화)

(9) POP1 텍스트 24 ×48(숫자, 콤마, 소수점, 통화)

(10) POP2 텍스트 60 ×90(숫자, 콤마, 소수점, 통화)

(11) POP3 텍스트 40 ×64(숫자, 콤마, 소수점, 통화)

문자 및 숫자, 기호

텍스트: 0°, 90°, 180° 및 270°

바코드: 병렬 1, 병렬 2, 직렬 1 및 직렬 2

1:2, 1:3, 2:5 사용자 정의 가능

텍스트: 수직 및 수평 방향으로 1 ~ 9배

바코드: 1 ~ 9 L

(1) 상태 보고 기능

(2) 그래픽 기능

(3) 연속 번호 지정 기능

(4) 양식 오버레이 기능

(5) 비표준 문자 저장 기능

(6) 흑백 반전 기능

(7) 선 및 상자 그리기 기능

(8) 형식 저장 기능

(9) 제로 슬래시 선택 기능

(10) JIS/Shift-JIS 선택 기능

(11) 캘린더 기능(캘린더 IC가 설치되어 있는 경우)

(1) 파손된 헤드 부품 점검

(2) 용지 끝부분 감지

(3) 테스트 인쇄

(4) 리본 끝부분 감지

(5) 리본 뒤쪽 끝부분 감지

(6) 캘린더 확인(캘린더 IC가 설치되어 있는 경우)

(7) 헤드 열림

(8) 컷터 오류(컷터 유니트가 설치되어 있는 경우)

외경: W211mm ×D350mm ×H240mm

무게: 약 8kg

입력 전압: AC100V ~ 240V±10%

정격 입력 전압: AC 100V ~ 240V(전범위)

최대: 104W 대기 시: 24W (평균)

사용 환경: 5 ~ 40℃/30 ~ 80%(응결 없음)

보관 환경: -5 ~ 60℃/30 ~ 90%(응결 없음)

명령

바코드

2차원 코드

사용 가능한

텍스트 종류

인쇄 방향

(텍스트/바코드)

바코드 비율

다양한 기능

자기진단 기능

전원 공급

온도 및 습도 환경

크기, 폭

합성 기호

내장 글꼴

윤곽선 글꼴

확대율 (텍스트/바코드)

타사 제품의 등록 및 상표에 관한 주의

QR 코드는 Denso Wave Incorporated의 등록 상표입니다.

소비 전력

English

Table of Contents

Introduction ................................................................................................................................................................................ 2

Notes .......................................................................................................................................................................................... 2

Safety Precautions ..................................................................................................................................................................... 4

Precautions for Installation and Handling................................................................................................................................... 8

Unpacking .................................................................................................................................................................................. 9

Parts Name .............................................................................................................................................................................. 11

Setting Labels .......................................................................................................................................................................... 14

When Using a Large Paper Core (Ø 100 Outer Diameter) ................................................................................................... 16

When Using a Small Paper Core (Ø 40 Outer Diameter) ...................................................................................................... 19

Loading the Ribbon .................................................................................................................................................................. 20

Tu r ning On Power .................................................................................................................................................................... 23

Basic Specifications of DR308e ............................................................................................................................................... 26

English

WARNING

Safety Precautions

In this section, safety precautions about printer operation are explained to ensure proper care and usage.

Make sure to read these carefully before using your printer.

Markings and Symbols

The following symbols or markings are used in this manual and on the printer so that you can properly use the

printer, and to prevent any damage to property, harm or injury to yourself and others.

Make sure to read their explanations carefully to familiarize yourself with their meanings.

This symbol indicates information that, if ignored or applied incorrectly, creates the danger of

death or serious personal injury.

This symbol indicates information that, if ignored or applied incorrectly, creates the possibility

of personal injury or property damage.

Symbol examples

The triangle indicates something you should take absolute care with. The cautions are indicated

concretely within the symbol. The symbol on the left indicates a risk of electric shock.

A circle with a diagonal line indicates something you should not do. The symbol on the left indicates

that you should not try to take the unit apart.

A black circle with a picture inside indicates something you need to do. The symbol on the left indicates

that you should unplug the unit from the wall outlet.

WARNING

Place the printer on a surface that is flat and level

Do not leave the printer on unstable surfaces. If the printer falls and hits someone, it could cause

injury.

Do not expose the printer to liquids or moisture

Do not place objects filled with liquids, such as beverages, vases, or chemical product near the

printer. Also, do not place small metal objects near the printer. If the liquids have been spilled or

objects have fallen into the printer, turn off the power immediately, disconnect the power cord from

the power outlet, and contact your nearest dealer, service center or the store where you purchased

the printer. Continue use of the printer in this condition may cause fire or electric shock.

Do not insert foreign material into the printer

Do not insert or drop any metal objects or flammable objects into the openings (cable end). If the

foreign material has fallen into the printer, turn off the power immediately, disconnect the power cord

from the power outlet, and contact your nearest dealer or service center or the store where you

purchased the printer. Continue use of the printer in this condition may cause fire or electric shock.

CAUTION

English

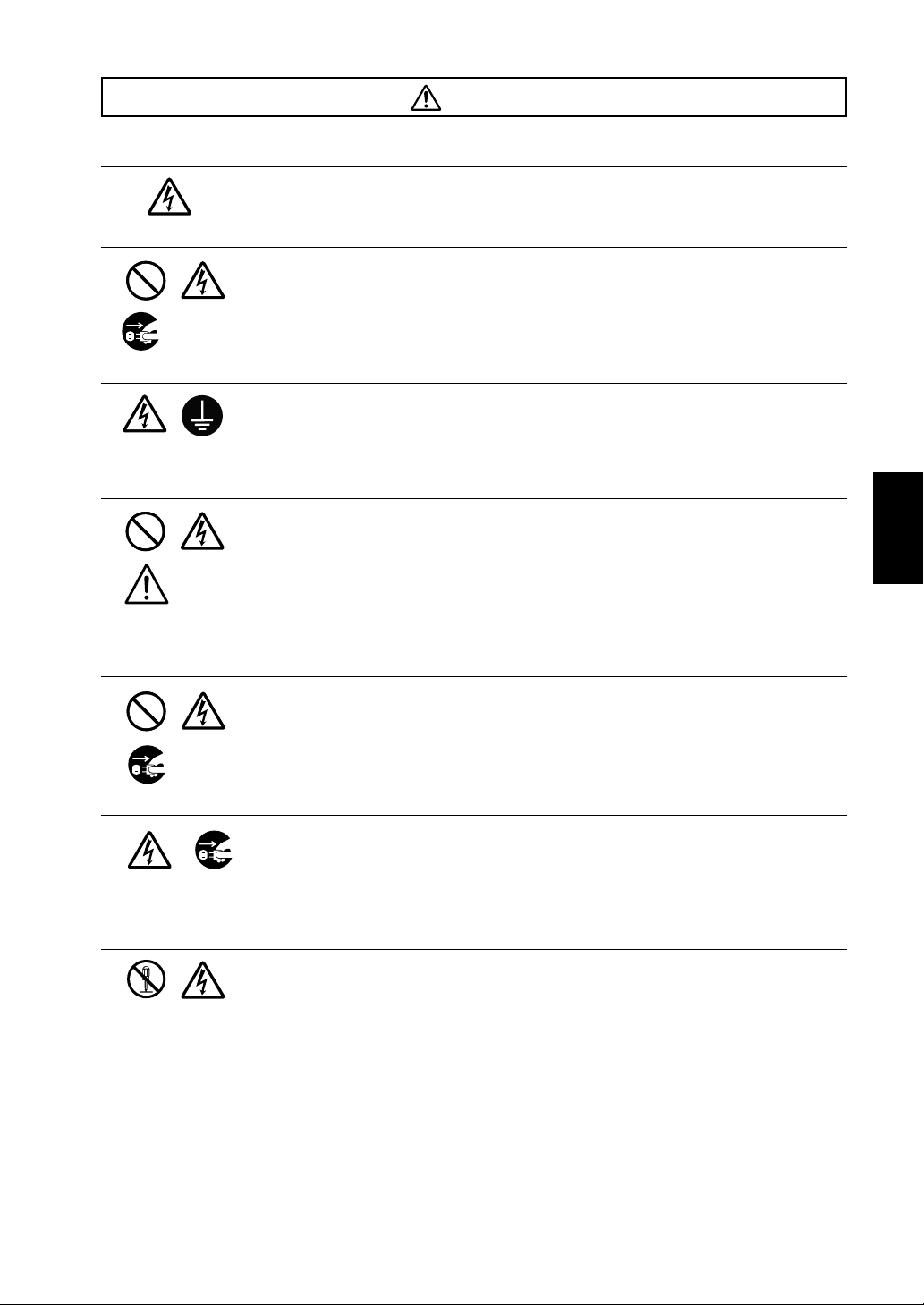

WARNING

Use only the designated electrical power and voltage

Use the type of power source indicated on the printer. Different voltage may cause fire or electric

shock.

Connect ground wire

Make sure to connect the ground wire of the printer to the ground slot. Failure to do so may cause

electric shock.

Do not insert foreign material into the printer

Do not insert or drop any metal objects or flammable objects into the openings (cable end). If the

foreign material has fallen into the printer, turn off the power immediately, disconnect the power cord

from the power outlet, and contact your nearest dealer or service center or the store where you

purchased the printer. Continue use of the printer in this condition may cause fire or electric shock.

Power cord

•Do not attempt to damage, break, or modify the power cord. Also, avoid placing a heavy object

on, heating, or pulling the power cord. This may damage the power cord causing fire and

electric shock.

•If the power cord becomes damaged in any way (exposed cable core, breaking of wire), contact

your nearest dealer, service center or the store where you purchased the printer. Continue use

of damaged power cord may cause fire or electric shock.

•Do not attempt to modify, jerk, knot, sharply bend, or otherwise abuse the power cord. Continue

use of damaged power cord may cause fire or electric shock.

In case of drop or damage

If the printer was dropped or damaged, turn off the power immediately, disconnect the power cord

from the power outlet, and contact your nearest dealer, service center or the store where you

purchased the printer. Continue use of the printer in this condition may cause fire or electric shock.

Do not use the printer in abnormal condition

In the case of abnormalities such as smoke or foul odors from the printer, stop using the printer

immediately. Continue use of the printer in this condition may cause fire or electric shock. Turn off

the power immediately, disconnect the power cord from the power outlet, and contact your nearest

dealer, service center or the store where you purchased the printer. Do not attempt to repair the

printer yourself.

Do not disassemble

Do not attempt to disassemble or modify the printer. Fire or electric shock may occur. For service

and repair of internal problem, please contact your nearest dealer or service center or the store

where you purchased the printer for assistance.

English

Cutter

Do not insert your hands or any other object inside the cutter. Such actions may result in injury.

Handling of the head cleaning fluid

•The head cleaning fluid is flammable. Never heat it or throw it into a fire.

•To prevent children from accidentally swallowing the cleaning fluid, store it in a location that is

out of their reach. If it is swallowed, consult a doctor immediately.

CAUTION

Do not use in locations with high humidity

Do not place the printer in any places where it will be subjected to high humidity or condensation. If

condensing, turn off the power switch immediately, stop using it and dry completely without using

any heat producing devices. Continued use under these conditions may cause electric shock.

Carrying the printer

•Disconnect the power cord from a power outlet before moving the printer to other places.

Leaving it connected and moving the printer will damage to the cord and connections. This may

cause fire or electric shock.

•Do not carry the printer when the label is set. If the label falls and hits someone, it could cause

injury.

•When placing the printer on the floor or the table, be careful not to get your fingers or hands

caught in the legs of the printer.

Power supply

Do not touch the power switch or plug-in/unplug the power cord with wet hands. This may cause

electric shock.

Power cord

•Keep the power cord out of any appliances that produce heat. This may melt the coating of

power cord and cause fire or electric shock.

•When disconnecting the power cord from the printer or a power outlet, pull on the plug. If not, it

may cause exposure of wire, breaking of wire, overheating, fire or electric shock.

• The power cord provided with this printer is for use with this printer only. It cannot be used with

other electrical devices.

Cover

When opening/closing the cover, be careful not to get your fingers caught.

English

CAUTION

Thermal head

•Thermal head will become hot during the printing process. When changing labels or when

cleaning after printing, be careful not to get burnt.

•Contact with the edge of thermal head with bare hands may cause injury. When changing

labels or when cleaning, be careful not to get injured.

•Take care when replacing the thermal head. Failure to do so may result in injury, burns or

electric shock.

Opening and closing thermal head

Do not insert foreign material other than labels when opening/closing the thermal head. This may

result in injury or malfunction.

Setting labels

When setting the roll labels, please be careful not to get your fingers caught between the label and

label supply spindle.

Cutter

This part contains a blade. Take care to avoid cutting your hands.

When unused for long periods of time

Disconnect the power cord from a power outlet when unused for long periods of time.

Maintenance and cleaning

Disconnect the power cord from a power outlet when maintaining or cleaning the printer.

*Compliance Statements for Acoustic Noise – Equipment and Product Safety Act (3rd version - GPSGV). The emitted sound

pressure resulted in 70 dB(A) or less per EN ISO 7779.

*This device is not intended for use at a video workstation in compliance with BildsharbV.

*Do not replace a fuse yourself.

*If a fuse has blown, contact the retailer, dealer, or support center.

English

This printer requires an AC power supply.

Be sure to connect the printer to an AC

power supply.

Failure to do so may result in miss

operation or a malfunction.

Connect the power cord to a grounded

power outlet.

Make sure to have the facility

equipped with the ground slot.

Precautions for Installation and Handling

Printer operation can be affected by the printer environment.

Refer to the following instructions for installation and handling of DR308e Series.

Select a Safe Location

Place the printer on a surface that is flat and

level.

If the surface is not flat and level, this

may result in poor print quality. This

may also cause malfunction and

shorten the life span of the printer.

Do not place the printer on a location that

produces vibration.

Do not carry the printer when the roll

label is set. Giving serious vibration

or shock to the printer may cause

malfunction and shorten the life span

of the printer.

Do not place the printer near crane or

pressing machine.

Machineries such as crane and

pressing machine require large

amount of power. This may cause

electrical noise or voltage reduction.

Avoid such locations to reduce the

risk of malfunction or damage to the

printer.

Keep the printer out of high temperature and

humidity.

Avoid locations subject to extreme or

rapid changes in temperature or

humidity. Exposure to these condi-

tions may cause electrical problems

within the printer.

Do not place the printer in a location subject

to water or oil.

Do not place the printer in a location

where it will be splashed with water or

oil. Water or oil entering inside the

printer may cause a fire, electric

shock, or malfunction.

Avoid dust.

Dust buildup may result in poor print

quality. This may cause not only

malfunction but also shorten the life

span of the printer.

Keep out of direct sunlight.

This printer has a built-in optical

sensor. Exposure to direct sunlight

will make the sensor less responsive

and may cause the label to be sensed

incorrectly. Close the cover when

printing.

Power Supply

STA

TUS

LINEFEED

STATUS

LINEFEED

STATUS

LINEFEED

STATUS

LINEFEED

STATUS

LINEFEED

STATUS

LINEFEED

STATUS

LINEFEED

STATUS

LINEFEED

Provide a stable source of electricity to the

printer.

Do not share the power outlets with other appliances such

as a heater and refrigerator requiring a measurable amount

of power. Also, avoid using the power outlet near where

such appliances are plugged into. This may cause voltage

reduction and malfunction.

STA

TUS

LINEFEED

Ground

English

Unpacking

Unpack the printer and place it in the designated location. First of all, open the box.

Next, remove the printer and place it in the designated location.

Printer

Box of accessories

Cushioning material

Box

* The shape of the cushioning material (cushions that holds the printer in place) may differ from that shown.

English

Quick

Guide

Accessories

Make sure you have received all of the following items in this package. If there are any accessories missing, contact your

nearest dealer or the store where you purchased the printer.

About the box

Please retain both the box in which the printer was packed and the cushioning material

(cushions that hold the printer in place). If you need to send the printer in for repair,

repack it in this box.

Leaflet (Warranty)

Quick Guide Head cleaning sheet

(lapping sheet)

Power cord

Guide plates (extension label

guides), boss, boss securing screw

Ferrite core (for attaching

to power cord)

Ribbon core (for winding)

Autres manuels pour DR308e

Table des matières

Langues :

Autres manuels SATO Lecteur de codes-barres

SATO

SATO CL4NX RIDF Manuel utilisateur

SATO

SATO ARGOX GPIO Manuel utilisateur

SATO

SATO ARGOX AS-9400DC Manuel utilisateur

SATO

SATO Argox AR-3201 Manuel utilisateur

SATO

SATO CG412DT Manuel utilisateur

SATO

SATO VP208 Manuel utilisateur

SATO

SATO CL4e Series Manuel utilisateur

SATO

SATO MB400 Manuel utilisateur

SATO

SATO GT4e Manuel utilisateur

SATO

SATO PV3 Instructions de montage

SATO

SATO MB400I Manuel utilisateur

SATO

SATO PV4 Manuel utilisateur

SATO

SATO Argox AR-3100 Manuel utilisateur

SATO

SATO TC408 Manuel utilisateur

SATO

SATO ARGOX AS-9400BT Manuel utilisateur

SATO

SATO MB 200i Manuel utilisateur

SATO

SATO WS408TT-STD Manuel utilisateur

SATO

SATO MB200 Manuel utilisateur

SATO

SATO Argox AI-6800 Manuel utilisateur

SATO

SATO MB400 Manuel utilisateur

SATO

SATO GT400 series Manuel utilisateur

SATO

SATO SG112 ex Manuel utilisateur

SATO

SATO ARGOX AS-9400 Manuel utilisateur

SATO

SATO GL 4xxe Series Manuel utilisateur

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur
