1. Introduction

This manual describes how to operate the following fire alarm control panels:

CSP-104 - 4 zone conventional fire alarm control panel,

CSP-108 - 8 zone conventional fire alarm control panel,

CSP-204 - 4 zone conventional fire alarm control panel with LCD display,

CSP-208 - 8 zone conventional fire alarm control panel with LCD display.

The manual also covers remote operation of the fire alarm control panels by means of

repeater panels and explains how to use the virtual panel.

Please read this manual carefully before use.

Fig. 1. Typical components included in the fire alarm system.

SATEL Operation manual 3

2. Front panel description

The following items are placed on the front panel of the control panel / repeater panel:

LED indicators;

control buttons;

insert with zone descriptions to facilitate identification of the alarm source;

LCD display to make easier transmission of information (only CSP-204, PSP-204,

CSP-208 and PSP-208);

key switch to enable changing the access level.

Fig. 2. Front panel of the CSP-208 control panel.

Fig. 3. Front panel of the PSP-208 repeater panel.

4 CSP-204 ●CSP-208 ●CSP-104 ●CSP-108 SATEL

Fig. 4. Front panel of the CSP-204 control panel.

Fig. 5. Front panel of the PSP-204 repeater panel.

SATEL Operation manual 5

Fig. 6. Front panel of the CSP-108 control panel.

Fig. 7. Front panel of the PSP-108 repeater panel.

6 CSP-204 ●CSP-208 ●CSP-104 ●CSP-108 SATEL

Fig. 8. Front panel of the CSP-104 control panel.

Fig. 9. Front panel of the PSP-104 repeater panel.

2.1 LED indicators

LED Description Color Indications

fault yellow ON – fault

blinking – fault memory

test yellow

blinking – test function is activated

ON – test of zones, sounders, fire alarm routing

output or fault warning routing output is running

disabled yellow

blinking – disablement function is activated

ON – zones, sounders, fire alarm routing output or

fault warning routing output are disabled

SATEL Operation manual 7

zone 1

zone 2

zone 3

zone 4

zone 5

zone 6

zone 7

zone 8

yellow blinking – zone fault (short-circuit or break)

ON – zone is disabled or is being tested

fire routing yellow blinking – output fault (short-circuit or break)

ON – output is disabled or is being tested

fault routing yellow blinking – output fault (short-circuit or break)

ON – output is disabled or is being tested

sounders yellow blinking – sounder fault (short-circuit or break)

ON – sounders are disabled or are being tested

power yellow

blinking – power supply failure (loss of 230 V AC

mains, missing battery, low battery, high battery

resistance)

auxiliary devices yellow

blinking – programmable input fault (short-circuit

or break), fault signaled by a device connected to

programmable input, power output fault

(overload), repeater panel or CSP-ETH module

not present, repeater panel fault

system yellow

blinking – control panel hardware fault,

microprocessor-based system fault, corrupted

data in control panel memory, or alarm log

overflow

earth fault yellow blinking – earth fault in one of the circuits of fire

alarm system

fault routing yellow

blinking – fault warning routing output is active

(no confirmation of transmission)

ON – fault warning routing output is active and

transmission is confirmed

fire routing red

blinking – fire alarm routing output is active (no

confirmation of transmission)

ON – fire alarm routing output is active and

transmission is confirmed

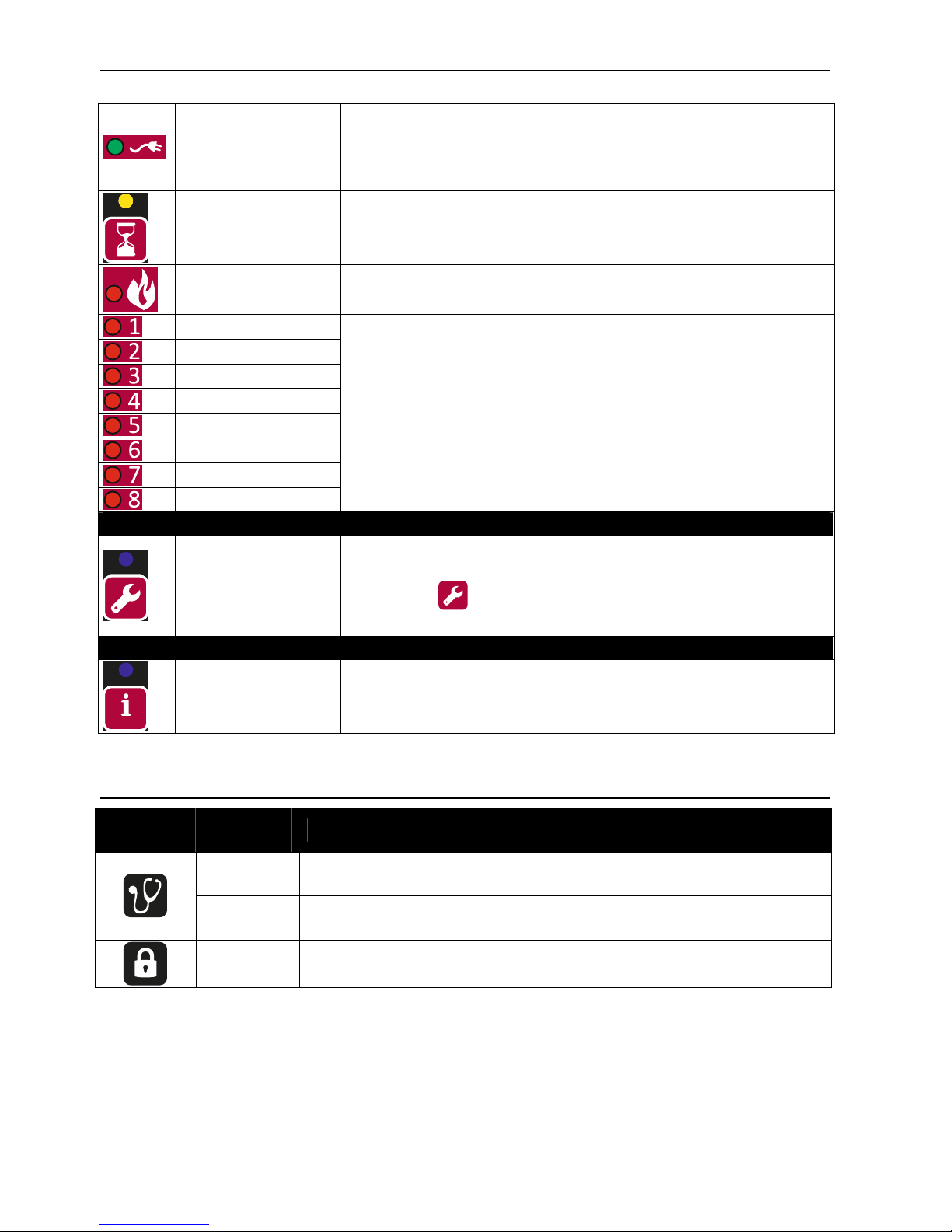

8 CSP-204 ●CSP-208 ●CSP-104 ●CSP-108 SATEL

power green

ON – control panel is supplied from 230 V AC

mains

blinking – control panel is supplied from a battery

(no 230 V AC supply)

delays yellow

ON – two-stage alarm mode is enabled (second

stage alarm is delayed)

fire red

blinking – fire alarm

ON – fire alarm acknowledged by the operator

fire in zone 1

fire in zone 2

fire in zone 3

fire in zone 4

fire in zone 5

fire in zone 6

fire in zone 7

fire in zone 8

red

slow blinking – pre-alarm

fast blinking – first alarm

ON – next alarm

Only the control panel

service blue

slow blinking – access level 2

fast blinking – waiting for code entry after the

key is pressed

ON – access level 3 (programming)

Only the repeater panel

info blue

slow blinking – access level 2

ON – repeater panel cannot be operated

2.2 Buttons

Button Access

level Function

1 - starts the test of LED indicators and built-in sounder of control

panel / repeater panel

2 - starts the function of testing zones, sounders, fire alarm routing

output or fault warning routing output

2 - starts the function of disabling zones, sounders, fire alarm

routing output or fault warning routing output

SATEL Operation manual 9

- after pressing the button – disables / enables the zone

- after pressing the button – starts / stops the zone test

- after pressing the button – the buttons 1-4 allow to enter the

level 3 access code (programming)

- after pressing the button – disables / enables the fire alarm

routing output

- after pressing the button – starts a test of the fire alarm

routing output

- after pressing the button – disables / enables the fault

warning routing output

- after pressing the button – starts test of the fault warning

routing output

- deactivates / activates sounders during a fire alarm

- after pressing the button – disables / enables the sounders

- after pressing the button – starts a test of the sounders

1 or 2

- acknowledges the alarm or fault warning and silences the

acoustic signaling in control panel and repeater panel

- resets the fault memory

2 - resets the fire alarm

- resets the fault

2 - activates / deactivates two-stage alarm mode (second stage

alarm delay)

Only the control panel

1 - allows to check whether level 2 operation is available on the

repeater panel

2 - allows to gain level 3 access (control panel programming)

Only the repeater panel

1 - allows to check whether level 2 operation is available on the

control panel's front panel
