KEYPAD

CA-6 KLED

ca6kled_e 04/07

The CA-6 KLED keypad is designed for operating and programming the CA-6 alarm

control panel. Information on the security system status is provided by 15 LED

indicators and acoustic signals. The keypad has 12 keys intended for entering data

and launching selected functions. The keys can be illuminated, and operations with

them can be audibly acknowledged.

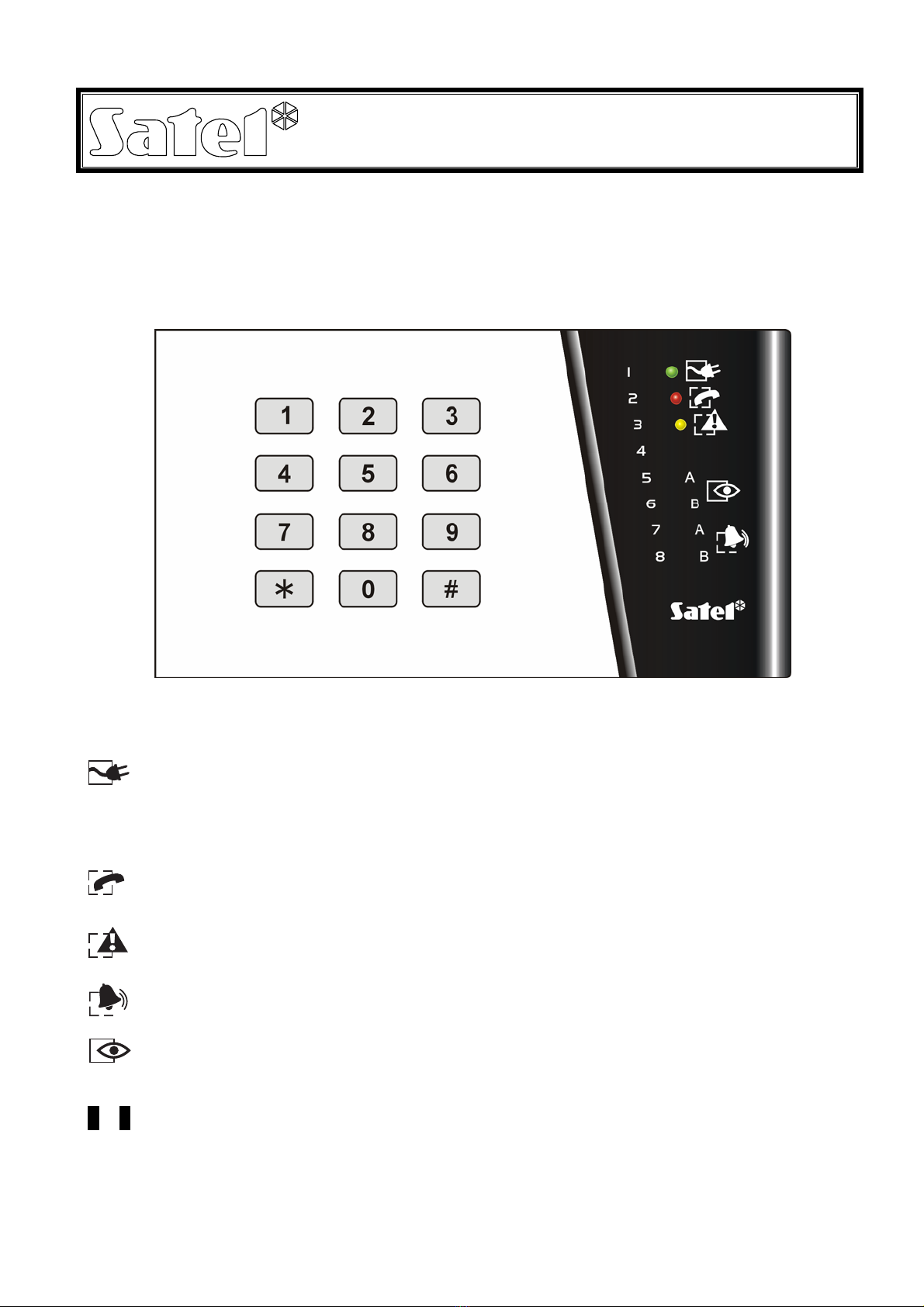

Fig. 1. View of the keypad.

LED indicators show the current status of 2 partitions and 8 zones of the control panel:

POWER (green color) – the LED indicates the control panel power status:

−ON – mains supply and battery OK,

−blinking – low battery,

−OFF – AC loss.

PHONE (red color) – LED ON indicates that the telephone line is occupied by

the control panel.

TROUBLE (yellow color) – blinking LED indicates there is a failure in the alarm

system.

ALARM - 2 LEDs (red color), designated "A" and "B", assigned to partitions –

alarm is signaled by the LED blinking. The LED goes out after alarm reset.

ARMED - 2 LEDs (green color), designated "A" and "B", assigned to partitions –

armed status is signaled by the LED ON. The blinking LED indicates that the

partition exit delay countdown is in process.

1…8- (red color) LEDs indicating the status of system zones:

−ON – zone violated,

−blinking fast – alarm memory (the zone triggered alarm, but is not

violated any more),

SATEL CA-6 KLED2

−ON with a short extinguishment every 2 seconds – detector tamper

(2EOL zone type),

−flashing 2 every 2 seconds – tamper memory (detector was tampered

with - 2EOL zone type),

−blinking slowly – zone bypassed (indicated only with the partition

disarmed).

Some of the control panel states are additionally indicated by the following LED

combinations:

•[POWER] and [PHONE] LEDs are blinking alternately - the control panel is in

the service mode;

•[POWER], [PHONE] and [TROUBLE] LEDs are blinking simultaneously - the

control panel signals entering into the user functions menu;

•[POWER], [PHONE], [TROUBLE] and [ALARM] (both) LEDs are ON - the

control panel performs the alarm memory display function;

•[TROUBLE] LED is blinking, [POWER] and [PHONE] LEDs are ON - the

control panel performs the trouble memory display function.

For further information regarding the installation and operation of the keypad please

refer to the INSTALLER MANUAL and USER MANUAL of the CA-6 alarm control panel.

Technical data

Nominal supply voltage (±15%).......................................................................... 12V DC

Average current consumption.................................................................................15mA

Operating temperature range ................................................................... -10°C…+55°C

Housing dimensions (width x height x thickness).................................... 144x80x27mm

Weight ..................................................................................................................... 154g

The latest EC declaration of conformity and product approval certificates

are available for downloading on the www.satel.pl website

SATEL sp. z o.o.

ul. Schuberta 79

80-172 Gdańsk

POLAND

tel. + 48 58 320 94 00

[email protected]

www.satel.pl
