SAT-Kabel TVmeter HD-T Guide de configuration

Correct power OFF/ON procedure for meters to avoid occasional

Memory Plans and navigation cancellation

The red button has four timed functions:

1st) One shot = turn-ON

2nd) One shot (when on) = always goes the to HOME MENU

3rd) If kept pressed for 2 seconds = turn-OFF

4th) Kept pressed for about 10 seconds = HW reset, Forced turn-off, (interrupts the

ongoing data saving in memory).

POWER ON:

Press once the red button and wait until the start -up is completed, about 20

seconds (do not press it again during the start-up phase).

POWER OFF:

Press and hold the red button , the instrument will emit a first beep immediately

and a second BEEP after about 2 seconds, then release immediately the red button

(even if the display is still active and shows the batteries instructions).

CAUTION:

Do not keep pressed the red button after the second BEEP, to avoid starting the

HW reset function (forced turn-off see poit 4). Basically, every time you turn off the

instrument, it needs about ten seconds to save the data in memory before turn-off. If

accidentaly you interrupt this storing process, activating the HW Reset function the

data in memory could be corrupted. In any case you can restore the memory plans

yourself with a PC.

TVmeter HD-T / TVmeter HD

Self Repair

Your Meter has lost memory plans, TV Channel Plan

and Transponder SAT?

The total or partial cancellation, of the plans of memory and SAT & TV, can occur

randomly and rarely for a wrong turning off the power. Basically if you normally take

and hold the RED button "Home" for more than two seconds (eg 6 or 7 seconds) in

some rare cases, it may conflict with the "reset"; while the tool (which is shutting

down) is still saving the data in memory.

Correct procedure for instruments:

·Press and hold the red button , the instrument will emit a first beep

immediately and a second BEEP after about 2 seconds, then release

immediately the red button (even if the display is still active and shows the

batteries instructions).

CAUTION:

·Do not keep pressed the red button after the second BEEP, to avoid starting the

HW reset function (forced turn-off see poit 4). Basically, every time you turn off the

instrument, it needs about ten seconds to save the data in memory before turn-off. If

accidentaly you interrupt this storing process, activating the HW Reset function the

data in memory coul be corrupted. In any case you can restore the memory plans

yourself with a PC.

IMPORTANT: In SINGLE DISPLAY COLOR models before to reload/update the

memory Plans and the SW, it is necessary to do a FORMAT HD (Figure 1) to fully

clean the memories of your instrument.

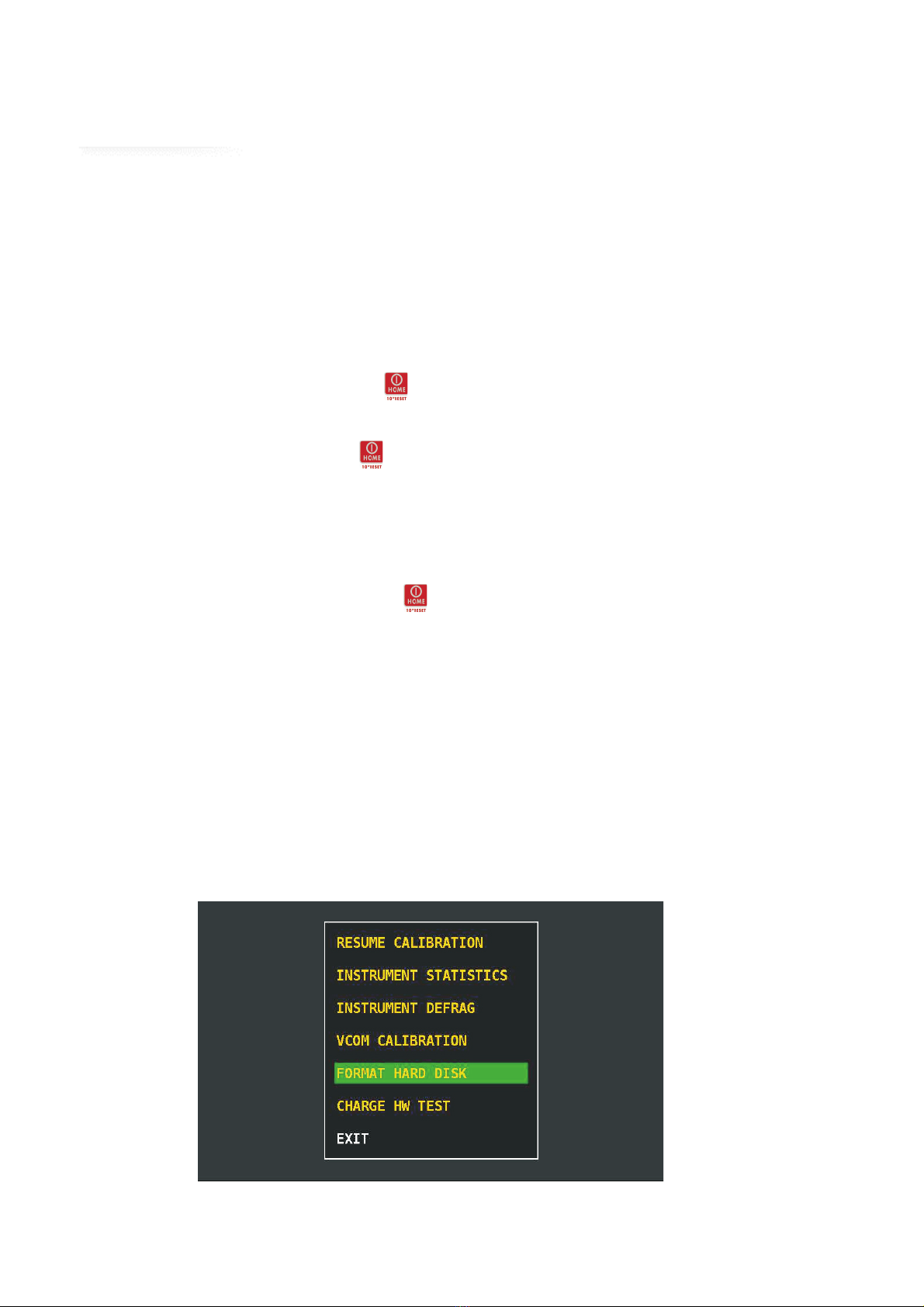

Figure 1: Menu selection "FORMAT HARD DISK"
