Sargent H1 Manuel utilisateur

FCC ID: U4A-PRXTRMH1 IC ID: 6982A-PRXTRMH1 Report No. M060902_Cert_Rx

EMC Technologies Pty Ltd – 176 Harrick Road, Keilor Park VIC 3042 Australia

www.emctech.com.au

EMC Technologies Report Number: M060902_Cert_Rx

APPENDIX G

USER MANUAL

Installation Instructions For

Harmony Series

H1 Mortise Lock

A7877A

03/07

©SARGENT Manufacturing Company 2007

Table of Contents

Warning

General Description.....................................................1

Specifications............................................................1

Features ..................................................................1

Parts Breakdown .......................................................2-3

Installation Instructions ..............................................4-11

Operational Check......................................................12

Page

This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

aresidential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

•Consult the dealer or an experienced TV technician for help

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme avec la norme NMB-003 du Canada.

Warning

1Warning: Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

For installation assistance, contact SARGENT at 800-810-WIRE (9473)

A7877A ©SARGENT Manufacturing Company 2007

Harmony Series H1 Mortise Lock

The SARGENT Harmony Series H1 Mortise Lock is designed to interface with an existing weigand access

control system.

General Description

Specifications

• Latch - Stainless steel 3⁄4" projection one-piece

• Deadbolt - One-piece hardened stainless steel

• Guardbolt - Stainless steel, non-handed

• Handed - Easily field reversible without

opening case

• Case - 12 gauge heavy duty wrought steel

• Outside lever controlled by any prox credentials

• Inside lever provides REX signal and retracts latch

and deadbolt

• Locks furnished for 1-3/4" doors. Can be

furnished for other door sizes upon request.

Consult factory

• U.L. Listed (3 hr.)

Features

• Complete monitoring of door from locks

•Wires directly to Access Control System

• 12 or 24 VDC Fail Safe/Fail Secure

• HID 125khz proximity credentials

•All HID Bit formats

Harmony Series

Wiegand

Access Control

System

(By Others)

Power

12VDC or 24VDC

For installation assistance, contact SARGENT at 800-810-WIRE (9473)

©SARGENT Manufacturing Company 2007 A7877A

16/17

18/19

24/25/26

Harmony Series H1 Mortise Lock

5Parts Breakdown

For installation assistance, contact SARGENT at 800-810-WIRE (9473)

A7877A ©SARGENT Manufacturing Company 2007

Harmony Series H1 Mortise Lock

5Parts Breakdown (Continued)

ITEM PART No. DESCRIPTION REQ’D

152-5188 Outside Escutcheon Reader Assembly w/Cylinder 1

1 52-5189 Outside Escutcheon Reader Assembly w/o Cylinder 1

252-5184 Inside Escutcheon Assembly w/Turn 1

2 52-5185 Inside Escutcheon Assembly w/o Turn 1

352-0798 Mounting Plate - Mortise 1

4Reference Harmony Series catalog for available lever handles

5Reference Harmony Series catalog for available Rose styles 2

682-0347 Inside/Outside Spring 2

782-0614 Spindle Anchor 1

882-0368 Inside/Outside Spindle 2

981-0723 Mounting Post 2

10 01-0079 Washer 2

11 82-3082 Plate Assembly 1

12 82-0184 Cap Nut 1

13 82-3088 Inside Spindle Adapter and Plate Assembly 1

14 01-1495 Screw #8-32 x 1/2" 2

16 Lock Body Assembly w/Dead Bolt - 82280-82283 12/24V Functions 1

17 Lock Body Assembly w/o Dead Bolt - 82270-82273 12/24V Functions 1

18 82-0081 Face Plate w/o Dead Bolt 1

19 82-0084 Face Plate w/ Dead Bolt 1

20 77-1467 Through-bolts #8-32 x 2" Phillips Flat Head Screw 2

21 01-1218 Wood Screw #6 x 3/8" Phillips Flat Head 4

22 01-4577 Escutcheon Screw #8-32 x 5/8" Phillips Flat Head 1

23 01-1028 Escutcheon Screw #8-32 x 1/4" Phillips Flat Head 1

24 01-1472 Lever Handle Screw, A, E and F Lever 1

25 01-1174 Lever Handle Screw, B, J, L, P and W Lever 1

26 82-0995 Lever Handle Screw - Studio Collection 1

27 01-2299 Lock Body Screw - Wood Door #12 x 1 1/4" 2

28 01-1019 Lock Body Screw - Metal Door #12-24 x 1/2" 2

29 01-1028 Face Plate Screw Machine - #8-32 x 1/4" 2

30 52-0796 Gasket Harmony Outside - Mortise 1

31 52-0795 Gasket Harmony Inside - Mortise 1

32 82-4576 Adapter and Plate Assembly (DL) 1

33 82-0691 Bushing Outside (DL) 1

34 82-4577 Inside Adapter Plate and Bushing Assembly (DL) 1

For installation assistance, contact SARGENT at 800-810-WIRE (9473)

©SARGENT Manufacturing Company 2007 A7877A

Harmony Series H1 Mortise Lock

Installation Instructions

Verify Hand and Bevel of Door

Thru-bolt hole

2 places

Outside cylinder hole

76/78 functions only

Lever handle hole

Pre-drilled and/or

Tapped holes 2 places

Outside

of door

Hole for cable from

Reader to controller board

Inside cylinder hole

Thumb turn hole

Lever handle hole

Mortise area

Inside

of door

Pre-drilled and/or

Tapped holes 2 places

Raceway for

network/power cable

(ELynx) 12 Conductor

BeforeStarting

Wood door - A7879 template ships with product. For replacement

template, contact SARGENT (4541 for raceway, wood and metal door)

Metal door - 4590 for Locks With Deadbolt

Step #1 – Door Preparation

For installation assistance, contact SARGENT at 800-810-WIRE (9473)

A7877A ©SARGENT Manufacturing Company 2007

Harmony Series H1 Mortise Lock

Step #2 – How to Reverse Lock Hand

Connector

Red color

locking piece

indicates locked side

Note: Beveled surface of latch must face strike.

The deadlatch is self adjusting. Tochange hand of latch:

1. Insertscrewdriver blade into the spade shaped slot

2. Rotate screwdriver 90º to push latch out until back of latch

clears lock front. Then rotate latch 180º.

Latch will then re-enter lockbody.

(Note: Latch can not be unscrewed)

Note: Red surface of locking piece must face secure side of door.

Torotate locking piece:

1. Position lockbody with red surface of locking piece visible

2. Insert blade type screwdriver into locking piece slot to rotate

locking piece

3. Push locking piece toward back of lock body and rotate 180°

until RED surface shows on opposite side

4. Red indicates locked (outside) side.

5. Wire harness MUST exit thru non-cylinder side.

Right hand

shown

Triangular

slot

Locking

guide slot

Rotate

Push in

Red color

locking piece

indicates locked side

End Cap

End

cap

Connector

Outside of

door

Connector

and wires

Latchbolt

Connector

and wires

Latchbolt

Front

Deadbolt

Dead latch

End

cap

Outside of

door

Right hand

shown

Triangular

slot

Locking

guide slot

Rotate

Push in

Red color

locking piece

indicates locked side

End Cap

End

cap

Connector

Latchbolt

Outside of

door

Front

Deadbolt

Dead latch

Connector

and wires

Latchbolt

For installation assistance, contact SARGENT at 800-810-WIRE (9473)

©SARGENT Manufacturing Company 2007 A7877A

Harmony Series H1 Mortise Lock

(2)#12-24 x 1/2" long

flat head screws

for metal doors.

flat head wood screws

for wood doors.

Must feed

connectors and

wires thru

non-cylinder

side

Inside of

door

(2)#12 x 1=1/4" long

Step #3 – Lockbody Installation

Step #4 – Inside Mounting

Plate Installation

Wires and connector go into the mortised

area and out of the inside cylinder hole

Inside of

door

Self tapping screws

#8 x 1/2" long for

wood and metal doors

4 required

1/8" Dia hole

4 required

1. Securethe mounting plate with (4) self tapping

screws (#8 x 1/2").

For installation assistance, contact SARGENT at 800-810-WIRE (9473)

A7877A ©SARGENT Manufacturing Company 2007

Profile Series H1 Mortise Lock

1. Securely tighten lockbody screws on the edge of the door and

then securely tighten the thru bolt screws.

2. Connect P3 (2 Pin Connector) from lock body to J3 on Interior

Escutcheon PCB Assembly.

3. Connect P4 (5 Pin Connector) from lock body to J4 on Interior

Escutcheon PCB Assembly.

4. Connect P5 (7 Pin Connector) from Reader board to J5 on

Interior Escutcheon PCB Assembly.

5. Connect E-Lynx Harness (4 Pin & 8 Pin) from door harness to

E-Lynx harness on Interior Escutcheon PCB Assembly.

6. Place extra wireinside door hole

NOTE: Connectors go on only one way. Do not offset connector

and be sure they are completely seated.

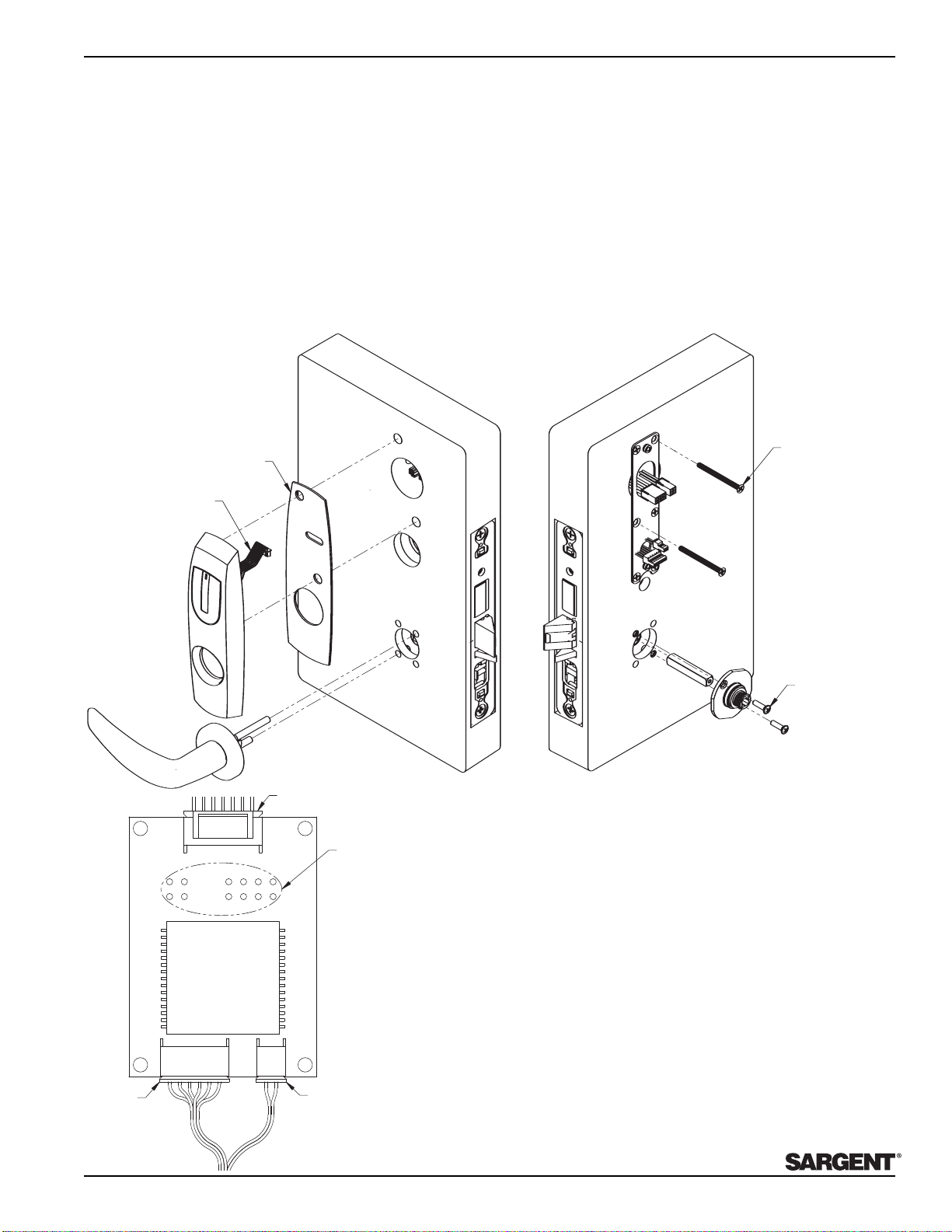

Step #5 – Installation of Outside Escutcheon Reader & Lever Assembly

1. Feed the reader cable connector located on the back of the outside escutcheon from the outside of door

through door.

2. Securely tighten the outside escutcheon with (2) through-bolts (#8-32 x 2") Phillips flat head screws with the

mounting plate.

3. With outside lever horizontal, insert the mounting post through outside of door and lock body. Make certain

the lever spindle is proper engaged in lock.

4. On the inside of the door, insert spindle into square hole of mortise lock.

5. Slide inside adapter and plate assembly over spindle and loosely secure with (2) screws (#8-32 x 5/8"). Do not

tighten completely, cylinder should be installed prior to tightening.

Note: For 82276 & 82278, thread cylinder through escutcheon and into the lockbody.

Step #6 – Connector Attachment

Escutcheon Screws

#8-32 x 2" long

Phillips Flat Head

#8-32 x 5/8"

Machine Screws

Reader Cable

Gasket Outside Harmony - Mortise

J5J5

J4J4 J3J3

To E-Lynx

Harness

From Reader Board

P5 to J5

From Lock Body

P3 to J3

From Lock Body

P4 to J4

Table des matières

Autres manuels Sargent Verrouillage

Sargent

Sargent ASSA ABLOY 8200 Manuel utilisateur

Sargent

Sargent ASSA ABLOY PR100 Manuel utilisateur

Sargent

Sargent ASSA ABLOY SE LP10 Manuel utilisateur

Sargent

Sargent EK Exit Device Retrofit Kit Manuel utilisateur

Sargent

Sargent ASSA ABLOY SN Series Manuel utilisateur

Sargent

Sargent PASSPORT 1000 Exit Device Manuel utilisateur

Sargent

Sargent Profile Series Manuel utilisateur

Sargent

Sargent Profile Series v.S2 Manuel utilisateur

Sargent

Sargent SE LP10 7000 Series Manuel utilisateur

Sargent

Sargent IN220 Manuel utilisateur

Sargent

Sargent Passport 1000 P2 Manuel utilisateur

Sargent

Sargent IN100 Manuel utilisateur

Sargent

Sargent ASSA ABLOY Simpli R8200 Series Manuel utilisateur

Sargent

Sargent Profile Series Manuel utilisateur

Sargent

Sargent 7800 Manuel utilisateur

Sargent

Sargent 7800 Series Manuel utilisateur

Sargent

Sargent ASSA ABLOY 10 Series Manuel utilisateur

Sargent

Sargent IN220 Manuel de service

Sargent

Sargent IN100 Manuel utilisateur

Sargent

Sargent IN100 Manuel utilisateur

Sargent

Sargent Degree DG-2 Manuel utilisateur

Sargent

Sargent ASSA ABLOY Harmony Series Manuel utilisateur

Sargent

Sargent Assa Abloy IN120 Manuel utilisateur

Sargent

Sargent 7800 Manuel utilisateur

Manuels Verrouillage populaires d'autres marques

Magic

Magic 105 Manuel utilisateur

Gantner

Gantner GAT NET.Lock 7020 System Guide rapide

Wittkopp

Wittkopp Insys 7202 Manuel utilisateur

Dorma

Dorma Studio Classic Manuel utilisateur

Securam

Securam ECSL-601 Manuel utilisateur

Sudhaus

Sudhaus 3003 Manuel utilisateur

Safety 1st

Safety 1st 48517 Manuel utilisateur

Pado

Pado FDS-10 Manuel utilisateur

Esco

Esco systeQ Series Manuel utilisateur

COMPX

COMPX National D8951 Manuel utilisateur

secureo

secureo Key Box Manuel utilisateur

Stock Loks

Stock Loks C8713 Manuel utilisateur

COMPX

COMPX 1T-058 Manuel du propriétaire

Auslock

Auslock T11 Manuel utilisateur

ELCOM

ELCOM 7205 Manuel utilisateur

Stealth SAFES

Stealth SAFES ShadowVault Manuel utilisateur

Knox

Knox KeySecure 5 Manuel utilisateur

Kwikset

Kwikset 48334/01 Manuel utilisateur
