Introduction1

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most

advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you

can operate the camera via the network in an easy-to-use manner.

In addition, it is a PoE product that can be powered through a LAN cable, so you can install it in locations

where there is no power outlet nearby.

The camera has 4-megapixel CMOS sensor that produces clear images at ultra-high resolution.

The camera can deliver full HD H.264 video throughout the network. Connecting a high-definition monitor to

your PC enables full high-definition video monitoring.

The camera supports both H.264 video and JPEG image compression formats, which you can choose from

depending on the network environment.

The camera offers the focus assist function that supports focus adjustment at megapixel image resolution,

allowing you to fine-tune the focus in optimal conditions in an easy manner.

The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the

construction of a high-level security system.

Installing associated software applications on your PC further extends the capabilities of your surveillance system.

Introduction 2

Image pickup device 1/3" CMOS sensor

Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 2288 (H) × 1712 (V)

Lowest image

illumination

50IRE: 1.0 lx (at F1.2, color mode, high gain)

50IRE: 0.06 lx (at F1.2, black-and-white mode, high gain)

Video S/N ratio 50dB (when AGC is “OFF”)

Lens mount CS mount

Flange back adjustment 12.5±0.5 mm, electrical flange back adjustment (Focus assist function)

Day/Night function Auto, color, black-and-white, alarm input switching

( (VCC-HD2300P/VCC-HD2300 only))

White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,

fluorescent

Backlight compensation Multi-spot evaluative metering, center-weighted average metering, masking

Electronic sensitivity

boosting

Auto (32× max) or Off

Electronic shutter VCC-HD2300P/VCC-HD2100P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000,

1/4000, 1/10000

VCC-HD2300/VCC-2100: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000,

1/10000

Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)

Electronic iris ON/OFF (Set [SHUTTER] to “EI”.)

Iris control DC iris lens supported

Camera settings Selectable between 2 camera setting patterns

AGC gain Normal/Middle/High (Manual gain setting possible at Off)

Gamma correction 0.45, 1, Mode 1, Mode 2

Aperture compensation On/Off (Correction level adjustable)

VIVID COLOR EFFECT ON/OFF

DNR ON/OFF

Mirror H/V/HV/OFF

Privacy mask On/Off, max. 8 mask patterns

Motion sensor On (masking/detection area setting)/Off

Language selection English, French, German, Spanish, Japanese

Video output Composite output

LAN 10BASE-T/100BASE-TX (RJ-45 connector)

Alarm input 2 (NO/NC), also serve as Day/Night switching signal (VCC-HD2300P/VCC-HD2300

only)

Alarm output 2 (NO/NC, 16V, 150 mA, open collector)

Introduction 3

Image/video

compression

H.264/JPEG

Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180

(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240

Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360

(4:3) 2288×1712, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240

Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE

BITRATE mode: User-specified bit rate

Interface 10BASE-T/100BASE-TX

Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP

Simultaneous access 20

Security BASIC authentication (ID/password), SSL, IP filtering

Operating ambient

temperature/humidity

–10 to +50°C, 90% RH or less (no condensation)

Power source 12 to 15 VDC/24 VAC±10%, 50/60 Hz, PoE

Power consumption 4,6 W

Weight 220 g

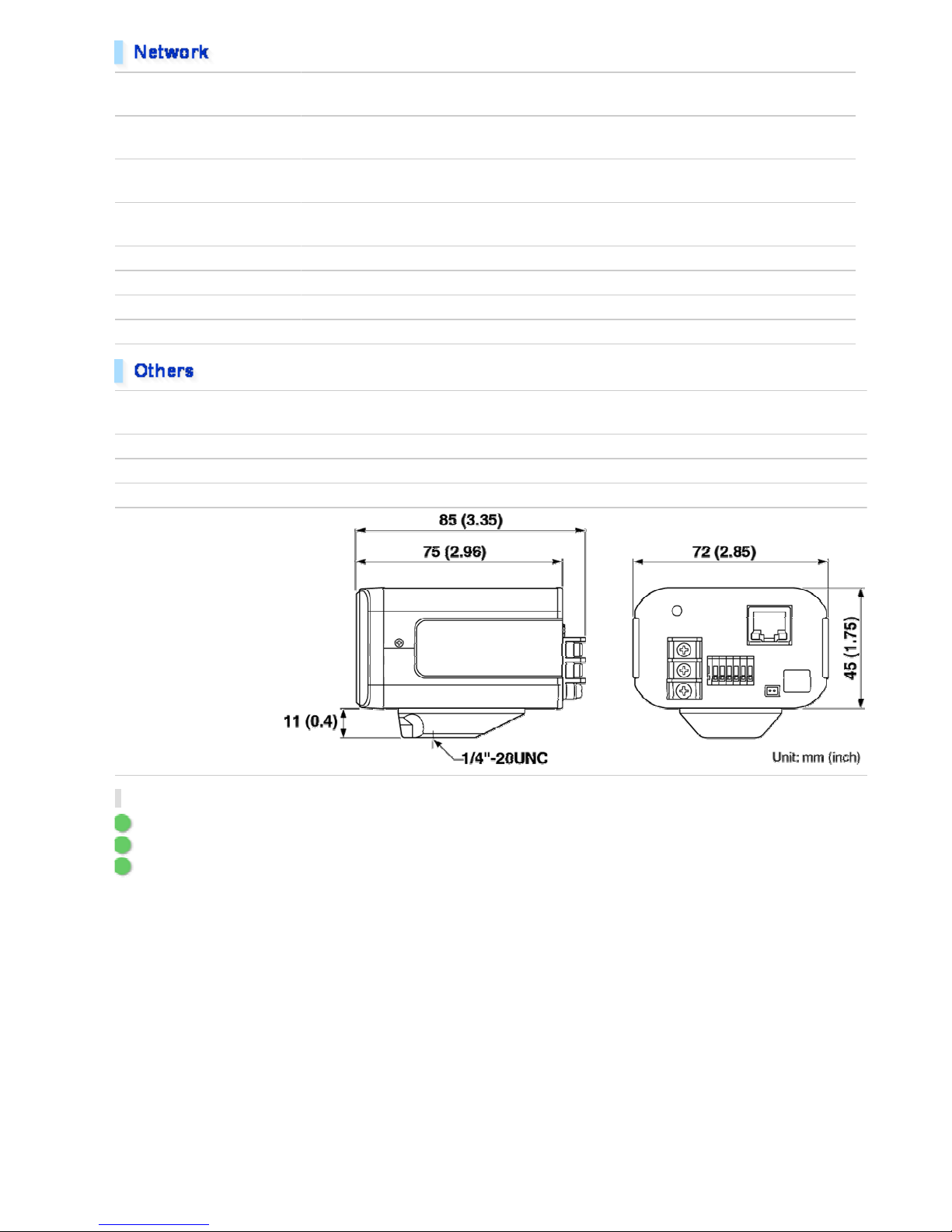

Dimensions

Accessories

1Video cable

2Cable holder for wiring

3CD-ROM

Introduction 4

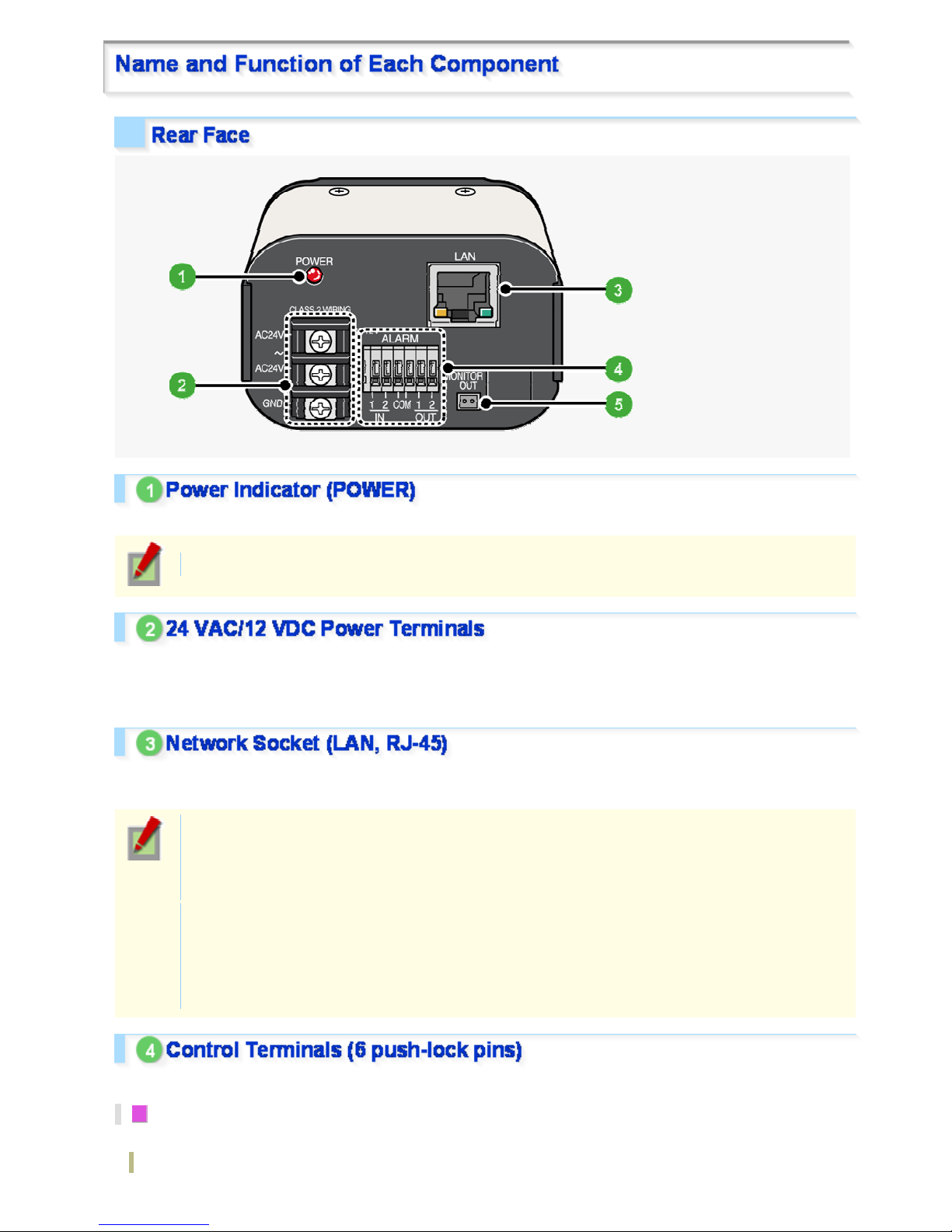

This indicator lights up when the camera is powered on.

The indicator blinks while the firmware is being updated.

Use these terminals to connect a 24 VAC or 12 VDC power supply. The power indicator lights up when the camera

is powered on.

For details, refer to the “Basic Connections” section.

Use this socket to connect the camera to your PC to enable network operation.

For details, refer to the “Basic Connections” section.

Right: Link access indicator (Green)

This indicator lights up approx. 3 seconds after power on, if a connection has been established

between the camera and the network.

After that, it will blink when data are being transmitted via the network.

Left: Speed indicator (Orange)

The camera automatically detects the local network transmission speed (10BASE-T or 100BASE-

TX).

This indicator lights up when 100BASE-TX data transmission is in progress; it goes out when

10BASE-T data transmission is in progress.

For the detailed connection procedure, refer to the “Alarm Input/Output Terminal Connections” section.

1Alarm input or Day/Night switching terminals (ALARM IN1/2)

These input terminals can be used for either of the following purposes:

Alarm input

Introduction 5

Connecting an external switch, infrared sensor, or other device to these terminals enables the camera to

detect alarm conditions such as the entry of an intruder.

Day/Night switching

Normally, switching the camera between the color and black-and-white video modes is automatically

accomplished by the Day/Night function.

When used as Day/Night switching terminal, you can switch between color and black-and-white video modes

using an external control signal.

(This function is supported only by VCC-HD2300P/VCC-HD2300)

Using network operation, under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the terminal

you want to use in [EXT ALARM].

Then, in [POLARITY] under [ALARM SETTINGS], select the signal polarity of the alarm input

terminal.

2Alarm output terminals (ALARM OUT1/2)

Connect a buzzer, lamp, or other alarm device to these terminals.

3COM terminal (Earth grounding terminal)

Connect the camera to your monitor via the supplied video cable.

You can perform focus and iris adjustments while monitoring live video on the monitor.

For details, refer to the “Basic Connections” section.

Use this socket to connect an optional auto iris lens.

For details, refer to the “Lens Installation” section.

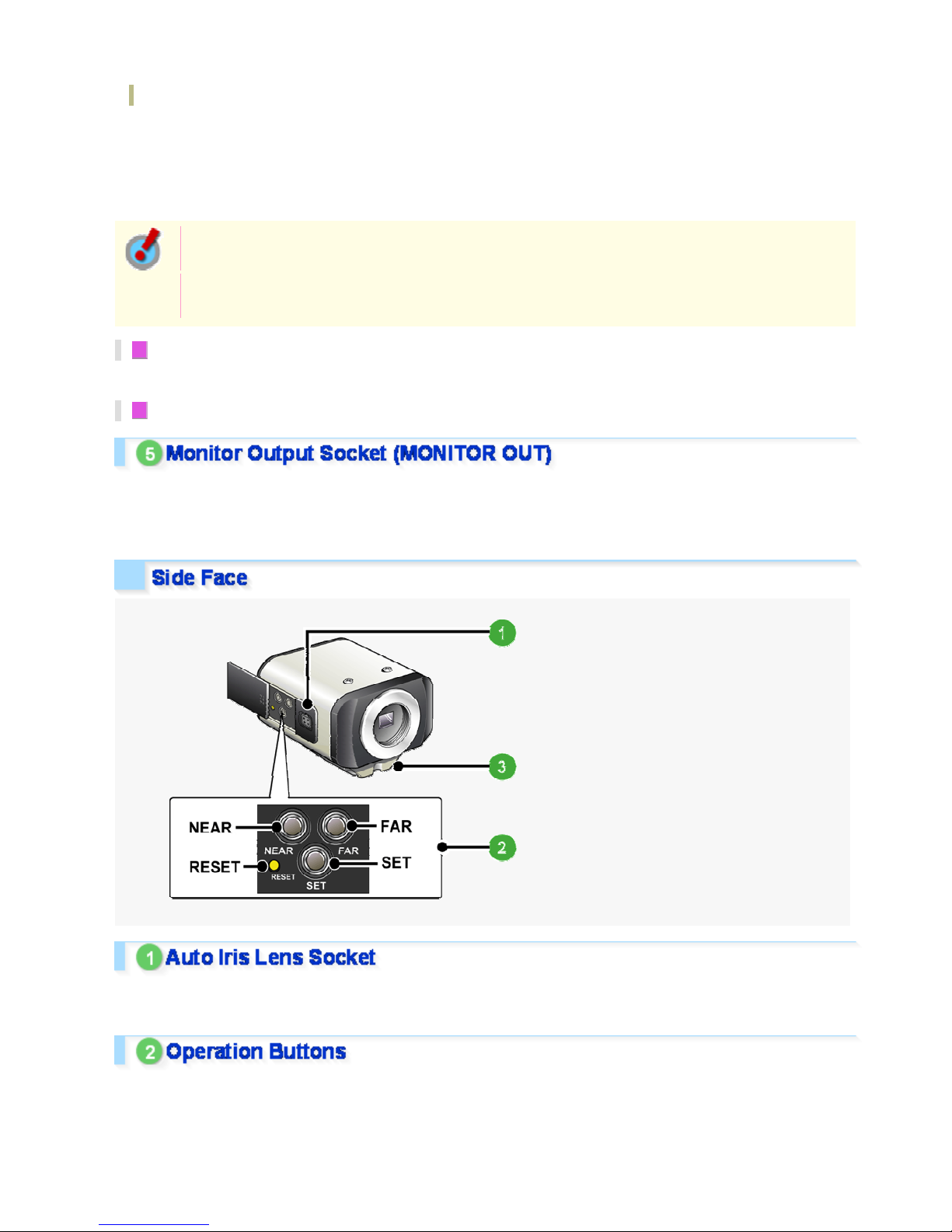

Use the buttons provided on the left-side face of the camera to perform the following operations.

These operations may be performed with the Web browser installed on your PC. For details, refer to the linked

information.

Introduction 6

Operation Associated button and use Equivalent network operation

screen

Restarting camera Press the RESET button. OPTION SETTINGS (CAMERA

REBOOT)

Restoring factory default

settings

Press the NEAR and SET buttons

simultaneously. OPTION SETTINGS (FACTORY

DEFAULT)

Restoring factory default

back focus position

Press the NEAR and FAR buttons

simultaneously. CAMERA SETTINGS (FOCUS

ASSIST)

Resetting login password Press the FAR and SET buttons

simultaneously. USER SETTINGS

Adjusting focus For details, refer to the “Lens

Adjustment” section. CAMERA SETTINGS (FOCUS

ASSIST/IRIS SETTINGS)

Adjusting iris

Viewing Firmware Version For details, refer to the “Viewing

Firmware Version” section. OPTION SETTINGS (FIRMWARE

UPDATE)

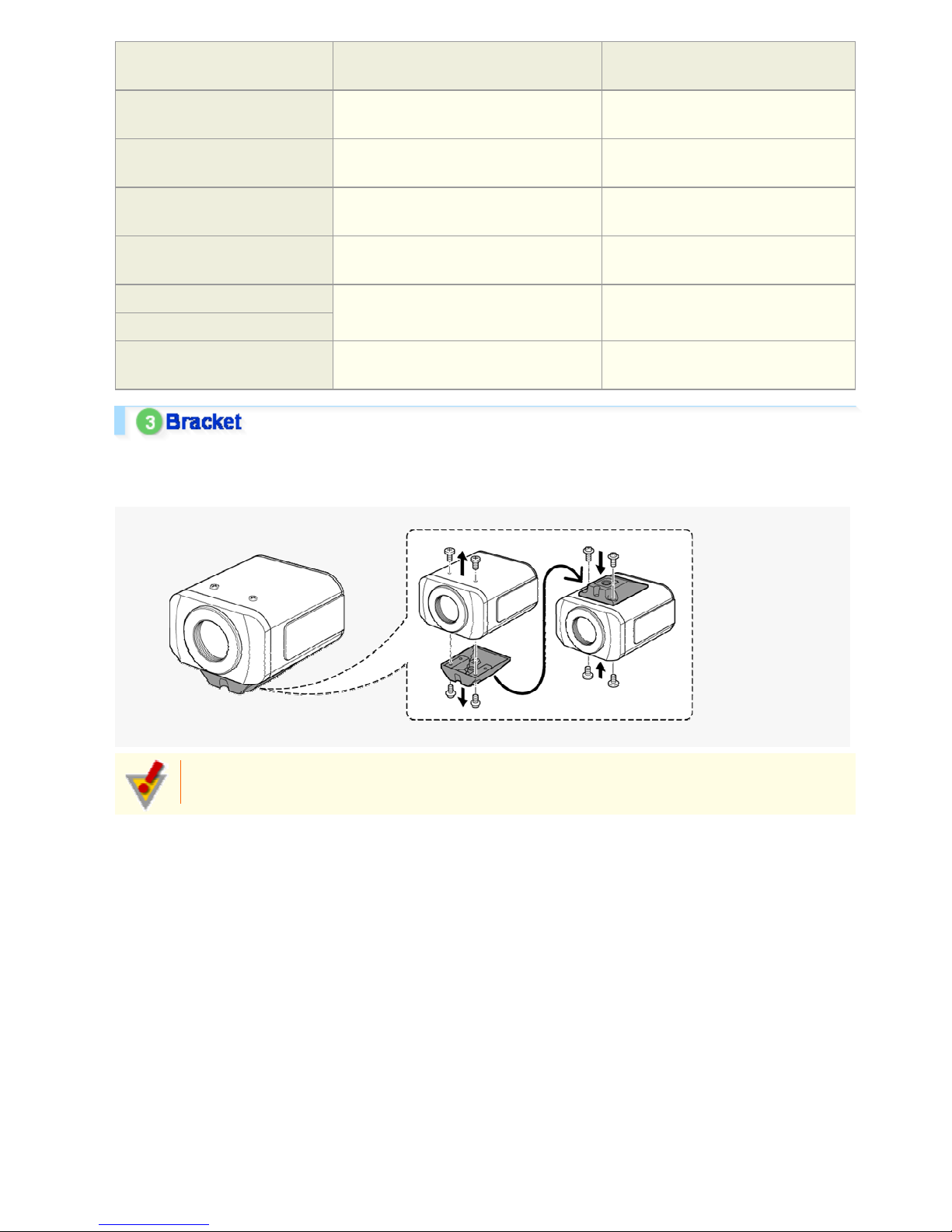

This bracket may be attached to either the top or bottom face of the camera depending on the installation

environment.

For bracket installation, be sure to use the longer screws supplied.

Install the camera securely to a durable location, taking into account the total weight of the camera

mount (commercially available) and the camera.

Introduction 7

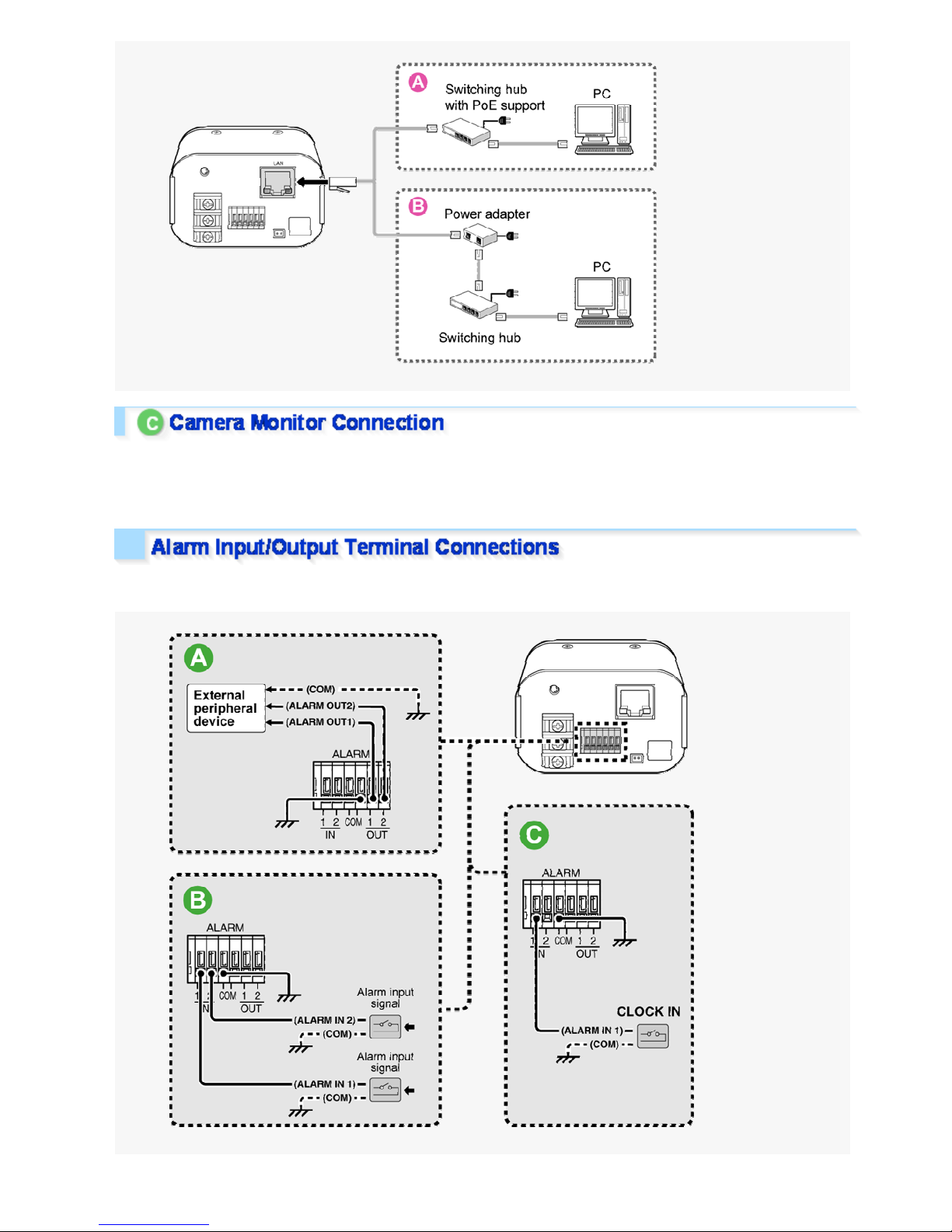

Perform the following connections according to the installation environment and application of your camera.

Basic Connections

Alarm Input/Output Terminal Connections

Before attempting the following connections, be sure to turn off all components of your system.

Improper connection may cause smoke or failures. Before attempting to connect each system

component, carefully read the instruction manual that comes with it to familiarize yourself with the

correct connection procedure.

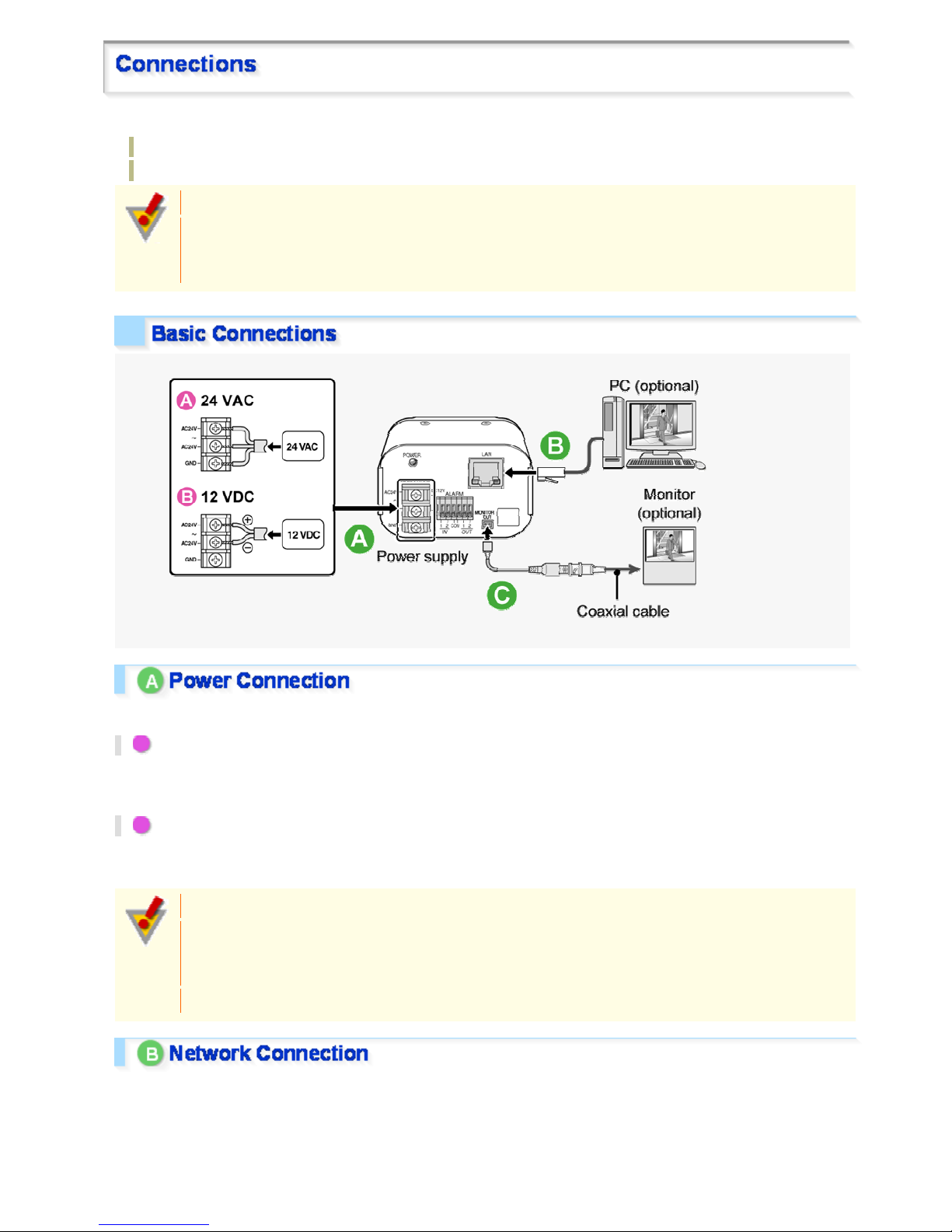

Connect the power terminals (24 VAC/12 VDC) of the camera to a power supply.

AConnection to 24 VAC power supply

Although the power terminals have no polarity, the earth grounding wire must be connected to the GND (earth

grounding) terminal.

BConnection to 12 VDC power supply

Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.

Incorrect polarity may cause damage to the camera.

Be sure to use an 18AWG or thicker wire power cable.

A voltage drop may occur depending on the thickness of the power cable. If you must use a long

power cable, determine the cable type by ensuring that the voltage at the 24-VAC/12-VDC terminals

is within the operating range of the camera.

When using PoE to power the camera, do not use the camera's power terminals.

This camera is designed so that you can use all of its functions via network operation.

By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and

operate it from the Web browser installed on your PC.

Introduction 8

Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher.

The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet Explorer Ver.7.0.

About the internet connection

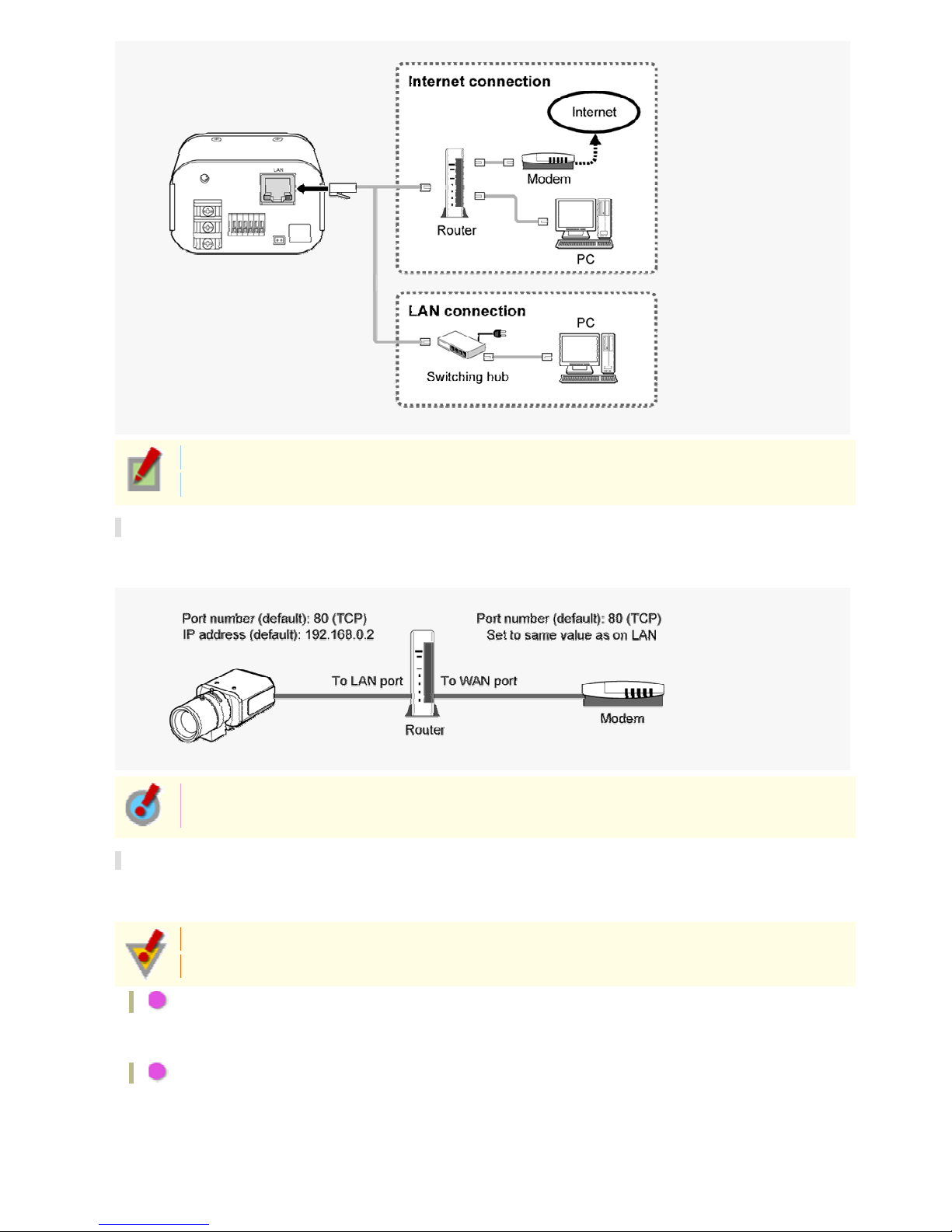

Port forwarding for the video port must be enabled on the broadband router.

For details on how to set port forwarding, please refer to your router's Instruction manual.

To connect two or more cameras, on the NETWORK SETTINGS screen, assign them with port

numbers that are different from that of the first camera.

Using PoE

This camera supports PoE (Power over Ethernet). This means that you can install the camera in locations where

there is no 24-VAC/12-VDC power outlet nearby.

When using PoE to power the camera, do not use the camera's power terminals.

Do not power the PoE hub or PoE power adapter until you finish connecting the camera.

AConnecting the PC and camera through a switching hub

You can use a PoE-compatible switching hub to extend the transmission distance.

For details on the extendable distance, please refer to the hub performance in the specifications, etc.

BConnecting the PC and camera through a switching hub and a power adapter

Introduction 9

To perform focus adjustment with the camera, connect the supplied cable to the MONITOR OUT socket of the

camera, and connect a monitor to the camera using a video cable.

After adjustment, be sure to remove the monitor cable.

To connect a cable, while pushing the protrusion of the terminal, insert the cable into the opening and then release

it.

Introduction 10
