Sanyo VDC-DP9575P Manuel utilisateur

Color CCD Camera

Manual for Remote Operation

by Network Connection

English 1

Table of Contents

Instruction .........................................................................................2

■System requirements ......................................................................... 2

Flow of Camera Operation through to Network Operation ..........3

■User names and operating privileges ............................................... 3

Configuring the TCP/IP Settings on PC .........................................4

Accessing the Camera .....................................................................6

■Accessing the Camera Using the UPnP Connection

(for Windows XP only)......................................................................... 7

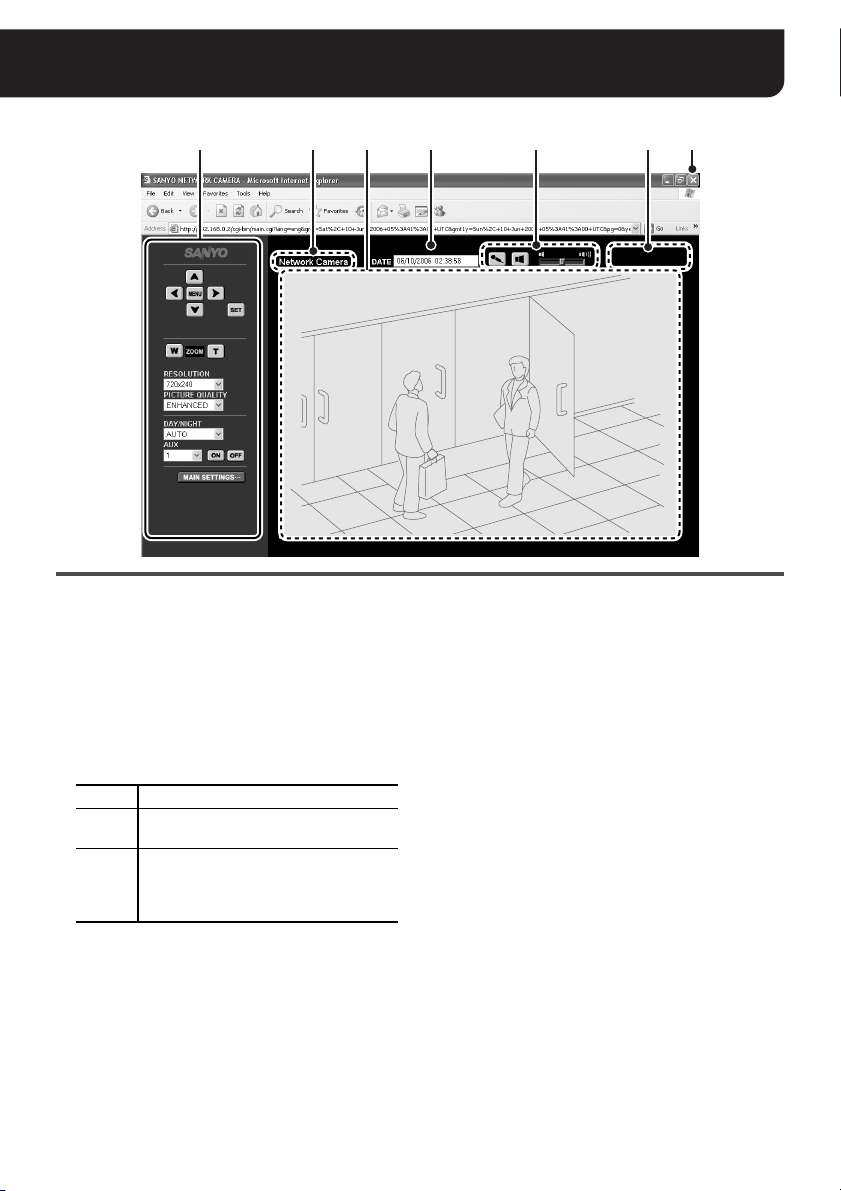

Viewing Live Video (Main Screen Overview) .................................8

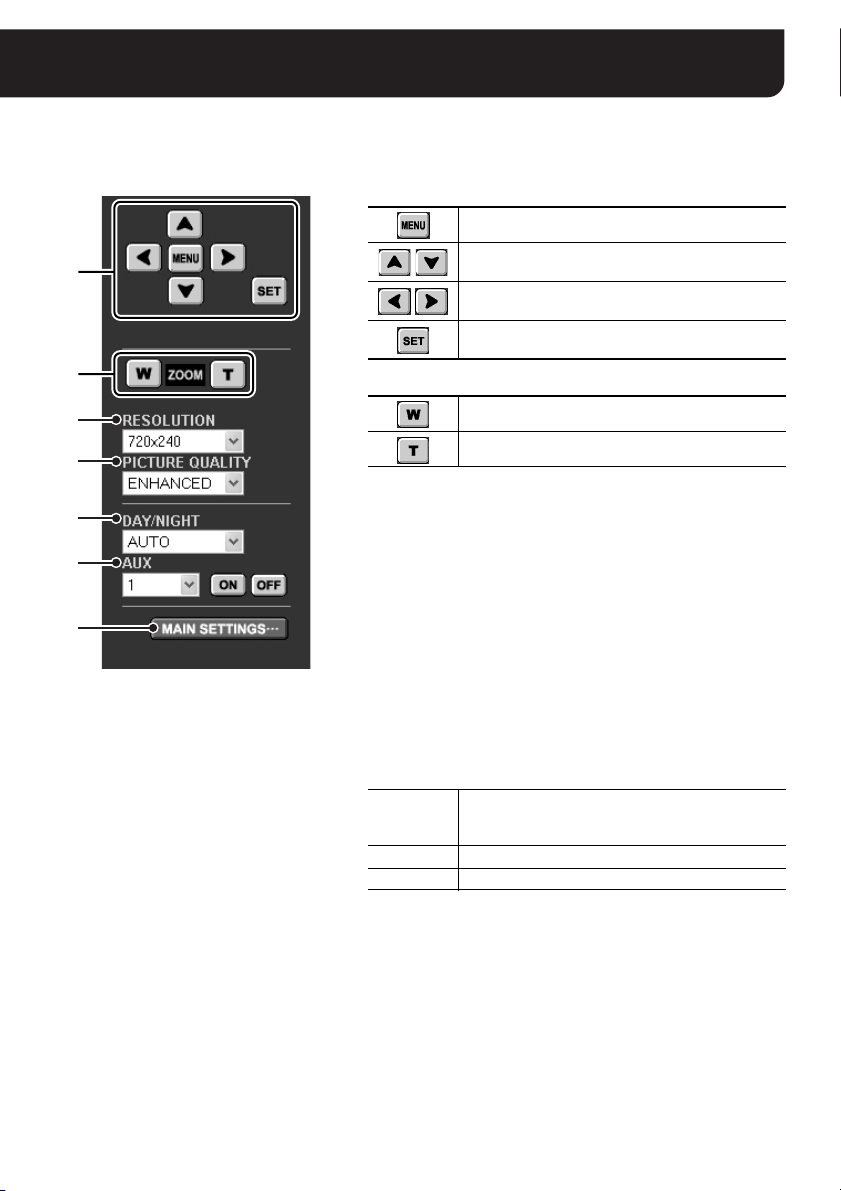

Using the Control Panel ..................................................................9

Establishing Voice Communication .............................................11

Selecting the Operating Conditions .............................................12

NETWORK SETTINGS ....................................................................13

CLOCK SETTINGS .........................................................................14

E-MAIL SETTINGS ..........................................................................15

IMAGE TRANSFER SETTINGS ......................................................16

■For HTTP connection ....................................................................... 16

■For FTP connection .......................................................................... 17

AUDIO SETTINGS ...........................................................................19

OPTION SETTINGS ........................................................................20

Changing the Camera Settings .....................................................21

Settings List ....................................................................................22

OpenSSL License ...........................................................................25

Specifications..................................................................................27

2 English

Instruction

This option board (Network) is an extension board that allows you to connect Sanyo’s CCD camera to your network.

After installing the option board on the camera, you can view live video from the camera using Web browser on your

PC. If you want to view live videos from multiple cameras, install the supplied “VA-SW3050LITE” monitoring software.

■System requirements

The system requirements for camera operation via network are as follows:

•PC:IBM PC/AT and compatibles

•OS:Windows 2000/Windows XP Home Edition/Windows XP Professional

•CPU:Pentium III (800MHz or higher)

• Memory: 128MB or more

• Network interface: 10Base-T/100Base-TX

• Display card: 1024 x 768 pixels or higher, 16 million colors or higher

• Web browser: Internet Explorer Ver.6.0 or higher

Note:

• LAN cable must be CAT-5 or higher, and no more than 100 m (109.4 yds) in length.

• Image may be delayed and/or audio interrupted, depending on the environment of use.

This instruction manual is copyrighted by SANYO Electric Co., Ltd. No materials contained in this manual may be

reproduced in any format without the prior permission of the copyright holder.

Microsoft, Windows and Internet Explorer are registered trademarks or trademarks of Microsoft Corporation in the

United States and other countries.

The official name for “Windows” used in this manual is Microsoft®Windows®Operating System. In this manual,

note that the word “Windows” refers to both “Microsoft®Windows®2000 Operating System” and “Microsoft®

Windows®XP Operating System”.

Intel and Pentium are registered trademarks or trademarks of Intel Corporation and its subsidiaries in the United

States and other countries.

IBM and IBM PC/AT are trademarks of International Business Machines Corporation.

UPnP is a trademark of UPnP Implementers Corporation, which is established by the UPnP Forum SC.

Java is a trademark of Sun Microsystems, Inc.

All other brands and product names in this manual are the registered trademarks or trademarks of their respective

owners.

English 3

Flow of Camera Operation through to Network Operation

For detailed instructions on individual procedures, refer to the pages shown below.

■User names and operating privileges

Two types of user name shown below can access the camera and are authenticated by password during the login

process.

How the user can operate the camera depends on the user name used for accessing the camera.

If a “guest” user tries to perform an operation not included in his privilege, the authentication dialog appears. In this

dialog, entering the user name and password for an administrative user (“admin”) will enable the user to perform all

operations.

The number of users who can access simultaneously

• Up to 16 users can access the camera simultaneously.

• Whatever the number of users accessing the camera simultaneously, only one user can access the camera as an

administrative user (“admin”).

Note:

Up to 16 users can access the camera simultaneously, however, depending on the environment of use, image and

voice renewal may become slower as the number of connected users increases.

1Installing the option board on the camera

Refer to the supplied “INSTALLATION MANUAL” for how to install the option board on the camera and

make connection using LAN cables.

Refer to

2Configuring the TCP/IP settings on PC Page 4

3Accessing the camera

Enter your user name and password to access the camera using the Web browser. Page 6

4Viewing live video

After accessing the camera, the live video will be displayed on the main screen. Page 8

For an administrative user, also perform the following procedures.

5Selecting the operating conditions

Using the [MAIN SETTINGS] screen for an administrative user, configure the detailed

settings for administrative operations.

When you access the camera for the first time, be sure to perform the settings on the

[CLOCK SETTINGS] screen (See page 14).

• You can change the settings stored in the camera remotely through the network

connection (See page 21).

Page 12

guest Used for general access. Operations are limited to monitoring the live video. Any operations on the

configuration screens are not allowed.

admin Used for administrative access. Any camera operations and configurations can be made through the

Web browser.

4 English

Configuring the TCP/IP Settings on PC

Perform the appropriate TCP/IP settings on your PC in accordance with your operating system.

(The following setting example is for Windows XP.)

1In the [Control Panel], click [Network and

Internet Connections].

The [Network and Internet Connections] screen

appears.

2Click [Network Connections].

The [Network Connections] screen appears.

The LAN interface (Ethernet adapter)

configurations appear in the [LAN or High-Speed

Internet] section.

3Right-click on the LAN interface

(Ethernet adapter) configuration used

for accessing the camera and click

[Properties] in the context menu.

[General] tab appears in the [Local Area

Connection 2 Properties] dialog box.

4In the [This connection uses the

following items:] list box, select the

[Internet Protocol (TCP/IP)] check box.

Be sure to confirm that the [Internet Protocol

(TCP/IP)] check box is selected. If the check box

is disabled, select it to enable the option.

Configuring the TCP/IP Settings on PC

English 5

5Click [Properties].

[General] tab appears in the [Internet Protocol

(TCP/IP) Properties] dialog box.

6Select the [Use the following IP

address:] radio button and complete the

[IP address:], [Subnet mask:] and

[Default gateway:] fields.

7Confirm the settings and click the [OK]

button.

This completes the TCP/IP settings. Close all

dialog boxes in the display.

Web browser is required to access the camera. Install

Internet Explorer Ver.6.0 or higher on your PC.

In the cases below, perform the Internet Explorer’s

settings by clicking [Tool] and then [Internet Options].

• When accessing the camera using SSL

encryption for video signal

1Click the [Advanced] tab.

2Make sure that the “Use SSL 2.0” and “Use SSL

3.0” options under the “Security” section are

enabled. If disabled, select the options.

• When the video is unstable

1Click the [General] tab.

2Under the “Temporary Internet Files” section, click

the [Settings] button.

3In the “Amount of disk space to use:” setting, set the

lower value.

• When the Java Script’s “Run Time Error” is

displayed

1Click the [Advanced] tab.

2Under the “Browsing” section, disable the “Display a

notification about every script error” option.

3Enable the “Disable script debugging” option.

Preparing the Web Browser for Accessing

the Camera

6 English

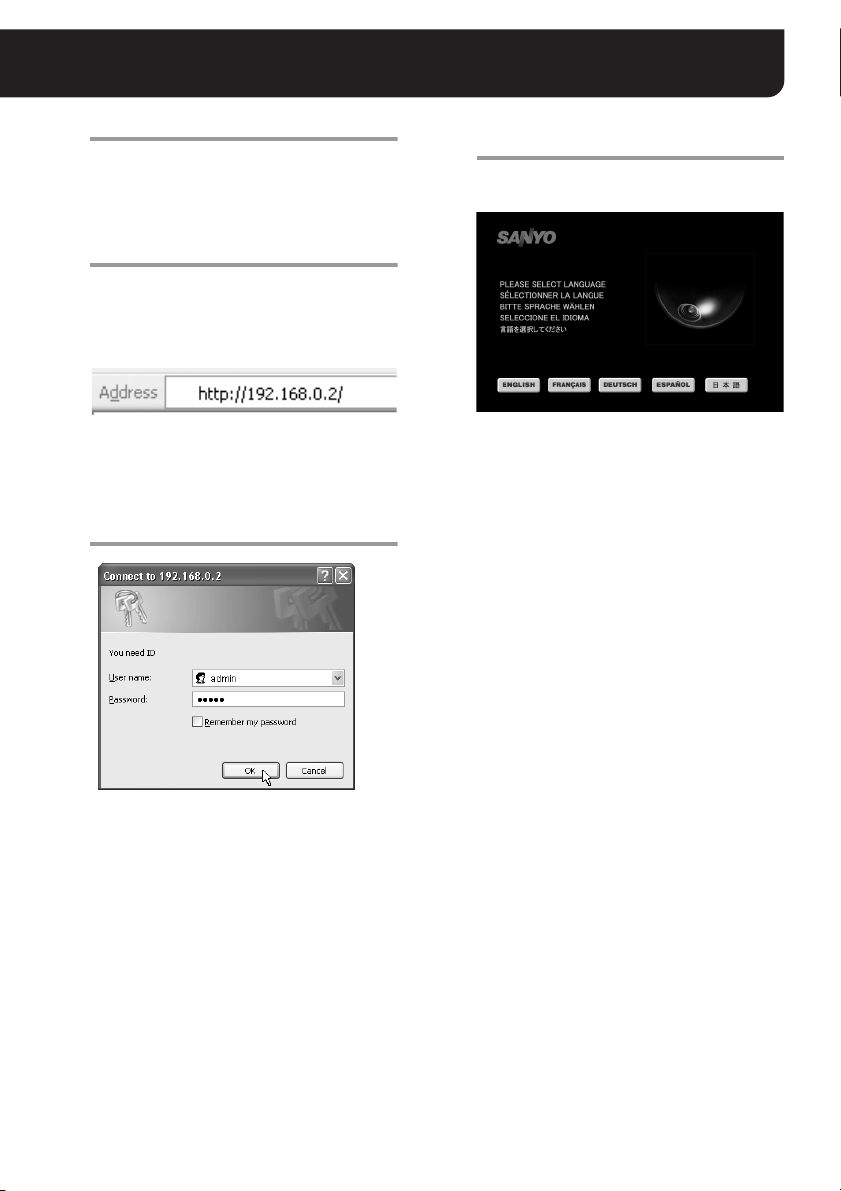

Accessing the Camera

1Start the Web browser.

To access the camera, Internet Explorer Ver.6.0 or

higher is required.

2Type the URL for accessing the camera

in the browser’s address bar, and press

[Enter] key.

Type the IP address configured for the camera

following the “http://” characters.

<Example: when the IP address is the factory

setting value>

After accessing the camera, the authentication

dialog appears.

3Complete the [User name] and

[Password] fields, and click the [OK]

button.

When accessing the camera for the first time, use

the factory setting values below. Using these

values, you will be logged in as an administrative

user.

User name: admin

Password : admin

After the values for the “User name” and

“Password” fields are validated, the language

selection screen appears.

Note:

For security reasons, change the password

regularly.

To change the password, use the [NETWORK

SETTINGS] screen (See page 13).

4Select the language used for display,

and click the [SET] button.

Available languages:

English, French, German, Spanish, Japanese

After selecting the display language, the main

screen appears and the live video from the

camera is displayed in the video display area.

(From the second time onwards, if the language

selection screen is left for longer than 10 seconds,

the last display language is automatically selected

and the main screen appears.)

MEMO:

• After the camera is turned on, it will take about 1

minute for the camera to be available for accepting

any accesses.

• When you specify the port number for the camera to

a number other than 80, add “:” (colon) and the port

number after the IP address in specifying the URL.

<Example: when

“81”

is specified for the port>

http://192.168.0.2:81/

• When you enable the [SSL] options, type “https://”

instead of “http://” before the IP address when

specifying the URL (See page 13).

Note:

Also while using the supplied “VA-SW3050LITE”

monitoring software or the separately ordered

“VA-SW3050” recorder/player software, you can access

the camera from Web browser simultaneously.

However, when the user who uses the software

performs one of the following actions, other Web-based

concurrent admin users will be disconnected.

• Camera registration

• Alarm settings

Accessing the Camera

English 7

■Accessing the Camera Using the UPnP Connection (for Windows XP only)

When your operating system is Windows XP, you can use the UPnP (Universal Plug and Play)

connection to access the camera.

In the UPnP connection, double-clicking the icon for the camera in the [My Network Places] window will

activate the camera access process. Entering the URL is not required.

●To enable the UPnP component

1In the [Add or Remove Programs] on the Control

Panel, open [Add/Remove Windows Components].

2Select “Networking Services” and click [Details].

3Select the check box for the UPnP component in the

list, and click the [OK] button.

• The UPnP component title in the list should be

either “Universal Plug and Play” or “UPnP User

Interface” depending on your PC.

4After returning to the [Windows Components

Wizard], click the [Next] button.

5After the wizard completes, click the [Finish] button.

●Configuring the UPnP connection

In the [OPTION SETTINGS] screen, set the [UPnP]

option to “ON” (See page 20).

• The factory setting value is “ON”.

●How to access the camera

1Open the [My Network Places] window.

The icon for the camera detected on the network

appears in the window.

2Double-click the icon.

This automatically establishes the connection to the

camera, and the authentication dialog appears.

Display name in the [My Network Places]

window:

SANYO Camera - (camera title)

In the (camera title) section above, the title specified for

the camera in [TITLE] field of the [NETWORK

SETTINGS] screen appears.

Click “Yes” to allow installation of the “ActiveX control”,

which is necessary for the voice function.

MEMO:

• If the attempt to install “ActiveX control” fails, try

again after selecting [Tools] →[Internet Options] →

[Security] tab from the Internet Explorer and

changing the security level to “Medium” or lower.

• If using WindowsXP SP2, the popup blocker may be

displayed.

Click the information bar to display the popup block

permission menu, then click either “Temporarily

Allow Pop-ups” or “Always Allow Pop-ups from This

Site…”.

If the Security Warning screen

appears

8 English

Viewing Live Video (Main Screen Overview)

1Control Panel (See pages 9 - 10)

Only the administrative user (“admin”) is allowed to

conduct operations on the control panel.

The control panel layout depends on the camera

model.

2Camera title (See page 13)

The camera title specified in the [NETWORK

SETTINGS] screen is displayed.

The color of the title changes according to the status

of alarm detection.

MEMO:

• When the camera title is in orange, no other

alarms will be processed. When the alarm image

has been sent or the condition that the alarm

image cannot be sent lasts longer than five

minutes, the camera title returns to normal

display (white).

• When the setting for the camera title is blank, the

letters “ALARM” are displayed (in red or orange).

3Video display area

The live video from the camera is displayed.

MEMO:

For cameras with panning and tilting functions,

clicking the video image changes the camera’s

orientation so that the point where you click is

located at the center of the image.

4DATE (See page 14)

The date and time specified in the [CLOCK

SETTINGS] screen is displayed.

5Voice control buttons (See page 11)

Allows you to enable or disable the voice

input/output (send/receive ON/OFF)

respectively as well as adjust the volume.

6[REMOTE ALARM] button

(only for cameras with panning and tilting functions)

Clicking the [REMOTE ALARM] button activates the

alarm output from the camera. The alarm duration is

subject to the setting on the camera.

7[Close] button

Click this button to terminate the connection to the

camera and close the screen.

251 3 4 6 7

White Normal

Red While alarm is detected or during

recording

Orange

While sending or waiting for sending the

alarm image recorded on the camera to

the VA-SW3050 (HTTP) or FTP server

(FTP)

English 9

Using the Control Panel (“admin” only)

AFor cameras without panning and tilting functions

Control Panel 1Camera configuration buttons (See page 21)

Used for changing the camera settings.

2 [ZOOM] buttons

3RESOLUTION

Specifies the video resolution at four levels.

Note:

When either [AUDIO INPUT] and/or [AUDIO OUTPUT] are

configured to “ON” on the [AUDIO SETTINS] screen,

[RESOLUTION] cannot be configured to 640 x 480.

4PICTURE QUALITY

Specifies the video quality at five levels.

Note:

If [PRE/POST] is set at other than “0%/100%” on the [IMAGE

TRANSFER SETTINGS] screen, the values of [RESOLUTION] and

[PICTURE QUALITY] cannot be changed.

5DAY/NIGHT (only for the cameras with this function)

Allows you to change the DAY/NIGHT switching conditions

configured using the camera menu.

6AUX

These buttons are reserved for additional functions.

The function corresponding to the number selected in the pull-down

menu will be performed. The function allocated to respective

numbers depends on the camera models.

7[MAIN SETTINGS] button (See page 12)

Displays the menu buttons for an administrative user (“admin”).

Displays the configuration menu.

Moves the cursor up/down in the configuration

menu.

Moves the cursor to the left/right in the

configuration menu or changes the setting value.

Switches to the next screen or confirms the

settings specified.

Zooms the camera out.

Zooms the camera in.

AUTO

Switches the video display automatically between

color and black-and-white depending on daytime or

nighttime brightness.

COLOR Always displays the color video image.

B/W Always displays the black-and-white video image.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sanyo Caméra de sécurité

Sanyo

Sanyo VCC-HD2300 - Full HD 1080p Network Camera Manuel utilisateur

Sanyo

Sanyo VCC-ZM300P Manuel utilisateur

Sanyo

Sanyo VCC-6584DN - CCTV Camera Manuel utilisateur

Sanyo

Sanyo VDC-C1074VA Manuel utilisateur

Sanyo

Sanyo VCC-5884EA - 1/3" Color CCD DSP High-Resolution... Manuel utilisateur

Sanyo

Sanyo Colour CCD Camera VCC-5775P Manuel utilisateur

Sanyo

Sanyo VDC-HD3100P Manuel utilisateur

Sanyo

Sanyo VCC-9615P Manuel utilisateur

Sanyo

Sanyo VCC-4344 - 1/4" CCD High Performance Day/Night... Manuel utilisateur

Sanyo

Sanyo VDC-HD3500P Manuel utilisateur

Sanyo

Sanyo VDC-D1785IRVP Manuel utilisateur

Sanyo

Sanyo VCB-3512T Manuel utilisateur

Sanyo

Sanyo VCC-HD2500 - Full HD 1080p Network Camera Manuel utilisateur

Sanyo

Sanyo VCC-XZN600P Manuel utilisateur

Sanyo

Sanyo VDC-D1785IRVP Manuel utilisateur

Sanyo

Sanyo VCC-HD2100 - Full HD 1080p Network Camera Manuel utilisateur

Sanyo

Sanyo VDC-C1024V Manuel utilisateur

Sanyo

Sanyo vcb-3400p Manuel utilisateur

Sanyo

Sanyo VDC-D1785IRVP Manuel utilisateur

Sanyo

Sanyo VCC-4594 Manuel utilisateur

Sanyo

Sanyo VCC-MC600P Manuel utilisateur

Sanyo

Sanyo VDC-DP7585P Manuel utilisateur

Sanyo

Sanyo VCC-9684VA - 1/4" Color CCD Indoor Mini Dome... Manuel utilisateur

Sanyo

Sanyo VCB-3444 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
