Memory Viewer function

This is the manual for the Memory Viewer function.

Read this manual thoroughly to operate the Memory Viewer function.

First, read the owner's manual of the projector to understand the basic operation of the

projector and the safety instructions.

The safety instructions in the owner's manuals should be followed strictly.

Some functions are non-Mac-Compliant.

Owner's Manual

Memory viewer function

Memory Viewer function

The Memory Viewer function is to make a presentation or project an image without using computers

or some other external equipment. You do not have to carry a computer or other equipment to project

images.

Store images on a dedicated SD memory card and insert it into the SD memory card slot of the

projector, then you can project those images.

Notes for Windows

This projector is also equipped with dedicated Network Viewer 5 software to edit the presentation

images to project with the Memory Viewer function. With this function, you can edit images, photo

data, or Power Point data into a more effective presentation data. For further information of the

Network Viewer software, see the chapter "9. Network viewer function" on the separated "Network

Owner's manual for Windows".

Which images can be projected with the Memory Viewer function?

With the Memory Viewer function, you can project images in these formats below.

 •Bitmapdata

 •JPEGdataconvertedwiththeNetworkViewer5[FileConverter1and2]software.

 •Textdata

 •ProgramfilecreatedwiththeNetworkViewer5[ProgramEditor].

*Some data may not be projected even with these formats. In that case, convert that kind of

dataintoJPEGdatawiththeNetworkViewer5[FileConverter1and2]software.

Text data used with Memory Viewer

Memory viewer supports the text file with the ASCII format for single byte. Other text formats cannot

be supported.

Back up the data

It is recommended that important data to edit with Network Viewer and store in SD memory card

should be stored in other media in advance. We are not responsible for any data losses or damages

resulting from use of the Memory Viewer function.

Trademarks

Microsoft, Windows, and PowerPoint are either registered trademarks or trademarks of Microsoft

Corporation in the United States and/or other countries. Macintosh is a registered trademark of Apple,

Inc.intheUSAandothercountries.PowerPCisaregisteredtrademarkofIBMCorporation.IntelCoreis

a registered trademark of Intel Corporation in the USA and other countries.

Eachnameofcorporationorproductinthisowner'smanualiseitheraregisteredtrademarkora

trademark of its respective corporation.

•TheOn-ScreenMenuandfiguresinthismanualmaydifferslightlyfromtheproduct.

•Thecontentsofthismanualaresubjecttochangewithoutnotice.

LOCK

Top Bottom

Lock

Memory card for the Memory Viewer function

The memory card is not provided with this projector. The types of memory card which can be used

with the Memory Viewer function of this projector is "SD Memory Card". It may not be used with this

projector depending on the type of the SD memory card. A new SD memory card or a card formatted

by computer or camera must be formatted by this projector. The Memory Viewer function may not

operate properly with a card formatted by other equipment.

SD memory card slot

SD memory card indicator

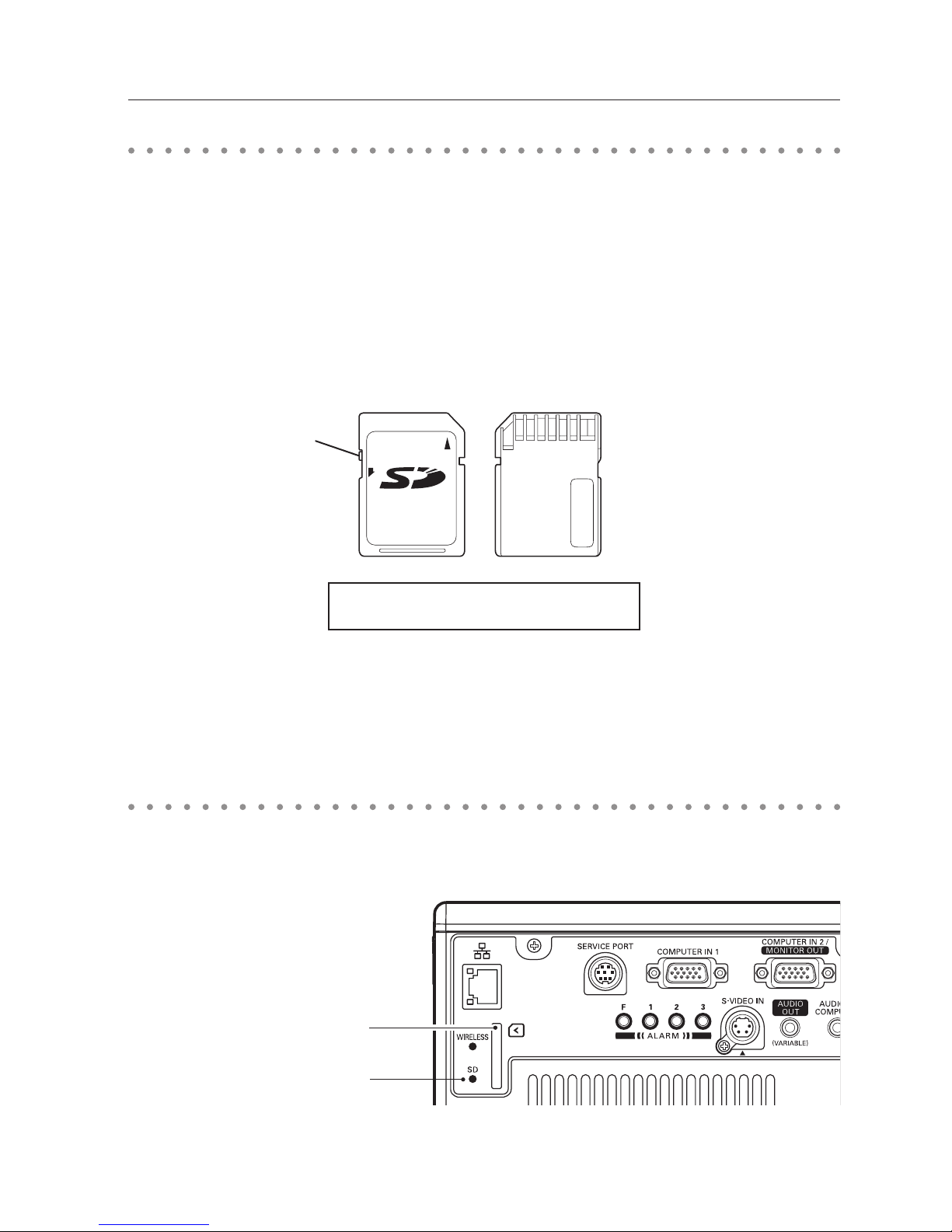

SD memory card slot

The projector provides an SD memory card slot on the side terminal. The SD memory card indicator

lights up when the SD memory card is inserted rightly.

Shape of SD memory card

CapacityofSDMemoryCard:upto8GB

* There may not be used with this projector depending

on the type or manufacturer of the SD memory card.

Memory viewer function

Note:

✐During accessing to the SD memory card, do not turn off the power or eject the card because the

data in the card might get damaged. During accessing, the SD memory card indicator is blinking

✐The SD memory card allows you to insert or remove regardless of the power status of the projector.

✐

The direct start-up into the memory viewer mode may not operate when the SD memory card is

inserted immediately after being removed.

✐The Network Viewer and the Moderator functions are non-Mac-compliant.

Direct start-up into the memory viewer mode

Push the card until

it clicks. The card

comes out.

Inserting and removing the SD memory card

Insert a card with

cutting side up until

it clicks.

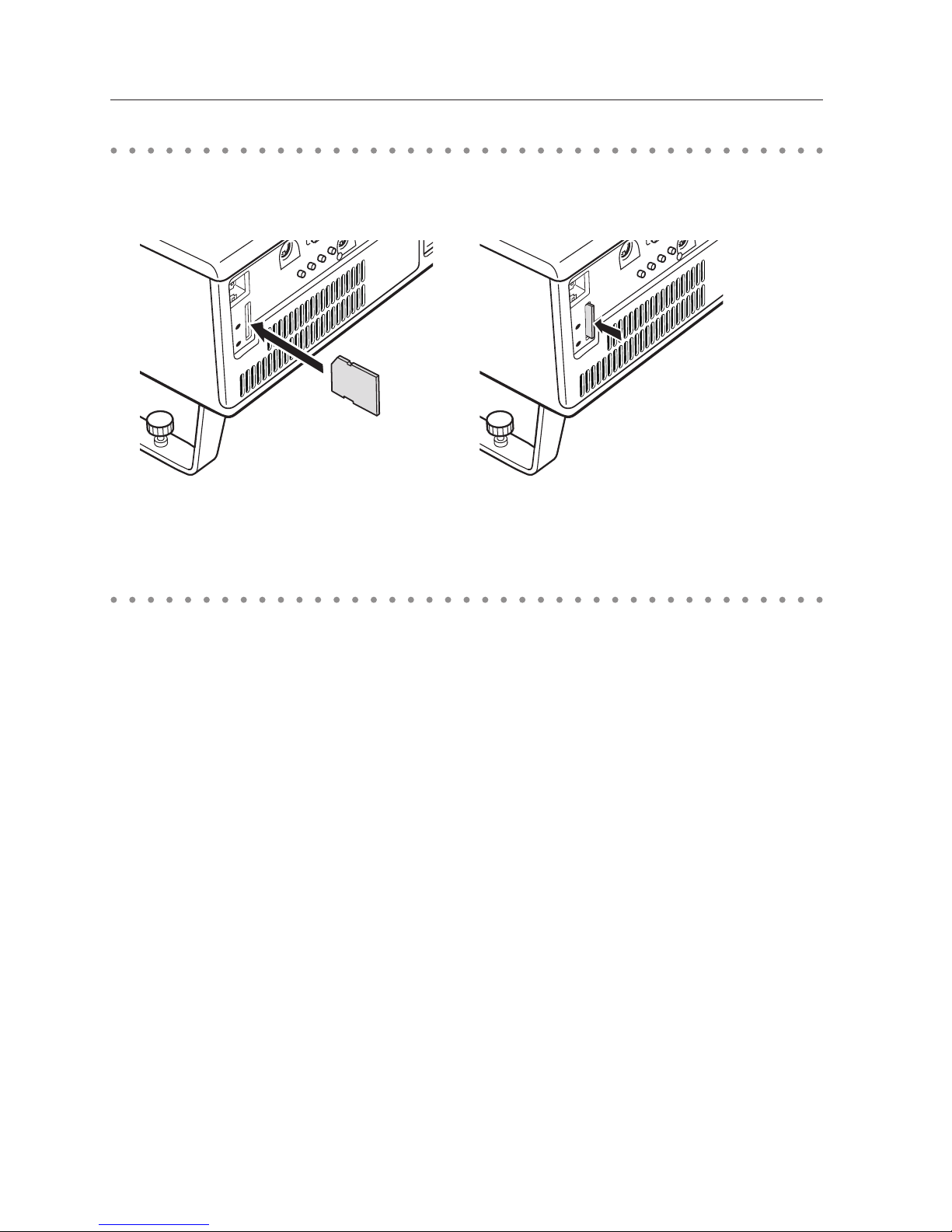

Insert the SD memory card into the card slot

on the side of the projector as shown in the

figure below.

Push the SD memor y card in the arrow

direction gently to remove. The card comes

out and you can remove it.

After inserting the SD memory card, the SD memory card indicator blinks, “Wired”or "Wireless" from

the input menu of the projector is automatically selected, the memory viewer start-up image appears

briefly and then an image stored in the SD memory card is displayed on the screen.

*Automatically, the same input of “Wired” or "Wireless" is selected as last time.

*If the image file is not available in the root directory of the SD memory card, the memory viewer

browser window appears.

During operating the Network Viewer, the Network Capture or the Moderator functions, the direct

start-up into the memory viewer mode can not operate.

*When the projector is turned off and on while the SD memory card is left inside in the memory

viewer mode,

the projector starts into the memory viewer mode and

an image stored in the SD

memory card is displayed on the screen.

When you press CANCEL button in the memory viewer mode, the memory viewer browser window as

shown on page 6 appears on the screen.

When you remove the SD memory card during operating the projector in the memory viewer mode,

the input source returns to the previous one selected just before inserting the SD memory card.

Entering the memory viewer mode

In case of already SD memory card is inserted into the card slot on the side terminal of the projector

and you want to enter the memory viewer mode again:

1.Select“Wired”or"Wireless"fromtheinputmenuoftheprojector.

* When you change input between "Wired" and "Wireless", the “Please wait...” message will be

displayed on the screen. After short time, the network connection standby display screen "Ready

for use" will appear.

2.Select“Wiredsetting”or"Wirelesssetting"intheprojectormenu,andpressSELECT button.

3. Select "Memory Viewer" with the point ed button and press SELECTbutton.The"Enter/Exit"pallet

of the memory viewer appears.

4.Select"Enter"andpressSELECT button. The memory viewer start-up image appears briefly and an

image stored in the SD memory card is displayed on the screen.

* If the image file is not available in the root directory of the SD memory card, the memory viewer

browser window appears.

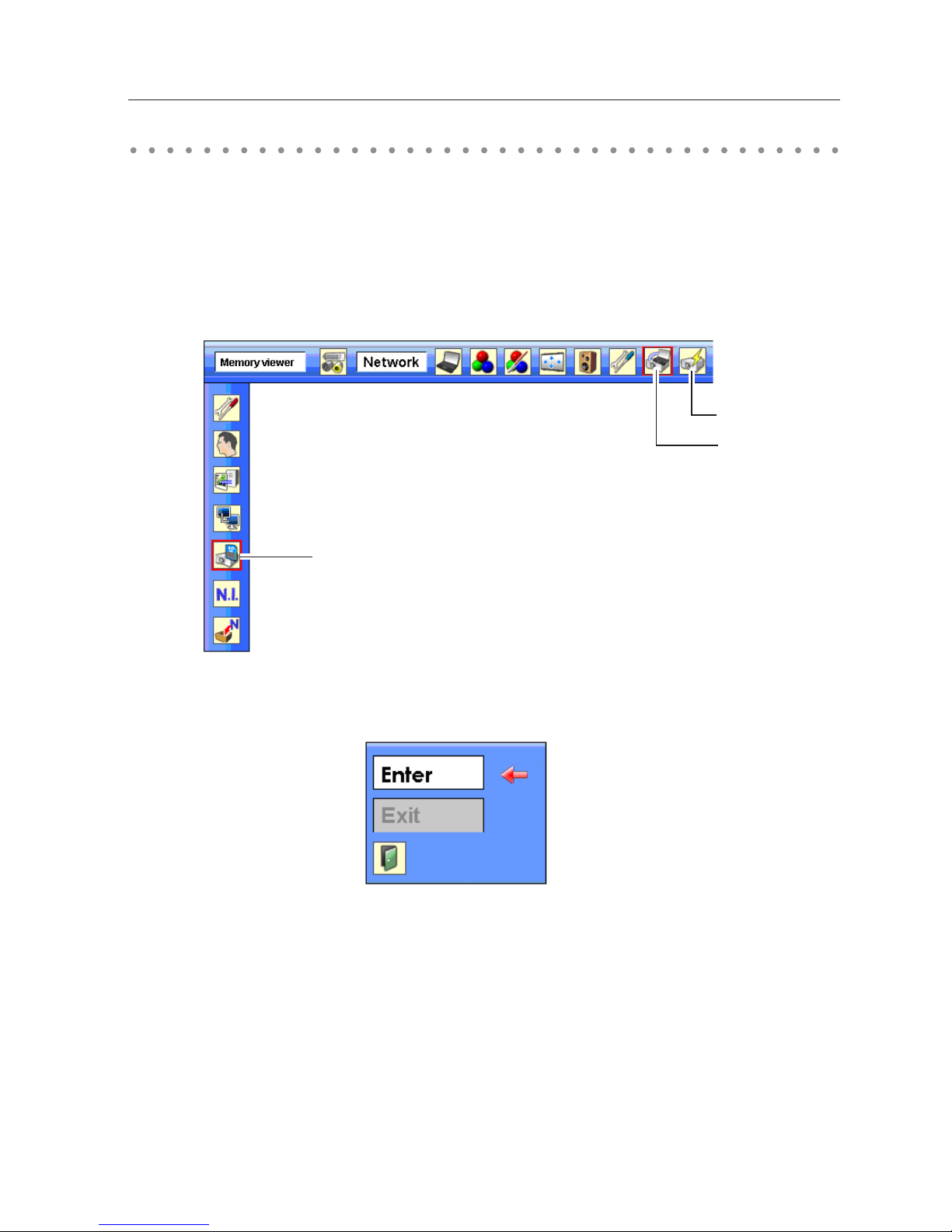

Memory viewer

Wireless setting

Wired setting

Memory viewer function

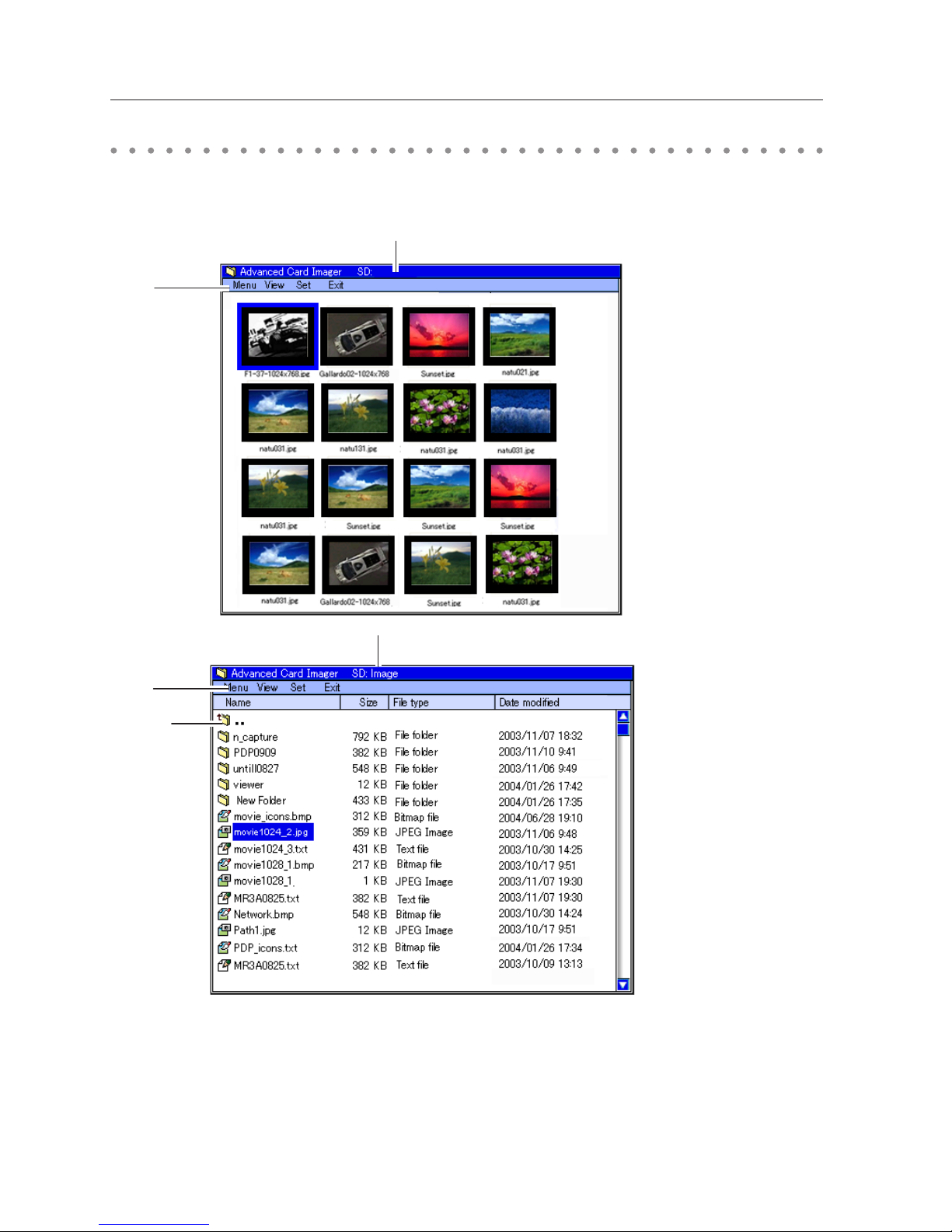

Displaying the memory viewer browser window

When you press CANCEL button in the memory viewer mode, following browser window "Thumbnail"

or "Filename list" appears on the screen.

Filename list display

Displays current directory path

Moves

to upper

directory

Thumbnail display Displays current directory path

*Evenbeforethecompletionofthumbnailimagesdrawing,theimageselectionisavailablebypressing

point ed 7 8 buttons. (Though thumbnail images drawing is interrupted by pressing any of point

ed 7 8 buttons, the operation is valid.)

Menu tree

Menu Sub menu Description

Menu Manual mode Mode to select a playing file respectively

  AvailablefiletypesareJPEG(.jpg),Bitmap(.bmp),Text(.txt).Othersarenot

available.

Program mode Mode to select a program file (.dpf) created by the program editor.

* This mode is non-Mac-compliant.

Format Formats the SD memory card

View Thumbnail Displays files with the thumbnail on the browser window.

Filename list Displays files with the file name on the browser window.

Set English<> Selectsdisplaymenulanguage,JapaneseorEnglish.Setwith7 8 button

 3sec.<> Setsdisplayperiodofanimageintheautodisplaymode.(3to240

seconds) Set with point 7 8 button.

 0times<> Setstherepeatingtimesintheautodisplaymode.(0to255times).0

means endless play. Set with point 7 8 button.

Exit  QuitstheMemoryVieweroperation.

Icon indication

 Foldericon.DisplaysthecontentsoftheselectedfolderwithSELECTbutton

 Topdirectoryicon.MovestoupperdirectorywithSELECTbutton

 JPEGfileicon

 Bitmapfileicon

Text file icon

Program file icon (Playback with the program mode)

Un-supported file icon

Note:

*Thememoryviewerdoesnotsupporttheresolutionofimagegreaterthan8191x8191pixels.

*Textfilecanbedisplayedupto15,000rowswith110charactersperrow.

Selection of menu

1.Toselectthemenu,pressCANCEL button in the memory viewer mode. The cursor moves from file

selection window to menu.

2.Selectthesub-menuwithpointbuttonsandpressSELECT button. To cancel the selection, press

CANCEL button.

Memory viewer function

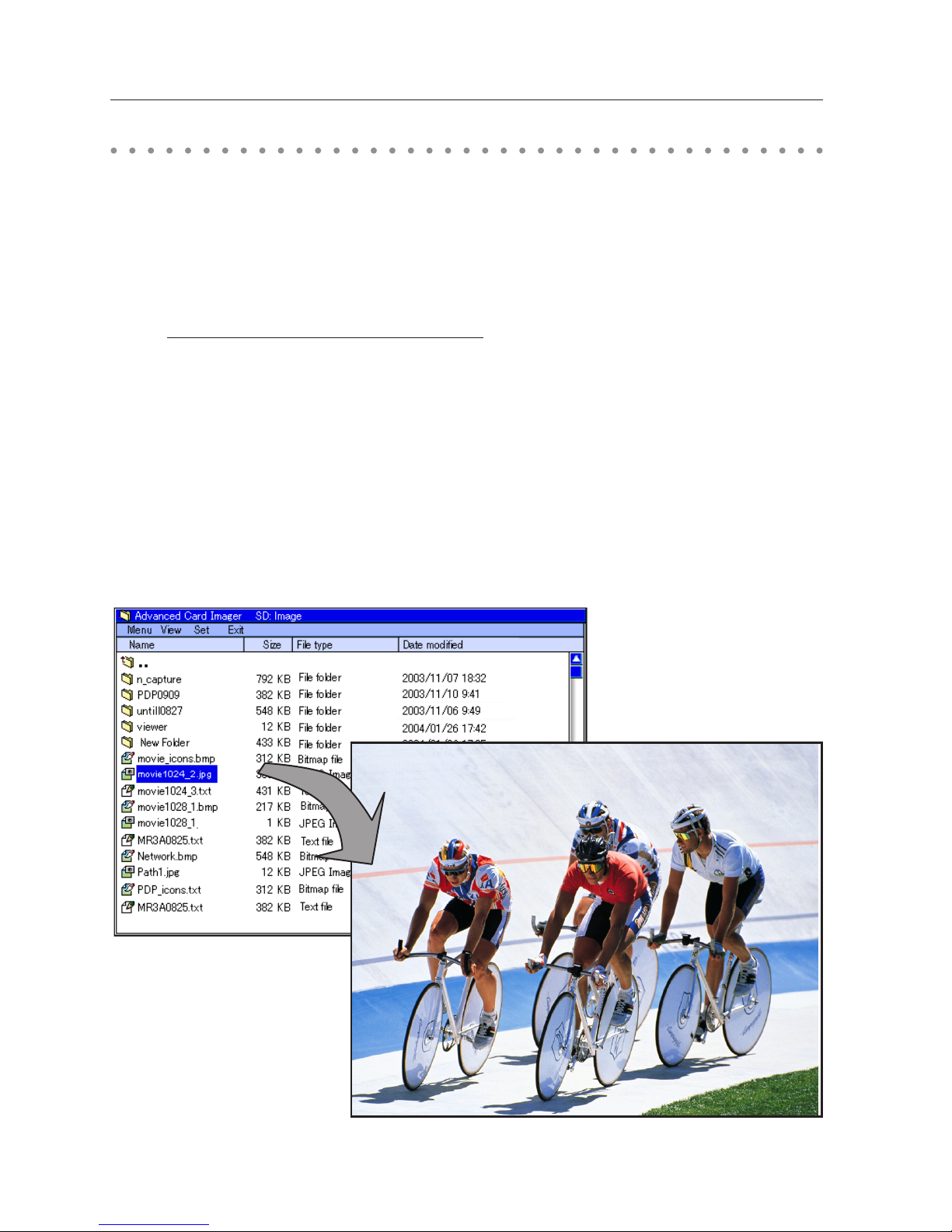

Image viewer in the manual mode

1.Select "Manual mode" from"Menu" on thebrowser window ofthe memoryviewer andpress SELECT

button.

2.Select afileto displaywithpoint buttons andpressSELECT button. The selected file image is

displayed on the screen.

3. During displaying the image, you can control the displayed image with control buttons as described

in the table below.

* The display time of the image and the number of repeat at the auto-playback mode are set up

from the "Set" menu on the browser window.

* Point 78buttons operate as the scroll key during displaying the text file .

Note:

During operating the memory viewer, the Network Viewer and Network Capture function cannot be used.

The program file does not support in the manual mode. Use it in the program mode.

Point Operation

dManual playback with next file

eManual playback with previous file

8Start auto-playback*

7 Stop auto-playback*

* To display the portrait documents such as text files, use the point 7 8 buttons to scroll up and down the page.

Image viewer in the program mode for Windows

1.Select"Programmode"on"Menu"ofthebrowserwindowofthememoryviewer.AndpressSELECT

button. The program files (.dpf) in the DispParam folder under the top directory are displayed.

* If the DispParam folder is not placed in the top directory, the list of the folder name is displayed. Find

the DispParam folder which stores the program file manually to display the contents of the folder.

2.Selectaprogramfilewithpoint buttons and press SELECT button. The dialogue window appears

and select "Yes" and press SELECT button to start the auto display. The images programmed by

program file are displayed on the screen. The display period of the image and the number of repeat

are set with the program file.

3. During displaying the image, you can control the displayed image with control buttons as described

in the table below.

Notes for Windows:

* The program file (.dpf) is created with the program editor software. For further information, see the

item"Creatingaprogramfile[ProgramEditor]"(p.115)describedontheseparatednetworkowner's

manual.

* The DispParam folder is automatically created when the program file with the program editor

isstored. Forfurtherinformation, seethe item"Creatingaprogramfile [Program Editor]" (p.115)

described on the separated network owner's manual.

* When storing the program file into the SD memory card manually, create folder with the name of

"DispParam" and store the program file into this folder.

* In the program mode, the browser window lists the program files and folders only. Other files are

not listed.

Point Operation

dManual playback with next file

eManual playback with previous file

8Start auto-playback

7 Stop auto-playback

Termination of memory viewer

To terminate the memory viewer function, take one of methods described below.

- Terminate with projector's on-screen menu.

1.Select“Wired”or"Wireless"fromtheinputmenuoftheprojector.PressSELECT button.

2.Select"MemoryViewer"withthepointed buttons and press SELECTbutton.The"Enter/Exit"pallet

of the memory viewer appears.

3.Select"Exit"andpresstheSELECT button.

- Terminate with memory viewer mode

1.Duringtheimagedisplaying,pressCANCEL button. The browser window appears on the screen.

2.PressCANCEL button again. The cursor moves to menu item.

3.Select"Exit"onthebrowserwindowwiththepoint78 buttons and press SELECT button.

While operating the memory viewer, the Network Viewer and Network Capture function cannot be used.

Memory viewer function

Duplicating the data into the SD memory card for Windows

It isdescribed howtoduplicatethedata convertedwith theNetworkViewer5[FileConverter1, File

Converter2]intotheSDmemorycardthroughthenetwork.

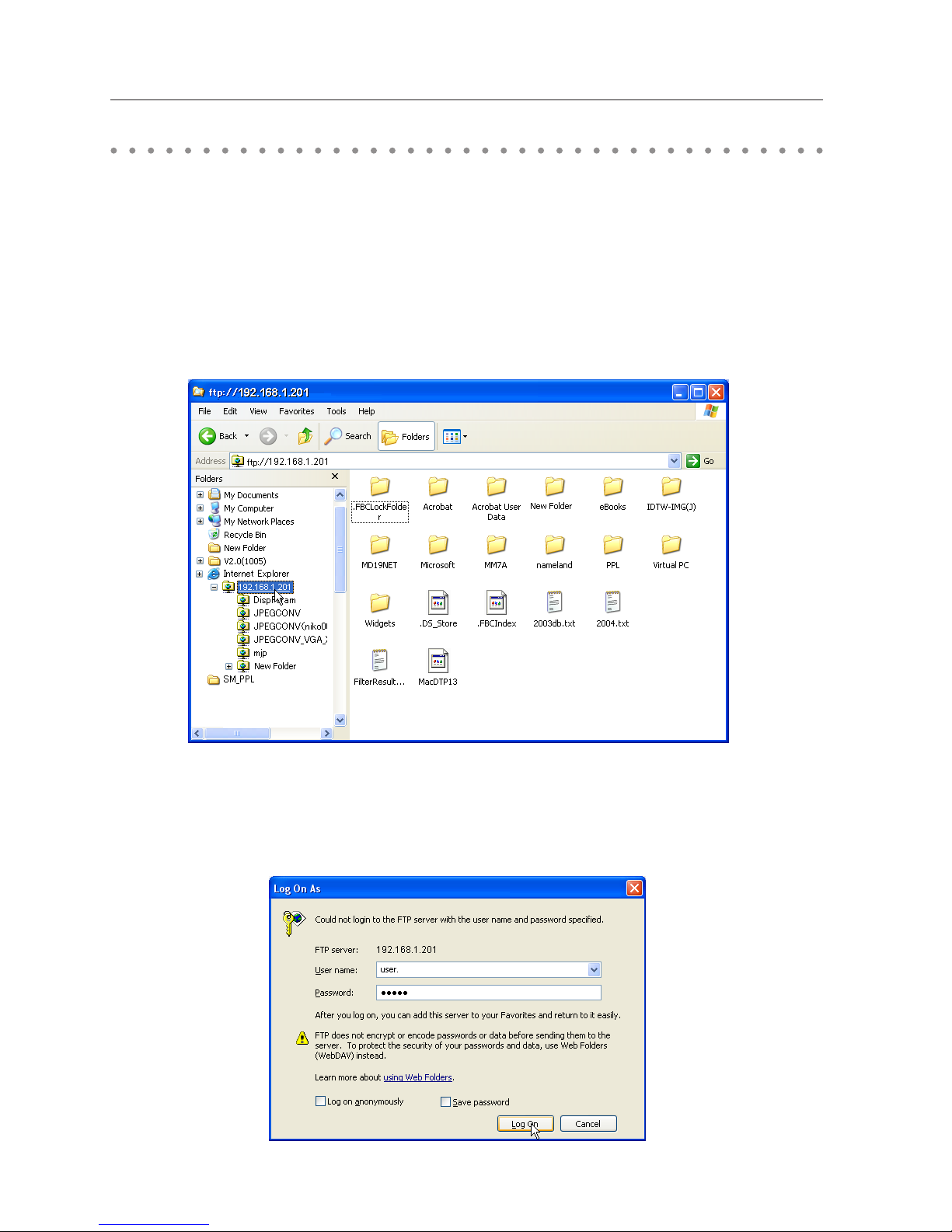

1.LaunchtheexplorersoftwareofthecomputerandtypetheIPaddressoftheprojectorwhichhasthe

SDmemorycardontotheaddresscolumn.Forexample,"ftp://192.168.1.201".

The contents of the SD memory card appear on the explorer window as below.

2.MovetheprojectiondatafromthecomputerintotheSDmemorycard.

Note:

If the network PIN code is set for the projector, the authentication window appears as below. In that

case, enter "user" into the User Name column and the network PIN code of the projector into the

Password column. *User Name must be "user".

Autres manuels pour PLC-XL51 - 2700 Lumens

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sanyo Projecteur

Sanyo

Sanyo WXU700 - WXGA LCD Projector Manuel utilisateur

Sanyo

Sanyo PLC-SU22N Manuel utilisateur

Sanyo

Sanyo LC-XB42N Manuel utilisateur

Sanyo

Sanyo PLC-550M Manuel utilisateur

Sanyo

Sanyo PLC-XC56 - 3100 Manuel utilisateur

Sanyo

Sanyo PLC-WK2500 - 2500 Lumens Manuel utilisateur

Sanyo

Sanyo PLC-XF30 Guide de démarrage rapide

Sanyo

Sanyo PLC-XT35 Manuel utilisateur

Sanyo

Sanyo PLC-XU70 Manuel utilisateur

Sanyo

Sanyo PLC-WM4500/L Manuel utilisateur

Sanyo

Sanyo PLC-XU10N Manuel utilisateur

Sanyo

Sanyo PLV-Z1X Manuel utilisateur

Sanyo

Sanyo PLC-XP07E Manuel utilisateur

Sanyo

Sanyo PLC-XW300 - 3000 Lumens Manuel utilisateur

Sanyo

Sanyo PLC-SE15 Manuel utilisateur

Sanyo

Sanyo PLC-XW300 - 3000 Lumens Manuel utilisateur

Sanyo

Sanyo PLC-WK2500 Manuel utilisateur

Sanyo

Sanyo PLC-XE32 Manuel utilisateur

Sanyo

Sanyo PDG-DHT8000L - 8000 Lumens Manuel utilisateur

Sanyo

Sanyo M4G-3000 Manuel utilisateur

Sanyo

Sanyo PLC-XL51A Manuel utilisateur

Sanyo

Sanyo PLC-320MB Manuel utilisateur

Sanyo

Sanyo PLC-WL2500 Manuel utilisateur

Sanyo

Sanyo PLC-WTC500AL Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
