Extron • System 4

xixi

Switcher Series • User’s Manual • P/N 68-402-02 Rev. E

Configuration and ConnectionsSanyo Installation

Page1

SYSTEM 4xixi

xixi

PROJECTOR COMMUNICATIONS KIT

ATTENTION!

PLEASE READ THIS DOCUMENT FOR IMPORTANT

INSTALLATION INSTRUCTIONS

THIS KIT HAS BEEN SHIPPED WITH THE FOLLOWING COMPONENTS:

Kit Type: SANYO

Included Communications Adapter(s):

Quantity Part Number Description

1 26-467-01 ADP, UNV, “A”

1 26-489-01 ADP, UNV, “J”

THE TABLE BELOW LISTS THE POSSIBLE CONFIGURATION(S) AND CORRESPONDING

COMMUNICATIONS ADAPTER(S) FOR YOUR PROJECTOR MANUFACTURER’S VARIOUS

MODELS. PLEASE NOTE THAT YOUR SWITCHER HAS BEEN CONFIGURED AS

INDICATED BY THE “✔”IN THE “CONFIG AS” COLUMN. IF YOUR PROJECTOR MODEL

DIFFERS FROM THIS CONFIGURATION, YOU MUST RECONFIGURE YOUR SWITCHER

WITH THE CORRECT SETTINGS.

PLEASE REFER TO THE FOLLOWING PAGES FOR COMPLETE CONFIGURATION AND

SIGNAL CONNECTION INSTRUCTIONS.

THIS SWITCHER HAS BEEN CONFIGURED FOR: SANYO PLC

CONFIG MODEL SW1 SW2 SW3 SW4 SW5 SW6 PROJ COMM

AS 1 2 3 4 CABLE ADAPTER

✔PLC off on off on 0 0 1 E 0 J15 26-467-01

✔PLC 8810 off on off on 0 0 1 E 0 J15 26-489-01

PLC XP10 off on off on 0 0 1 E 0 J15 26-489-01

PLC XP30 off on off on 0 1 1 E 0 J15 26-489-01

Extron • System 4

xixi

Switcher Series • User’s Manual • P/N 68-402-02 Rev. E

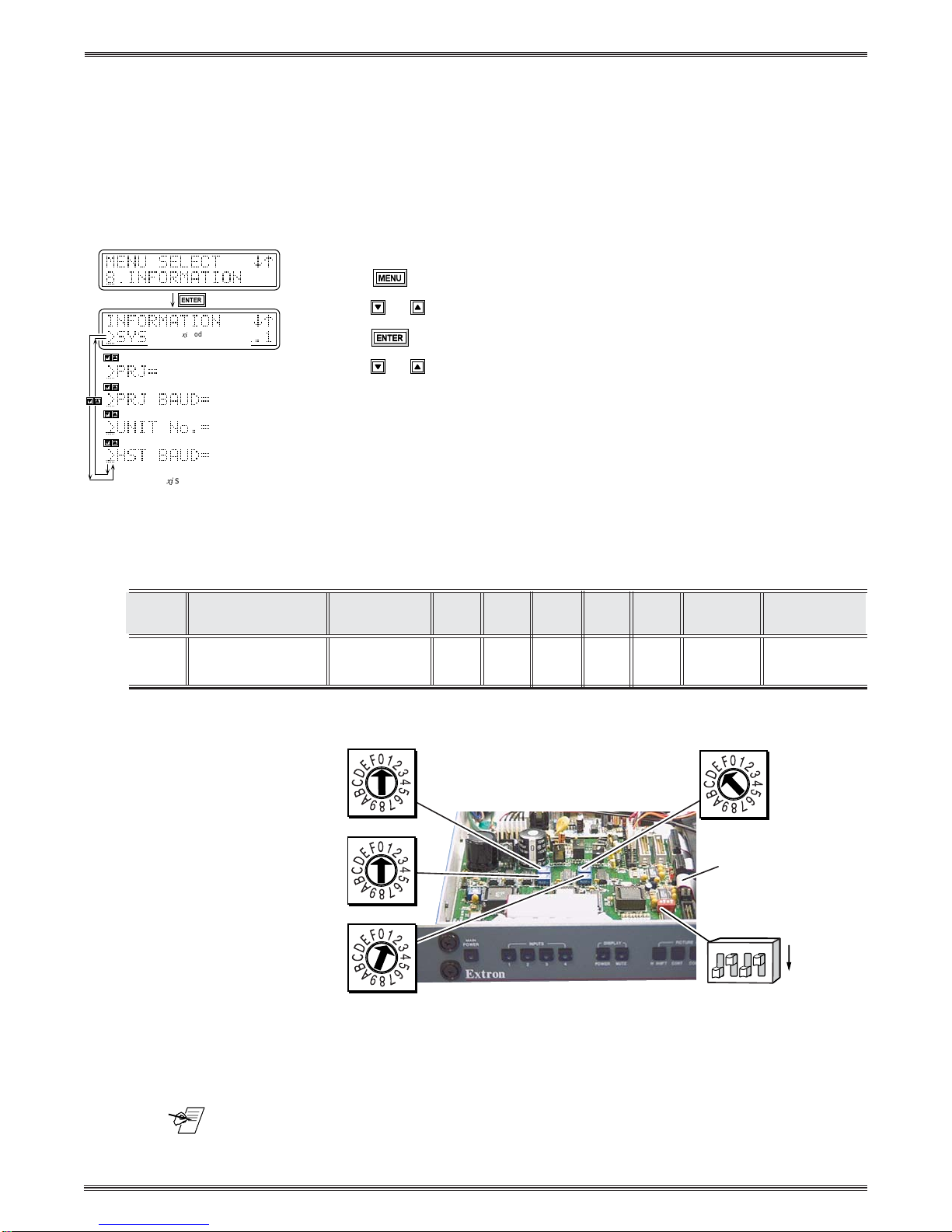

Sanyo Installation Configuration and Connections

Page2

(Note: Information depends on

stem 4

setu

)

(See note.)

[System 4

model and software

version displayed here]

Connecting System 4xixi

xixi

xi to Sanyo PLC

If the System 4xi is already configured for a Sanyo PLC projector, go to step 4.

If it is not set up correctly, it will be necessary to change switch settings on the

System 4xi ’s Main Controller Board. Begin at Step 1 to verify the correct

configuration.

1. Use the Front Panel to display the Information Menu to verify that the System 4xi

is already set up for the Sanyo PLC. Apply power to the System 4xi and do the

following:

a. Press to display the MENU SELECT on the LCD screen.

b. Press or to step to Menu 8.

c. Press to select this menu.

d. Press or to display the configuration. The example to the left is general,

yours will show the System 4xi model name, the software version and the

following information:

PRJ = SANYO

PRJ BAUD = 19200

UNIT No. = 000

HST BAUD = 9600 (value depends upon setup Menu 3)

2. Go to the procedure on page 2-3 of the

System 4

User’s Manual

to remove the

System 4xi cover. Then go to page 2-4 and refer to the configuration below to

set up the Main Controller board. Continue with Step 3 (below) when the

configuration is correct.

Config Projector SW1: 1-2-3-4 SW2 SW3 SW4 SW5 SW6 Prj Cable Comm

as Adapter

✔Sanyo PLC off-on-off-on 0 0 1 E 0 J15 26-467-01

or 26-489-01

3. Double-check your work and be sure the System 4xi cover is on securely.

4. Install the System 4xi in its place of operation (i.e. rack), but not powered on.

__________ Changes in some switch configurations are not detected until the power is

removed at the AC cord, and then restored.

Refer to the following connection diagram and continue.

}

SW1

SW2

SW4

SW3 SW5

J15

Extron • System 4

xixi

Switcher Series • User’s Manual • P/N 68-402-02 Rev. E

Configuration and ConnectionsSanyo Installation

Page3

5. The Sanyo PLC Comm Adapter (26-467-01) has a 9-pin male connector that

accommodates the Comm Extension cable. The other end of the Comm Adapter

plugs into the projector’s RS-232C port.

6. Plug the 15-pin HD connector of the Projector Communications Extension cable

into the PJ Comm port on the System 4xi.

______ Secure all of the connector screws.

7. Plug the (4 or 5) BNC connectors from one end of the (user-supplied) RGBS/HV

cable onto the System 4xi output and those on the other end onto the matching

BNCs on the Sanyo PLC connector panel.

System 4xi Series – Sanyo PLC Projector Connections

Use the illustration below as a guide when connecting the System 4xi to a Sanyo

PLC Projector. Refer to Sanyo documentation to continue the installation.

____________ In a rack mount, do NOT allow the weight of the cables to be supported by the

System 4

. See page 2-5 for cabling guidelines.

Special Note: _____ Certain PLC projectors may not come equipped with a 9-pin serial port

connector. In those situations, the Com adapter must be connected to Control

Port 2 using the projector’s special DIN to 9-pin serial adapter, as illustrated

below.

9-Pin Female

To projector's Control Port 2

Sanyo DIN to 9-pin adapter

To switcher's Projector Control port

9-Pin Female

9-Pin Male

Extron Com Adapter

26-467-01 "A"

or 26-489-01 "J"

AUDIO 1

ANALOG RGB

CONTROL PORT 1USB 1

GBHV

AUDIO 1VIDEO/Y C/Cb(B-Y) Cr(R-Y) S-VIDEO

S-VIDEO

AUDIO 2

CONTROL PORT 2

SERIAL PORTAC JACK

USB 2

AUDIO OUT

AUDIO 1VIDEO/Y C/Cb(B-Y) Cr(R-Y)

RGBHV 5 BNC

15-Pin

Male

9-Pin Female

9-Pin Male

ComAdapter

26-467-01 "A"

or 26-489-01 "J" A

OUTPUT

PJ COMM

RS 232

AUDIO AUDIO AUDIO AUDIO AUDIO

H/HV

R/C G/Y BR/C G/Y B

INPUT 4

H/HV V

R/C G/Y B

INPUT 3

H/HV V

R/C G/Y B

INPUT 2

H/HV V

R/C G/Y B

INPUT 1

H/HV V

See Special Note below
