FEATURES SPECIFICATIONSFEATURES SPECIFICATIONS

•Includes two, 25-watt two-way speakerswith 5"woofer and

directional tweeters

•Integrated 50-watt power amp resideswithin wall mount

wall plate

•Multipleinputs, including separate line-level mic input

•Dynamic sound range easilyreaches back row without

overpowering front row

•Extends from 7"-27" from the wall

•Mounts to single and/or dual wood studs(16", 18"and

24"), steel studs and concrete

•Includesuniversal projectormount

Model MT-EDU101

Weight Capacity 50 lbs.

Height 10.69"

AdjustableDepth 7"-27"

Adjustable Height 2"

Pitch +/-16.5°

Roll +/-7.5°

Yaw 41°

Speakers 5" woofer and 1" tweeter

Amplifier 50-watt (25 w/channel) @ 4ohms

Inputs (2)Stereo RCA; (1) line level mic; (1) mini stereo

Audio

50 lbs. 10.6" +/-7.5˚+/-16.5˚ 41˚

PROJECTOR MOUNT Universal MountUniversal Mount

EDU-MOUNT

MT-EDU101

Available April 2010

Ultra-Short-Throw Projector Mount with Audio Package

Flexible Mounting Options

Mounts to single and/or dual studs (16", 18"

or 24" spacing), steel studs and concrete

Integrated Ampliﬁer

Compact 50-watt ampliﬁer resides in wall mount

for easy wiring and clean installation

Cable Routing

Discretely manage signal and

power cables through arm and

into wall mount

A/V Equipment Security

PC, MAC or control modules can be

secured with security hardware

Audio Upgrade

Powerful two-channel speakers provide

superior improvement over typical audio from

tiny projector speakers Universal Projector Mount

Includes universal projector mount for

+/-16.5° pitch, +/-7.5° roll and 41° yaw

31.56”

8.44”

11.34”

31.5”

53.9”

10.69”

ACCESSORY OPTIONS FAQ

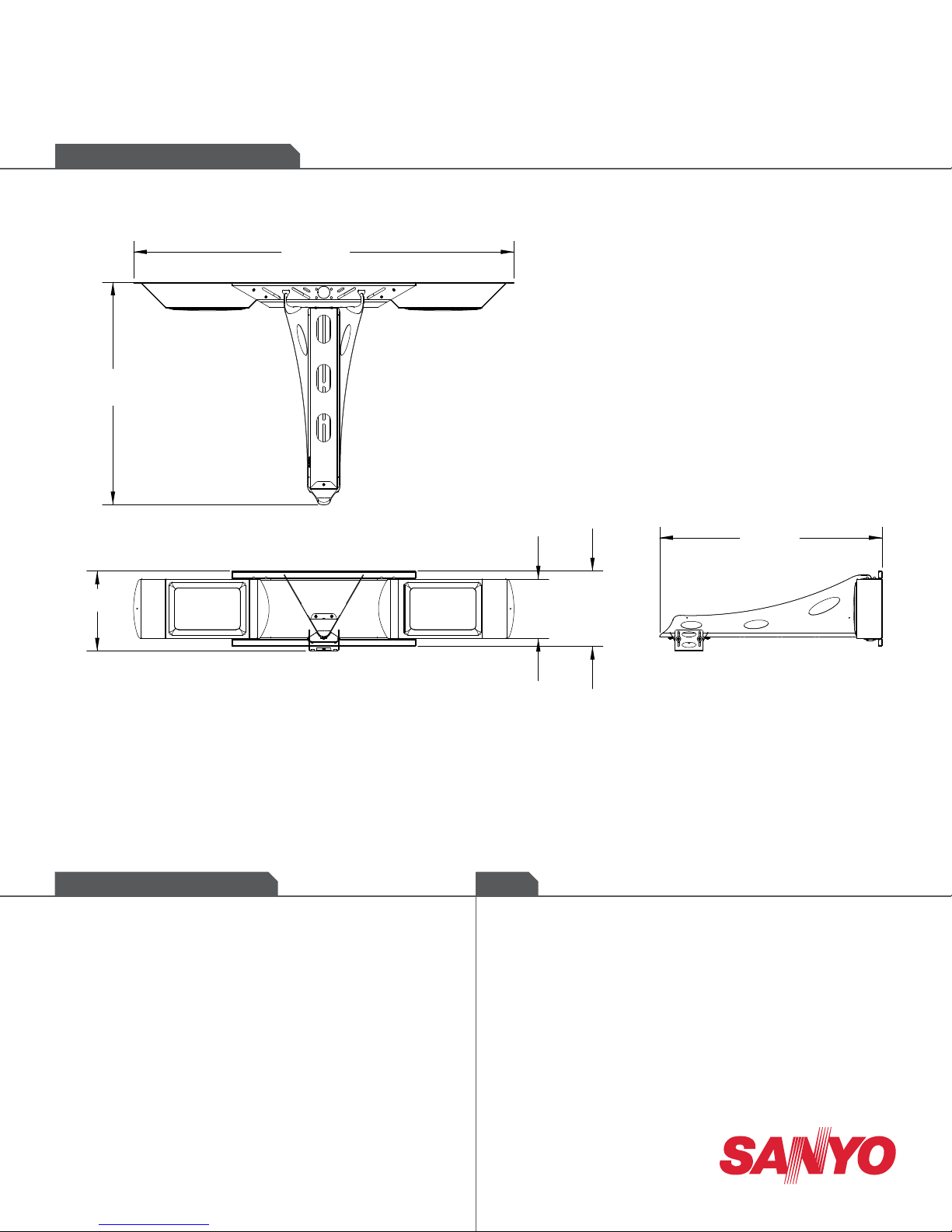

DIMENSIONAL DRAWING

Dimensions in inches.

Drawings subject to change without notice.

EDU-MOUNT

Ultra-Short-Throw Projector Mount with Audio Package

No accessory options available at this time

Works with SANYO PDG-DWL100, PDG-DXL100, PLC-WXL46, PLC-WXE45

Note: DWL100/WXE45/WXL46 can be attached max 60” diagonal screen image.

DXL100 can be attached max 55” diagonal screen image.

If you need to project a larger screen MT-EDU102 can be attached

What inputs are on the amplifier?

Two RCA inputs and a line-level microphone input are on the ampliﬁer.

Separate gain presets are integrated on the side of the chassis.

Howis the sound? Will I blow away the front row to barely be

heard at the back?

The sound is great! We tested dozens of speakers to ﬁnd just the right ones.

We tuned the ports and power levels to optimize for a standard 32' x 32'

classroom with no mic feedback, distortion or blaring up close.

Toll free: 888-337-1215 www.sanyoprojectors.com

MT-EDU101

Please contact SANYO Support for more information regarding

mounting the SANYO PLC-XL50A/XL51.
