Sanyo MT-EDU102 Manuel utilisateur

FEATURES SPECIFICATIONS

•Includes two, 25-watt two-way speakerswith 5"woofer and

directional tweeters

•Integrated 50-watt power amp resideswithin wall mount

wall plate

•Multipleinputs, including separate line-level mic input

Dynamic sound range easilyreaches back row without

overpowering front row

•Extends from 37"-67"from the wall

•Mounts to single and/or dual wood studs(16", 18"and 24")

and concrete

•Includesuniversal projectormount

Models MT-EDU102

Weight Capacity 50 lbs.

Height 10.69"

AdjustableDepth 37"-67"

Adjustable Height 2"

Pitch +/-16.5°

Roll +/-7.5°

Yaw 41°

Speakers 5" woofer and 1" tweeter

Amplifier 50-watt (25 w/channel) @ 4ohms

Inputs (2)Stereo RCA; (1) line level mic; (1) mini stereo

Flexible Mounting Options

Mounts to single and/or dual studs (16", 18"

or 24" spacing) and concrete

Integrated Ampliﬁer

Compact 50-watt ampliﬁer resides in wall mount

for easy wiring and clean installation

Cable Routing

Discretely manage signal and

power cables through arm and

into wall mount

A/V Equipment Security

PC, MAC or control modules can be

secured with security hardware

Audio Upgrade

Powerful two-channel speakers provide

superior improvement over typical audio from

tiny projector speakers Universal Projector Mount

Includes universal projector mount for

+/-16.5° pitch, +/-7.5° roll and 41° yaw

Audio

50 lbs. 10.6" +/-7.5˚+/-16.5˚ 41˚

PROJECTOR MOUNT Universal MountUniversal Mount

EDU-MOUNT EXTENDED

MT-EDU102

Ultra-Short-Throw Projector Mount with Audio Package

Available April 2010

53.97”

70.42”

11.20”

26.15”

8.44” 10.69”

Dimensions in inches.

Drawings subject to change without notice.

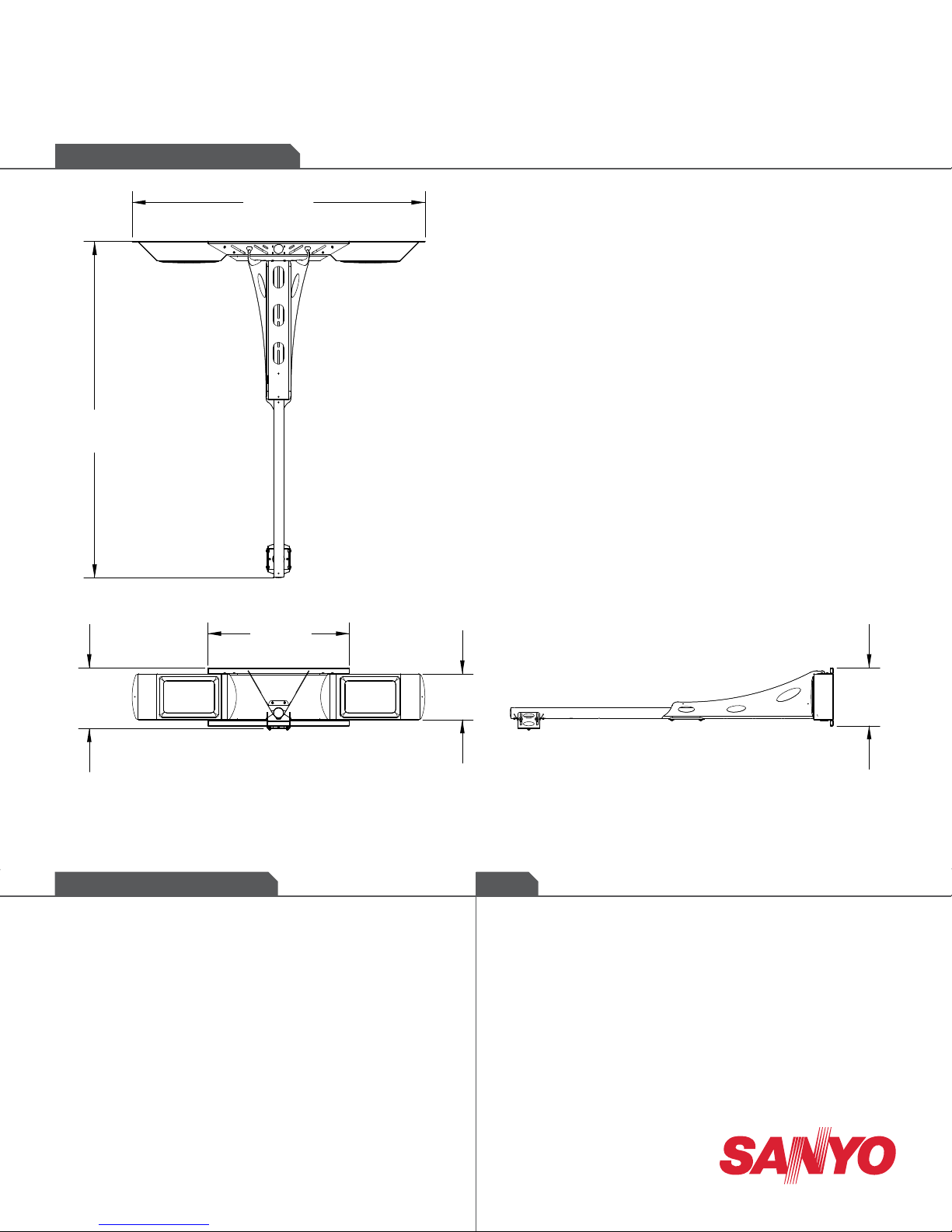

DIMENSIONAL DRAWING

EDU-MOUNT EXTENDED

Ultra-Short-Throw Projector Mount with Audio Package

MT-EDU102

ACCESSORY OPTIONS FAQ

No accessory options available at this time

Works with SANYO PDG-DWL100, PDG-DXL100, PLC-WXL46, PLC-WXE45

What inputs are on the amplifier?

Two RCA inputs and a line-level microphone input are on the ampliﬁer.

Separate gain presets are integrated on the side of the chassis.

Howis the sound? Will I blow away the front row to barely be

heard at the back?

The sound is great! We tested dozens of speakers to ﬁnd just the right ones.

We tuned the ports and power levels to optimize for a standard 32' x 32'

classroom with no mic feedback, distortion or blaring up close.

Toll free: 888-337-1215 www.sanyoprojectors.com

Please contact SANYO Support for more information regarding

mounting the SANYO PLC-XL50A/XL51.
