Santa Fe Connect Mode d’emploi

The Santa Fe Connect is a monitoring system that allows

you to control your dehumidier. In addition, you can receive

data about water, humidity, temperature and much more in

crawl spaces and basements anytime from anywhere.

SANTA FE CONNECT

7/31/18

Santa-Fe-Products.com | 800.533.7533

Installation & Operation Instructions

Table of Contents

Specications .................................................3

Items Included.................................................3

Tools Required.................................................3

Installation ................................................ 4-10

Home View ....................................................11

Menu.............................................................12

History View ..................................................13

Alert Rules.....................................................14

Troubleshooting ............................................15

Warranty........................................................16

1-800-533-7533

www.santa-fe-products.com/santa-fe-connect

connect

Specications

Part Number: 4037300

Supply Voltage: 115 Volt - 1 Phase - 60 Hz

Current Draw: 0.250 Amps

Operating Temperature: 0 - 150°F, RH% accurate 32°F - 120°F

Network Cable: 2'or 25'

Water Sensor Cable: 25', 2 Conductor 22 AWG

Connectivity: Wi-Fi

Santa Fe Connect Monitor

Santa Fe Connect

Network Cable (2 Ft.)

Santa Fe Connect

Network Cable (25 Ft.)

Santa Fe Connect

Water Sensor

Santa Fe Connect Water

Sensor Cable (25 Ft.)

Hanging Screw

• Phillips Screwdriver (optional depending on install)

• Smart Phone (iPhone or Android phone)

•Homeowner’s Wi-Fi Password

Items Included

Tools Required

Step 1.

Download the Santa Fe Connect app from

the App Store or Google Play Store by

searching “Santa Fe Connect”.

Step 2.

Launch the Santa Fe Connect

app and enter your email and

password. Then select Sign Up.

Installation

Step 3.

Enter your account details and

select notication preferences.

Email, SMS, or both can be

selected to best meet your

notication needs. Then

select Create Account.

Step 4.

Launch the Santa Fe Connect app and log

in using your email address and password

that were used to create your account

(from Step 2).

Forgot your password? Click the “Forgot

Password” link and an email will be sent to

you with a temporary password and reset

instructions.

Select Log In to access your Santa Fe

Connect account. You will be prompted to

start the dehumidier installation.

Installation

Step 5.

Follow the steps in the app. First, decide

location of your Connect. Position the

Connect onto the back of your dehumidier

using the magnet on the back of the

Connect or position the Connect somewhere

within 25 feet of the dehumidier using the

hanging screw. DO NOT place the Connect

on or near the exhaust grill of the dehumidier.

Plug in your dehumidier.

If the Connect light is

blinking blue, press Yes

and proceed to Step 8.

Otherwise, press No and

proceed to Step 6.

Installation

Step 6.

Once the Connect light is blinking or

fading in and out, press Yes and

continue to Step 7.

If there is no light, press No and return

to Step 5.

Please Verify that your dehumidier

has power and your Connect has been

attached to your dehumidier using the

Connect network cable.

Step 7.

Locate the set up button on the side of

the Connect and insert a pen or paper clip.

Push the button gently to initiate set up.

Once the Connect light is blinking blue,

proceed to step 8 to continue with

installation.

Step 8.

Click on the Settings button to

continue to the phone’s WiFi settings.

Press on the Photon- network.

Once the phone links to the Connect,

a check mark will appear.

Navigate back to the Connect app.

Press Continue.

Installation

Step 9.

Select the network to which you wish

to link to. If the network you prefer does

not appear, the network could be out of

range, hidden, or 5GHz. Enter network

password if required. Press Continue.

Note 1: The Santa Fe Connect requires a

2.4GHz WiFi network, check that your

network and password match that of

your 2.4GHz network.

Note 2: An orange lock to the right of the

network indicates WEP router security.

You will need to provide a Key number,

an encryption type and the passcode

required by the router. A Red X to the right

indicates an Enterprise network which is

not supported by Connect.

Installation

Step 10.

The Connect will blink green rapidly

as it receives the network credentials.

The app will then wait for verication

that the Connect has linked to the

cloud. This may take up to two

minutes. When done ‘Cloud

connection successful!’ will display

on the screen. Press Continue and

proceed to step 13.

Step 11.

If the Clear WiFi Connection window

appears during the verication process,

return to Settings and disconnect from

the Photon connection and sign in to

desired WiFi.

Step 13.

Name your Dehumidier, provide zip

code and placement of dehumidier.

Click Done.

Installation

Step 12.

If the ‘Connection Failed’ error appears,

wait for the Connect Monitor to slowly

start fading in and out turquoise. Press

Yes and return to step 10.

If it does not turn turquoise, press No.

Read the installation tips and start the

installation again.

Installation

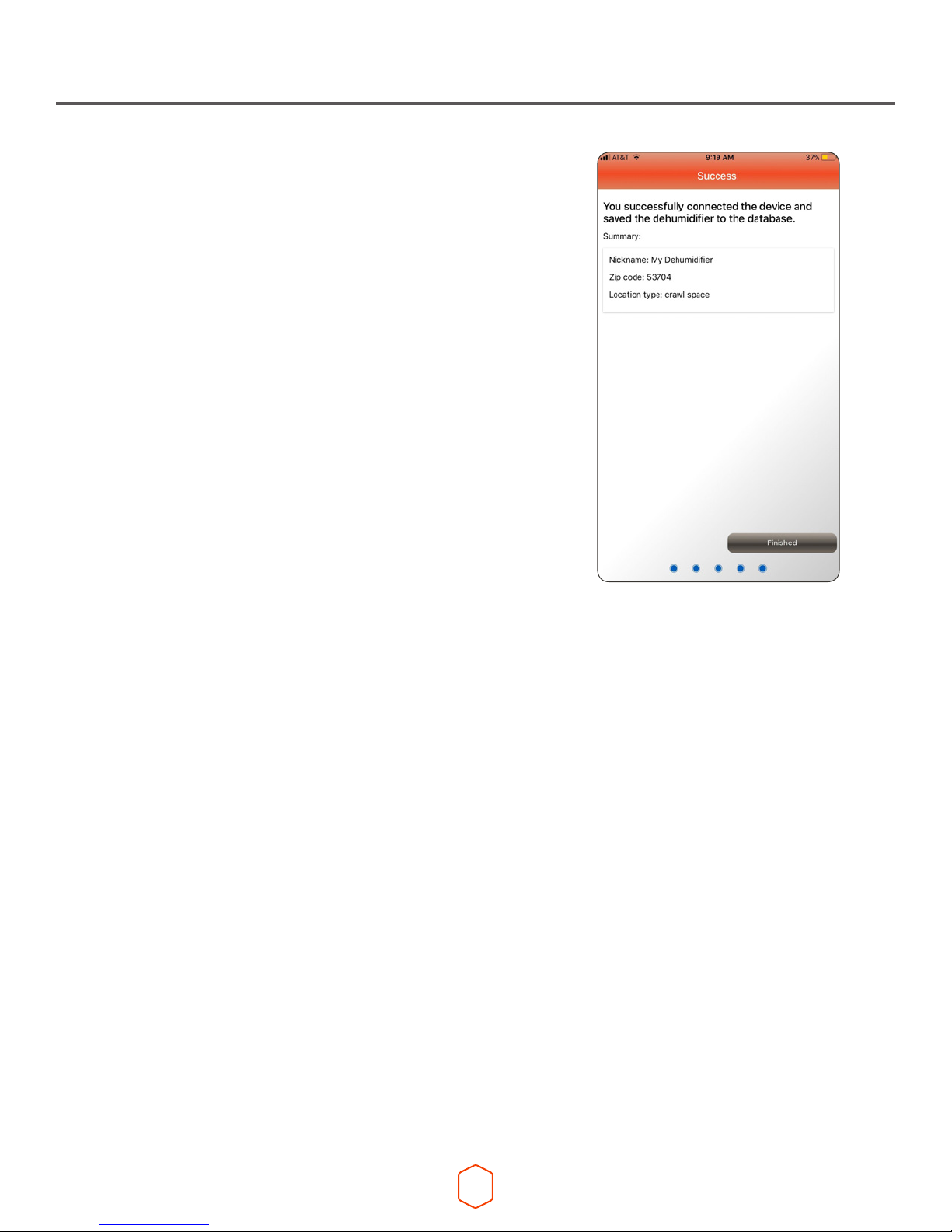

Step 14.

After saving information, a screen

conrming a successful installation

will appear. You will also see the

information you provided. Press

Finished to return HOME.

To link the Santa Fe Connect to a new WiFi network:

(These steps are necessary if the router is changed or the router password is

changed.)

• Start at Step 1 of this guide and follow the procedure like your rst time installation.

To Remove a Dehumidier from the Santa Fe Connect:

• Select the dehumidier.

• Click on Systems on the bottom bar

• Choose Release or Delete the Dehumidier

• Releasing a dehumidier will not delete its humidity history but will prevent

you from controlling or monitoring it in the future. Releasing a dehumidier

allows other Santa Fe Connect accounts to connect to it.

• Deleting a dehumidier, completely removes the dehumidier from your

app. You will no longer be able to view its humidity history not control it

from your app.
