Sanremo Café Racer Installation & Quick Start Guide

Disclaimer: Installation must be performed by professional technician. Improper installation can void warranty, permanently damage equipment and/or present burn

& electrical hazard to installer/user. Consult with local municipality for official electrical and plumbing codes/guidelines.

Consult user manual for expanded installation, operation, and safety guidelines.

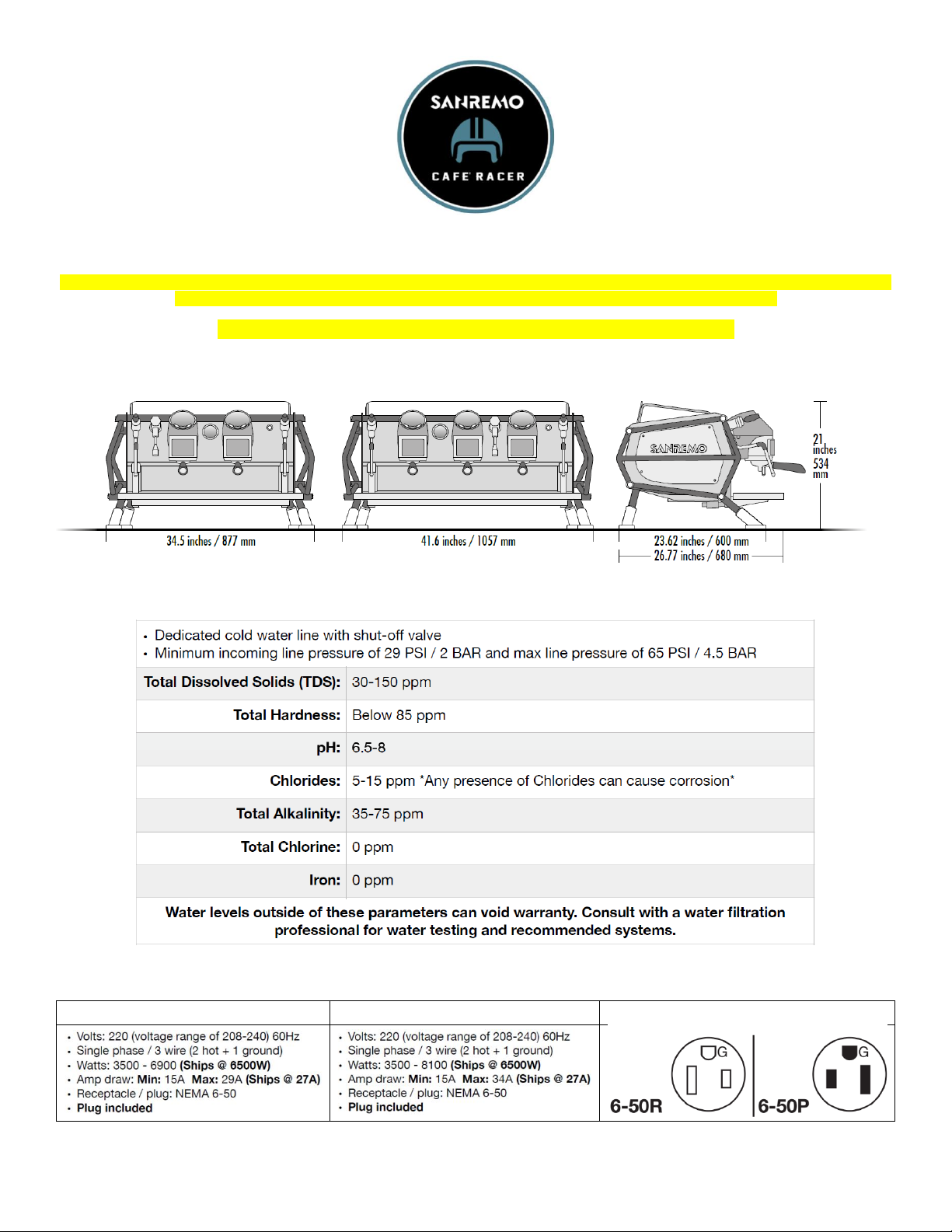

Dimensions

Water Requirements

Electrical Requirements

2 Group

3 Group

Receptacle & Plug Configuration

2 Group

3 Group

Connection & Counter Hole Diagrams

3” hole in counter recommended for passage of

electrical cord & water/drain lines.

Counter hole placement recommended to be

center of machine and 17” inward from edge of

the drip tray.

First Start Procedure

Confirm the steam boiler has auto filled sufficiently and has not timed out by referencing the center water level

display section of the pressure gauge:

If machine has timed out, cycle machine off/on and allow to auto fill. If machine is still timing out, shut machine down and re-check

the inlet water line / filtration system and confirm water flow to machine.

When the machine has successfully auto filled the steam boiler, turn on all groups and confirm water flow. Turn

groups off and perform the first air purge of the hydraulic circuit whilst the machine is cold.

Steam Boiler Water Level Low

Steam Boiler Water Level Filling

Steam Boiler Water Level Filled

Air Purge Procedure

Press and hold the air purge button for 10 seconds or until air can no longer be heard purging the circuit

Once the machine has reached operating temperature, perform second purge & group purge

•Repeat general circuit purge procedure (Press and hold purge button without any groups running)

•After completing the first step, insert a blind basket equipped portafilter into the left most group and select the

continuous button. Once the ML's stop rising on the display, press and hold the purge button whilst the group is

running. Hold this down for 3-5 seconds, release and turn off the group.

•Repeat for the remaining groups.

If the pump is delaying to engage when the group(s) are in use, re-perform the purge procedure until all air is purged from the

hydraulic circuit. Locations with less than 2 bar incoming water line pressure may need to repeat this process.

Pump adjustment

•Prepare a portafilter with coffee at the desired dose/grind calibration and insert into the group.

•Turn group on by selecting the continuous (center) button, locate the pump adjustment knob and set your desired pump

pressure WHILST the group is extracting the coffee.

Push knob up and turn counterclockwise (left) to decrease extraction pressure and

clockwise (right) to increase extraction pressure

Adjusting water mix for hot water (tea) tap

(Continue to next page for group programming)

To program / adjust each group, press and hold continuous button and press hot water tap button

Short dose button= decrease value | Continuous button = move to next parameter | Long dose button = increase value

Group Temperature

Cup Tray Warmer

Cup Tray Warmer Temp

Group Pre-infusion

Short Dose Pre-infusion time

Long Dose Pre-infusion

time

Short Dose Dispensing

Volume

Long Dose Dispensing

Volume

Note that parameters do not copy and paste to other groups. Each group must be set independently. For traditional

volumetric programming which transfers recipes to all groups, please refer to user manual.

Individual Group Cleaning Mode

For complete (all group) cleaning mode, please refer to user manual

HOLD

PRESS

Warranty Terms and Conditions

*** Submit at time of installation ***

Client Name

Date

Machine Model

Machine Serial N°

N°ofGroups

Supply Voltage

Location Address

/

Type

Install Date

Installed By

Water Quality Report (Before & After Filtration)

TDS:

ppm

Total Hardness:

ppm

pH:

Chlorides:

ppm

Total Alkalinity:

ppm

Total Chlorine:

ppm

Iron:

ppm

TDS:

ppm

Total Hardness:

ppm

pH:

Chlorides:

ppm

Total Alkalinity:

ppm

Total Chlorine:

ppm

Iron:

ppm

Recommended Water Specifications

•

Dedicated cold water line with shut-oﬀ valve

•

Minimum incoming line pressure of 29 PSI / 2

BAR and max line pressure of 65 PSI / 4.5 BAR

Total Dissolved Solids (TDS):

30-150 ppm

Total Hardness:

Below 85 ppm

pH:

6.5-8

Chlorides:

*Any presence of Chlorides can causecorrosion*

5-15 ppm

Total Alkalinity:

35-75 ppm

Total Chlorine:

0 ppm

Iron:

0 ppm

Water levels outside of these parameters can void warranty.

Consult with a water filtration professional for water testing

and recommended systems.

E-mail Form and supporting

media to tech@sanremous.com

I have read and acknowledge the above

Client Name:

Client Signature:

Date:

SANREMO Coﬀee Machines USA

99 Grand Street - Unit 20

Moonachie, NJ 07074 Direct Technical Department Line: 201-856-1705

Water Filtration Make

/

Model

/

Details (Please Send Photos of Installation and Filtration Setup)

SANREMO Srl guarantees that the machines and the components

supplied are free from defective material and / or workmanship

for a period of twelve (12) months from invoice date.

The warranty does not cover any faults or malfunctions due to

normal wear and tear, inappropriate use and / or use not in

accordance with normal operation, the use of non-original spare

parts and non-compliance with what is indicated in the use and

maintenance manual delivered together with the machine,

accidental events, unauthorized modiﬁcations or adaptations,

tampering, anomalies caused by electrical and hydraulic systems

or inadequate water ﬁltering and insects infestation.

In the case a failure is found; labor, diagnosis fees, travel fees

are not included in the warranty, nor are freight costs in cases of

shipping.

During the warranty period, all parts that are deemed defective

based on the judgment of SANREMO TSD (Technical Service

Department) will be replaced.

SANREMO Srl has the right to make changes to its products at any

time necessary for technical and / or aesthetic reasons, reserving

all rights deriving from these changes.

Consult with Sanremo TSD prior to performing any warranty

repairs.

Terms & Conditions
