Sanipex BAGNODESIGN Manuel utilisateur

BAGNODESIGN

  

General Installion Guide

ALPINE

FREESTANDING

WASH BASIN

NOTE: for illustrative purposes only a 0 Tap hole wash basin is shown, please follow the

same procedure to install the other Alpine freestanding basins.

 

Please leave these instructions with the customer

TOOLS REQUIRED (Not supplied)



  ' Penil



'+ 



NOTE: Before installing the WC, place a protective sheet in the installation area to

prevent any possible damage.

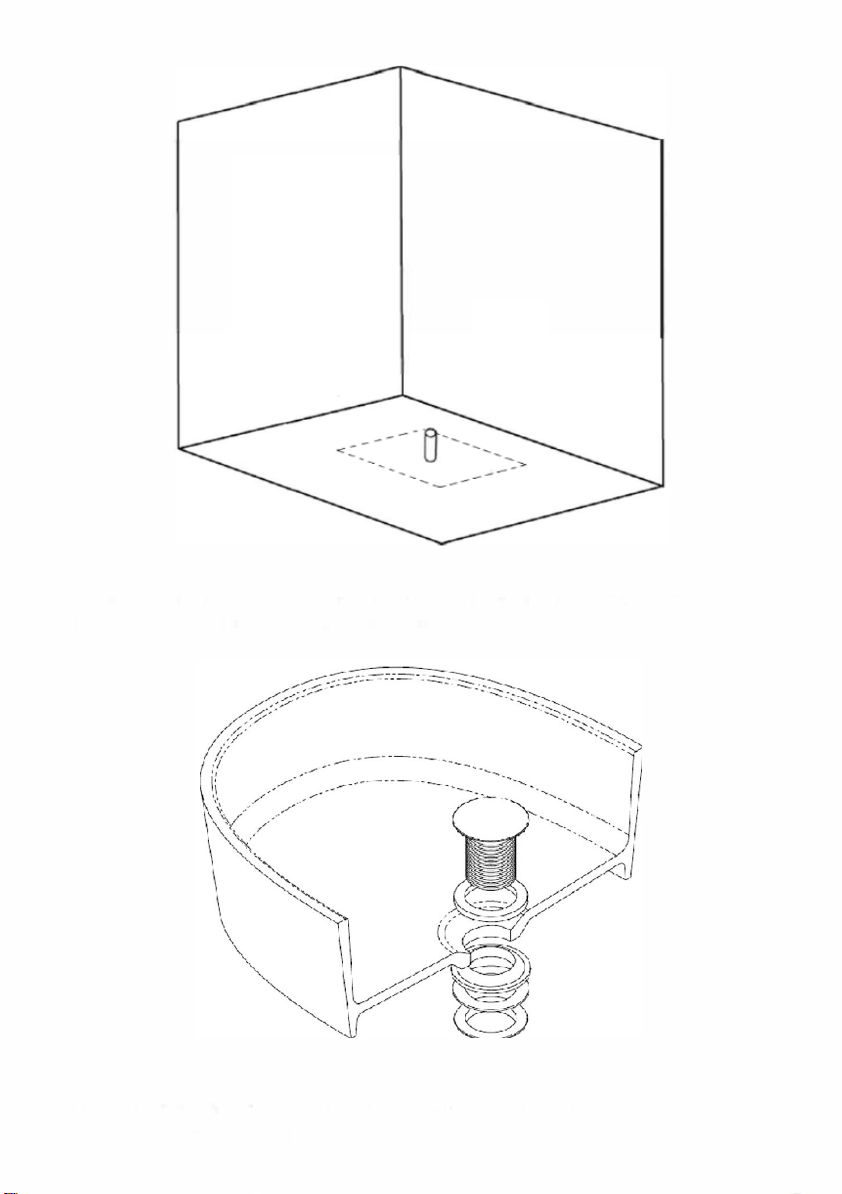

Place the freestanding washing in the desired position and mark around the perimeter.

Remove the basin, install the waste pipe either at the height of the entrance

horizontally, or within the perimeter of the basin vertically.

Install the waste into the basin and connect the bottle trap. If required use a

flexible waste pipe from the bottle trap to the floor outlet.

(S

hown a oval

shaped basin for illustrative purpose

)

.

Re-position the basin into the fixing area, connect the waste. Before putting the

basin into the final position, pour some water into the basin to ensure there are no

leaks from the waste.

Finalise the position of the basin and run a small bead of silicon around the perimeter base.

INSTALLATION COMPLETE!!!

Note:

INS-ALPINE FREEBASIN-01-21
