Samsung SCH-LC11 Manuel utilisateur

TABLE OF CONTENTS

WELCOME 2

YOUR DEVICE 3

Features 3

LED Service Status Indicator 4

Inserting and Charging the Battery 5

Powering Your Device On or Off 8

Installing and Removing the 4G LTE SIM Card 9

Resetting Your Device 13

Ways To Access 14

Getting Connected 16

Conﬁguring Your Device 19

NOTES 28

TABLE OF CONTENTS

WELCOME

Thank you for choosing U.S. Cellular®.

This guide will introduce you to the features and

functions of your new device.

For assistance, please go to www.uscellular.com.

You can also contact Customer Care at

1-888-944-9400.

NOTE: Screen images and icons are simulated. Actual display may

vary. Instructions in this guide may change depending on the

software version on your device.

WELCOME

YOUR DEVICE

FEATURES

1. 4G LTE NETWORK STATUS

2. 3G NETWORK STATUS

3. WI-FI & INTERNET STATUS

4. POWER BUTTON

5. RESET BUTTON (UNDER BATTERY COVER)

6. CHARGING PORT

YOUR DEVICE

LED SERVICE STATUS INDICATOR

ICON STATUS

Power

Travel adapter

not connected

Solid green: Battery 100-20%

Solid yellow: Battery 19-6%

Solid red: Battery 5 -1%

Travel adapter

connected

Solid green: Fully charged

Solid green: Charging

Blinking green: Charging interruption-

temperature related

Blinking red: Charging error

Wi-Fi

Solid blue: Wi-Fi connected

Blinking blue: Transferring

data

Solid green: Wi-Fi standby

Network

Status

Solid green: Strong Signal

Solid yellow: Weak Signal

Interchanging Colors: Roaming

Solid red: No Signal

Network

Status

Solid green: Strong Signal

Solid yellow: Weak Signal

Solid red: No Signal

The LED lights only communicate the signal strength, not an actual

connection.

YOUR DEVICE

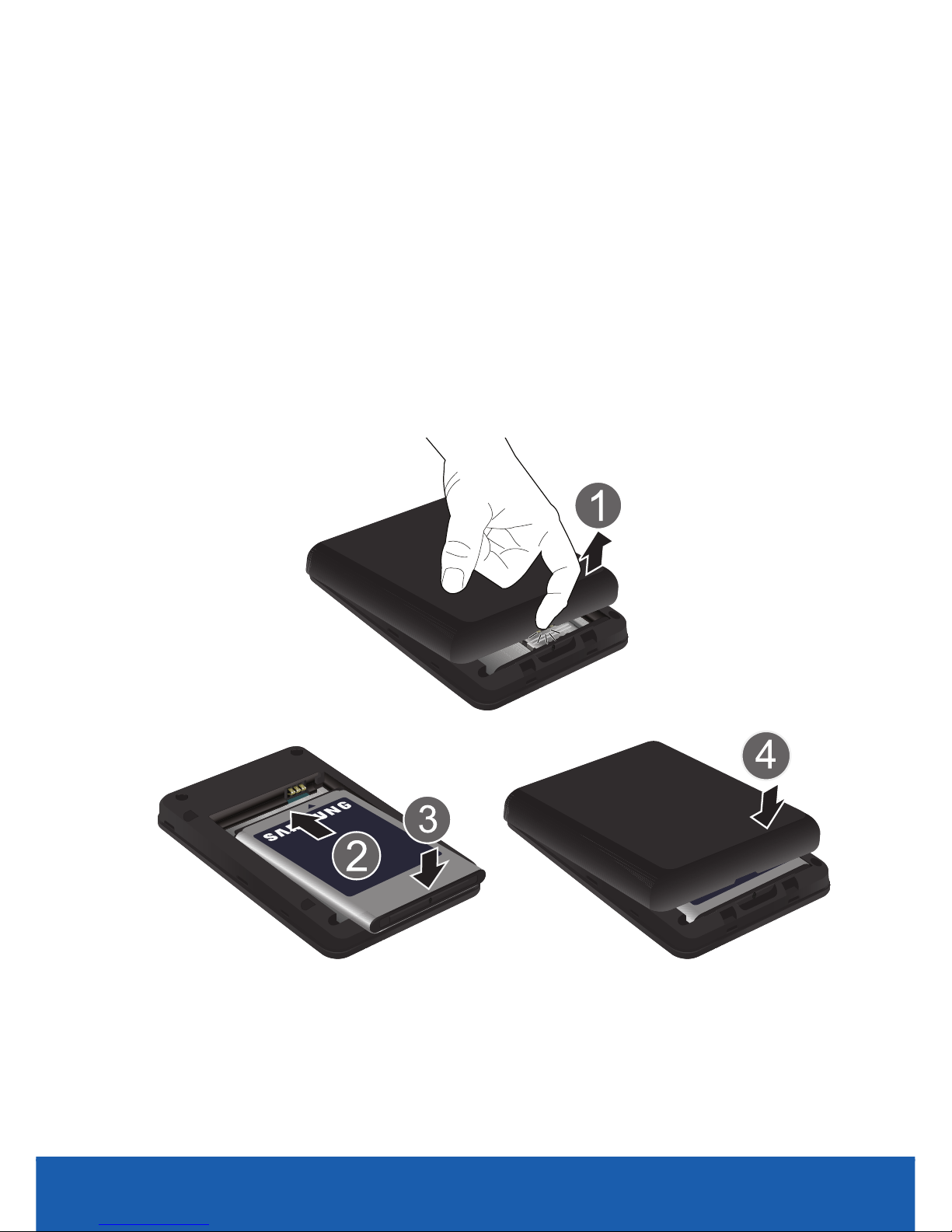

INSERTING AND CHARGING THE BATTERY

Remove the cover by placing your ﬁngernail in the

opening and ﬁrmly pop the cover from the device (1).

Insert the battery into the phone housing, align both

sets of gold contacts and press down (2 and 3).

Press down on the corners of the battery cover to

snap into place (4).

Charging your battery

1. Carefully slide the USB cable into the Charging

Head. Make sure the connection is secure.

CHARGING HEAD

INCORRECT

CORRECT

YOUR DEVICE

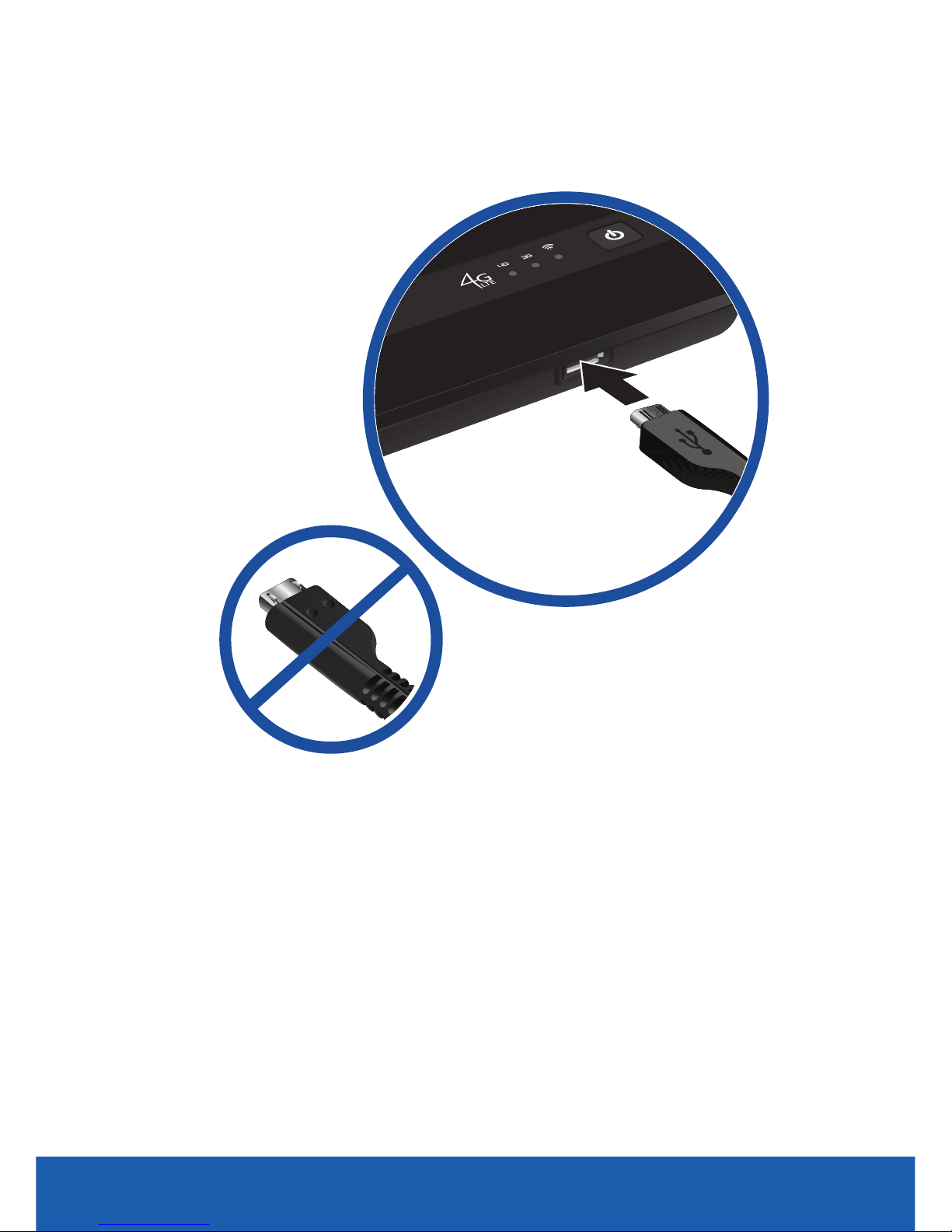

2. Insert the USB cable into the Charger/

Accessory Port.

3. Plug the charging head into a standard AC

power outlet. Once fully charged the Power

LED will turn green.

WARNING: Please only use an approved charging accessory to charge

your device. Improper handling of the Charging/Accessory

Port, as well as the use of an incompatible charger, may

cause damage to your device and void the warranty.

The USB cable is for charging only.

CORRECT

INCORRECT

YOUR DEVICE

POWERING YOUR DEVICE ON OR OFF

It’s important to fully charge the battery before

turning on your device.

XPress and hold the Power Key ( ) for two

seconds to turn the device on.

To turn your device off:

XPress and hold the Power Key ( )for three

seconds to turn the device off.

YOUR DEVICE

INSTALLING AND REMOVING THE 4G LTE

SIM CARD

1. Remove the battery cover and the battery if

installed.

2. Carefully insert SIM Card with gold contact

facing down into the slot.

The 4G LTE SIM Card MUST remain in the mobile

hotspot when in use.

Caution!: Do not bend or scratch your SIM Card. Avoid exposing your

SIM Card to static electricity, water or dirt.

INCORRECT

YOUR DEVICE

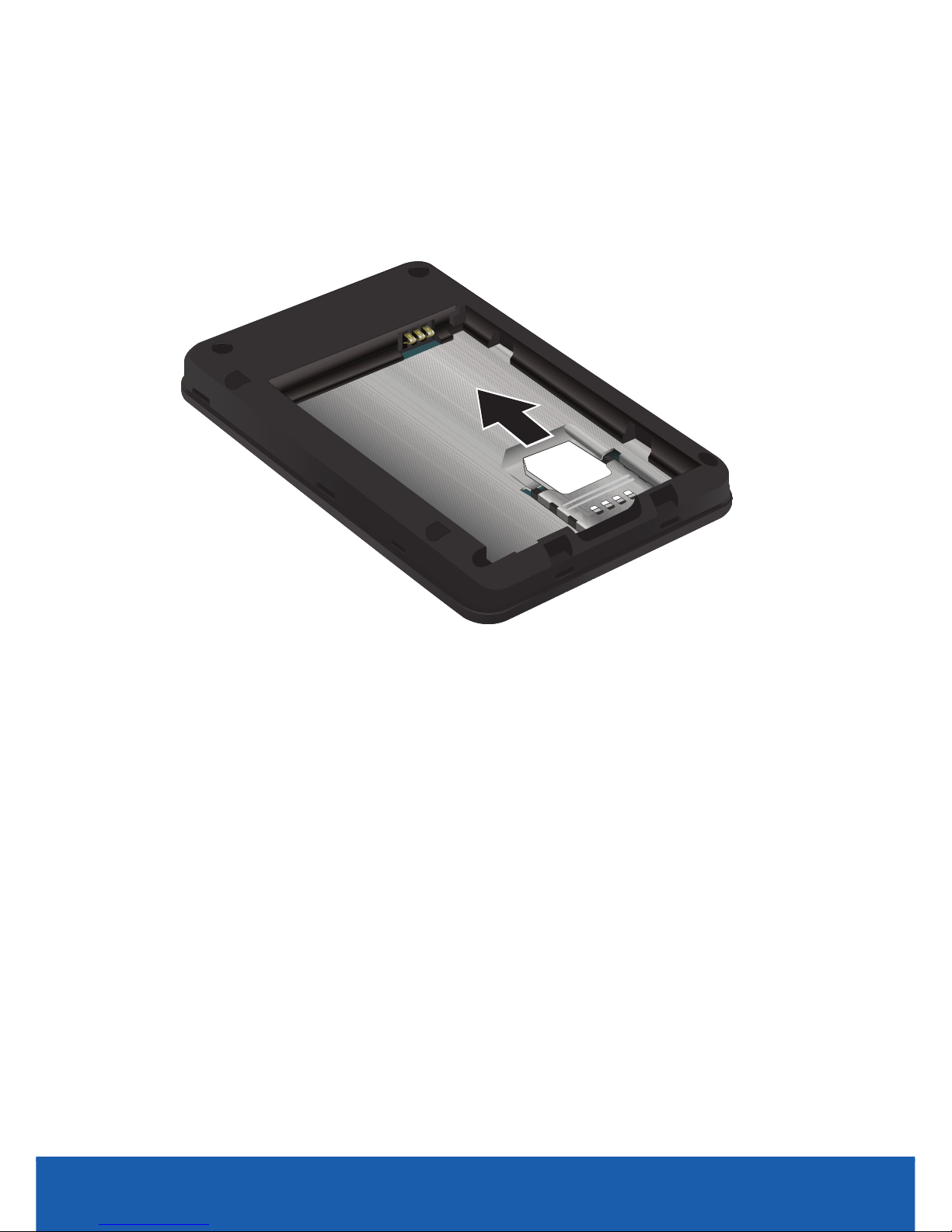

Removing the 4G LTE SIM card

XTo remove the SIM card, carefully slide the SIM

card out of the SIM card socket.

YOUR DEVICE
