Samsung Plasma TV Manuel utilisateur

Plasma TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model _____________Serial No. _____________

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

Customer Care Centre

Web Site

AUSTRALIA 1300 362 603 www.samsung.com

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com

CHINA 400-810-5858

010-6475 1880

www.samsung.com

HONG KONG (852) 3698-4698 www.samsung.com/hk

www.samsung.com/hk_en/

INDIA 3030 8282

1800 110011

1800 3000 8282

1800 266 8282

www.samsung.com

INDONESIA 0800-112-8888

021-5699-7777

www.samsung.com

JAPAN 0120-327-527 www.samsung.com

MALAYSIA 1800-88-9999 www.samsung.com

PHILIPPINES 1-800-10-SAMSUNG(726-7864)

1-800-3-SAMSUNG(726-7864)

1-800-8-SAMSUNG(726-7864)

02-5805777

www.samsung.com

SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com

THAILAND 1800-29-3232

02-689-3232

www.samsung.com

TAIWAN 0800-329-999 www.samsung.com

VIETNAM 1 800 588 889 www.samsung.com

[PC550]BN68-02705A-00Eng.indb 1 2010-02-23 오후 2:34:31

English

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Product design and speciﬁcations may be changed without notice.

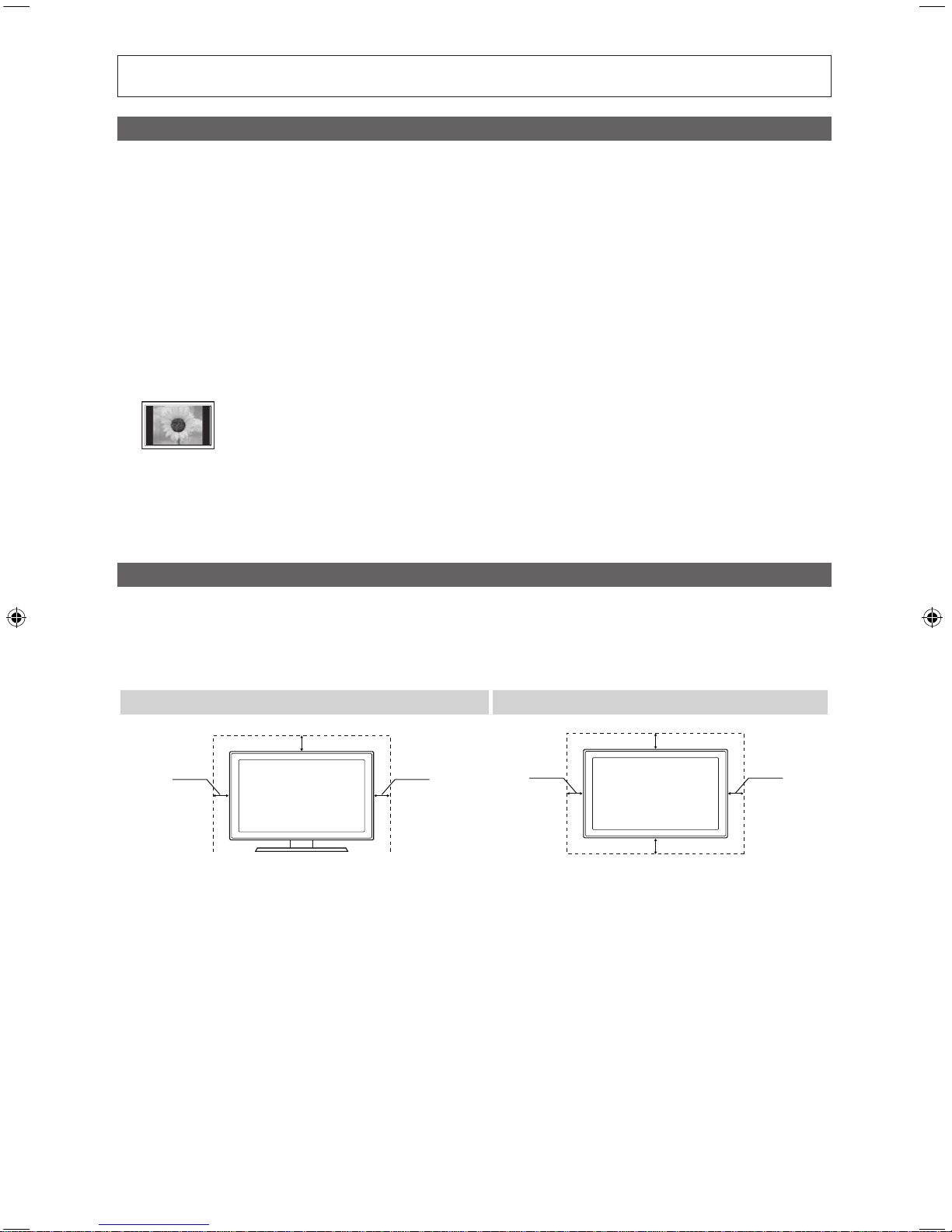

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game) on the plasma display panel for more than several minutes as it can cause screen image

retention. This image retention is also known as “screen burn”. To avoid such image retention, refer to page 13 of this manual to reduce the degree of

brightness and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the

product.

This is normal and does not indicate any defect or operation failure of the product.

However, children should be prevented from touching the upper part of the product.

• The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or

humidity. This is normal and not a defect of the unit.

• Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel.

Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of

the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to

the screen.

Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images.

To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

• Warranty

Warranty does not cover any damage caused by image retention.

Burn-in is not covered by the warranty.

Securing the Installation Space

Keep the required distance between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

✎

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

✎

The appearance may differ depending on the product.

Installation with a stand. Installation with a wall-mount.

10 cm

10 cm 10 cm

10 cm

[PC550]BN68-02705A-00Eng.indb 2 2010-02-23 오후 2:34:32

ENGLISH

English

Contents

Getting Started

4 Accessories

4 Viewing the Control Panel

5 Viewing the Remote Control

6 Connecting to an Antenna

6 Plug & Play (Initial Setup)

Connections

7 Connecting to an AV Device

8 Connecting to an Audio Device

8 Changing the Input Source

Basic Features

9 How to Navigate Menus

9 Using the INFO button (Now & Next guide)

9 Planning Your Viewing

11 Channel Menu

13 Picture Menu

16 Sound Menu

17 Setup Menu

20 Support Menu

Advanced Features

21 Connecting to a PC

22 Network Connection

28 Media Play

35 Anynet+

38 AllShare

Other Information

40 Analogue Channel Teletext Feature

41 Installing the Wall Mount

42 Assembling the Cables

42 Securing the TV to the wall

43 Troubleshooting

46 Speciﬁcations

47 Index

Check the Symbol!



This function can be used by

pressing the TOOLS button on the

remote control.

Note One-Touch Button

TOOLS

[PC550]BN68-02705A-00Eng.indb 3 2010-02-23 오후 2:34:32

English

Getting Started

Accessories

✎

Please make sure the following items are included with your PDP TV. If any items are missing, contact your dealer.

✎

The items’ colour and shapes may vary depending on the models.

yRemote Control & Batteries (AAA x 2)

yOwner’s Instructions

yCleaning Cloth

yPower Cord

yWarranty Card / Safety Guide (Not available in some locations)

yBlanking Bracket yCable Tie yFerrite Core for

Power Cord (2EA)

yFerrite Core for

LAN Cable (1EA)

✎

Ferrite Core: The ferrite cores are used to shield the cables from interference. When

connecting a cable, open the ferrite core and clip it around the cable near the plug as

shown in the figure.

A (Distance between the ferrite core and one end of the cord put into the TV set):

100 ~150mm

B (Distance between the ferrite core and the other end of the cord put into the

outlet): below 15mm

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE



Toggles between all the available input sources. In the on-screen menu, use this

button as you would use the ENTER



button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display), of your TV’s features.



Adjusts the volume. In the OSD, use the



buttons as you would use the ◄

and ► buttons on the remote control.



Changes the channels. In the OSD, use the



buttons as you would use the

▼ and ▲ buttons on the remote control.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.



(Power) Turns the TV on or off.

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount

of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Remote control sensor

Speakers

Power Indicator

[PC550]BN68-02705A-00Eng.indb 4 2010-02-23 오후 2:34:34

01 Getting Started

English

Viewing the Remote Control

✎

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and

Volume buttons.

Installing batteries (Battery size: AAA)

✎

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the performance of the remote

control. Avoid using nearby special fluorescent light or neon

signs.

The colour and shape may vary depending on the model.

CH LIST

MUTE

POWER

SOURCE

PRE-CH

GUIDE

MEDIA.P

TOOLS

RETURN

P.MODE

P.SIZE

SUBT.

S.MODE

DUAL

f-g

EXIT

INFO

TTX/MIX

A B C D

HDMI

Turns the TV on and off. Displays and selects the available video

sources (p. 8).

Selects the HDMI mode directly.

Returns to the previous channel.

To mute all TV output sound.

Changes channels.

Displays channel lists on the screen

(p. 11).

Displays the EPG (Electronic Programme

Guide) (p. 9).

Displays information on the

TV screen.

Exits the menu.

Have direct access to channels.

Adjusts the volume.

Alternately selects Teletext, Double or

Mix.

Opens the OSD.

Displays Media Play (USB) (p. 28).

Quickly select frequently used functions.

Returns to the previous menu.

Selects the on-screen menu items and

changes the values seen on the menu.

These buttons are for the Channel

Manager, Media Play (USB) menu, etc.

Use these buttons in Media Play (USB)

and Anynet+ (HDMI-CEC) modes

(p. 28, 35).

(



: Controls recording for Samsung

recorders that have the Anynet+

feature)

P.MODE: Press to select the picture

mode (p.13).

S.MODE: Press to select the sound

mode (p.16).

DUAL -: Sound effect selection (p.

17).

AD: Turns the audio description on and

off (not available in some locations)

(p. 16).

P.SIZE: Selects the picture size (p.14).

SUBT.: Displays digital subtitles (p.19).

[PC550]BN68-02705A-00Eng.indb 5 2010-02-23 오후 2:34:34

Getting Started

English

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the power cord and antenna.

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER



button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

1Selecting Store Demo

or Home Use

Press the ◄ or ► button, then press the ENTER



button.

ySelect the Home Use mode. Store Demo Mode is for retail

environments.

yReturn the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When the OSD

volume is displayed, press and hold MENU for 5 sec.

2Selecting a country Press the ▲ or ▼ button, then press the ENTER



button.

Select the appropriate country.

3Selecting a channel Press the ▲ or ▼ button, then press the ENTER



button.

After selecting the channel source to memorise, select Search. For more information, refer

to Channel → Auto Store (p. 11).

✎

Press the ENTER



button at any time to interrupt the memorisation process.

4Setting the Clock

Mode

Set the Clock Mode automatically or manually.

Press the ▲ or ▼ button to select Auto, then press the ENTER



button.

yAuto: Allows you to select a time zone.

✎

Press the ▲ or ▼ button to highlight the time zone for your local area. Press the

ENTER



button. (Australia only)

yManual: Allows you to manually set the current date and time (p. 17).

5Viewing the HD

Connection Guide.

The connection method for the best HD screen quality is displayed.

6Enjoy your TV. Press the ENTER



button.

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to

change the PIN number, use the Change PIN function.

ANT OUT

1 (DVI)

VHF/UHF Antenna

Cable

Power Input

[PC550]BN68-02705A-00Eng.indb 6 2010-02-23 오후 2:34:35

English

02 Connections

Connections

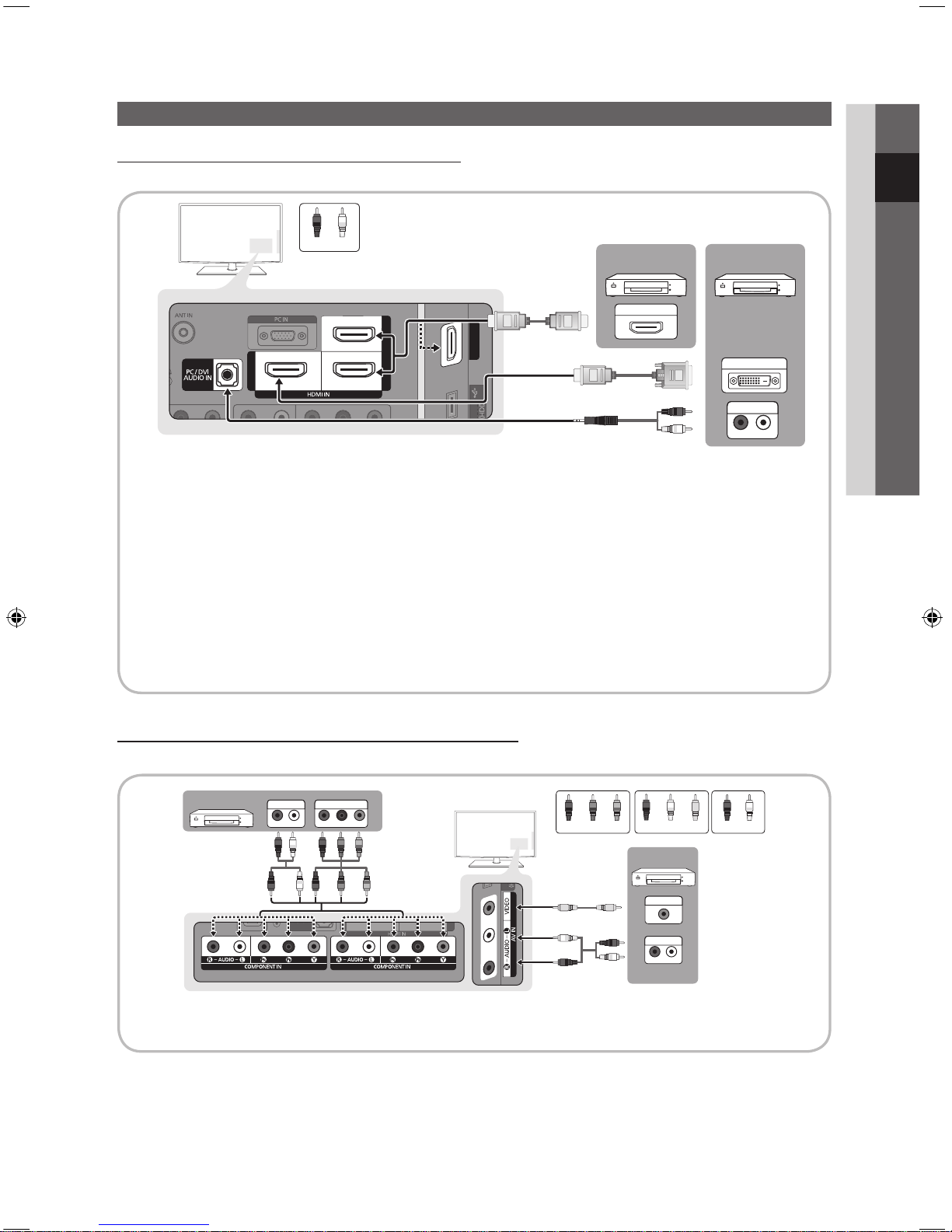

Connecting to an AV Device

Using an HDMI / DVI Cable: HD connection (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

✎

HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable

connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the PC/DVI

AUDIO IN jacks for audio.

If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI

versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound /

annoying flicker / abnormal colour).

If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you

suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and

request an upgrade.

It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a

connection error may occur.

Using a Component (up to 1080p) or Audio/Video Cable (480i only)

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

1 2

RRG B

PRPBY

COMPONENT OUT

AUDIO OUT

R-AUDIO-L

VIDEO OUT

AUDIO OUT

R-AUDIO-L

BWR

VCR

Blu-ray player

Red White Yellow Red White

Red Blue Green

HDMI OUT

DVI OUT

AUDIO OUT

R-AUDIO-L

USB 2

HDMI IN 4

1 (DVI)

DVD DVD

Red White

[PC550]BN68-02705A-00Eng.indb 7 2010-02-23 오후 2:34:37

English

Connections

Connecting to an Audio Device

Using an Optical or Audio Cable Connection

Available devices: digital audio system, ampliﬁer, DVD home theatre

✎

DIGITAL AUDIO OUT (OPTICAL)

When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

When the receiver (amplifier or DVD home theater) is set to on, you can hear sound output from the TV’s

optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD

home theater. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB

(Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the

amplifier or DVD home theater. If you want to hear 5.1 CH audio, connect the digital audio out jack from your

DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎

Headphones



: You can connect your headphones to the headphones output on your set. While the

headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

Headphone volume and TV volume are adjusted separately.

Changing the Input Source

Source List

Use to select TV or other external input

sources such as DVD / Blu-ray players /

cable box / satellite receivers (Set-Top Box)

connected to the TV.

■TV / PC / AV / Component 1 /

Component 2 / HDMI1/DVI / HDMI2 /

HDMI3 / HDMI4 / USB

✎

In the Source List, connected

inputs will be highlighted.

✎

PC always stay activated.

Edit Name

■VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC / DVI

Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name

the device connected to the input jacks to make your

input source selection easier.

✎

When a PC with a resolution of 1920 x 1080 @

60Hz is connected to the HDMI IN 1(DVI) port,

you should set to DVI PC mode.

✎

When connecting an HDMI/DVI cable to the HDMI

IN 1(DVI) port, you should set to DVI PC or DVI

Devices mode under Edit Name.

SOURCE

OPTICAL

digital audio system

[PC550]BN68-02705A-00Eng.indb 8 2010-02-23 오후 2:34:38

English

03 Basic Features

Basic Features

How to Navigate Menus

Before using the TV, follow the steps below to learn how to

navigate the menu and select and adjust different functions.

H LI

WER

RE-

GUIDE

MEDIA

RETURN

.SIZ

SUBT

DUA

EXIT

INF

DMI

1 ENTER



/ Direction button: Move the cursor and

select an item. Conﬁrm the setting.

2 RETURN button: Returns to the previous menu.

3 MENU button: Displays the main on-screen menu.

4 EXIT button: Exits the on-screen menu.

How to operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

1MENU



The main menu option appear on

the screen:

Picture, Sound, Channel, Setup,

Input, Application, Support.

2▲ / ▼Select an icon with the ▲ or ▼

button.

3ENTER



Press ENTER



to access the

sub-menu.

4▲ / ▼Select the desired submenu with

the ▲ or ▼ button.

5◄ / ►Adjust the value of an item with the

◄ or ► button. The adjustment in

the OSD may differ depending on

the selected menu.

6ENTER



Press ENTER



to complete the

conﬁguration.

7EXIT



Press EXIT.

Using the INFO button (Now & Next guide)

The display identiﬁes the current channel

and the status of certain audio-video

settings.

The Now & Next guide shows daily TV

programme information for each channel

according to the broadcasting time.

yScroll ◄, ► to view information for a

desired programme while watching the

current channel.

yScroll ▲, ▼ to view information for other channels. If you

want to move to the currently selected channel, press

the ENTER



button.

DTV

All

350

DUWH

4:45

6:20

5:46 Sun 2 May

Karl der GroBe (2/3)

Spiefilm Frankreich / Italien 1994 “Karl der GroBe” war der Wegbereiter

Europas, Der abenteuerliche dreiteilige Fernsehfilm widmet sich dem ...

Multi

Movie

576i

Dual



4:3SD

Information

Watch

Planning Your Viewing

Guide

(Australia, Singapore only)

The EPG (Electronic Programme Guide)

information is provided by broadcasters.

Using programme schedules provided by

broadcasters, you can specify programmes

you want to watch in advance so that

the channel automatically changes to

the selected programme channel at the

speciﬁed time. Programme entries may appear blank or out

of date depending on a channel status.

Using Channel View

INFO

GUIDE

DTV Air 800 five

Home and Away

18:00 - 18:30

Drama

Dani is devastated when scott makes clear his views on marriage...

800

Discovery

DiscoveryH&L

five

price-drop.tv

QVC

R4DTT

American Chopper

Programmes resume at 06:00

Home and...

No Information

QVC Selection

No Information

Tine Team

Fiv...

Today 18:00 - 19:00 19:00 - 20:00

)

Family Affairs

)

Dark Angel

800 ﬁve

View Mode



+24 Hours Ch. Mode



Information





Page



Watch

2:10 Tue 1 Jun

Guide

Channel View - All

1 2 3 4 5 6

[PC550]BN68-02705A-00Eng.indb 9 2010-02-23 오후 2:34:40

English

Basic Features

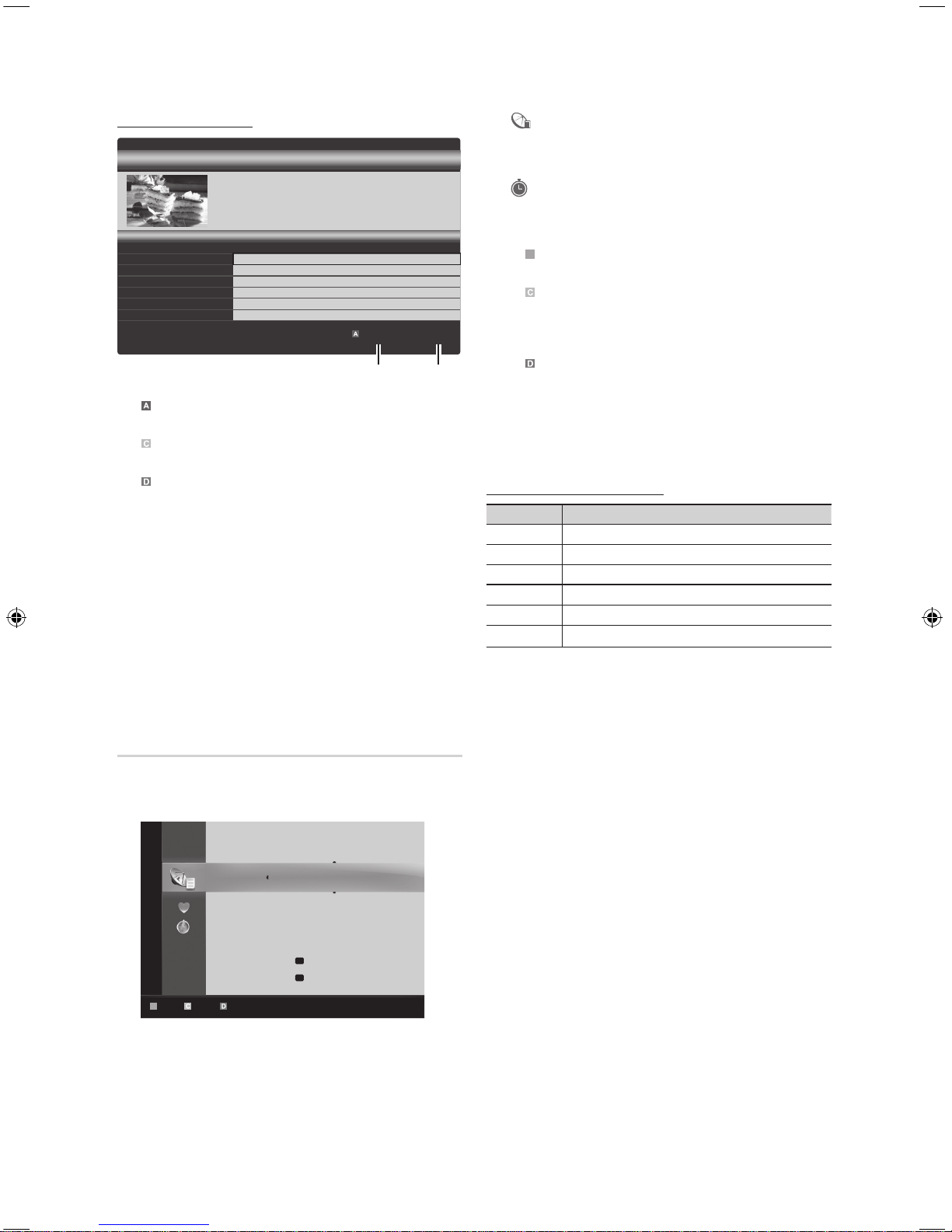

Using Scheduled View

1

Red (View Mode): View the list of programmes that

are playing now or coming up.

2

Yellow (+24 Hours): Viewing the list of programmes to

be broadcasted after 24 hours.

3

Blue

(Ch. Mode):

Select the type of channels you want

to display on the Channel View window. (All, TV, Radio,

Data/Other, Analogue, My Channel 1~4)

4 Information: Displays details of the selected

programme.

5



(Page): Move to next or previous page.

6 ENTER



button

–When selecting the current programme, you can

watch the selected programme.

–When selecting the future programme, you can

reserve to watch the selected programme. To cancel

the schedule, press the ENTER



button aging and

select Cancel Schedules.

Channel Manager

Delete or set favourites channels and use the programme

guide for digital broadcasts. Select a channel in the

Channels, My Channels or Scheduled screen.

■Channels: Shows the channel list according to

channel type.

■



My Channels: Shows the group of the channel.

■Scheduled: Shows all the currently reserved

programmes.

✎

Using the colour buttons with the Channel Manager

Green (Zoom): Enlarges or shrinks a channel

number.

Yellow (Select): Select desired channels and press

the Yellow button to set all the selected channels at

the same time. The



mark appears to the left of

the selected channels.

Blue (Sort): Change the list ordered by channel

name or channel number.

x

(Page): Move to next or previous page.

x

(Tools): Displays the Channel Manager option

menu. (The options menus may differ depending on

the situation.)

Channel Status Display Icons

Icons Operations



An analogue channel.



A channel selected.



A channel set as a Favourite.



A programme currently being broadcast.



A locked channel.



A reserved programme.

DTV Air 800 five

Family Affairs

18:00 - 18:30

Drama

Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

18:30

19:15

Wed 29 Jul

Thu 24 Dec

)

Family Affairs

)

Dark Angel

800

five

800 ﬁve

View Mode



Cancel

2:10 Tue 1 Jun

Guide

Scheduled View

1 6

358 ORF1

359 ORF2 0

360 ORF2 S

361 * BBC World

728 \ bid-up.tv

c729 Boonerang

1 C1

2 C2

All

Radio

Data/Other

Analogue

Zoom Select Sort



Page



Tools

Channels

[PC550]BN68-02705A-00Eng.indb 10 2010-02-23 오후 2:34:41

Autres manuels pour Plasma TV

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung TV

Samsung

Samsung CS-29K40 Manuel utilisateur

Samsung

Samsung LED 4500 Series Mode d’emploi

Samsung

Samsung CL-21M40MQ Manuel utilisateur

Samsung

Samsung QE55QN85BATXXH Manuel utilisateur

Samsung

Samsung UE49KS7000 Manuel utilisateur

Samsung

Samsung CW29Z68PSGXXEC Manuel utilisateur

Samsung

Samsung CX6844N3X/XEE Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur

Samsung

Samsung UN50MU6070FOM Manuel utilisateur

Samsung

Samsung Q65T Manuel utilisateur

Samsung

Samsung CT-21T20MQ Manuel utilisateur

Samsung

Samsung CS21A530FL Manuel utilisateur

Samsung

Samsung QE43Q67AAUXXN Manuel utilisateur

Samsung

Samsung UN60ES6500 Manuel utilisateur

Samsung

Samsung UE82S9WAT Mode d’emploi

Samsung

Samsung UE55MU9000 Manuel utilisateur

Samsung

Samsung UE43MU6120 Manuel utilisateur

Samsung

Samsung TV Mode d’emploi

Samsung

Samsung Q8FNA Mode d’emploi

Samsung

Samsung SP-42W5HF Manuel utilisateur

Samsung

Samsung Q70A Manuel utilisateur

Samsung

Samsung 85CU7175U Manuel utilisateur

Samsung

Samsung UE24LS001 Manuel utilisateur

Samsung

Samsung UN49KS850DF Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
