Samsung GT-P7320 Manuel utilisateur

GSM TELEPHONE

GT-P7320

1. Safety Precautions

2. Specification

3. Product Function

4. Exploded View and Parts list

5. MAIN Electrical Parts List

6. Level 1Repair

7. Level 2Repair

8. Level 3Repair

9. Reference data

Notice: All functionality, features, specifications, and

other product information provided in this document,

including but not limited to, benefits, design, pricing,

components, performance, availability, and capabiliti

-es of the product are subject to change without

notice. Samsung reserves the right to alter this doc

-ument or the product described herein at anytime,

without obligation to provide notification of such

changes.

GSM TELEPHONE CONTENTS

1. Safety Precautions

1-1

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

1-1. Repair Precaution

Before attempting any repair or detailed tuning, shield the device from RF noise or static

electricity discharges.

Use only demagnetized tools that are specifically designed for small electronic repairs,

as most electronic parts are sensitive to electromagnetic forces.

Use only high quality screwdrivers when servicing products. Low quality screwdrivers can

easily damage the heads of screws.

Use only conductor wire of the properly gauge and insulation for low resistance, because of

the low margin of error of most testing equipment.

We recommend 22-gauge twisted copper wire.

Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily

damaged, even with relatively low heat. Never use asoldering iron with apower rating of

more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).

Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.

Always use the replacement parts that are registered in the SEC system. Third-party replac

ement parts may not function properly.

Safety Precautions

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

1-2

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Many semiconductors and ESDs in electronic devices are particularly sensitive to static discha

rge and can be easily damaged by it. We recommend protecting these components with cond

uctive anti-static bags when you store or transport them.

Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate

static electricity from your body before repairing ESDs.

Ensure that soldering irons have AC adapter with ground wires and that the ground wires are

properly connected.

Use only desoldering tools with plastic tips to prevent static discharge.

Properly shield the work environment from accidental electrostatic discharge before opening

packages containing ESDs.

The potential for static electricity discharge may be increased in low humidity environments,

such as air-conditioned rooms. Increase the airflow to the working area to decrease the

chance of accidental static electricity discharges.

2. Specification

2-1

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

2-1. GSM General Specification

GSM850 EGSM

900 DCS1800 PCS1900 WCDMA

2100

WCDMA

900

LTE

FDD3

LTE

FDD7

LTE

FDD20

Freq.

Band[MHz]

Uplink/

Downlink

824~849

869~894

880~915

925~960

1710~1785

1805~1880

1850~1910

1930~1990

1922~1977

2112~2167

880~915

925~960

1710~1785

1805~1880

2500~2570

2620~2690

791~821

832~862

ARFCN

range 128~251 0~124 &

975~1023 512~885 512~810

UL:

9612~9888

DL:

10562~108

UL:

2712~2863

DL:

2937~3088

UL:

1200~1949

DL:

19200~199

UL:

2750~3449

DL:

20750~204

UL:

6150~6449

DL:

24150~244

Tx/Rx

spacing 45MHz 45MHz 95MHz 80MHz 190MHz 45MHz 95MHz 120MHz -41MHz

Mod. Bit

rate/

Bit Period

270.833kb

3.692us

270.833kb

3.692us

270.833kb

3.692us

270.833kb

3.692us

3.84Mcps 3.84Mcps

9Mbps/s

(at 10MHz

BW)

9Mbps/s

(at 10MHz

BW)

9Mbps/s

(at 10MHz

BW)

Time Slot

Period/

Frame

Period

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

FrameLen

gth:

10ms

Slotlength:

0.667ms

FrameLen

gth:

10ms

Slotlength:

0.667ms

FrameLen

gth:

10ms

Slotlength:

0.5ms

FrameLen

gth:

10ms

Slotlength:

0.5ms

FrameLen

gth:

10ms

Slotlength:

0.5ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQP

QPSKHQP

QPSK

16QAM

64QAM

UL :QPSK

16QAM

DL :QPSK

16QAM

64QAM

UL :QPSK

16QAM

DL :QPSK

16QAM

64QAM

MS Power 33dBm~5d

33dBm~5d

30dBm~0d

24dBm~

-50dBm

24dBm~

-50dBm

Max:23±2.7dB

Min:-49dBm

Max:23±2.7dB

Min:-49dBm

Max:23±2.7dB

Min:-49dBm

Power

Class

5pcl ~

19pcl 5pcl ~19

pcl 0pcl ~15

pcl 3(max+24dB

3(max+24dB

m) Class3 Class3 Class3

Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -94dBm/

10 MHz

-95dBm/

10 MHz

-94dBm/

10 MHz

TDMA

Mux 888888- - -

Cell

Radius 35Km 35Km 2Km 2Km 2Km 2Km 5Km 5Km 5Km

Specification

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

2-2

2-2. GSM Tx Power Class

TX Power

control

level

GSM850

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control

level

EGSM900

533±2

dBm

631±2

dBm

729±2

dBm

827±2

dBm

925±2

dBm

10 23±2 dBm

11 21±2 dBm

12 19±2 dBm

13 17±2 dBm

14 15±2 dBm

15 13±2 dBm

16 11±3 dBm

17 9±3dBm

18 7±3 dBm

19 5±3 dBm

TX Power

control

level

DCS1800

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

TX Power

control

level

PCS1900

030±3

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4 dBm

11 8±4 dBm

12 6±4 dBm

13 4±4 dBm

14 2±5 dBm

15 0±5 dBm

3. Operation Instruction and Installation

3-1

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Main Function

•Android OS: Honeycomb

•HSPA+ 42Mbps /HSUPA 5.76Mbps /LTE 100/50

•3

MP AF with LED Flash

•8.9

WSVGA TFT Full Touch (C-Type)

•S-GPS /BT v3.0 USB v2.0 /WiFi (802.11 a/b/g/n)

•Recording 720p / Playback 1080p

•Sensors: Accelerometer, Magnetic, Gyro, Light

•Additional :

-1.5

GHz Dual Core CPU

-Application store /Voice &Motion UI

-Multi-touch, Multi-task manager

4. Exploded View and Parts List

4-1

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

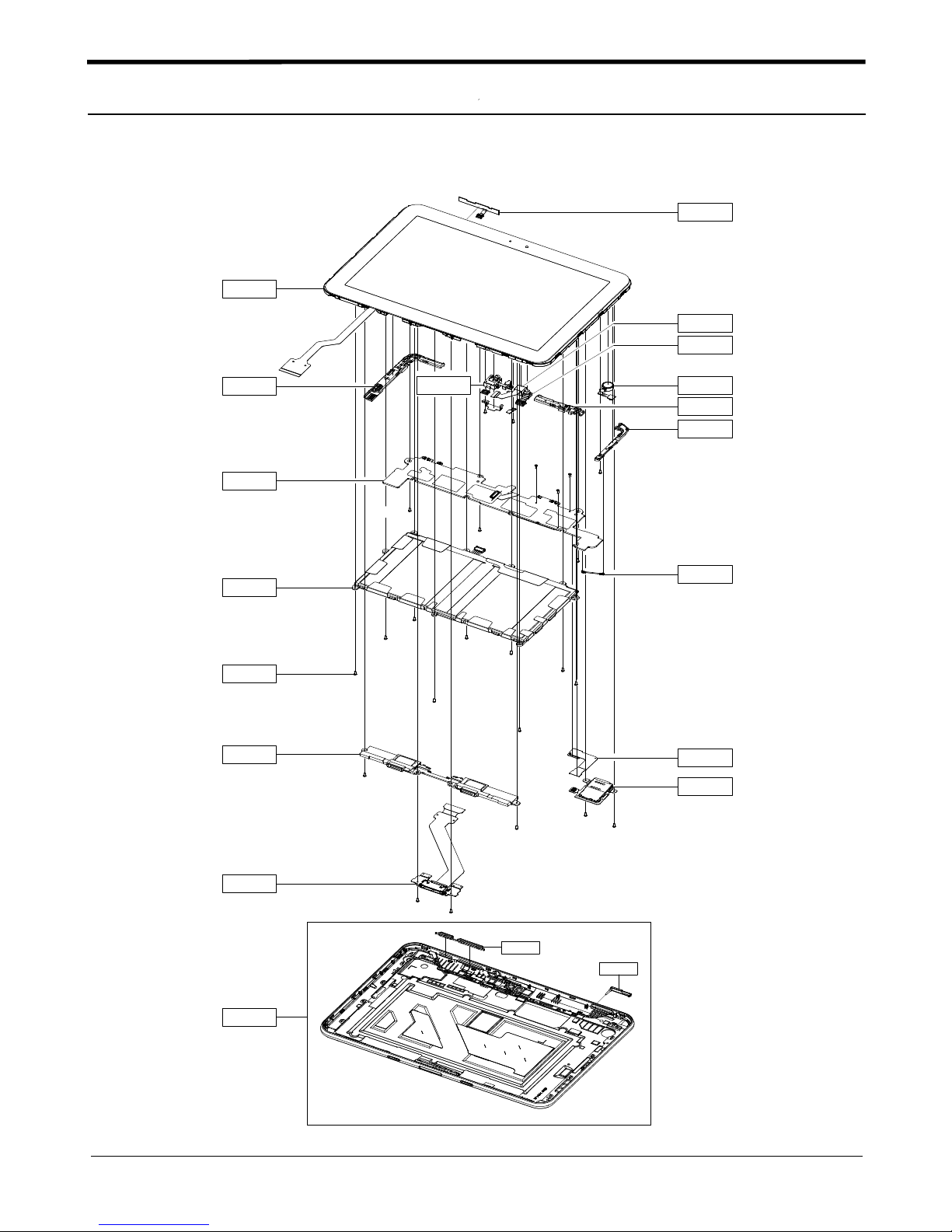

4-1. Cellular phone Exploded View

QFR01

QAN04

QBA01

QCR72

QSP01

QJK01

QME17

QMP01

QRE01

QVO01

QAN02

QCB02

QMO01

QCA01

QCA02

QME16

QSM01

QVK01

QAN03

QRF06

Exploded View and Parts List

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

4-2

Design LOC Description SEC CODE

QCR72 SCREW-MACHINE 6001-002051

QMO01 MOTOR LINEAR VIBRATION-MOTOR+FPCB+CONN AGH31-00545A

QCB02 CBF COAXIAL CABLE-17.5MM (SGH-I957) GH39-01515A

QAN02 INTENNA-SGH-I957_BT GH42-03250A

QAN03 INTENNA-SGH-I957_GPS GH42-03251A

QAN04 INTENNA-GT-P7320 MAIN GH42-03445A

QBA01 INNER BATTERY PACK GH43-03548A

QVK01 KEY FPCB-PWR/VOL GH59-10952A

QJK01 ASSY ETC-EARJACK FPCB GH59-10977A

QME16 ASSY ETC-I/F LCD CON TO CON GH59-10997A

QME17 ASSY ETC-I/F 30PIN FPCB GH59-10998A

QSP01 MODULE-1712_SPK_MODULE GH59-11040A

QCA02 CAMERA MODULE-2M VT(I957) GH59-11567A

QMP01 A/S ASSY-PBAMAIN(COMM)GT-P7320 GH82-06257A

QCA01 ASSY CAMERA-3M MODULE(GT-P7300) GH96-05319A

QSM01 ASSY MODULE-SIM SOCKET GH96-05369A

QFR01 ETC ASSY-LCD ASSY(SVC) GH97-13181A

QRE01 ASSY CASE-REAR_SVC GH98-22742A

QVO01 PMO KEY-POWER/VOLUME GH72-64028A

QRF06 PMO COVER-SIM GH72-64031A

4-2. Cellular phone Parts list

5. MAIN Electrical Parts List

5-1

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

SEC CODE Design LOC Description

0403-001688 D1000,ZD1000 DIODE-ZENER

0404-001250 D102,D103,D700,D701 DIODE-SCHOTTKY

0404-001317 D600,D601 DIODE-SCHOTTKY

0404-001669 D1100 DIODE-SCHOTTKY

0406-001239 U1507,ZD1002 DIODE-TVS

0406-001267 ZD100 DIODE-TVS

0406-001375 D602,ZD1001,ZD1003 DIODE-TVS

0406-001375 ZD1004,ZD1005,ZD1006 DIODE-TVS

0406-001375 ZD1007,ZD1008,ZD1010 DIODE-TVS

0406-001375 ZD1011,ZD1012,ZD1013 DIODE-TVS

0406-001375 ZD1014,ZD1015,ZD103 DIODE-TVS

0406-001375 ZD1301,ZD600,ZD601 DIODE-TVS

0406-001375 ZD701,ZD800,ZD900 DIODE-TVS

0406-001375 ZD901,ZD902,ZD903 DIODE-TVS

0406-001375 ZD904,ZD905,ZD906 DIODE-TVS

0406-001375 ZD907,ZD910,ZD911 DIODE-TVS

0406-001375 ZD912 DIODE-TVS

0406-001413 ZD101,ZD1016,ZD1017 DIODE-TVS

0406-001413 ZD1018,ZD1019,ZD102 DIODE-TVS

0406-001413 ZD908,ZD909 DIODE-TVS

0406-001452 ZD1020 DIODE-TVS

0504-000168 Q700,TR700,TR800 TG-DIGITAL

0504-000168 TR801 TG-DIGITAL

0504-001113 Q100,Q1400 TG-DIGITAL

0505-001325 Q801 FET-SILICON

0505-002748 Q800,TR802,TR803 FET-SILICON

0505-003052 U109,U701,U805 FET-SILICON

0601-002779 LED1300 LED

0801-003016 U806 IC

0801-003022 U703,U801 IC

0801-003065 U110 IC

0801-003265 U804 IC

0902-002783 UCP400 IC

Main Electrical Parts List

Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.

Confidential and proprietary-the contents in this service guide subject to change without prior notice.

5-2

SEC CODE Design LOC Description

0904-002596 U1103 IC

1001-001481 U1403 IC

1001-001528 U102,U111 IC

1001-001546 U203 IC

1001-001635 U1405 IC

1001-001720 F104 IC

1003-002132 U1401 IC

1003-002216 U1402 IC

1003-002277 U1500 IC

1108-000437 UME400 IC

1201-002608 U100 IC

1201-003273 PAM201 IC

1201-003277 PAM202 IC

1201-003279 PAM203 IC

1201-003280 PAM200 IC

1202-001121 U1001,U903 IC

1203-004776 U1104 IC

1203-004818 U906 IC

1203-004819 U1202,U1300,U904 IC

1203-005069 U1404 IC

1203-005074 U1100 IC

1203-005373 U1003 IC

1203-005599 U1106 IC

1203-006392 U1000 IC

1203-006724 U802 IC

1203-006781 U803 IC

1203-006794 U1002 IC

1203-006862 U1301 IC

1203-006983 U700 IC

1203-006985 U104 IC

1203-007001 U702 IC

1203-007002 U600 IC

1203-007140 U1107 IC

Autres manuels pour GT-P7320

Table des matières

Autres manuels Samsung Téléphone

Samsung

Samsung DS 24D Instructions d'installation

Samsung

Samsung SMT-i8100 Manuel utilisateur

Samsung

Samsung SMT-i3100 Manuel utilisateur

Samsung

Samsung SPH-A250 Manuel utilisateur

Samsung

Samsung SGH T719 Manuel utilisateur

Samsung

Samsung GT-C5510 Manuel utilisateur

Samsung

Samsung OfficeServ DS-5038S Manuel utilisateur

Samsung

Samsung SGH-X400 Manuel utilisateur

Samsung

Samsung OfficeServ DS-5038S Manuel utilisateur

Samsung

Samsung DCS Manuel utilisateur

Samsung

Samsung SGH-A847R Manuel utilisateur

Samsung

Samsung SGH-J630 Manuel utilisateur

Samsung

Samsung SM-A205G Manuel utilisateur

Samsung

Samsung OfficeServ DS-5012L Manuel utilisateur

Samsung

Samsung SGH-Z720M Manuel utilisateur

Samsung

Samsung SMT-3105 Manuel utilisateur

Samsung

Samsung GT-M3310 Manuel utilisateur

Samsung

Samsung OS7000 OfficeServ Manuel utilisateur

Samsung

Samsung GT-I9100T Manuel utilisateur

Samsung

Samsung OfficeServ 7000iDCS Manuel utilisateur

Samsung

Samsung OfficeServ SMT-i5230 Manuel utilisateur

Samsung

Samsung SM-A032F Manuel utilisateur

Samsung

Samsung GT-S6790L Manuel utilisateur

Samsung

Samsung SM-G610M Manuel utilisateur

Manuels Téléphone populaires d'autres marques

GE 2-9480 Manuel utilisateur

Geemarc

Geemarc PHOTOPHONE 155 Manuel utilisateur

D-Link

D-Link DWR-720/PW Manuel utilisateur

Interquartz

Interquartz Gemini IQ333 Manuel utilisateur

SSS Siedle

SSS Siedle HT 840-0 Manuel utilisateur

Motorola

Motorola TITANIUM Manuel utilisateur

Panasonic

Panasonic ICX Manuel utilisateur

LG H870DS Manuel utilisateur

AT&T

AT&T Trimline 205 Manuel utilisateur

Selta

Selta zenyth 600 Manuel utilisateur

Doro

Doro AFTI 20 Manuel utilisateur

UNIQCELL

UNIQCELL A1 Manuel utilisateur

Panasonic

Panasonic KX Series Manuel utilisateur

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuel utilisateur

BT Decor 425 Manuel utilisateur

NEC

NEC SV8500 Manuel utilisateur

Teledex

Teledex PEARL Manuel utilisateur

Ericsson

Ericsson Dialog 3213 Manuel utilisateur
