Samsung MX-T70 Instructions d'installation

MX-T70

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING



not expose this appliance to rain or moisture.

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

Do not expose this apparatus to dripping or



liquids, such as vases on the apparatus.

To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - iii

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power



sticker located on the rear of your product.

Install your product horizontally, on a

suitable base (furniture), with enough space

around it for ventilation (7~10 cm). Make sure

the ventilation slots are not covered. Do not



equipment which may become hot. This unit

is designed for continuous use. To fully turn

off the unit, disconnect the AC plug from the

wall outlet. Unplug the unit if you intend to

leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.



equipment creating strong magnetic or



the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct



disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,



FULL MANUAL

You can access the FULL MANUAL on

Samsung’s on-line customer support centre by

scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from Samsung’s

website. (http://www.samsung.com/support)



without prior notice.

ENG - iv

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control

(AAA batteries X 2) ------------------------- 2

02 Product Overview 3

Top Panel of the Party Audio ------------------------- 3

Rear Panel of the Party Audio ------------------------- 4

03 Connecting the Party Audio 6

Connecting Electrical Power ------------------------- 6

How to use Audio Group ------------------------- 7

04 Connecting an External Device 12

Connecting using an Analogue Audio (AUX) Cable ------------------------- 12

Connecting a mobile device via Bluetooth ------------------------- 13

05 Connecting a USB Storage Device 16

Software Update ------------------------- 17

06 Using the Remote Control 18

How to Use the Remote Control ------------------------- 18

How to use Sound Mode ------------------------- 20

How to use the DJ Effect ------------------------- 20

ENG - v

07 Using the Samsung Giga Party Audio app 21

Install Samsung Giga Party Audio App ------------------------- 21

Launching the Samsung Giga Party Audio App ------------------------- 21

08 Troubleshooting 22

09 Licence 23

10 Open Source Licence Notice 23

11 Important Notes About Service 23

12 SpecicationsandGuide 24

 ------------------------- 24

ENG - 2

01 CHECKING THE COMPONENTS

Party Audio Main Unit Remote Control / Batteries Power Cord

For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Rear of the Party Audio Main Unit)

To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

When moving the product, do not drag or pull the product from the ground. Lift the product when

moving the product.

Inserting Batteries before using the Remote Control

(AAA batteries X 2)

Slide the battery cover in the direction of the arrow

until it is completely removed. Insert 2 AAA

batteries (1.5V) oriented so that their polarity is

correct. Slide the battery cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

Top Panel of the Party Audio

BASS

󱂛

󱂖

󱂙

󱂗

󱂘

󱂚

󱂕󱂔󱂓

󱂓Remote

Sensor

When operating the Party Audio system, please aim the front of the remote control at

the remote sensor.

󱂔Display

Window Displays operating messages or current status of the Party Audio system.

󱂕Power Turns the Party Audio on and off.

󱂖Light

Press the (Light) button to turn the Lighting Mode on.

Press the button repeatedly to cycle through the available lighting modes:

AMBIENT,PARTY, DANCE, THUNDERBOLT, STAR or OFF.

󱂗Source

Press to select a source connected to the Party Audio.

Press and hold the (Source)

button for more than 5 seconds

to enter the “BT

PAIRING” mode.

󱂘Play/Pause

Play/Pause

Press the 



Demo play

Press and hold the

button for more than 5 seconds to start the Demo play while

the system is turned on. “DEMO” appears on the display and it plays demo music for



To cancel Demo Play, press and hold the

button for more than 5 seconds during

Demo Play.

– If you input any commands while in demo play, 60 seconds timer is refreshed.

– All the buttons on the remote control and rear panel are disabled while in demo

play. If you want to use the remote control, cancel the demo play.

– Demo play is cancelled when you change the source or power off the system.

ENG - 4

󱂙Volume down Press the (Volume down) button to lower the volume.

Press and hold the (Volume down) button to quickly lower the volume.

󱂚Volume up Press the (Volume up) button to raise the volume.

Press and hold the (Volume up) button to quickly raise the volume.

󱂛BASS

Press the BASS button to use the powerful bass sound.

Press it again to return to the normal sound.

Press and hold the BASS button for more than 5 seconds to turn on or off the

BLUETOOTH POWER function.

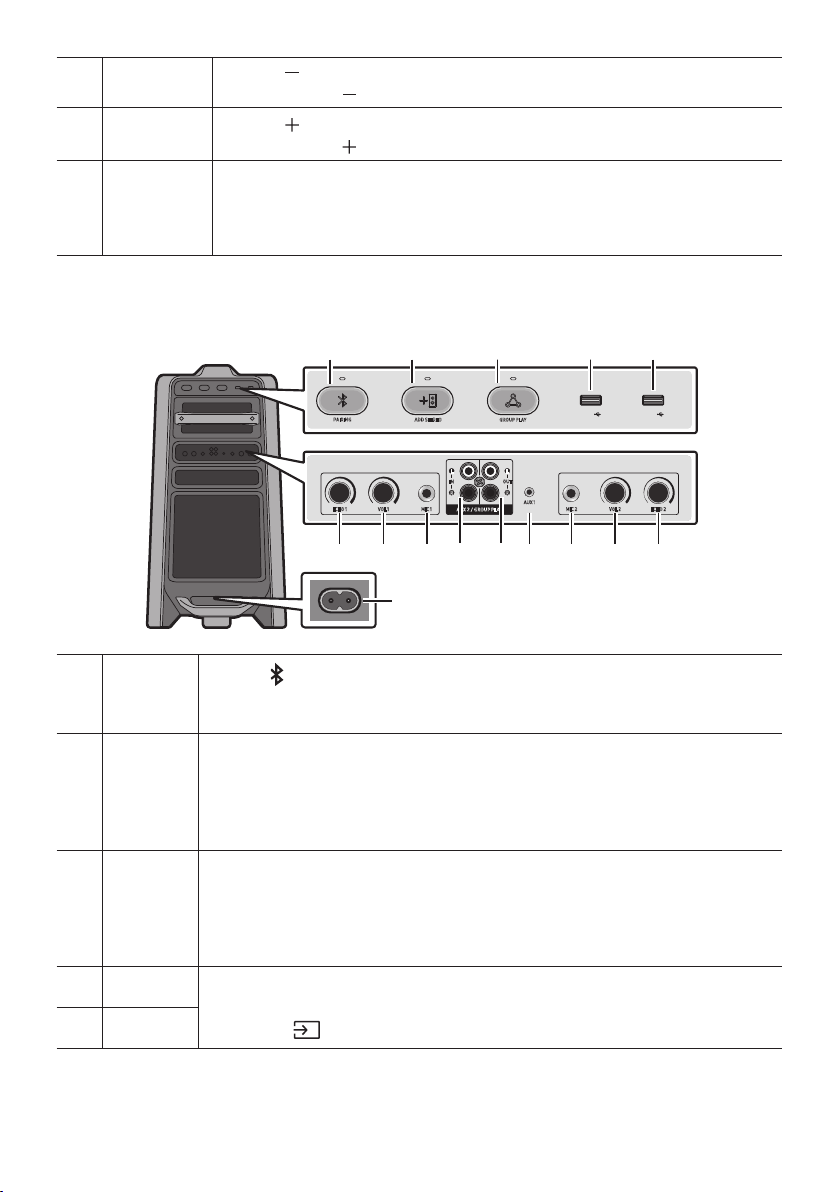

Rear Panel of the Party Audio

PAIRING ADD STEREO GROUP PLAY

USB1

(5V 2.1A)

USB2

(5V 0.5A)

ECHO1 VOL 1 MIC1 ECHO 2VOL 2

MIC 2

AUX 1

OUT

AUX 2 / GROUP PLAY

󱂓

󱂘 󱂙 󱂚 󱂛

󱂡

󱂝 󱂞 󱂟 󱂠󱂜

󱂔 󱂕 󱂖 󱂗

󱂓Bluetooth

PAIRING

Press the PAIRING button to enter the “BT PAIRING” mode.

You can connect the Party Audio to a new Bluetooth device in this mode by selecting the

Party Audio from the Bluetooth device's search list.

󱂔ADD

STEREO

Press the ADD STEREO button to connect to another Party Audio wirelessly.

Press the ADD STEREO button again before connecting another Party Audio to exit Stereo

Group mode. When the connection is made, you can enjoy stereo sound.

Press and hold the ADD STEREO button for more than 5 seconds to disconnect the Stereo

Group mode.

󱂕GROUP

PLAY

Press the GROUP PLAY button to connect up to ten Party Audio systems wirelessly.

Press the GROUP PLAY button again before connecting other Party Audio to exit wireless

Group Play. When the connection is made, you can use multiple Party Audio systems at

the same time using Group Play mode. Press and hold the GROUP PLAY button for more

than 5 seconds to disconnect the wireless Group Play mode.

󱂖USB1 Connect a USB device to the USB1 or USB2 ports on the main unit.

If you connect your cell phone to the USB1 port, you can charge it.

Press the (Source) button to select USB1 or USB2.

󱂗USB2

ENG - 5

󱂘ECHO1

You can give an echo effect to the sound from a connected microphone (MIC1) by

adjusting the ECHO1 knob.

If you turn clockwise, the echo effect goes up, and if you turn counter-clockwise, the echo

effect goes down.

󱂙VOL1

Use the VOL1 knob to adjust the volume of a connected microphone (MIC1).

If you turn clockwise, the volume goes up, and if you turn counter-clockwise, the volume

goes down.

󱂚MIC1 Connect your microphone to the MIC1 jack.

󱂛

AUX2/

GROUP

PLAY IN

Terminals

Use an Audio Cable (not supplied) to connect AUX2 (IN) terminals on the main unit to

Audio Out on an external analogue output device.

Be sure to match connector colours.

If the external analogue output device has only one Audio Out jack, connect either left

or right.

Press the (Source) button to select AUX2.

If the product is in AUX2 mode with no playback and no command input for more than

20 minutes, the system will turn off.

If the product is in AUX2 mode with playback for more than 8 hours and no command

input, the system will turn off.

󱂜

GROUP

PLAY OUT

Terminals

Use an Audio Cable (not supplied) to connect GROUP PLAY (OUT) terminals on the main

unit to Audio In on an external analogue output device.

Be sure to match connector colours.

If the external analogue output device has only one Audio In jack, connect either left or

right.

󱂝AUX1

Use an Audio (AUX) Cable (not supplied) to connect AUX1 jack on the main unit to Audio

Out on an external device.

If the product is in AUX1 mode with no playback and no command input for more than

20 minutes, the system will turn off.

If the product is in AUX1 mode with playback for more than 8 hours and no command

input, the system will turn off.

󱂞MIC2 Connect your microphone to the MIC2 jack.

󱂟VOL2

Use the VOL2 knob on the main unit to adjust the volume of a connected microphone

(MIC2).

If you turn clockwise, the volume goes up, and if you turn counter-clockwise, the volume

goes down.

󱂠ECHO2

You can give an echo effect to the sound from a connected microphone (MIC2) by

adjusting the ECHO2 knob.

If you turn clockwise, the echo effect goes up, and if you turn counter-clockwise, the echo

effect goes down.

󱂡Power Connect the power cord to the Power jack and connect the other end of the power cord to

a wall socket to supply electrical power to the Party Audio.

ENG - 6

03 CONNECTING THE PARTY AUDIO

Connecting Electrical Power

Use the power cord to connect the Party Audio to an electrical outlet in the following order:

Connect the power cord to the Party Audio and then to a wall socket.

See the illustrations below.

For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label: Rear of the Party Audio)

Connecting

Electrical Power

Rear of Party Audio

Autres manuels pour MX-T70

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-M435 Instructions d'installation

Samsung

Samsung HW-H550/ZA Manuel utilisateur

Samsung

Samsung HW-T550 Manuel utilisateur

Samsung

Samsung TW-J5500/ZA Manuel utilisateur

Samsung

Samsung Crystal Surround Air Track HW-F450 Manuel utilisateur

Samsung

Samsung HW-J6000R Manuel utilisateur

Samsung

Samsung HW-S800B Instructions d'installation

Samsung

Samsung HW-Q930C Manuel utilisateur

Samsung

Samsung HW-S801B Instructions d'installation

Samsung

Samsung HW-MM45C Instructions d'installation

Samsung

Samsung HW-Q600C Instructions d'installation

Samsung

Samsung HW-K950/ZA Manuel utilisateur

Samsung

Samsung HW-N550 Manuel utilisateur

Samsung

Samsung HW-M460 Instructions d'installation

Samsung

Samsung HW-MS750 Manuel utilisateur

Samsung

Samsung HW-C450/ZA Instructions d'installation

Samsung

Samsung HW-A550 Instructions d'installation

Samsung

Samsung HW-J450-TK Manuel utilisateur

Samsung

Samsung Crystal Surround Air Track HW-F551 Manuel utilisateur

Samsung

Samsung MX-T50 Instructions d'installation

Samsung

Samsung HW-K335 Manuel utilisateur

Samsung

Samsung HW-S60A Manuel utilisateur

Samsung

Samsung HW-S50A Instructions d'installation

Samsung

Samsung HW-H550 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
