USER MANUAL

HW-S60T / S61T

You can access the FULL MANUAL on Samsung’s on-line customer support

centre by scanning the QR code. To see the manual on your PC or mobile

device, download the manual in document format from Samsung’s website.

(http://www.samsung.com/support)

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

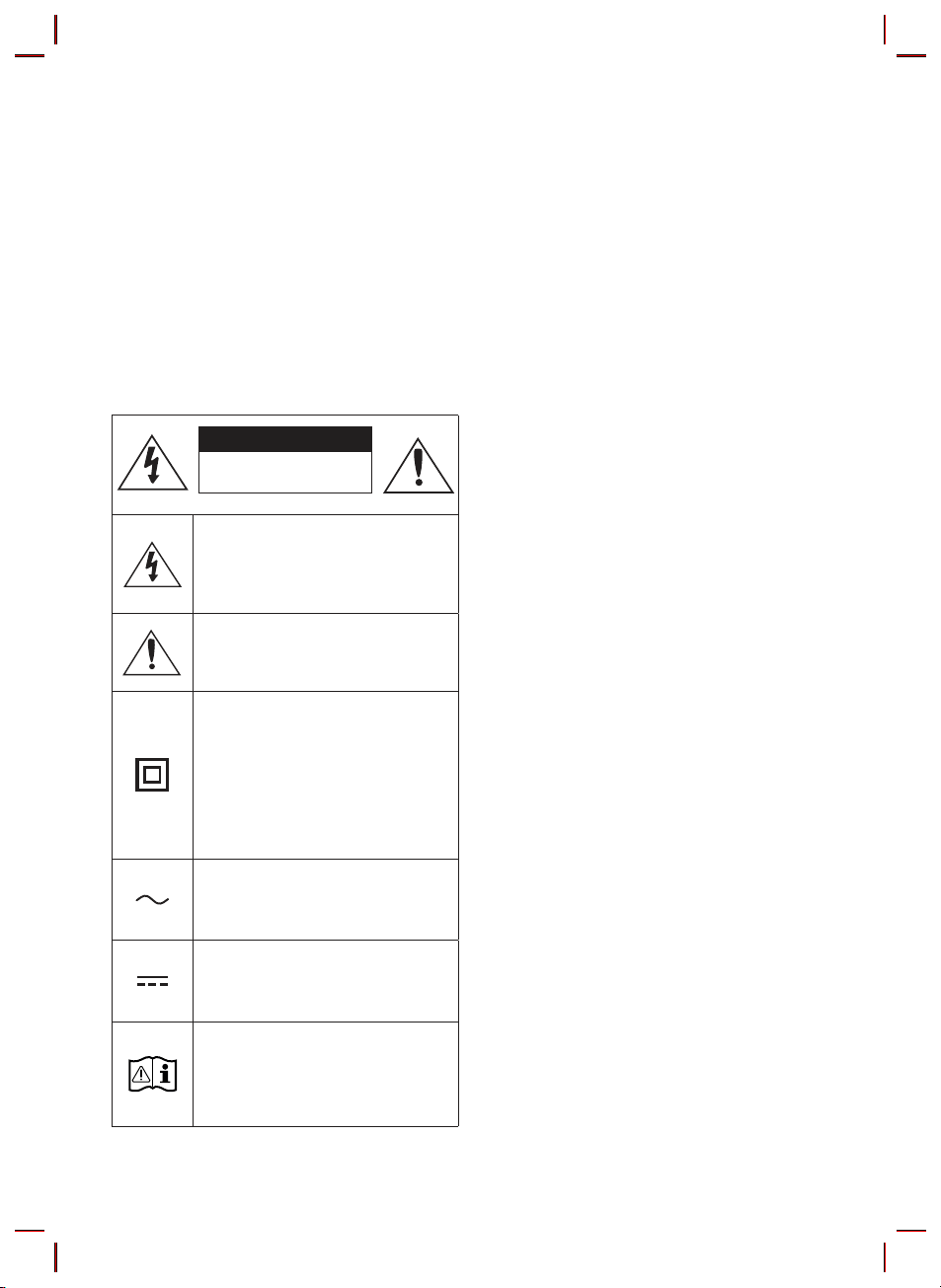

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

COMMISSION REGULATION (EU) 2019/1782

Ecodesign requirements for external power

supplies :

www.samsung.com/global/ecodesign_

component

ENG - 4

Fabric cleaning

Remove any dirt or stain on the product surface

immediately.

Removing and cleaning can be less effective for

some substances or if left for a prolonged time.

CAUTION

•Use a vacuum cleaner or an adhesive lint

roller to remove dust, handprints, and the

likes.

– Some cleaning brushes may damage the

product, depending on the materials they

contain.

– Towels and cleaning clothes may leave

lint or dirt on the product.

•Do not use a nail or other tools to scratch the

dirt off. It may damage the fabric.

•To remove oil or liquid stains, use a clean

white cloth moist with water. If the stain

persists, wipe it with a mixture of water and

neutral detergent (such as dishwashing

soaps) and a cloth.

– A non-neutral detergent or cleaner may

cause discolouration or fabric damage.

– After cleaning, use a dry cloth or

hairdryer to dry the area.

– Do not use excessive force to avoid

discolouration or fabric damage.

ENG - 5

CONTENTS

01 Checking the Components 6

02 Product Overview 7

03 Using the Remote Control 9

04 Connecting the Soundbar 11

05 Using a wired connection to the TV 12

06 Using a wireless connection to the TV 15

07 Connecting an External Device 17

08 Connecting a Mobile Device 18

09 Installing the Wall Mount 20

10 Installing the Soundbar in front of TV 21

11 Software Update 22

12 Troubleshooting 23

13 Licence 25

14 Open Source Licence Notice 25

15 Important Notes About Service 25

16 SpecicationsandGuide 26

ENG - 6

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Soundbar Remote Control

Batteries

HDMI Cable

AC/DC Adapter

(Soundbar)

Power Cord

(Soundbar)

Wall Mount Guide

x 2 x 2

(M4 x L10)

x 2

Holder-Screw Bracket-Wall Mount Screw

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•For more information about the wallmount see page 20.

•Design, specications, and App screen are subject to change without prior notice.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

ENG - 7

•ed

•

•Design, specications, and App screen are subject to change without prior notice.

s X 2)

02 PRODUCT OVERVIEW

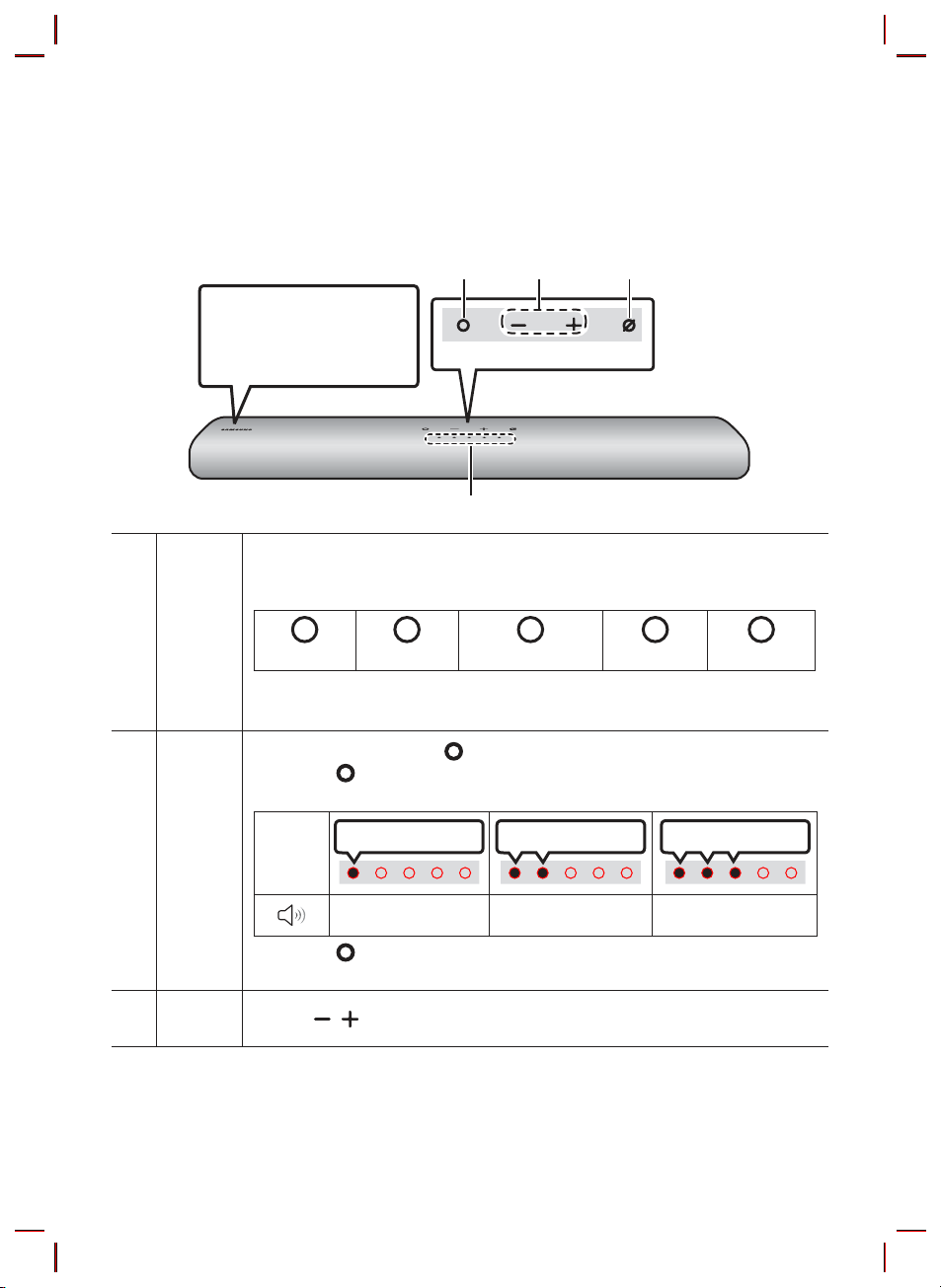

Top Panel of the Soundbar

Top Panel

Position the product so that

the SAMSUNG logo is

located on the top.

󱂔 󱂖󱂕

󱂓

󱂓LED

indicator

The LED Indicator ashes, glows, or changes colour depending on the Soundbar's current

mode or status. The colour of the LED indicator and the number of lights indicate the active

mode as described below.

White LED

Multicolour LED

White LED

•The Multicolour LED changes to White, Cyan, Green, Red, and Blue depending on the

mode or status.

󱂔

Multi

Function

Button

•In standby mode, press the (Multi Function)button to turn on the Soundbar.

•Press the (Multi Function) button to change the mode. Each time you change the

mode, the LED lights in white and then turns off.

LED

Indicator

White On -> Off White On -> Off White On -> Off

“Digital Audio In” “Wi-Fi” “Bluetooth”

•Press the (Multi Function)button for 3 seconds to call Alexa. Say with the button

pressed to enable voice recognition.

󱂕Volume

Button Press the (Volume) button to adjust the volume.

ENG - 8

󱂖

Mic

On/Off

Button

Press the (Mic On/Off) button to turn on or off the microphone.

LED Indicator

Red On

“Mic Off”“Mic On”

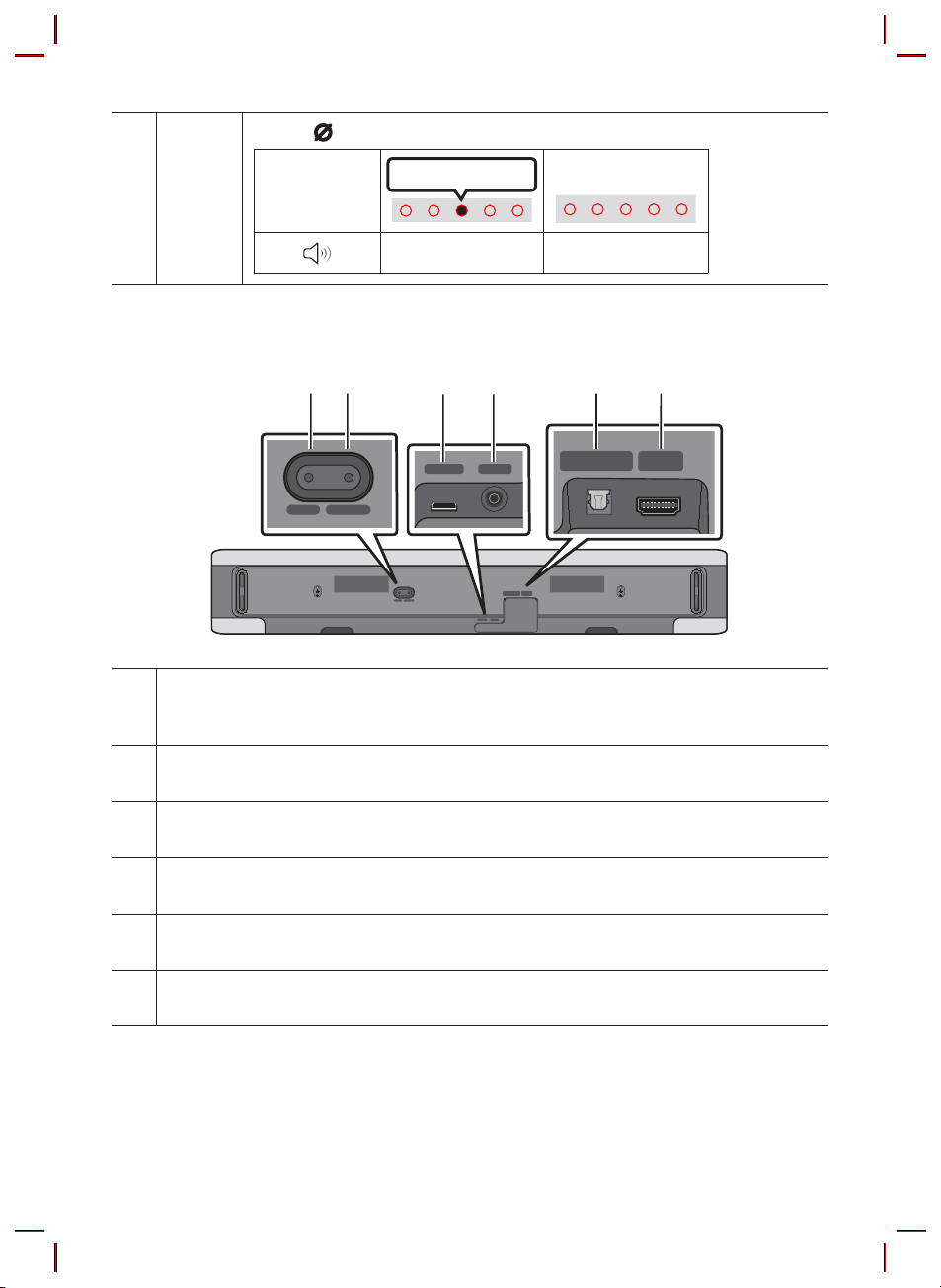

Bottom Panel of the Soundbar

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

󱂓 󱂔 󱂕 󱂖 󱂗 󱂘

󱂓

ID SET

Press to connect the Soundbar to Surround speakers and a subwoofer wirelessly.

(The surround speaker, subwoofer are sold separately.)

󱂔NETWORK

Press to connect to a wireless network (Wi-Fi) via the SmartThings app.

󱂕SERVICE

Connect a USB storage device to upgrade the product's software.

󱂖DC 19V (Power Supply In)

Connect the AC/DC power adapter.

󱂗DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

󱂘HDMI (ARC)

Connect to the HDMI jack on a TV.

ENG - 9

03 USING THE REMOTE CONTROL

How to Use the Remote Control

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

󱂓

󱂔

󱂕

󱂖

󱂗

󱂙

󱂘

󱂚

󱂜

󱂛

󱂓Power

Turns the Soundbar on and off.

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X3

•Auto Power Down Function

The unit turns off automatically in the following

situations:

– In “Digital Audio In” / “Wi-Fi” / “Bluetooth” mode if

there is no audio signal for 18 minutes.

󱂔(Source)

Press to select a source connected to the Soundbar.

󱂕(Mute)

Press the (Mute) button to mute the sound.

Press it again to unmute the sound.

󱂖SOUND MODE

By pressing the button, you can select the desired audio

mode. Each time the mode changes, the Multicolour LED

blinks in white.

LED

Indicator

White Blinks X1

“Adaptive Sound”“Music”“Standard”

ENG - 10

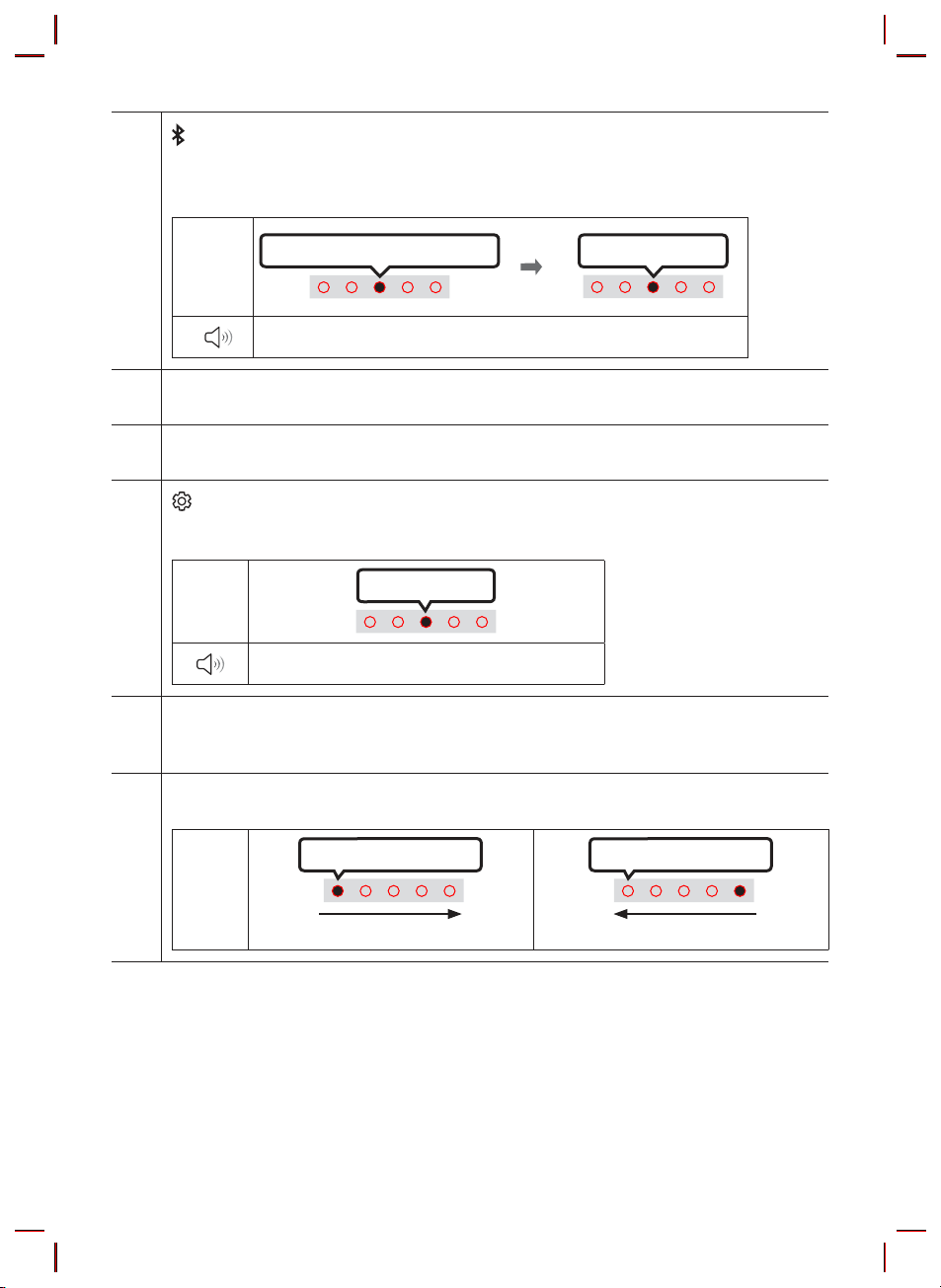

󱂗Bluetooth PAIR

Switch the Soundbar to Bluetooth pairing mode.

When you press the button, the LED display changes as shown below.

•Until pairing is complete, the Multicolour LED changes as Red → Green → Blue in turn.

LED

Indicator

Red → Green → Blue Blinks Cyan Blinks X3

“Ready to connect via Bluetooth.”

󱂘p(Play / Pause)

You can also play or pause music by pressing the button.

󱂙Up/Down/Left/Right

Press Up/Down/Left/Right on the button to select or set functions.

󱂚(Sound Control)

By pressing the button, you can select the desired audio mode. The desired item can be adjusted using

the Up/Down buttons. Each time the mode changes, the Multicolour LED blinks in white.

LED

Indicator

White Blinks X1

“Treble”“Bass”“Sync”“Side Level”

󱂛WOOFER (BASS) LEVEL

Push the button up or down to adjust the level of the woofer (bass) to -12 or between -6 to +6. To set the

woofer (bass) volume level to 0 (Default), press the button.

󱂜VOLUME

Push the button up or down to adjust the volume.

LED

Indicator

White moves to right X1

Volume Up

White moves to left X1

Volume Down

Autres manuels pour HW-S60T

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-Q700A Instructions d'installation

Samsung

Samsung HW-N300 Manuel utilisateur

Samsung

Samsung HW-T450 Instructions d'installation

Samsung

Samsung HW-Q67CB Instructions d'installation

Samsung

Samsung HW-N400 Manuel utilisateur

Samsung

Samsung Harman/Kardon HW-Q70R Manuel utilisateur

Samsung

Samsung HW-K950 Manuel utilisateur

Samsung

Samsung HW-N950 Instructions d'installation

Samsung

Samsung MX-ST40B Instructions d'installation

Samsung

Samsung HW-J8510R Manuel utilisateur

Samsung

Samsung HW-T45C Instructions d'installation

Samsung

Samsung Harman JBL XS10 Manuel utilisateur

Samsung

Samsung HW-Q930C Manuel utilisateur

Samsung

Samsung HW-A40R Instructions d'installation

Samsung

Samsung HW-S60B Instructions d'installation

Samsung

Samsung HW-A550 Instructions d'installation

Samsung

Samsung HW-NW700 Manuel utilisateur

Samsung

Samsung HW-Q800A Instructions d'installation

Samsung

Samsung HW-Q800T Manuel utilisateur

Samsung

Samsung HW-R60M Instructions d'installation

Samsung

Samsung Crystal Surround Air Track HW-F550 Manuel utilisateur

Samsung

Samsung HW-A550 Instructions d'installation

Samsung

Samsung HW-J6000R Manuel utilisateur

Samsung

Samsung HW-HM60 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
