HW-N400

USER MANUAL

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - iii

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on

Samsung’s on-line customer support centre by

scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from Samsung’s

website. (http://www.samsung.com/support)

Design and specications are subject to change

without prior notice.

ENG - iv

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 3

03 Connecting the Soundbar 4

Connecting Electrical Power ------------------------- 4

04 Connecting to your TV 5

Method 1. Connecting with a Cable ------------------------- 5

– Connecting a TV using an HDMI Cable ------------------------- 5

– Connecting using an Optical Cable ------------------------- 6

Method 2. Connecting Wirelessly ------------------------- 7

– Connecting a TV via Bluetooth ------------------------- 7

05 Connecting an External Device 9

Connecting using an HDMI Cable ------------------------- 9

Connecting using an Optical or Analogue Audio (AUX) Cable ------------------------- 10

06 Connecting a USB 11

Software Update ------------------------- 11

ENG - v

07 Connecting a Mobile Device 12

Connecting via Bluetooth ------------------------- 12

08 Using the Remote Control 13

How to Use the Remote Control ------------------------- 13

Adjusting the Soundbar volume with a TV remote control ------------------------- 15

09 Installing the Wall Mount 16

Installation Precautions ------------------------- 16

Wallmount Components ------------------------- 16

10 Troubleshooting 19

11 Licence 20

12 Open Source Licence Notice 20

13 Important Notes About Service 20

14 SpecicationsandGuide 21

Specications ------------------------- 21

ENG - 2

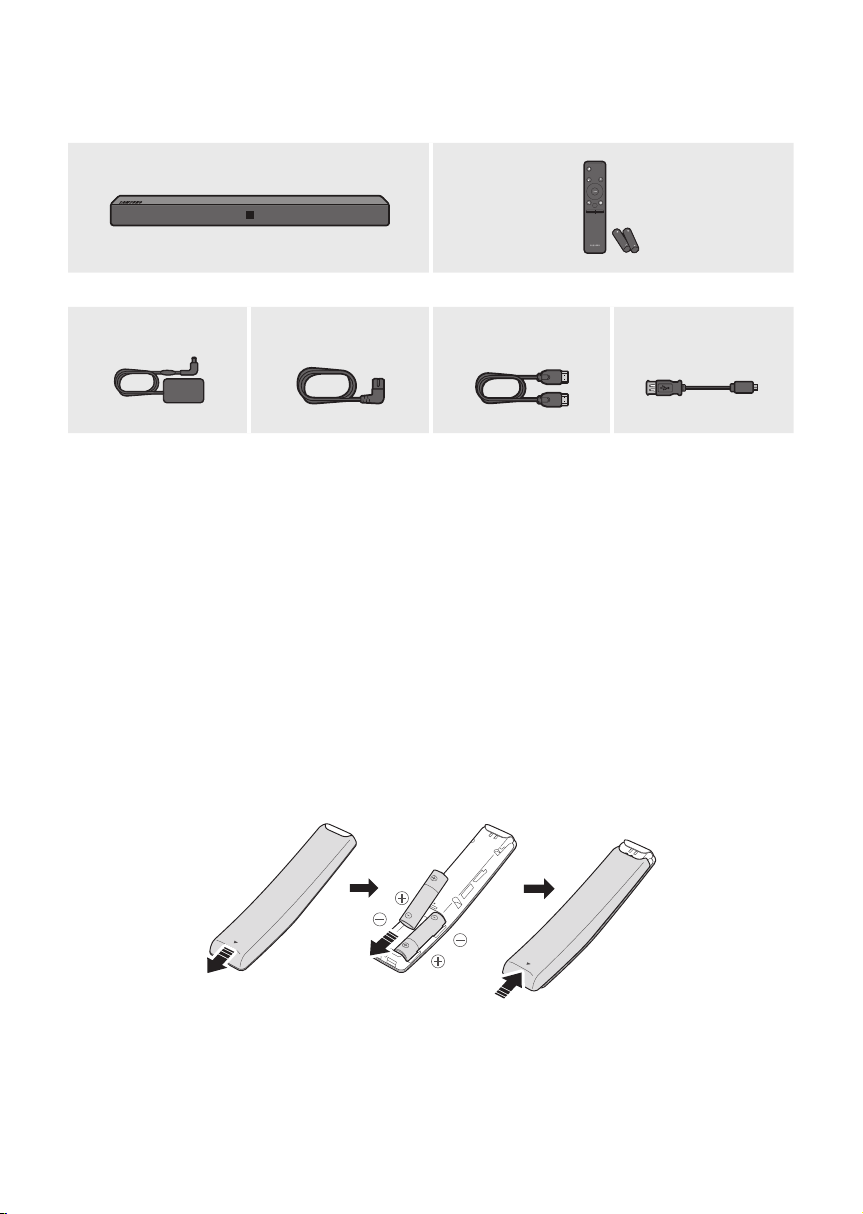

01 CHECKING THE COMPONENTS

VOL BASS

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Remote Control / Batteries

1 2

AC/DC Adapter

(Main Unit)

Power Cord

(AC/DC Adapter)

HDMI Cable Micro USB to USB

adapter cable

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label : Bottom of the Soundbar Main Unit)

•The power components are labelled (1, 2). For more information about power connections, see

page 4.

•For Soundbar wall mounting components, see page 16.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

Front Panel / Right Side Panel of the Soundbar

Display

Volume

Power

Position the product so

that the SAMSUNG logo

is located on the top.

󱂓

Right Side of the Soundbar

Bottom Panel of the Soundbar

HDMI OUT

(TV-ARC)

DC 24V

USB (5V 0.5A)

AUX IN HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

DC 24V

HDMI OUT

(TV-ARC)

HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

󱂕

󱂖

󱂗

󱂘

󱂙

󱂔

󱂓Source

Selects the source input mode. (D.IN / AUX / HDMI / BT / USB)

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and

hold the (Source) button for more than 5 seconds.

󱂔DC 24V Connect the AC/DC power adapter. (Power Supply In)

󱂕AUX Connect to the Analogue output of an external device.

󱂖USB Connect a USB device here to play music les on the USB device through the Soundbar.

󱂗HDMI OUT Connect to the HDMI (ARC) jack on a TV.

󱂘HDMI IN Inputs digital video and audio signals simultaneously using an HDMI cable.

Connect to the HDMI output of an external device.

󱂙D.IN Connect to the digital (optical) output of an external device.

ENG - 4

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

Use the power components (1, 2) to connect the Soundbar to an electrical outlet in the following order:

1 Connect the power output cable to the power adapter, and then to the Soundbar.

Connect the power cord to a wall socket.

See the illustrations below.

•For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label : Bottom of the Soundbar Main Unit)

HDMI OUT

(TV-ARC)

DC 24V

USB (5V 0.5A)

AUX IN HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

Bottom of the

Soundbar Main Unit

1 AC/DC Adapter

2Power Cord

Connecting

Electrical Power

•Make sure to rest the AC/DC Adapter at

on a table or the oor. If you place the

AC/DC Adapter so that it is hanging with

the AC cord input facing upwards, water

or other foreign substances could enter

the Adapter and cause the Adapter to

malfunction.

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker

Kit (SWA-8500S) to your Soundbar (Sold separately). For more information, see the

Samsung Wireless Rear Speaker Kit manual.

ENG - 5

04 CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

•When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using

the TV’s remote control.

– When you connect using an optical cable, this feature is supported by 2017 Samsung Smart TVs

that support Bluetooth.

– This function also allows you to use the TV menu to adjust the sound eld and various settings

as well as the volume and mute.

Method 1. Connecting with a Cable

When broadcasting signals are Dolby Digital and the setting for “Digital Output Audio Format” is PCM

on your TV, it is recommended to change the setting to Dolby Digital. When the setting is changed, you

can experience better sound quality. (The menu may differ depending on the TV manufacturer.)

Connecting a TV using an HDMI Cable

Connect to the HDMI IN

(ARC) port of your TV.

HDMI OUT

(TV-ARC)

HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN

(ARC) HDMI Cable

Bottom of the Soundbar

󱂓

TV ARC

󱂔

Connect to the HDMI OUT (TV-ARC)

port of the Soundbar main unit.

Right Side of the Soundbar

1. With the Soundbar and TV turned on, connect the HDMI cable as shown in the gure.

2. “TV ARC” appears in the display window of the Soundbar main unit and the Soundbar plays TV sound.

•If TV sound is inaudible, press the (Source) button on the remote control or on the right side

of the Soundbar to switch to “D.IN” mode. The screen displays “D.IN” and “TV ARC” in sequence,

and TV sound is played.

ENG - 6

•If “TV ARC” does not appear in the display window of the Soundbar main unit, conrm that the

cable is connected to the correct port.

•Use the volume buttons on the TV’s remote control to change the volume on the Soundbar.

Connecting using an Optical Cable

HDMI IN

DIGITAL AUDIO IN

(OPTICAL)

OPTICAL OUT

Optical Cable

(not supplied)

Bottom of the Soundbar

D.IN

󱂓

󱂔

Right Side of the Soundbar

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV

with a digital optical cable (not supplied).

2. Press the (Source) button on the right side panel or remote control, and then select the “D.IN”

mode.

Auto Power Link

Auto Power Link automatically turns on the Soundbar when the TV is turned on.

1. Connect the Soundbar and a TV with a digital optical cable (not supplied).

2. Press the Left button on the remote control for 5 seconds to turn Auto Power

Link on or off.

•Auto Power Link is set to ON by default.

(To turn off this function, turn off Auto Power on the Soundbar.)

•Depending on the connected device, Auto Power Link may not function.

•This function is only available in the “D.IN” mode.

Autres manuels pour HW-N400

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-F350 Manuel utilisateur

Samsung

Samsung HW-K850 Manuel utilisateur

Samsung

Samsung HW-A58C Instructions d'installation

Samsung

Samsung HW-A450 Instructions d'installation

Samsung

Samsung HW-Q800A Instructions d'installation

Samsung

Samsung HW-K470 Manuel utilisateur

Samsung

Samsung HW-KM36 Manuel utilisateur

Samsung

Samsung HW-M450 Instructions d'installation

Samsung

Samsung Harman Kardon HWQ7CR/ZA Instructions d'installation

Samsung

Samsung HW-J6500R Manuel utilisateur

Samsung

Samsung MM-UC8H Manuel utilisateur

Samsung

Samsung HW-N550 Manuel utilisateur

Samsung

Samsung HW-Q995C Manuel utilisateur

Samsung

Samsung HW-J430 Manuel utilisateur

Samsung

Samsung HW-T450 Instructions d'installation

Samsung

Samsung HW-Q990B Instructions d'installation

Samsung

Samsung Crystal Surround Air Track HW-F750 Manuel utilisateur

Samsung

Samsung HW-T530/XN Instructions d'installation

Samsung

Samsung MX-T70 Instructions de montage

Samsung

Samsung HW-M4500 Manuel utilisateur

Samsung

Samsung HW-S50B/EN Instructions d'installation

Samsung

Samsung HW-B550 Instructions d'installation

Samsung

Samsung HW-M360 Manuel utilisateur

Samsung

Samsung HW-F350 Manuel utilisateur

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
