Samsung HW-NW700 Manuel utilisateur

HW-NW700

USER MANUAL

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on

Samsung’s on-line customer support centre by

scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from Samsung’s

website. (http://www.samsung.com/support)

Design, specications, and App screen are subject to

change without prior notice.

ENG - 4

CONTENTS

01 Checking the Components 6

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 6

02 Product Overview 7

Front Panel / Bottom Panel of the Soundbar ------------------------- 7

Rear Panel of the Soundbar ------------------------- 7

03 Connecting the Soundbar 8

Connecting Electrical Power ------------------------- 8

04 Connecting to a TV 9

Connecting using an Optical Cable ------------------------- 9

Connecting Wirelessly ------------------------- 10

– Connecting a TV via Bluetooth ------------------------- 10

– Connecting via Wi-Fi ------------------------- 12

05 Connecting an External Device 14

Connecting using an Optical Cable ------------------------- 14

06 Connecting a Mobile Device 15

Connecting via Bluetooth ------------------------- 15

Connecting via Wi-Fi (Wireless Network) ------------------------- 16

ENG - 5

07 Using the Remote Control 17

How to Use the Remote Control ------------------------- 17

Adjusting the Soundbar volume with a TV remote control ------------------------- 20

08 Installing the Wall Mount 21

Installation Precautions ------------------------- 21

Wallmount Components ------------------------- 21

09 Software Update 25

10 Troubleshooting 26

11 Licence 27

12 Open Source Licence Notice 27

13 Important Notes About Service 27

14 SpecicationsandGuide 28

Specications ------------------------- 28

ENG - 6

01 CHECKING THE COMPONENTS

VOL BASS

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Remote Control /

Batteries

AC/DC Adapter Power Cord

x 3 x 3

(M5 x L50)

Wall Mount Guide Bracket-Wall Mount Anchor / Screw

x 2 x 2

(M3 x L10)

(Optionally)

x 1

Holder-Cable Cushion Pad Holder-Dongle Screw

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label : Bottom of the Soundbar Main Unit)

•For Soundbar wall mounting components, see page 21.

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•This Soundbar is for wall mounting only.

•Use the Holder-Dongle Screw to secure the Holder-Dongle when connecting the Soundbar to the

Wireless Rear Speaker Kit (SWA-9000S) or Wireless Subwoofer (SWA-W700) (Sold separately).

Please see the FULL MANUAL for details.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the battery cover back into position.

ENG - 7

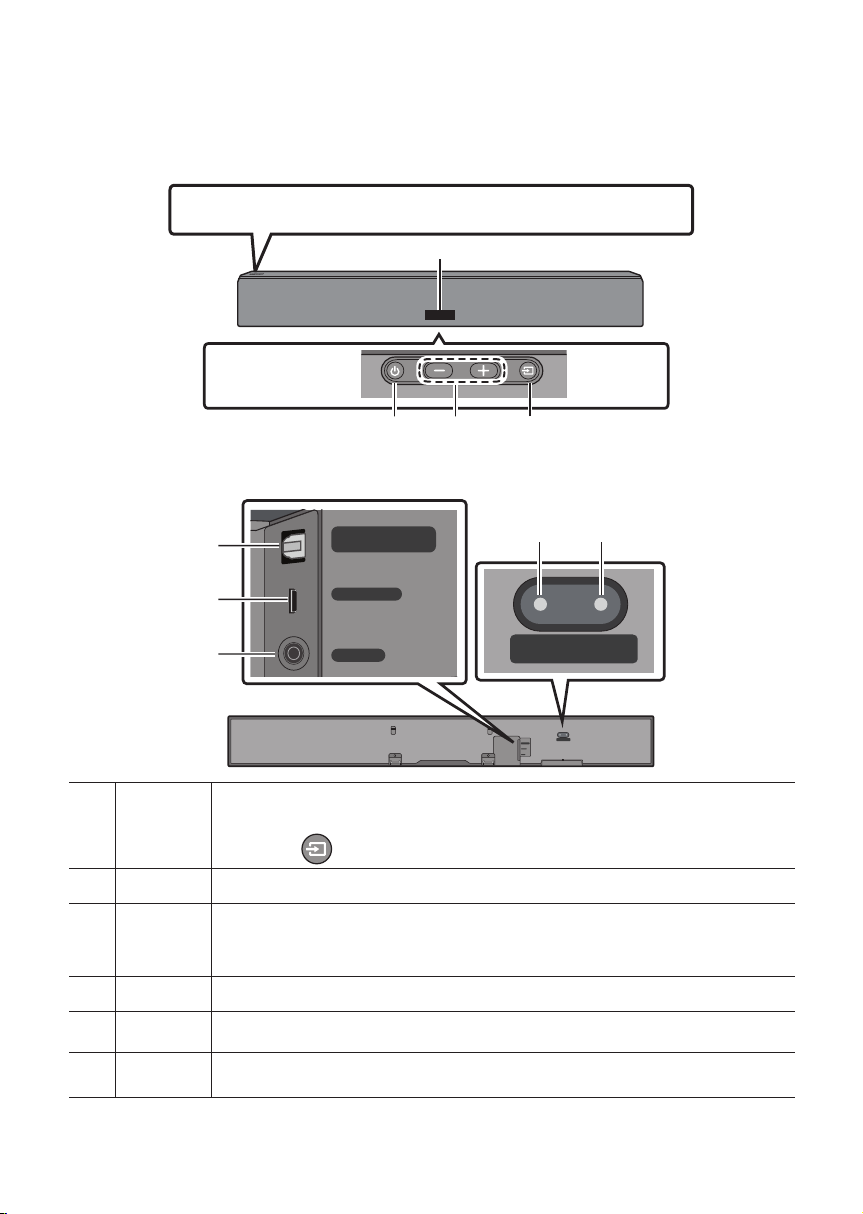

02 PRODUCT OVERVIEW

Front Panel / Bottom Panel of the Soundbar

Display

Power Volume 󱂓

Bottom Panel

Position the product so that the SAMSUNG logo is located on the top.

Rear Panel of the Soundbar

DIGITAL AUDIO IN

(OPTICAL)

DC 23V

WIRELESS

ID SET

(WOOFER/REAR)

NETWORK

DIGITAL AUDIO IN

(OPTICAL)

DC 23V

WIRELESS

ID SET

(WOOFER/REAR)

NETWORK

󱂗 󱂘

󱂔

󱂕

󱂖

󱂓Source

Selects the source input mode. (D.IN / WIFI / BT)

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and

hold the button on the bottom panel for more than 5 seconds.

󱂔D.IN Connect to the digital (optical) output of an external device.

󱂕WIRELESS

Attach the wireless dongle that connects the Soundbar to surround speakers and a

subwoofer wirelessly. (The surround speaker, subwoofer, and wireless dongle are sold

separately.)

󱂖DC 23V Connect the AC/DC power adapter. (Power Supply In)

󱂗NETWORK Press to connect to a wireless network (Wi-Fi) via the SmartThings app.

󱂘ID SET Press to connect the Soundbar to surround speakers and a subwoofer wirelessly.

•Press and hold the Up button on the remote for 5 seconds to complete ID SET.

ENG - 8

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

Use the power components (1, 2) in the following order to connect the Soundbar to an electrical outlet:

Connect the power output cable to the power adapter, and then to the Soundbar.

Connect the power cord to a wall socket.

See the illustrations below.

•For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label : Bottom of the Soundbar Main Unit)

DIGITAL AUDIO IN

(OPTICAL)

DC 23V

WIRELESS

NETWORK

DC 23V

Rear of the Soundbar

Main Unit

AC/DC Adapter

Power Cord

Connecting

Electrical Power

•Make sure to rest the AC/DC

Adapter at on a table or the oor.

If you place the AC/DC Adapter so

that it is hanging with the AC cord

input facing upwards, water or

other foreign substances could

enter the Adapter and cause the

Adapter to malfunction.

ENG - 9

04 CONNECTING TO A TV

Hear TV sound from your Soundbar through wired or wireless connections.

•When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using

the TV’s remote control.

– This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when

you connect the Soundbar to the TV using an optical cable.

– This function also allows you to use the TV menu to adjust the sound eld and various settings

as well as the volume and mute.

Connecting using an Optical Cable

When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on

your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on

the TV is changed, you will experience better sound quality. (The TV menu may use different words for

Dolby Digital and PCM depending on the TV manufacturer.)

DIGITAL AUDIO IN

(OPTICAL)

DC 23V

WIRELESS

OPTICAL OUT

Optical Cable

(not supplied)

Rear of the Soundbar

D.IN

󱂓

Bottom of the Soundbar

󱂔

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV

with a digital optical cable (not supplied).

2. Press the button on the bottom panel or on the remote control, and then select the “D.IN”

mode.

ENG - 10

Auto Power Link

Auto Power Link automatically turns on the Soundbar when the TV is turned on.

1. Connect the Soundbar and a TV with a digital optical cable (not supplied).

2. Press the Left button on the remote control (the blue spot in the illustration

to the right) for 5 seconds to turn Auto Power Link on or off.

•Auto Power Link is set to ON by default.

(To turn off this function, press the Left button on the remote for 5 seconds.)

•Depending on the connected device, Auto Power Link may not function.

•This function is only available in the “D.IN” mode.

Connecting Wirelessly

Connecting a TV via Bluetooth

When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling.

•Only one TV can be connected at a time.

SOUND

MODE

PAIR

Bottom of the Soundbar

The initial connection

1. Press the

VOL WOOFER

SOUND

MODE

PAIR

button on the remote control to enter the “BT PAIRING” mode.

(OR) a. Press the button on the bottom panel and then select “BT”.

“BT” changes to “BT READY” in a few seconds automatically if there is no Bluetooth device

connected to the Soundbar.

b. When “BT READY” appears, press and hold the button on the bottom panel of the

Soundbar for more than 5 seconds to display “BT PAIRING”.

2. Select Bluetooth mode on the TV. (For more information, see the TV’s manual.)

3. Select “[AV] Samsung Soundbar NWxxx” from the list on the TV’s screen.

An available Soundbar is indicated with “Need Pairing” or “Paired” in the TV Bluetooth device list.

To connect the TV to the Soundbar, select the message, and then establish a connection.

•When the TV is connected, [TV Name] → “BT” appears on the Soundbar’s front display.

4. You can now hear TV sound from the Soundbar.

Autres manuels pour HW-NW700

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung SWA-9100S Manuel utilisateur

Samsung

Samsung HW-F850 Manuel utilisateur

Samsung

Samsung HW-M4500 Instructions d'installation

Samsung

Samsung A Series Instructions d'installation

Samsung

Samsung HW-N400/ZA Instructions d'installation

Samsung

Samsung HW-E350 Manuel utilisateur

Samsung

Samsung HW-K650 Manuel utilisateur

Samsung

Samsung HW-S40T Instructions d'installation

Samsung

Samsung HW-Q950T Instructions d'installation

Samsung

Samsung HW-F Series Mode d’emploi

Samsung

Samsung HW-A45E Instructions d'installation

Samsung

Samsung HW-A430 Instructions d'installation

Samsung

Samsung HW-S60T Instructions d'installation

Samsung

Samsung HW-M450 Instructions d'installation

Samsung

Samsung HW-H550 Manuel utilisateur

Samsung

Samsung Crystal Surround Air Track HW-F550 Manuel utilisateur

Samsung

Samsung Harman JBL XS10 Manuel utilisateur

Samsung

Samsung HW-E550 Manuel utilisateur

Samsung

Samsung HW-K360 Manuel utilisateur

Samsung

Samsung HW-Q700C Manuel utilisateur

Samsung

Samsung HW-K560 Manuel utilisateur

Samsung

Samsung HW-H460 Manuel utilisateur

Samsung

Samsung HW-T450 Instructions d'installation

Samsung

Samsung HW-N950 Instructions d'installation

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
