Samsung HW-S40T Instructions d'installation

HW-S40T / S41T

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ENG - 4

Fabric cleaning

Remove any dirt or stain on the product surface

immediately.

Removing and cleaning can be less effective for

some substances or if left for a prolonged time.

CAUTION

•Use a vacuum cleaner or an adhesive lint

roller to remove dust, handprints, and the

likes.

– Some cleaning brushes may damage the

product, depending on the materials they

contain.

– Towels and cleaning clothes may leave

lint or dirt on the product.

•Do not use a nail or other tools to scratch the

dirt off. It may damage the fabric.

•To remove oil or liquid stains, use a clean

white cloth moist with water. If the stain

persists, wipe it with a mixture of water and

neutral detergent (such as dishwashing

soaps) and a cloth.

– A non-neutral detergent or cleaner may

cause discolouration or fabric damage.

– After cleaning, use a dry cloth or

hairdryer to dry the area.

– Do not use excessive force to avoid

discolouration or fabric damage.

ENG - 5

CONTENTS

01 Checking the Components 7

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 7

02 Product Overview 8

Top Panel of the Soundbar ------------------------- 8

Bottom Panel of the Soundbar ------------------------- 9

03 Using the Remote Control 10

How to Use the Remote Control ------------------------- 10

Adjusting the Soundbar volume with a TV remote control ------------------------- 13

04 Connecting the Soundbar 14

Connecting Electrical Power ------------------------- 14

05 Using a wired connection to the TV 15

Connecting using an Optical Cable ------------------------- 15

06 Using a wireless connection to the TV 16

Connecting via Bluetooth ------------------------- 16

07 Connecting an External Device 18

Connecting using an Optical Cable ------------------------- 18

ENG - 6

08 Connecting a Mobile Device 19

Connecting via Bluetooth ------------------------- 19

Using the Tap Sound ------------------------- 23

09 Installing on a wall 24

10 Installing the Soundbar in front of TV 24

11 Software Update 25

Initialization ------------------------- 26

12 Troubleshooting 27

13 Licence 28

14 Open Source Licence Notice 29

15 Important Notes About Service 29

16 SpecicationsandGuide 30

Specications ------------------------- 30

ENG - 7

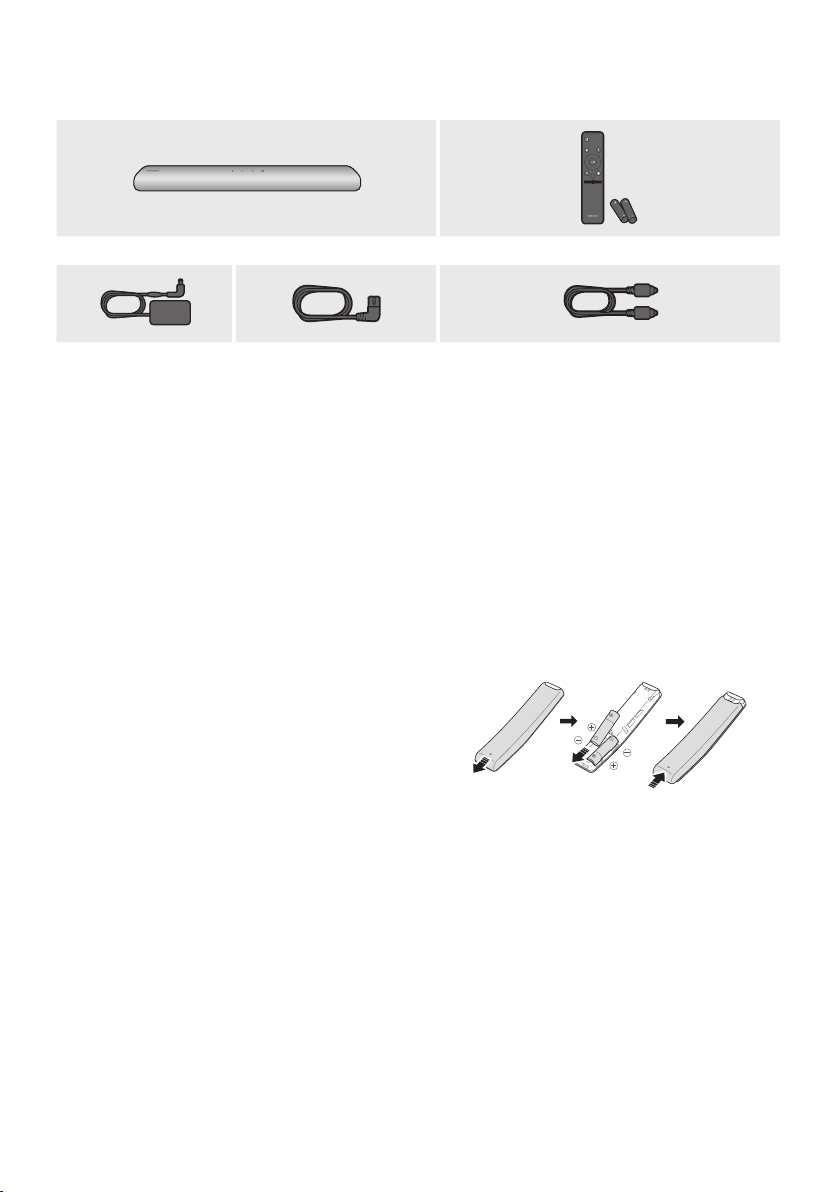

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Soundbar Remote Control

/ Batteries

AC/DC Adapter

(Soundbar)

Power Cord

(Soundbar)

Optical Cable

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•There are two wall mount holes (M4 size) at the bottom of the Soundbar. Individually purchase a

compatible bracket and mount the Soundbar on a wall to suit your preferences.

•Design, specications are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

ENG - 8

02 PRODUCT OVERVIEW

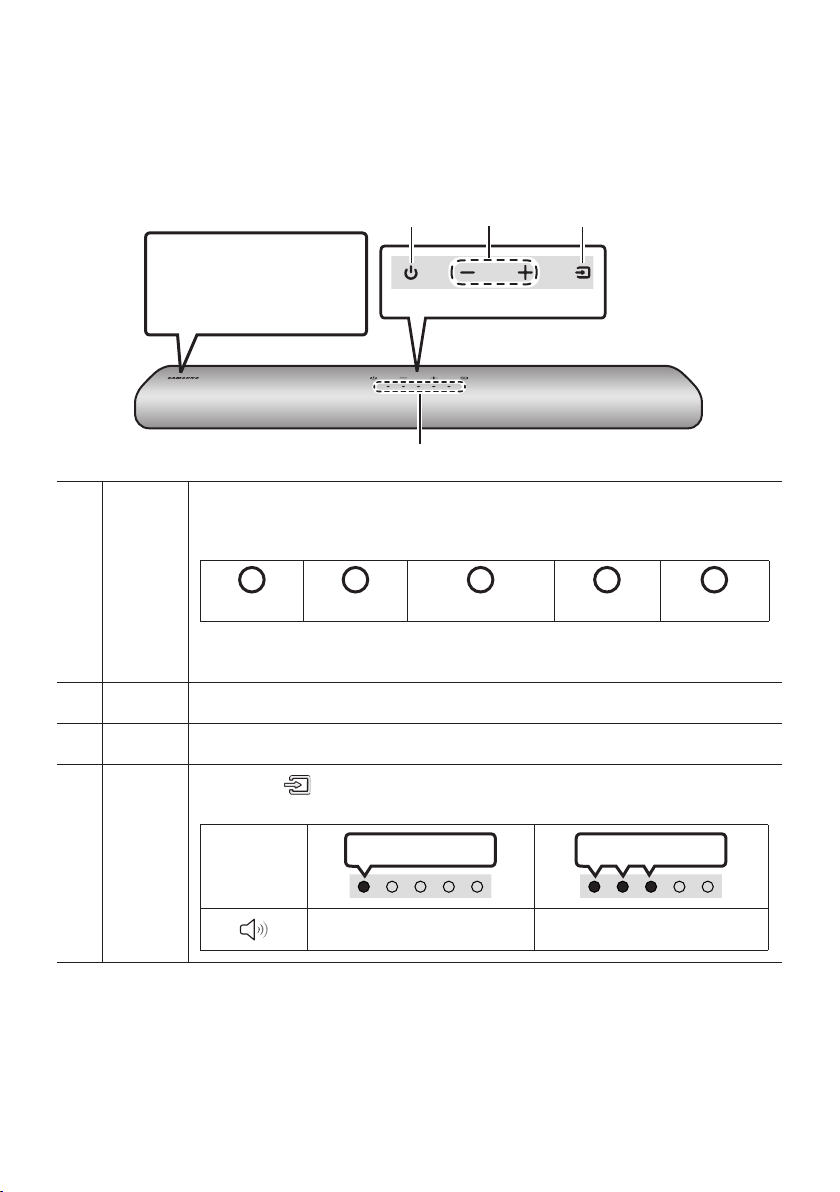

Top Panel of the Soundbar

Top Panel

Position the product so that

the SAMSUNG logo is

located on the top.

󱂖󱂔 󱂕

󱂓

󱂓LED

indicator

The LED Indicator ashes, glows, or changes colour depending on the Soundbar's current

mode or status. The colour of the LED indicator and the number of lights indicate the active

mode as described below.

White LED

Multicolour LED

White LED

•The Multicolour LED changes to White, Cyan, Green, Red, Yellow, Orange, Purple and

Blue depending on the mode or status.

󱂔Power Turns the power on and off.

󱂕Volume Adjusts the volume.

󱂖Source

•Press the (Source) button to change the mode. Each time you change the mode,

the LED lights in white and then turns off.

LED Indicator

White On -> Off White On -> Off

“Digital Audio In” “Bluetooth”

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

ENG - 9

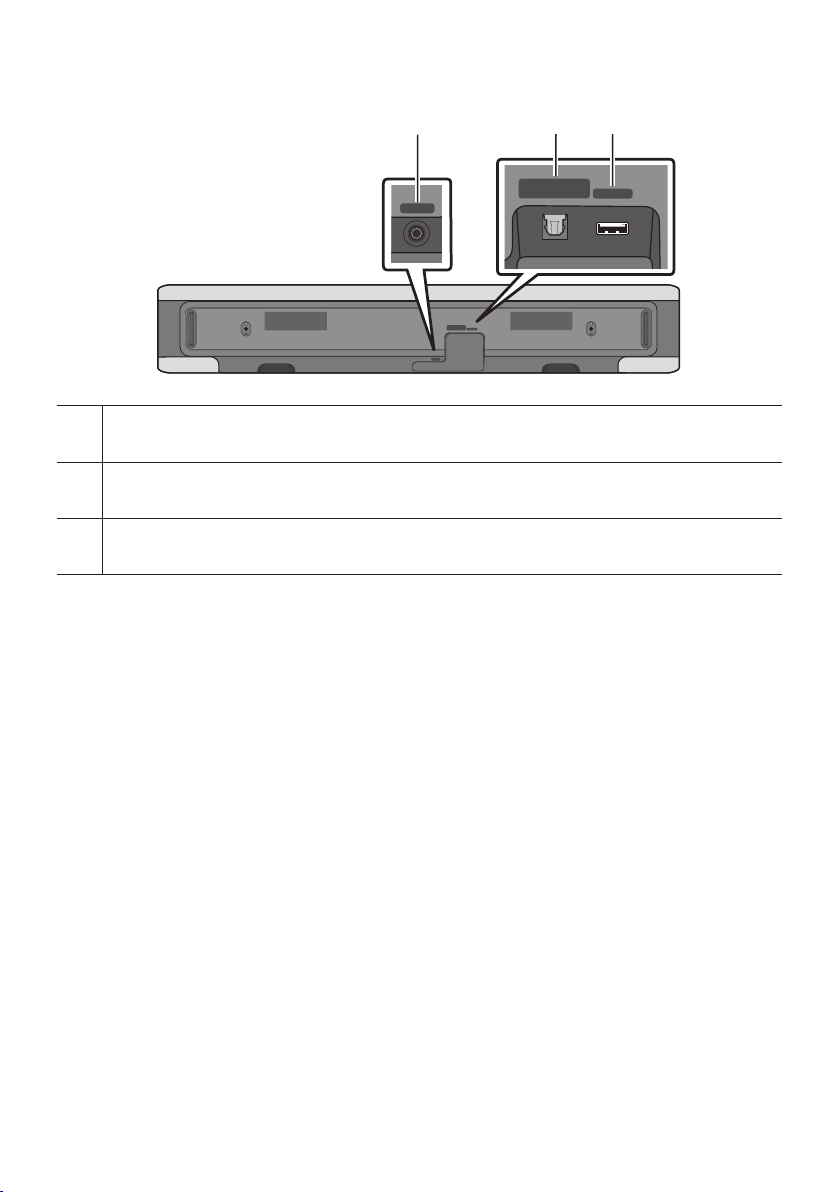

Bottom Panel of the Soundbar

SERVICE

DC 24V

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 24V

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

SERVICE

DC 24V

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

DC 24V

SERVICE

DIGITAL AUDIO IN

(OPTICAL)

󱂓 󱂔 󱂕

󱂓DC 24V (Power Supply In)

Connect the AC/DC power adapter.

󱂔DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

󱂕SERVICE

Connect a USB storage device to upgrade the product's software.

•When disconnecting the power cable of the AC/DC power adaptor from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 10

03 USING THE REMOTE CONTROL

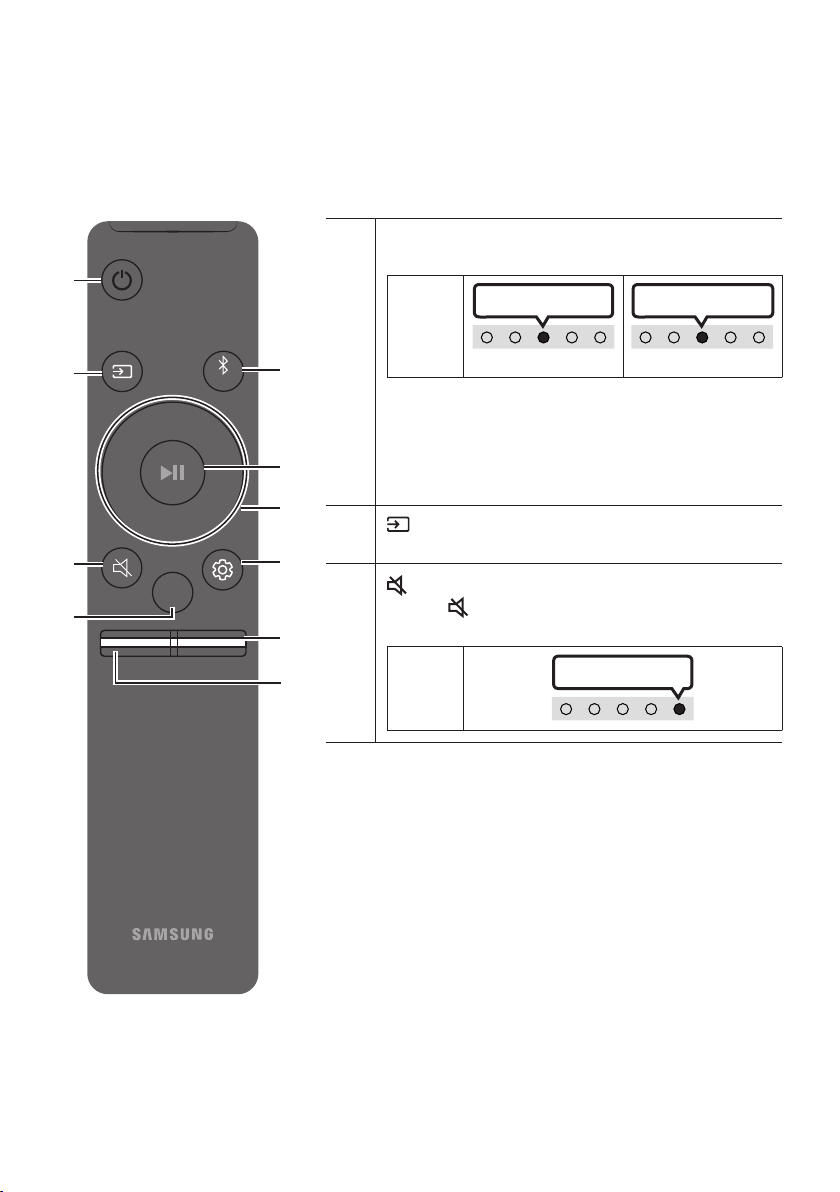

How to Use the Remote Control

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

󱂓

󱂔

󱂕

󱂖

󱂗

󱂙

󱂘

󱂚

󱂜

󱂛

󱂓Power

Turns the Soundbar on and off.

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X3

•Auto Power Down Function

The unit turns off automatically in the following

situations:

– In “Digital Audio In”/ “Bluetooth”mode if there is no

audio signal for 20 minutes.

󱂔(Source)

Press to select a source connected to the Soundbar.

󱂕(Mute)

Press the (Mute) button to mute the sound.

Press it again to unmute the sound.

LED

Indicator

Blinks X Repeatly

Autres manuels pour HW-S40T

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-LST70T Instructions d'installation

Samsung

Samsung HW-S60A Manuel utilisateur

Samsung

Samsung HW-R450 Instructions d'installation

Samsung

Samsung HW-T40M Instructions d'installation

Samsung

Samsung Harman JBL XS08 Manuel utilisateur

Samsung

Samsung HW-J6000R Manuel utilisateur

Samsung

Samsung HW-K369 Manuel utilisateur

Samsung

Samsung HW-Q950A Manuel utilisateur

Samsung

Samsung HW-C400 Instructions d'installation

Samsung

Samsung HW-N400 Manuel utilisateur

Samsung

Samsung HW-A450 Instructions d'installation

Samsung

Samsung HW-R450 Instructions d'installation

Samsung

Samsung HW-J6500R Manuel utilisateur

Samsung

Samsung HW-A45C Instructions d'installation

Samsung

Samsung HW-E550 Manuel utilisateur

Samsung

Samsung HW-K650 Manuel utilisateur

Samsung

Samsung MX-T50 Instructions d'installation

Samsung

Samsung Harman/Kardon HW-Q70R Manuel d'installation et d'exploitation

Samsung

Samsung HW-J8500 Manuel utilisateur

Samsung

Samsung HW-B650 Instructions d'installation

Samsung

Samsung HW-Q800A Instructions d'installation

Samsung

Samsung Harman JBL KS12 Manuel utilisateur

Samsung

Samsung Harman/Kardon HWQ6CR/ZA Instructions d'installation

Samsung

Samsung HW-Q6CB Instructions d'installation

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
