Samsung HW-M360 Manuel utilisateur

HW-M360

USER MANUAL

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - iii

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the back of your product.

Install your product horizontally, on a

suitable base (furniture), with enough space

around it for ventilation (7~10 cm). Make sure

the ventilation slots are not covered. Do not

place the unit on ampliers or other

equipment which may become hot. This unit

is designed for continuous use. To fully turn

off the unit, disconnect the AC plug from the

wall outlet. Unplug the unit if you intend to

leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the customer support centre

by scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from the website.

(http://www.samsung.com/support)

Design and specications are subject to change

without prior notice.

ENG - iv

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) --------------------------- 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 3

03 Connecting the Soundbar 4

Connecting Electrical Power ------------------------- 4

Connecting the Soundbar to the Subwoofer ------------------------- 5

– Automatic connection between the subwoofer and the Soundbar --------------------------- 5

– Manually connecting the subwoofer if automatic connection fails --------------------------- 6

04 Connecting to your TV 7

Method 1. Connecting with a Cable ------------------------- 7

– Connecting using an Optical Cable ------------------------- 7

Method 2. Connecting Wirelessly ------------------------- 8

– Connecting a TV via Bluetooth ------------------------- 8

05 Connecting an External Device 10

Connecting using an Optical or Analogue Audio (AUX) Cable ------------------------- 10

06 Connecting a USB 11

Software Update ------------------------- 11

ENG - v

07 Connecting a Mobile Device 12

Connecting via Bluetooth ------------------------- 12

08 Using the Remote Control 13

How to Use the Remote Control ------------------------- 13

Adjusting the Soundbar volume with a TV remote control ------------------------- 15

09 Installing the Wall Mount 16

Installation Precautions ------------------------- 16

Wallmount Components ------------------------- 16

Detaching the Soundbar from the Wall ------------------------- 19

10 Troubleshooting 20

11 Licence 21

12 Open Source Licence Notice 21

13 Important Notes About Service 21

14 SpecicationsandGuide 22

Specications ------------------------- 22

ENG - 2

01 CHECKING THE COMPONENTS

Surround

VOL WOOFER

SOUNDBAR

SOUND

MODE

Bluetooth

POWER

Soundbar Main Unit Subwoofer Remote Control / Batteries

1 3

Power Cord (Subwoofer) AC/DC Adapter (Main Unit) Optical Cable

2Connect the AC plug to the adapter

until you hear a “snapping” sound to

ensure they are securely fastened.

AC Plug

(Depending on the country and

model)

Do not detach the AC plug from the

adapter (it will not be removed once it

has been attached).

•The power connection steps are labelled (1, 2, 3). For more information about power

connections, see page 4.

•For Soundbar wall mounting components, see page 16.

•Micro USB to USB adapter Cable is sold separately. To purchase, contact a Samsung Service Centre

or Samsung Customer Care.

•Depending on the region, the AC plug may vary in appearance, or it may be supplied integrated with

the AC/DC adapter.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

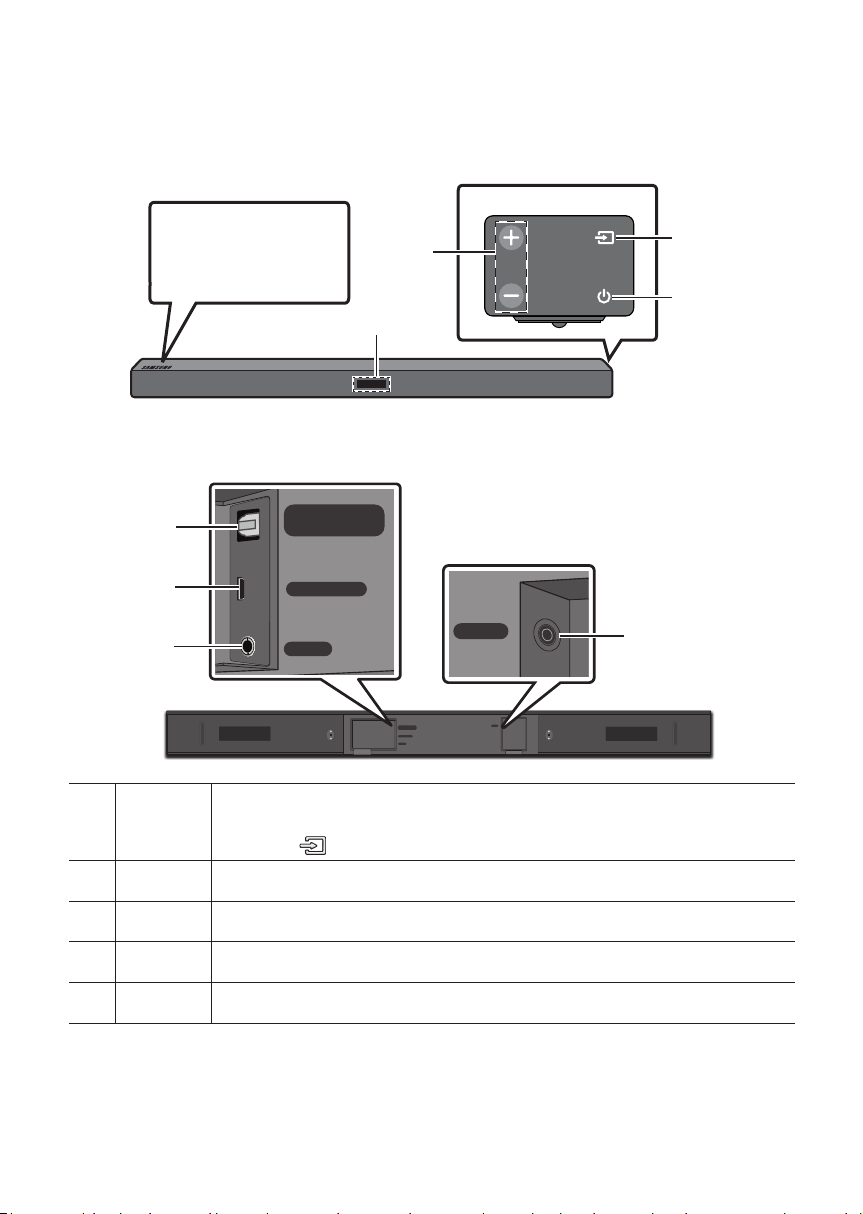

Front Panel / Right Side Panel of the Soundbar

Right Side of the Soundbar

Display

Volume

Power

Position the product so

that the SAMSUNG logo

is located on the top.

󱂓

Bottom Panel of the Soundbar

USB (5V 0.5A)

AUX IN

DIGITAL AUDIO IN

(OPTICAL)

DC 19V

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

DC 19V

󱂔

󱂗

󱂕

󱂖

󱂓Source

Selects the source input mode. (D.IN / AUX / BT / USB)

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and

hold the (Source) button for more than 5 seconds.

󱂔D.IN Connect to the digital (optical) output of an external device.

󱂕USB Connect a USB device here to play music les on the USB device through the Soundbar.

󱂖AUX Connect to the Analogue output of an external device.

󱂗DC 19V Connect the AC/DC power adapter. (Power Supply In)

ENG - 4

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

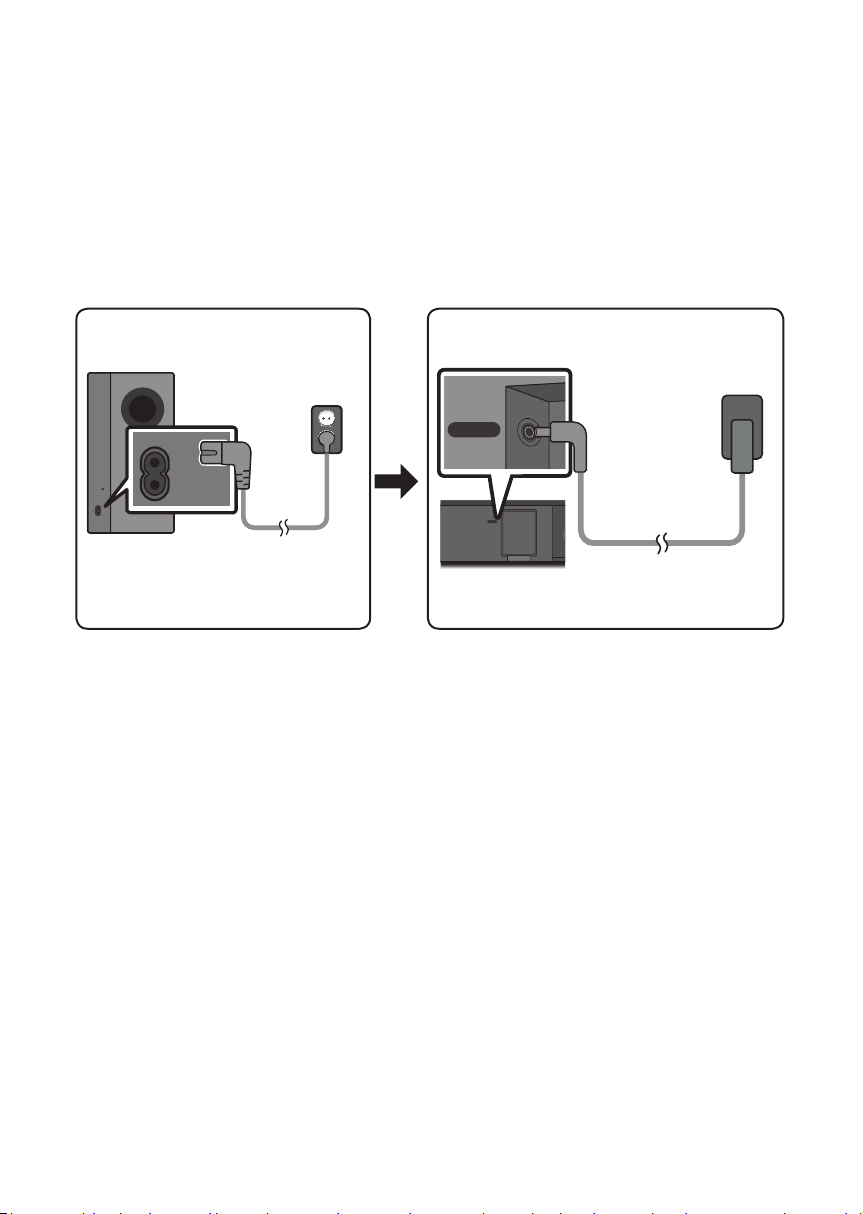

Use the power components (1, 2, 3) to connect the units to electrical outlets in the following order:

1.) Subwoofer 2.) Soundbar Main Unit. See the illustrations below.

•For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label : Bottom of the Soundbar Main Unit)

ID SET

POWER

Rear of Subwoofer

1Power Cord

Connecting

Electrical Power

DC 19V

Bottom of the

Soundbar Main Unit

DC 19V

(Power Jack)

3 AC/DC Adapter

2 AC Plug

ENG - 5

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the

subwoofer is automatically connected to the Soundbar.

•When auto pairing is complete, the blue indicators at the top of the subwoofer turn on.

LED Indicator Lights on the Top of Subwoofer

LED Status Description Resolution

Blue

On Successfully connected

(normal operation) -

Blinking Recovering the connection

Check if the power cable to the main

Soundbar unit is connected properly or

wait for a while. (If blinking persists, try

manually connecting the subwoofer.

See page 6.)

Red On

Standby (with the Soundbar

main unit turned off)

Check if the power cable to the main

Soundbar unit is connected properly.

Connection failed Connect again. See the instructions for

manual connection on page 6.

Red and

blue Blinking Malfunction See the contact information for the

Samsung Service Centre in the manual.

ENG - 6

Manually connecting the subwoofer if automatic connection fails

Check before performing the manual connection

•Check whether the power cables for the Soundbar and subwoofer are connected properly.

•Make sure that the Soundbar is turned on.

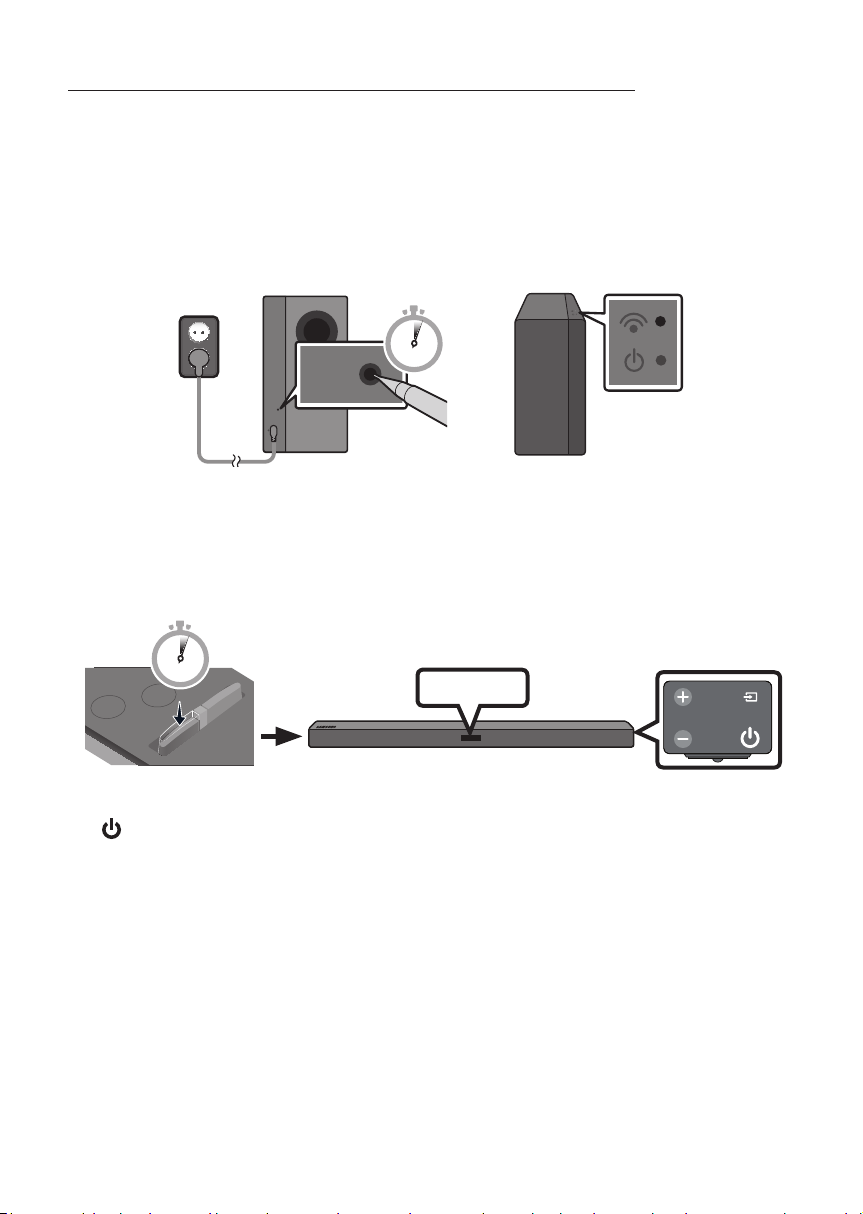

1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.

The red indicator on the top of the subwoofer turns off and the blue indicator blinks.

ID SET

POWER

ID SET

5 Sec

Rear of the Subwoofer Top of the Subwoofer

2. Turn off the Soundbar.

3. Press and hold the VOL button on the remote control for at least 5 seconds with the Soundbar

turned off (OFF).

4. The ID SET message appears on the display of the Soundbar for 1.3 seconds, and then disappear.

Surround

SOUND

MODE

Bluetooth

POWER

VOL WOOFER

SOUNDBAR

5 Sec ID SET

5. When the blue indicator on the subwoofer blinks, turn on the Soundbar’s power by pressing

(Power) button on the right side of the main unit or on the remote control.

6. When the connection is successfully established, the blue indicator on the top of the subwoofer

stops blinking and glows continuously.

•If the connection process fails, the blue indicator will ash continuously. Go to Step 1 and start again.

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker

Kit (SWA-8500S) to your Soundbar (Sold separately). For more information, see the

Samsung Wireless Rear Speaker Kit manual.

Autres manuels pour HW-M360

Table des matières

Langues :

Autres manuels Samsung Système de haut-parleurs

Samsung

Samsung HW-K355 Manuel utilisateur

Samsung

Samsung HW-B67E Instructions d'installation

Samsung

Samsung HW-MS550 Manuel utilisateur

Samsung

Samsung HW-K450 Manuel utilisateur

Samsung

Samsung HW-T550 Manuel utilisateur

Samsung

Samsung HW-Q610B Instructions d'installation

Samsung

Samsung HW-M360 Manuel utilisateur

Samsung

Samsung HW-C450 Manuel utilisateur

Samsung

Samsung HW-H760 Manuel utilisateur

Samsung

Samsung HW-H751 Manuel utilisateur

Samsung

Samsung HW-S800B Instructions d'installation

Samsung

Samsung HW-S50A Instructions d'installation

Samsung

Samsung HW-T400 Instructions d'installation

Samsung

Samsung HW-K360 Manuel utilisateur

Samsung

Samsung MX-T70 Instructions de montage

Samsung

Samsung MAX-DT95 Manuel utilisateur

Samsung

Samsung HW-S811B Instructions d'installation

Samsung

Samsung HW-A40R Instructions d'installation

Samsung

Samsung HW-Q800A Instructions d'installation

Samsung

Samsung Crystal Surround Air Track HW-F750 Manuel utilisateur

Samsung

Samsung Harman/Kardon HW-Q70R Instructions d'installation

Samsung

Samsung S-2400 Manuel utilisateur

Samsung

Samsung HW-J550 Manuel utilisateur

Samsung

Samsung HW-Q930C Instructions d'installation

Manuels Système de haut-parleurs populaires d'autres marques

JVC

JVC CA-MXK5R Manuel utilisateur

LG NB4532B Manuel utilisateur

JVC

JVC CA-FSH100 Manuel utilisateur

5Core

5Core Pro Series Manuel utilisateur

EAW

EAW MQV1394e Manuel utilisateur

Lynx

Lynx GXR-LA10A Manuel utilisateur

iLive

iLive ITB066B Manuel utilisateur

RDX

RDX QuickStation 4 Manuel utilisateur

Electro-Voice

Electro-Voice S-122 Manuel utilisateur

Sven

Sven SPS-619 GOLD Manuel utilisateur

Pioneer

Pioneer CS-7070 Manuel utilisateur

EAW

EAW UB82e Manuel utilisateur

Sondpex

Sondpex Active Speaker System and Digital Music... Manuel utilisateur

JVC

JVC NX-PN7 Manuel utilisateur

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuel utilisateur

Yamaha

Yamaha NX-A01 - Speaker Sys Manuel utilisateur

SE Audiotechnik

SE Audiotechnik I-LINE Manuel utilisateur

Gemini

Gemini WRX-843 Series Manuel utilisateur
