Samsung HW-C450 Manuel utilisateur

Crystal Surround Air Track

(Active Speaker System)

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

HW-C450

HW-C451

Downloaded From TheatreSystem-Manual.com Manuals

features

Active Speaker System

This unit features an Active Speaker System that provides high sound quality in a single slim unit.

This unit does not require any satellite loudspeakers or speaker cabling, which are normally associated with

conventional surround sound systems.

Multi-function Remote Control

The supplied remote control can be used to control the TV connected to this unit.

The remote control has a TV hotkey that enables you to perform various operations with the simple press of a button.

You can adjust the volume, change the channel or customize the navigation menu of the TV using this Multi-function Remote

Control.

Special Sound Field mode

You can select from 7 different sound ﬁeld modes (NEWS, DRAMA, SPORTS, GAME, CINEMA, MUSIC and PASS

(Original Sound)) depending on the type of content you want to enjoy.

Compatibility with various audio Technologies

This unit employs decoders compatible with Dolby Digital, DTS (Digital Theater Systems) and SFE (Sound Field Effect).

− Dolby Digital

This is the standard audio signal format used on DVDs and other purely digital media.

This surround technology delivers high-quality digital audio of up to 5.1 discrete channels to produce a

directional and more realistic effect.

− DTS (Digital Theater Systems)

DTS provides a discrete 5.1 CH digital audio signal for both music and movie contents and uses less

compression than Dolby Digital for richer sound.

− SFE (Sound Field Effect) Using 32bit Audio Digital Signal Processing

Provides more realistic surround sound with normal stereo audio sources.

Wireless Subwoofer

Samsung’s wireless module does away with cables running between the main unit and the subwoofer.

Instead, the subwoofer connects to a compact wireless module that communicates with the main unit.

Downloaded From TheatreSystem-Manual.com Manuals

ENG

WHAT’S INCLUDED

Check for the supplied accessories below.

Optical Cable

Audio Cable User's Manual

POWER TV POWER

VOL/CONTROL TV CH

AV SYNC

DRC

MUTE

S.VOL

O/A

INPUT S/W

LEVEL

AUTO

POWER

EXIT

TOOLS

INFO

SOUND

MODE

DIMMER

Remote Control

/ Batteries (AAA size) Bracket-Wall Mount

The accessories may look slightly different than those pictured above.▪

Downloaded From TheatreSystem-Manual.com Manuals

safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage”

inside the product that presents a risk of

electric shock or personal injury.

This symbol indicates important instructions

accompanying the product.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•

This apparatus shall always be connected to a AC outlet with a protective grounding connection.

•

To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CAUTION

•

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

•

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Downloaded From TheatreSystem-Manual.com Manuals

ENG

PRECAUTIONS

Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product. Install your

product horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4 inches). Make sure the ventilation slots

are not covered. Do not place the

unit

on amplifiers or other equipment which may become hot. This

unit

is designed for continuous use.

In order to disconnect the unit completely from the power supply, remove the main plug from the wall outlet, especially when left unused

for a long period of time.

During thunderstorms, disconnect the AC main plug from the

wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the

product

from moisture (i.e. vases) , and excess heat

(e.g.fireplace) or equipment creating strong magnetic or electric fields

Disconnect the power cable from the AC supply if the unit malfunctions.

Your

product

is not intended for industrial use. Use of this product is for

personal use only.

Condensation may occur if your

product

or disc has been stored in

cold temperatures. If transporting the

unit

during the winter,

wait approxi

mately 2 hours until the unit has reached room temperature

before using.

Do not expose the unit to direct sunlight or other heat sources.

This could lead to overheating and malfunction of the unit.

The batteries used with this product contain chemicals that are harmful to

the environment.

Do not dispose of batteries in the general household trash.

The batteries used with this product contain chemicals that are harmful to

Phones

3.9 inch 3.9 inch

2.7 inch

3.9 inch

Downloaded From TheatreSystem-Manual.com Manuals

contents

FEATURES

2 Features

3 What’s included

SAFETY INFORMATION

4 Safety warnings

5 Precautions

GETTING STARTED

7 Before reading the user’s manual

DESCRIPTIONS

8 Front panel

9 Rear panel

REMOTE CONTROL

10 Tour of the remote control

CONNECTIONS

11 Installing the wall mount

12 Connecting the wireless subwoofer

13 Connecting the Crystal Surround Air Track

TROUBLESHOOTING

17 Troubleshooting

APPENDIX

18 Speciﬁcations

FUNCTIONS

14 Basic functions

14 Advanced functions

16 Software upgrade

Downloaded From TheatreSystem-Manual.com Manuals

ENG

●GETTING STARTED

BEFORE READING THE USER’S MANUAL

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Deﬁnition

Caution

This involves a case where a function does not operate or settings may be

canceled.

Note

This involves tips or instructions on the page that help each function operate.

About the use of this user’s manual

Be sure to be familiar with Safety Instructions before using this product. ( See page 4 )

If a problem occurs, check the Troubleshooting. ( See page 17 )

written permission of Samsung Electronics Co.,Ltd.

getting started

Downloaded From TheatreSystem-Manual.com Manuals

descriptions

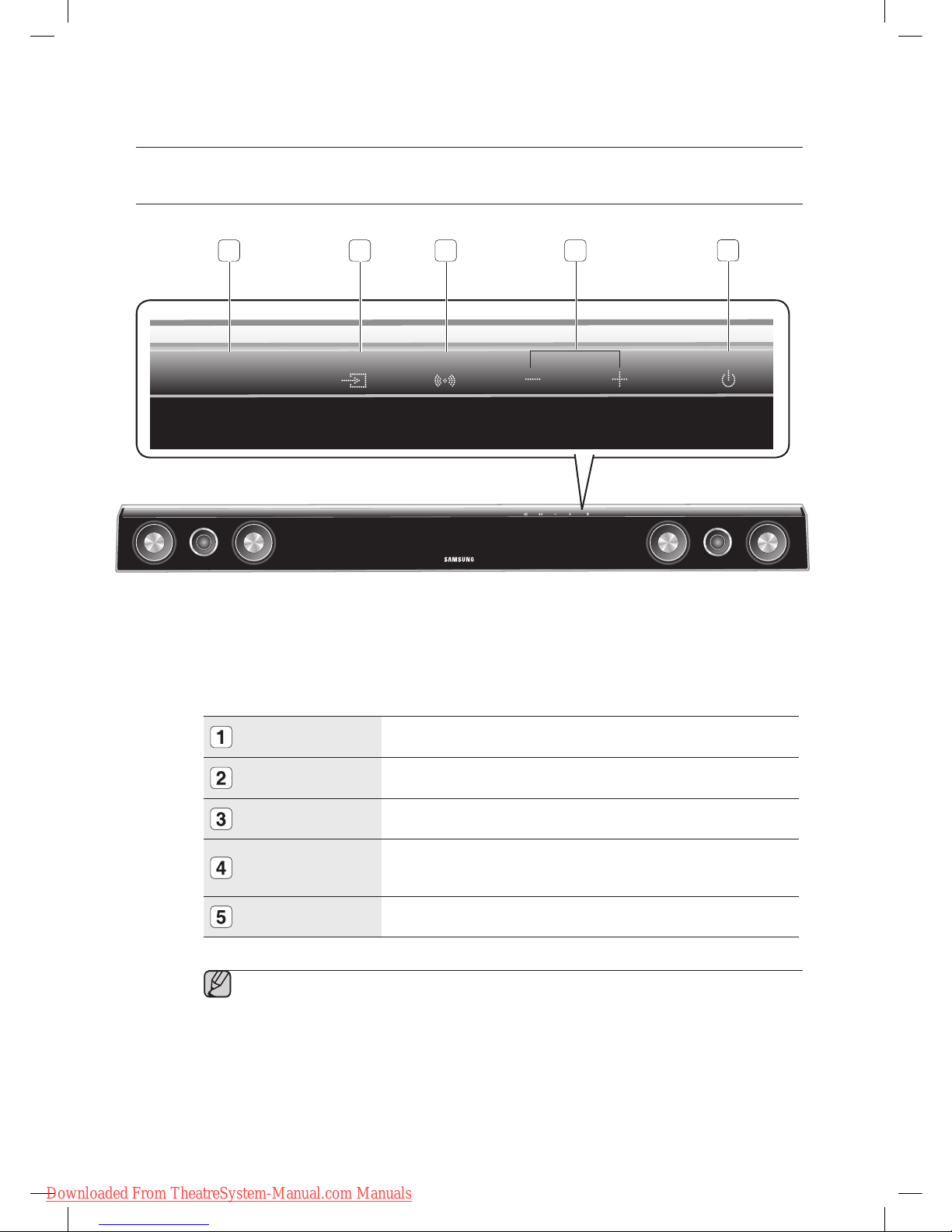

FRONT PANEL

DISPLAY Displays the current mode.

POWER BUTTON Turns the Crystal Surround Air Track on and off.

VOLUME +/- Controls the volume level.

SOUND FIELD

MODE

Selects the sound ﬁeld mode.

(NEWS, DRAMA, SPORTS, GAME, CINEMA, MUSIC and

PASS(Original Sound))

INPUT MODE Selects the Optical or Audio input.

When you turn on the power of this unit, there will be a 4 to 5 second delay before it can

reproduce sound.

▪

3451

Downloaded From TheatreSystem-Manual.com Manuals

ENG ●DESCRIPTION

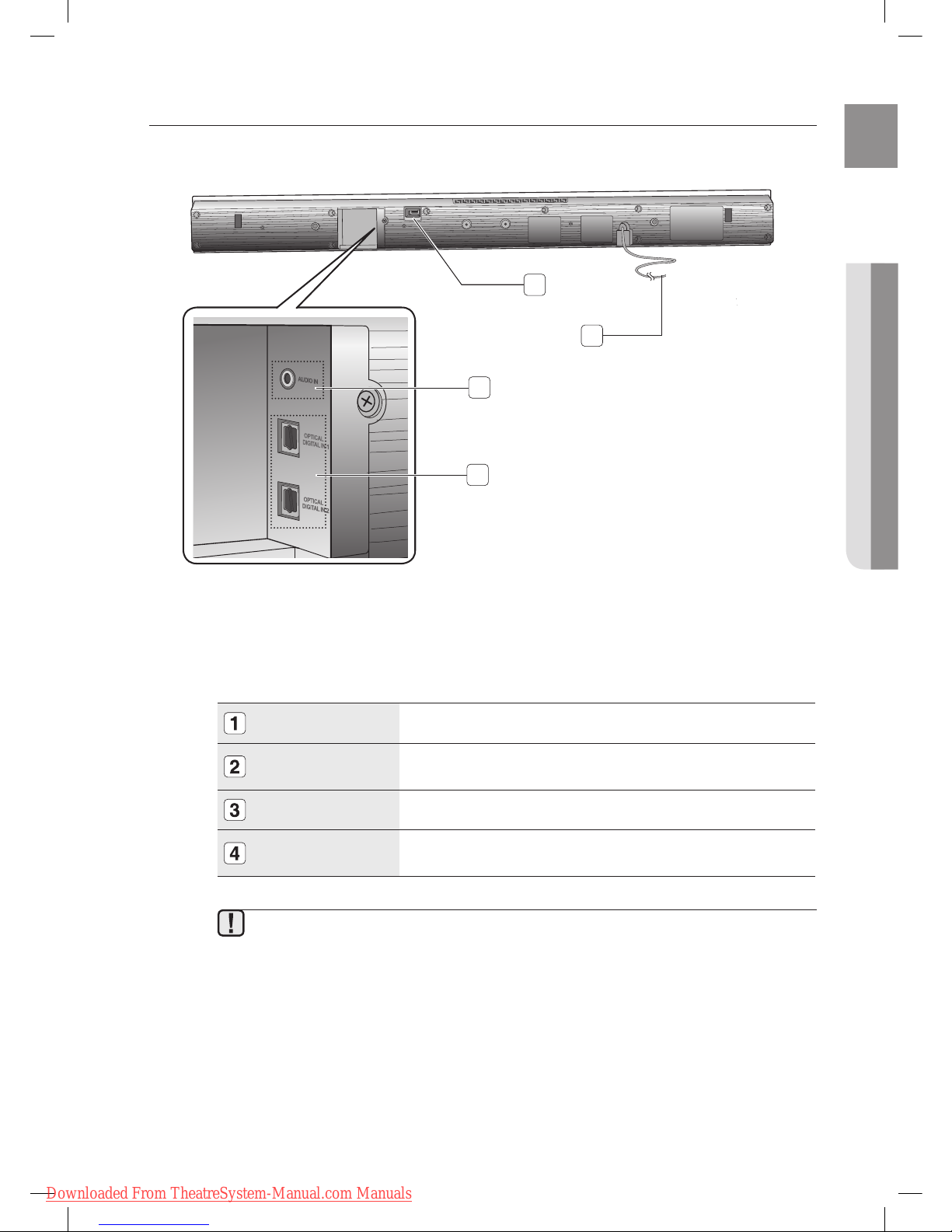

REAR PANEL

USB PORT You can update this unit through the USB port.

POWER SUPPLY

CABLE Plug the power supply cable into the AC wall outlet.

AUDIO IN JACK Connect to the analog output of an external device.

OPTICAL DIGITAL IN

1,2 Connect to the digital (optical) output of an external device.

When disconnecting the power cable from the wall outlet, hold the plug.

Do not pull the cable.

Do not connect this unit or other components to the main power until all connections

between components are complete.

▪

ONLYFOR UPDATE

Downloaded From TheatreSystem-Manual.com Manuals

remote control

TOUR OF THE REMOTE CONTROL

The remote control can operate TVs made by SAMSUNG only.

Depending on the TV you are using, you may not be able to operate your TV with this

remote control. In this case, operate the TV using the TV's remote control.

▪

Installing batteries in the Remote Control

1. Lift the cover at the back of

the remote control upward as

shown.

2. Install two AAA size batteries.

Make sure to match the “+” and “–” ends

of the batteries with the diagram inside the

compartment.

3. Replace the cover.

Assuming typical TV usage,

the batteries last for about

one year.

Operation Range of the Remote Control

The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a

horizontal angle of up to 30° from the remote control sensor.

POWER BUTTON

Turns the Crystal Surround

Air Track on and off.

ADJUST THE TV

NAVIGATION MENU

Adjusts and selects an item

of the navigation menu on

your Samsung TV.

VOL/CONTROL

Adjusts the volume level of

the unit.

O/A INPUT

Selects the

Digital (

Optical)

or the Audio input.

SMART VOLUME

Regulate and stabilize the

volume level against a

drastic volume change.

TV POWER BUTTON

Turns your Samsung TV on

and off.

SOUND MODE

Selects the sound ﬁeld mode.

(NEWS, DRAMA, SPORTS,

GAME, CINEMA, MUSIC and

PASS(Original Sound))

TV CHANNEL

Switches between the

available TV channels.

MUTE

Mutes the sound from the unit.

Press again to restore the

sound to the previous volume

level.

AUTO POWER LINK

Synchronizes to turn the

unit on with the optical

signal from the TV.

POWER TV POWER

VOL/CONTROL TV CH

AV SYNC

DRC

MUTE

S.VOL

O/A

INPUT S/W

LEVEL

AUTO

POWER

EXIT

TOOLS

INFO

SOUND

MODE

DIMMER

S/W LEVEL

Adjusts the Subwoofer

level.

DRC/DIMMER

You can use this function to

enjoy Dolby Digital sound

when watching movies at

low volume at night

(Standard, MAX, MIN).

You can control the

brightness of the Display.

AV SYNC

Used to help sync video to

audio when connected to a

digital TV.

Downloaded From TheatreSystem-Manual.com Manuals
