Samsung SDS-P3042 Manuel utilisateur

English _1

English

SAMSUNG ALL-IN-ONE SECURITY SYSTEM

KIT MODEL

SDS-P3042 / V3042/ S3042/ P3022/ P4042 / V4042/

S4042/ P4082/ P5082 / S5082 / P5102 / P5122

DVR MODEL

SDR-3102

4102

5102

Quick Start Guide

Thank you for purchasing a Samsung DVR Security System.

Follow the simple steps in this guide to set up and start using your new system.

If you have any questions or need help installing your new product please contact our free technical support.

Telephone: 1-877-349-3149

9am - 9pm EST, Monday - Friday

Internet: http://www.samsungsv.com

INSTALLING YOUR SYSTEM

MImages may differ depending on the model.

❒4CH DVR

Front

Rear

1Connect a mouse 4Connect the DC adaptors

2Connect a camera 5Connect to a network router

3Connect a monitor

POWER REC NETWORK

IN1

IN3 IN4

AUDIO IN AUDIO OUT

VGA

IN2

HDMI

eSATA

VIDEO IN

LAN

USB RS485 DC12V

2_ English

❒8CH DVR

Rear

16CH DVR

Rear

❒Connecting the DVR to Live monitoring

Front

IN1

IN3 IN4

AUDIO IN AUDIO OUT

VGA

IN2

HDMI

eSATA

VIDEO IN

LAN

USB RS485 DC12V

IN1

IN3 IN4

AUDIO IN AUDIO OUT

VGA

LAN

RS485

IN2

HDMI DC 12 V

USB

eSATA

VIDEO IN

POWER REC NETWORK

1 Connect a mouse

English _3

English

Rear

2 Connect an BNC camera

VGA

LAN

RS485

IN1

CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8

CH9 CH10 CH11 CH12 CH13 CH14 CH15

IN2

IN3 IN4

AUDIO INVIDEO IN HDMI DC 12 V

USB

eSATA

AUDIO OUT

CH16

4 Connect a monitor

5 Connect the DC adaptors (DVR)

3 Connect the DC adaptors (Camera)

6 Connect to a network router

4_ English

VIEW THE LAUNCHER MENU

The Launcher menu appears on the bottom of the live screen.

In Live mode, right-click to display the context menu and select

<Show Launcher>.

Move the cursor to the bottom and click a desired item in the

Launcher menu.

If no input is entered for 10 seconds, the menu will disappear.

The Launcher menu can be accessed only by using the mouse.

Screen mode may vary depending on the DVR supported channel.

1Date/Time 5Zoom 9Play

2Screen Mode 6PTZ 0Record

3Menu Expansion Button 7Alarm

4Audio 8Freeze

SYSTEM SETTING

❒Time Setting

Right click on the mouse and select main menu.

In the login window, enter the password and click <OK>.

JThe initial administrator ID is “admin” and the password should be set

when logging in for the first time.

Set password for your wireless network if you use the product with a

wireless router. Being not protected with password or using the default

wireless router password may expose your video data to potential threat.

Please change your password every three months to safely protect

personal information and to prevent the damage of the information theft.

Please, take note that it’s a user’s responsibility for the security and any

other problems caused by mismanaging a password.

Click on Date/Time/Language. Set time and date.

2013-01-01

01:10:25

2013-01-01

01:10:25

1234567890

English _5

English

After filling in the information, Click <OK>.

Network Setting

❒Connection Mode

Click on Network and select <Connection Mode>.

If there occur a problem with Connection Mode, check the connection

as “Installing your system” on page 1.

If you still have a problem, contact the nearest service center for more

information.

Under <Interface> Tab.

Check <IP Type> is set to <DHCP> as default.

If it connected successfully, you can see the success comment

JIf you know Static IP information from your router, please select

<Static IP> and enter IP address, Gateway, and Subnet Mask etc.

M

Please refer to the Router Guide in provided CD when you use a static IP.

Under <Port> Tab.

JWrite down <Device Port> and <HTTP Port>.

1IP Address

2Device Port 3HTTP Port

When completing the setting, click <OK>.

6_ English

❒SETTING UP SAMSUNG iPOLiS DDNS

Since you will be accessing the DVR remotely, let’s setup your Samsung iPolis account first using the PC.

Go to Your PC

Open your browser and go to http://www.samsungipolis.com and click

<LOGIN>.

You first need to create an account.

Click <SIGN UP>.

Follow-the account registration instructions on the website.

After completing the account registration, login to your account.

JWrite down your User ID and Password below.

1ID 2Password

Add your DVR to your account. Click <PRODUCT REGISTRATION>.

Create a name (Product ID) for your DVR. Use 4 to 20 alphanumeric

characters without spaces. Select classification, model number of the

DVR and click <REGISTRATION>.

JModel Number

4CH DVR : SDR-3102 (SDS-P3042,SDS-P3022, SDS-V3042,

SDS-S3042)

8CH DVR : SDR-4102 (SDS-P4042, SDS-P4082, SDS-V4042,

SDS-S4042)

16CH DVR : SDR-5102 (SDS-P5082, SDS-P5102, SDS-P5122,

SDS-S5082)

After registration, you should see your product in the list.

JWrite down the product ID below.

3Product ID

Click <LOGOUT> to close the Web Page.

sdr-5102HOME

sdr-5102

sdr-5102HOME sdr-5102

English _7

English

Go back to DVR

From network tab, click on <DDNS>.

Under DDNS Site, select <iPOLiS>.

Under Product ID, enter the product ID you created on the Samsung

iPOLiS website.

Under Quick Connect, select <Use> and click <OK>.

JWrite down the DDNS Host address:.

1DDNS Host Address

If the connection was not successful, your router may not be

supporting UPNP.

For more information on enabling UPNP on your router, please see

User manual.

8_ English

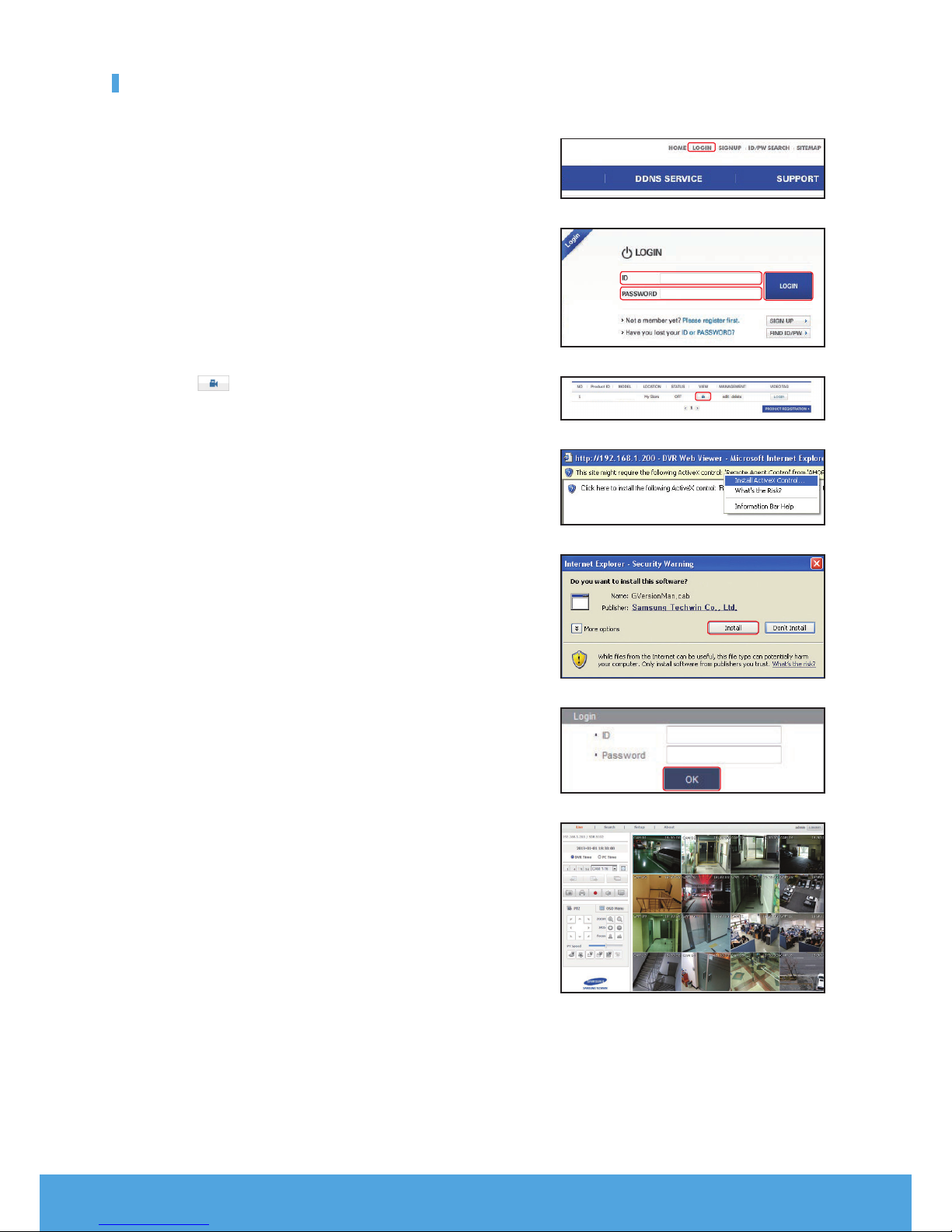

REMOTE MONITORING

From a Windows computer

Open Windows Internet Explorer and go to http://www.samsungipolis.

com and click <LOGIN>.

Click < >.

You will be asked to install the active X plug-in.

Enter the user ID and password for the DVR.

JIf the screen to the bottom right does not appear, check if the DVR set is

connected properly with a valid IP address.

Now, you can install the cameras and place the cameras where they are

needed.

sdr-5102HOME sdr-5102

English _9

English

USING A SMARTPHONE

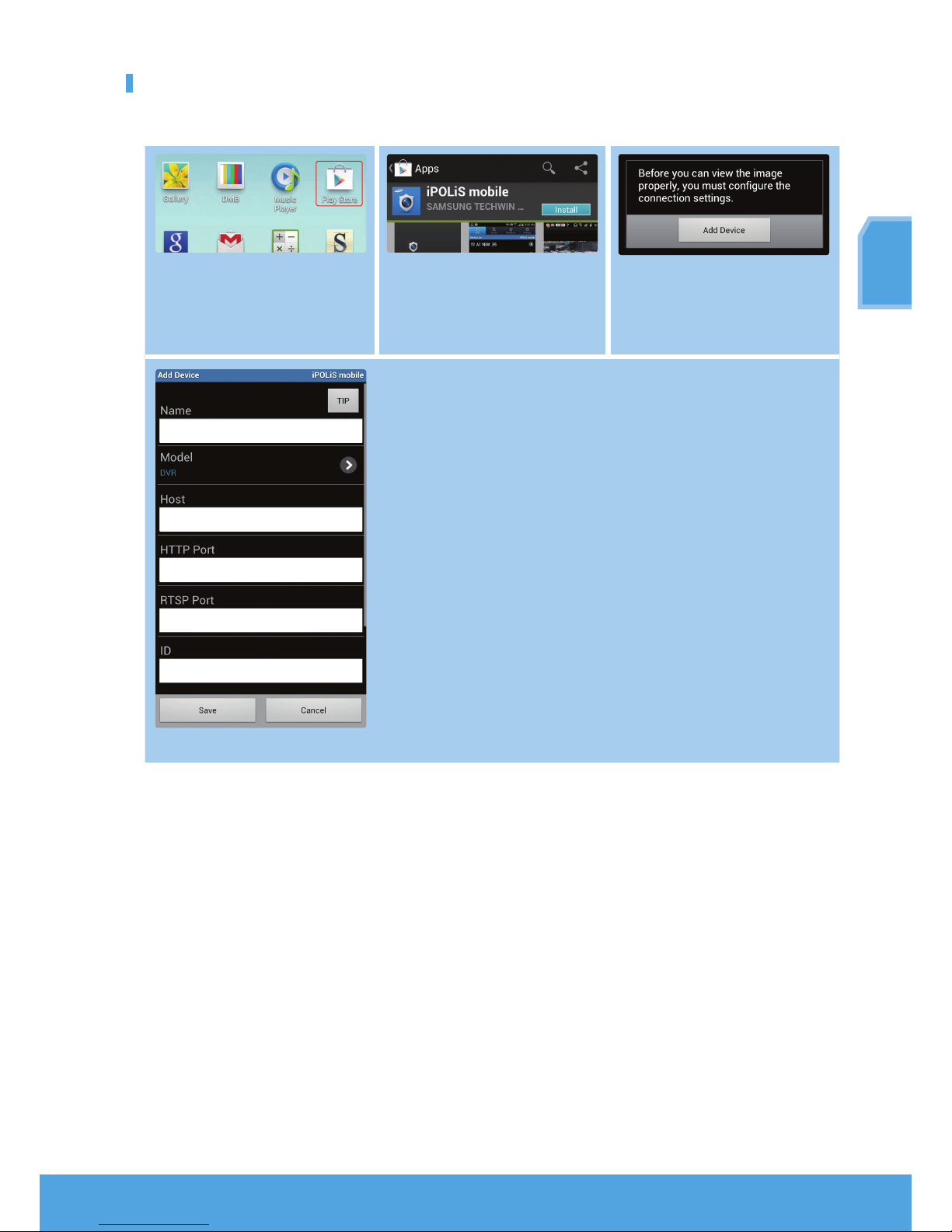

❒For Android Phone

1 Visit Play Store to Download the

Samsung iPOLiS mobile app.

SDR-3100

2 Search for Samsung iPOLiS. 3 Launch the iPOLiS mobile app add the

DVR.

Tap on the menu icon and tap <Add

Device>.

SDR-5102

www.samsungipolis.com/sdr-5102

4524

admin

4 Register the DVR to the iPOLiS mobile.

JName : Create a name for the DVR you are adding

Model : Select the DVR

Host : If you are using Samsung iPOLiS DDNS, enter the DDNS Host Address you

wrote down earlier. (Page 6, 7)

It should be www.samsungipolis.com/Product ID

HTTP Port : Enter the HTTP Port you wrote down earlier.

RTSP Port : Enter the last port number of Device Port you wrote down earlier.

ID : Default ID is <admin>. If you change before, please enter changed ID.

Password : If you changed before, please enter changed Password.

Camera : Select the cameras you want to view.

JThe initial administrator ID is “admin” and the password should be set when

logging in for the first time.

Set password for your wireless network if you use the product with a wireless

router. Being not protected with password or using the default wireless router

password may expose your video data to potential threat.

Please change your password every three months to safely protect personal

information and to prevent the damage of the information theft.

Please, take note that it’s a user’s responsibility for the security and any other

problems caused by mismanaging a password.

10_ English

❒For iPhone

1 Visit App Store to Download the

Samsung iPOLiS mobile app.

Install

SAMSUNG TECHWIN C...

Utilities

2 Search for Samsung iPOLiS. 3 Launch the iPOLiS mobile app add the

DVR.

At the Add Device pop-up, tap <OK>.

SDR-5102

DVR

www.samsungipolis.com/s...

4524

4 Register the DVR to the iPOLiS mobile.

MFor more information of each item, refer to “For Android Phone”.

RECORDING AND PLAYBACK

Press the [MENU] button on the remote control.

Use the left/right button (◄►) to select <Record>.

Use the up/down buttons (▲▼) to move to <Recording Schedule>,

and press [ENTER] button.

Set each of the Record Schedule options.

To change the setting, set the channel then select the time and date you

want to record and click <OK>.

The default is as shown.

Color Part Names Functions

White No Recording No schedule / event recording

Orange Continuous Scheduled recording only

Blue Event Event recording only

Green Both(Cont&Evnt) Both scheduled / event recordings
