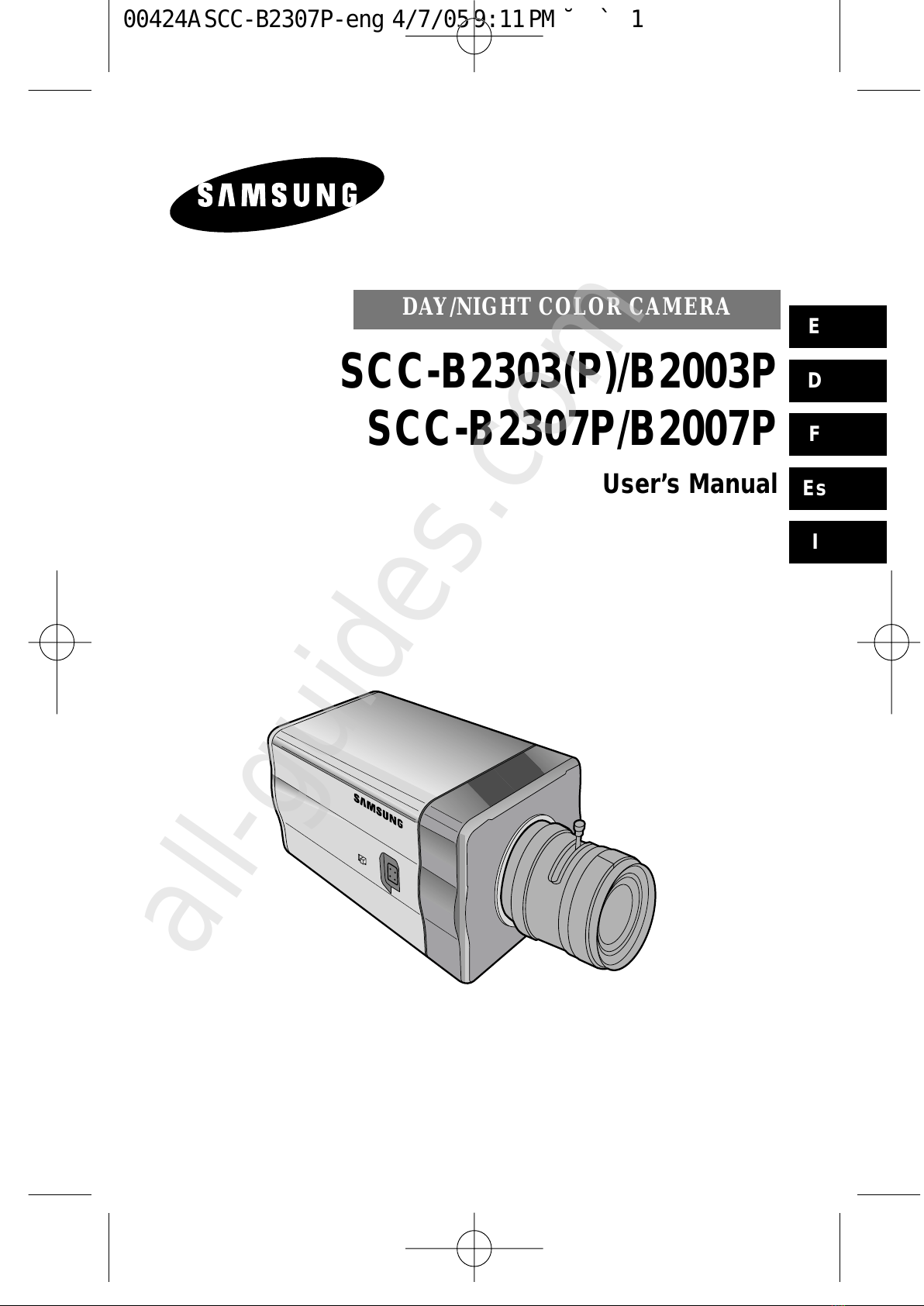

DAY/NIGHT COLOR CAMERA

SCC-B2303(P)/B2003P

SCC-B2307P/B2007P

User’s Manual

00424ASCC-B2307P-eng 4/7/059:11PM ˘`1

All manuals and user guides at all-guides.com

all-guides.com

CAUTION: TO REDUCE THE

RISK OF ELECTRIC SHOCK,

DO NOT REMOVE REAR

COVER. NO USER

SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED

SERVICE PERSONNEL.

To prevent damage which may result in fire or electric shock hazard,

do not expose this appliance to rain or moisture.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions.

1) This device may not cause harmful interference, and

2) This device must accept any interference that may cause undesired

operation.

CAUTION:

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

This symbo indicates

high votage is present

inside. It is dangerous to

make any kind of contact

with any inside part of

this product.

This symbo a erts you

that important iterature

concerning operation and

maintenance has been

inc uded with this

product.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

00424ASCC-B2307P-eng 4/7/059:11PM ˘`2

All manuals and user guides at all-guides.com

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat

registers, or other apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong are

provided for your safety. If the provided plug does not fit into

your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being from being walked on or

pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a used,

caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-

over.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate

normally, or been dropped.

00424ASCC-B2307P-eng 4/7/059:11PM ˘`3

All manuals and user guides at all-guides.com

Contents

Chapter 1 Introduction ........................................................ 5

Chapter 2 Specia Features ............................................. 6

Chapter 3 Part Names and Functions ............................... 7

Chapter Insta ation ..........................................................12

Cautions for Insta ation and Use .......................13

Connecting Automatic Shutter Lens Connector

........... 14

Fixing Lens and Adjusting Lens Se ection Switch

....... 15

Adjusting Back Focus ........................................ 16

Connecting Cab es ............................................ 18

Chapter 5 Camera Set-Up ................................................. 20

Appendix Product Specification ........................................ 39

NOTE: Avoid aiming the camera direct y towards extreme y bright

objects such as the sun, as this may damage the CCD image sensor.

00424ASCC-B2307P-eng 4/7/059:11PM ˘`4

All manuals and user guides at all-guides.com

Chapter 1 Introduction

The DAY/NIGHT Camera operates in a co or mode in an the

i umination over the standard vaue and otherwise in B/W mode by

de eting the IR Cut function, which contributes to the improvement

of sensitivity so that it is ca ed a ow i umination camera which is

ab e to identify objects in a dark area. Meanwhi e, it has

incorporated a Sense Up function owing to a ow speed shutter and

a fie d accumuation method to improve its ow i umination feature

prominent y.

The DAY/NIGHT Camera is most y used in dark p aces ike

basement parking ots with a comparative y ow i umination. In

daytime, it provides a co or screen of high density with a horizonta

reso ution of 480, and, at night, it uti izes the DAY/NIGHT function

as we as the Sense Up function to identify objects. In same cases,

you may use this camera in reation to the infrared ray emission

equipment additiona y.

[DAY/NIGHT]

It is a function of a co or camera to de ete the fiter with the

IR Cut function in an i umination be ow the standard va ue

so that it has a better sensitivity.

00424ASCC-B2307P-eng 4/7/059:11PM ˘`5

All manuals and user guides at all-guides.com

Chapter 2 Special Features

High Sensitivity

It has an up-to-date 1/3" Super(EXview)-HAD IT CCD for an image of high

sensitivity.

Low Illumination Function

It has both a ow i umination function and DAY/NIGHT function based on

digita signa technoogy in order to operate in the worst environment

without ight.

Digital Zoom Function

It has a digita zoom function for a 10 time en argement as a maximum. (If

you turn the PIP function to the Digita Zoom mode, the whoe screen wi

be disp ayed as a PIP screen.

Superior Back Light Adjustment Function

In case the object has a bright i umination or sunight behind it, this camera

adjusts the image shaded by the back ight for c ear photographs.

Digital Power Supply Synchronization Method

The Fu Digita Method Line Lock is rea ized in this camera, which adjusts

the vertica camera synchronization direct y to improve contro abi ity and

re iabi ity of the camera.

Resolution

It rea izes high reso ution resu ting from fu digita image processing

supported by a state-of-art digita signa techno ogy.

Output Signal Setting

It is abe to reverse video output signa s and set both a vertica and

horizonta profi e.

00424ASCC-B2307P-eng 4/7/059:11PM ˘`6

All manuals and user guides at all-guides.com

all-guides.com

Chapter 3 Part Names and Functions

Side View

Mount Adapter Fixing Groove

This groove is used for screwing the mount adapter, a part of the bracket

where the camera wi be insta ed.

Camera Lens(Option)

This ens is insta ed in the camera.

* A camera ens with a stained surface shou d be c eaned soft y with a ens

tissue or ethano painted cotton c oth.

Auto Iris Lens Connector

This connector provides the automatic shutter ens with power supp y,

contro signa , video signa , or DC signa necessary for the contro of the

ens shutter

Automatic Shutter

Lens Contro Cab e

ALC Lens

Se ection Switch

Auto Iris Lens

Connector

Mount Adapter Fixing

Groove

Back Focus

Contro Bar

Camera Lens

00424ASCC-B2307P-eng 4/7/059:11PM ˘`7

All manuals and user guides at all-guides.com

Auto Iris Lens Control Cable

This cab e transmits the contro signa from the camera to contro the ens

shutter.

Back Focus Control Bar

It contro s the back focus.

ALC Lens Setting Switch

This switch sets the Auto Iris ens type for use.

 DC : When you attach an Auto Iris ens requiring the DC contro signa,

p ease put this switch in the DC position.

 VIDEO : When you attach an Auto Iris ens requiring the video contro

signa , p ease put this switch in the VIDEO position.

Rear View

00424ASCC-B2307P-eng 4/7/059:11PM ˘`8

All manuals and user guides at all-guides.com

① Power Display LED

When the camera is supp ied with power, LED is on.

➁Video Output Terminal

The monitor video input termina is connected with this termina through

which the camera video signa comes out.

➂Remote Input Terminal(RS-232)

This termina is used for camera contro at the production p ant.

1234

1 TXD

2 RXD

3 +5V

4 GND

00424ASCC-B2307P-eng 4/7/059:11PM ˘`9

All manuals and user guides at all-guides.com

➃ DAY/NIGHT External Signal Input & Alarm Signal Output

This is a function to receive the externa DAY/NIGHT signa from the

sensor(option) and convert the signa into BW. The MOTION DET

function generates an a arm signa when a movement is detected.

①

➁

DAY/NIGHT IN

GND

ALARM OUT

Connect an externa sensor to the DAY/NIGHT termina as shown in ①then

connect any externa device such as a buzzer or amp to the ALARM

termina as shown in ➁.

The ALARM output termina is an open co ector with the fo owing capacity:

DC 16V and 100mA.

OFF : Open contact

ON : Be ow 100mA

The DAY/NIGHT input termina has the input of DC 5V pu -up and over

0.2mA.

OFF : Open contact

ON : C osed contact
