Samsung RS64R55 Series Manuel utilisateur

English............................................ 1

French - Français ........................10

German - Deutsch ......................19

Dutch - Nederlands................... 28

Italian - Italiano ..........................37

Portuguese - Português........... 46

Spanish - Español...................... 55

Hungarian - Magyar.................. 64

Polish - Polski..............................73

Czech - Čeština........................... 82

Slovakian - Slovenčina...............91

Romanian - Română................100

Serbian - Srpski........................ 109

Greek - ελληνικά.......................118

Bulgarian - Български............127

Croation - Hrvatski...................136

Albanian - Shqip .......................145

Macedonian - Македонски ....154

Latvian - Latviešu.....................163

Estonian - Eesti keel ................172

Lithuanian - Lietuvių kalba.....181

Danish - Dansk......................... 190

Norwegian - Norsk...................199

Finnish - Suomi ........................208

Swedish - Svenska....................217

Slovenian - Slovenščina ......... 226

English - 1

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com/support

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product.

‐You can check the model code and version on the barcode label at the bottom left of the

product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual.

‐User-serviceable parts are limited to handles (some models only), gaskets, drawers, and

hinges.

NOTE

Following the repair by a non-authorised service provider, self-repairor non-professional repair

of the product, Samsung is not liable for any damage to the product, any injury or any other

product safety issue caused by any attempt to repairthe product which does not carefully

follow these repair and maintenance instructions. Any damage to the product caused by an

attempt to repair the product by any person other than a Samsung certiÿed service providerwill

not be covered by the warranty.

CAUTION

•The part name listed on the site may di°er from that in this manual. Please make sure you

choose the right part name.

•Replacing hinges requires extreme caution because it involves detaching the door.

•Be sure to wear safety gloves while making repairs.

English - 2

01 Top hinge (Left and Right) 02 Gasket (Ref and Fre Door)

03 Drawer (Tray and Basket) 04 Bottom hinge (Left and Right)

The actual image and provided parts of the refrigerator may differ, depending on the model and

the country.

English - 3

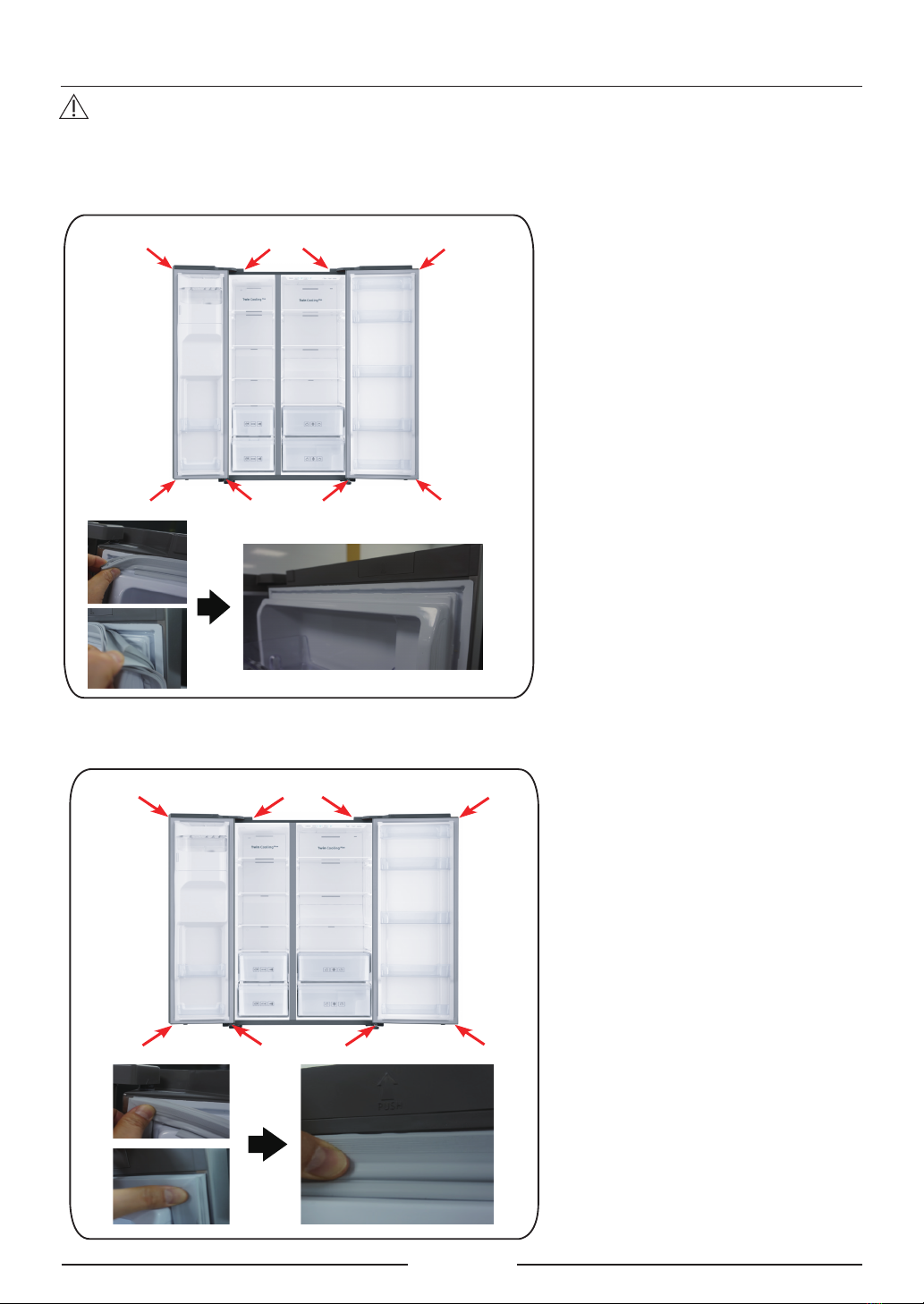

Gasket replacement

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold airfrom the refrigerator may leak.

To remove the gasket

Open the door and remove the

gasket from the door.

[Disassembly]

1. Pull the 4 corners of gasket.

2. Pull the center of gasket.

To replace the gasket

Attach a new gasket to the

refrigerator door.

Make sure there is no gap between

the new gasket and the door.

[Assembly]

1. Push the 4 corners of gasket.

2. Push the center of gasket.

Pull the cornerof Gasket

Push the cornerof Gasket

English - 4

Drawerreplacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the gasket

Gently lift up the front of the drawer and

slide it out.

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

Reattaching the drawers follows the reverse

order of their respective removal steps.

English - 5

Hinge replacement

Tools required (not provided)

Philips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socketwrench 8 mm socketwrench 10 mm spanner

To replace the hinges, you must remove the doors ÿrst.

CAUTION

•When removing the doors, take extreme caution because the doors are heavy.

•Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent

scratches on the doorwhen you place the doors down.

•As the hinges must be handled carefully and replaced by two or more persons, we

recommend you to call forprofessional technical service.

•If you remove the hinge without holding the door, the door may fall and cause injury.

•Ensure that the shaft is rmly tightened on the hinge.

•Check that the hinge is rmly attached to the cabinet.

•Make sure the wire connectors are connected properly.

•Be careful not to damage the wires when fastening the top cover.

WARNING

•Tilting/laying the refrigerator requires a minimum of 2 people.

•Disconnect the power cord before reversing the doors.

English - 6

Hinge replacement

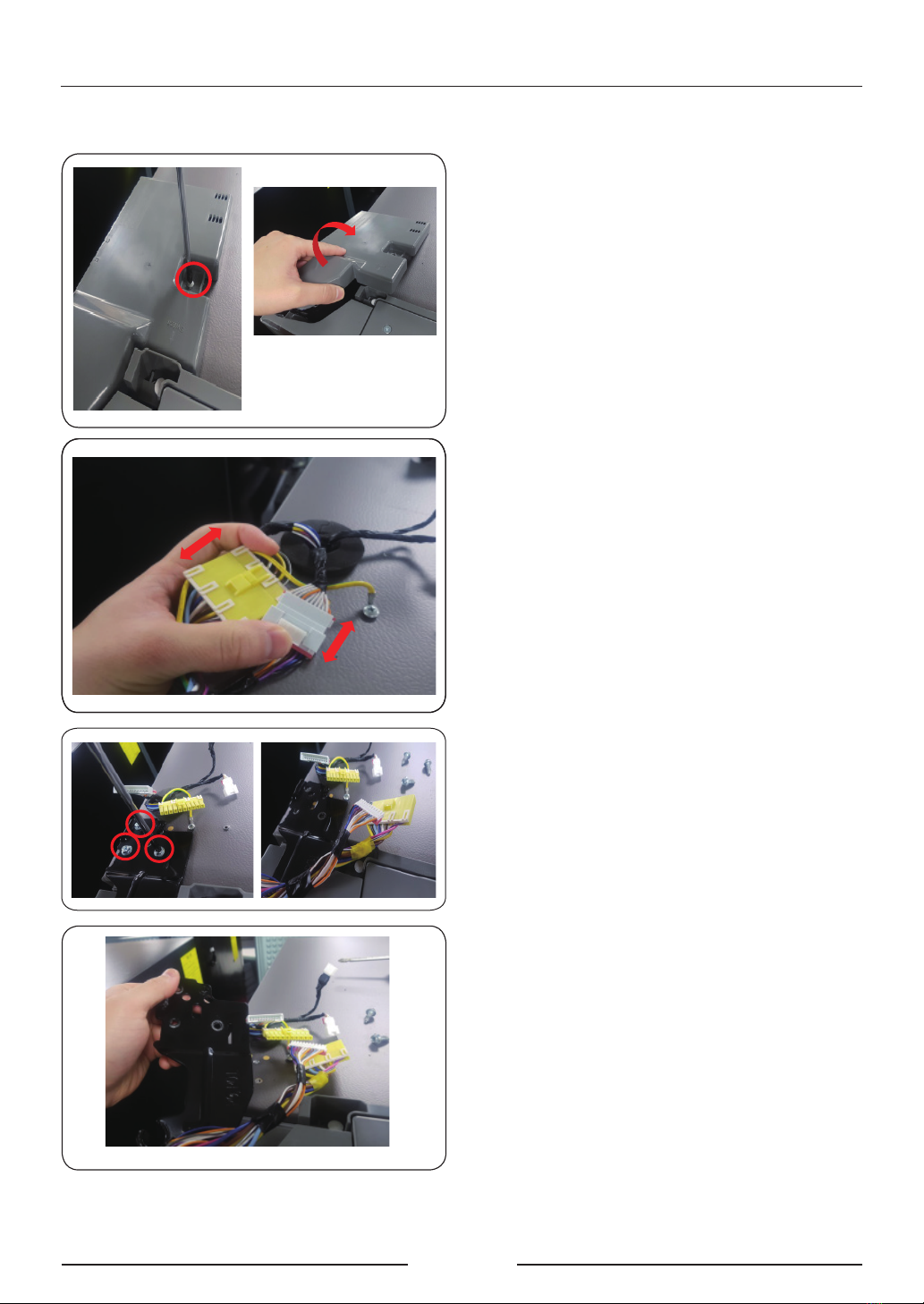

Top Hinge

1. Disconnect the power cord, and

remove1 cover screws using a Phillips

screwdriver.

Then open the Freezer door and pull

the hooks on the sides to loosen the

cover.

Lift up the cover towards you to

detach it.

2. Disconnect the two top housings.

3. Remove the three bolts holding the

hinge.

4. Disassemble the top hinge from the

front of the door.

English - 7

Hinge replacement

Model name looks like this: RS64R55**, RS64R56**, RS65R55**, RS65R56**, RS74R55**,

RS75R56**, RS63R55**, RS63R56**

Mid Hinge (Only For 3-Door)

1. After disassemble the top hingerihgt,

disassemble the Fridge door up.

2. Remove the three bolts holding the

hinge, disassemble the Hinge-Mid

English - 8

Bottom Hinge

[Disassembly]

1. Disconnect the Power Cord.

2. Lay down the set.

CAUTION

•Must working more than 2 people.

•Be sure to unplug the power cord

beforeperforming the operation

above.

[Disassembly]

1. Disconnect Hose.

(Only Hinge Low Left)

2. Exhaust water in Hose.

(Only Hinge Low Left)

3. Remove Bolt(3ea).

(Using spanner or10mm Box wrench)

4. Remove Hinge Low R/L.

[Assembly]

1. Assemble hinge low on bottom.

(Using spanner or10mm Box wrench)

2. Connect Hose (Only Hinge Low Left)

3. Assemble water in Hose.

(Only Hinge Low Left)

CAUTION

•Be sure to unplug the power cord

before performing the operation

above.

pull the guide and hose

Push the guide and hose

Hinge lowHinge low

Hinge replacement

English - 9

Hinge replacement

Bottom Hinge

[Assembly]

1. Assemble Hinge low R/L.

2. Put up the set.

CAUTION

•Must working more than 2 people.

•Be sure to unplug the power cord

before performing the operation

above.

Hinge lowHinge low
