Samsung ML-5200A Manuel utilisateur

LASER PRINTER

User’s Guide

ML-5200A

This manual is provided for information purposes only. All information included herein is

subject to change without notice. Samsung Electronics is not responsible for any damages,

direct or indirect, arising from or related to use of this manual.

• ML-5200A and Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Centronics is a registered trademark of Centronics Data Computer Corporation.

• PCL is a registered trademark of Hewlett-Packard Company.

• IBM, IBM PC are registered trademarks of International Business Machines Corporation.

• True Type is a registered trademark of Apple Computer, Inc.

• Microsoft, MS-windows, MS-DOS are registered trademarks of Microsoft Corporation.

• All other brand or product names are trademarks or registered trademarks of their

respective companies or organizations.

Unpacking –––––––––––––––––––––––––––––––––– 1.1

Selecting a location ––––––––––––––––––––––––––– 1.1

Understanding the printer parts–––––––––––––––– 1.2

Installing the toner cartridge––––––––––––––––––– 1.4

Loading paper ––––––––––––––––––––––––––––––– 1.6

Connecting the printer to your computer –––––––– 1.8

Attaching the power cord –––––––––––––––––––– 1.10

Printing a test page ––––––––––––––––––––––––– 1.11

Software installation ––––––––––––––––––––––––– 1.12

Installing printer driver –––––––––––––––––––––– 1.12

Installing printer utilities ––––––––––––––––––––– 1.16

Making an installation diskette–––––––––––––––– 1.18

Uninstalling the printer driver –––––––––––––––– 1.19

The Control Panel –––––––––––––––––––––––––––– 2.1

Selecting paper type and feed source ––––––––––– 2.3

Loading a stack of paper –––––––––––––––––––––– 2.4

Using the manual paper feeder –––––––––––––––– 2.8

Paper guidelines –––––––––––––––––––––––––––– 2.10

Selecting your printer ––––––––––––––––––––––– 2.11

Printing a document –––––––––––––––––––––––– 2.12

Print settings ––––––––––––––––––––––––––––––– 2.13

Printing on network printer –––––––––––––––––– 2.21

Remote Control Panel (only for DOS users)––––– 2.22

Contents

Chapter 1 Setting up your printer

Chapter 2 Operating your printer

FCC regulations ––––––––––––––––––––––––––––– 5.1

Canadian radio interference regulations –––––––– 5.1

EC declaration of conformity –––––––––––––––––– 5.2

Laser safety statement –––––––––––––––––––––––– 5.3

Safety information ––––––––––––––––––––––––––– 5.4

Specifications –––––––––––––––––––––––––––––––– 5.5

Index ––––––––––––––––––––––––––––––––––––––– 5.6

Resetting the printer ––––––––––––––––––––––––– 3.1

Cleaning the printer –––––––––––––––––––––––––– 3.2

Managing the toner cartridge –––––––––––––––––– 3.3

Adding printer memory –––––––––––––––––––––– 3.6

Clearing paper jams –––––––––––––––––––––––––– 4.1

Tips for avoiding paper jams –––––––––––––––––– 4.4

Fixing problems ––––––––––––––––––––––––––––– 4.5

Before you call service ––––––––––––––––––––––– 4.11

Chapter 3 Maintenance

Chapter 4 Troubleshooting

Chapter 5 Appendix

Setting up

your printer

Chapter 1

01-Setup 3/2/00 9:43 AM Page 2

1.1

Setting up your printer

Unpacking

Take out the printer and all accessories from the packing carton. Save the

carton and packing materials in case you need to repack the printer.

Make sure you have the following items:

• Toner cartridge

• Power cord

• Setup CD-ROM

• Paper exit tray

• This manual

• Centronics-compatible parallel interface cable

(IEEE 1284-compliant)

Notes: If you need help during setup, or if any items are missing or damaged,

notify your dealer immediately.

Selecting a location

Place your printer on a sturdy, level surface near your workstation. Leave

enough space around the printer so you can easily:

• open the printer cover

• load the paper

• retrieve the paper

• allow air circulation around the vents to prevent overheating

Do not place the printer:

• In direct sunlight

• Near heat sources or air conditioners

• In dusty or dirty environments

01-Setup 3/2/00 9:43 AM Page 3

Understanding the printer parts

Use figures on page 1.2 through page 1.3 to identify the main components

of your printer.

1.2Setting up your printer

Automatic paper feeder

Paper guides

Output lever

Face-down

output stacker

Paper exit tray

Face-up output slot

Control panel

Paper tray

Manual paper feeder

Front view

01-Setup 3/2/00 9:43 AM Page 4

1.3

Setting up your printer

Power switch

Power cord

connector

USB port

Front cover

Toner cartridge

Rear view

Inside

Printer cable

connector

01-Setup 3/2/00 9:43 AM Page 5

1.4 Setting up your printer

Installing the toner cartridge

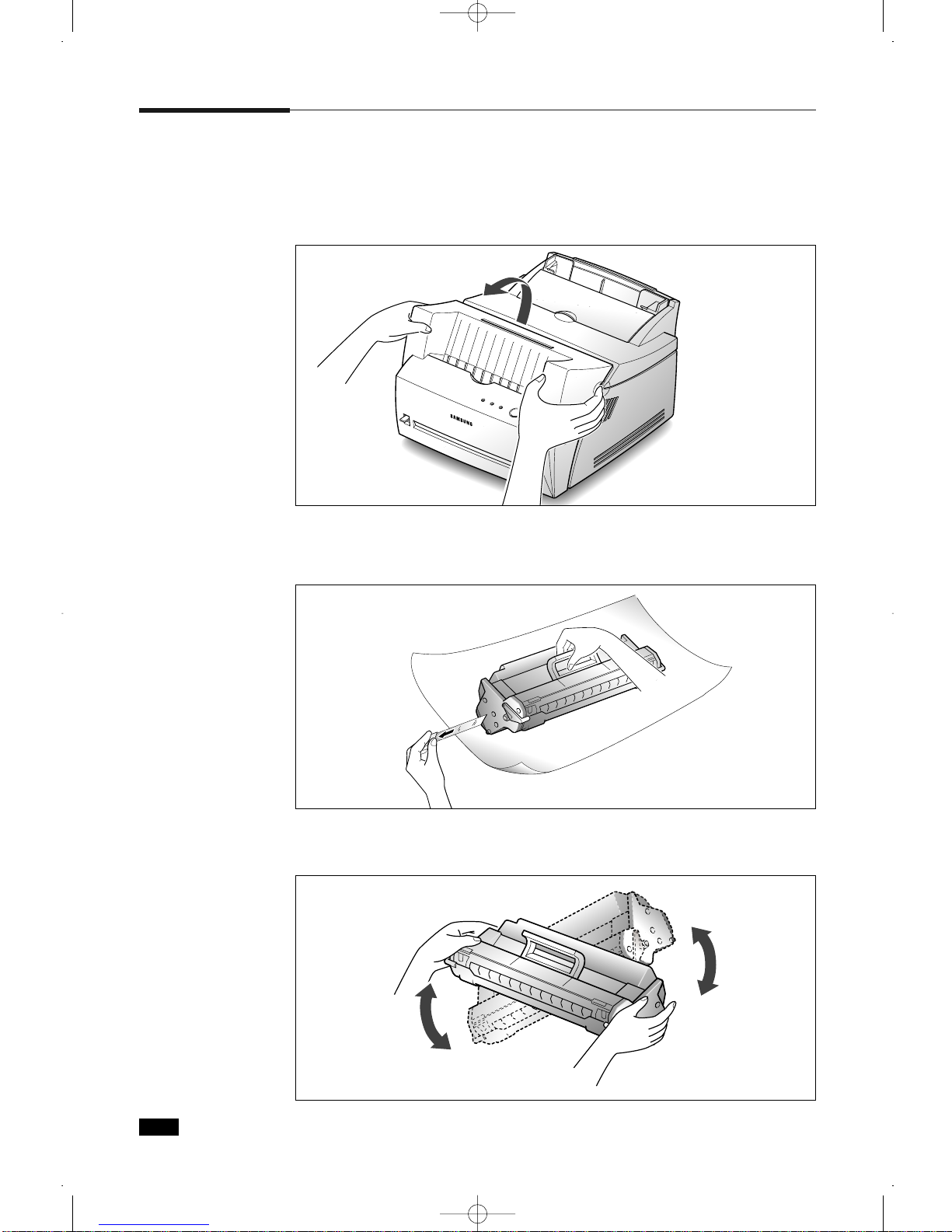

1. To open the printer cover, hold the cover using both hands and

pull it toward you.

2. Unpack the toner cartridge, and carefully pull the sealing tape

completely out of cartridge.

3. Rotate the cartridge 2 or 3 times to redistribute toner.

01-Setup 3/2/00 9:43 AM Page 6

1.5

Setting up your printer

6. Close the cover.

5. Grasp the handle and slide the cartridge into the toner cartridge

slots until it drops into place.

4. Locate the cartridge slots inside the printer (one on each side).

Handle

01-Setup 3/2/00 9:43 AM Page 7
