Wall Installation Instructions

This wall mount bracket installation guide is for the following models: SP-P4251

1 Do not install the PDP on any location other than a vertical wall.

2 To protect the performance of the PDP and prevent problems, avoid the following locations:

• Do not install next to smoke and fire detectors.

• Do not install in an area subjected to vibration or high voltage.

• Do not install near or around any heating apparatus.

3 Use only recommended parts and components.

Installation Notes

Insulation Holder :

4 EA SCREW!: 4 EA SCREW@: 12 EA

1EA

2EA

LEFT :1EA RIGHT :1EA

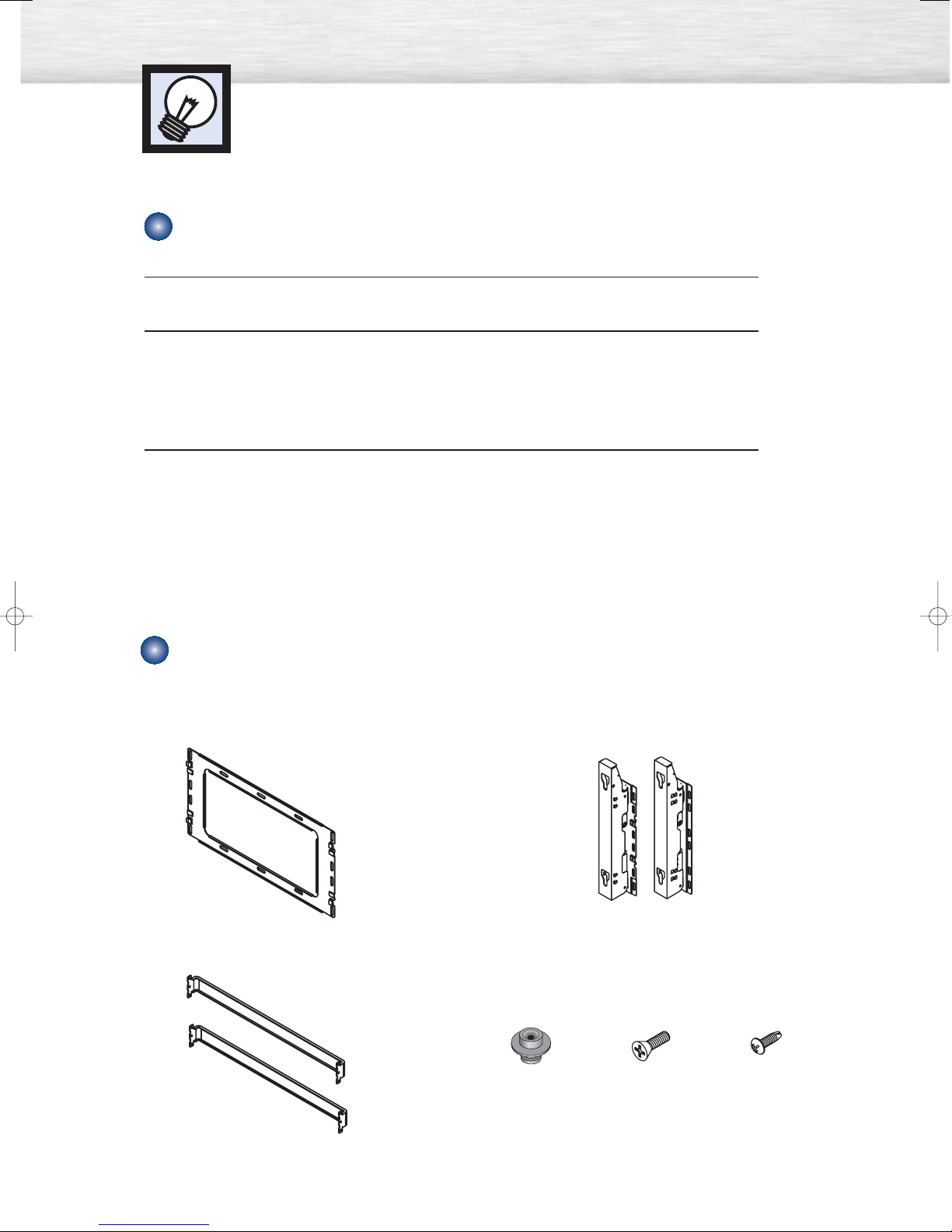

Parts (Wall attachment panel is sold separately. Check with your dealer)

Wall Mount Bracket ASSY-HINGE

Support Bars

Screws

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 10

1 The wall mount comes packaged in 3 parts. These parts must be assembled together.

Please tighten the captive screw in the direction of the arrow after assembling

the bracket. Install the Wall Mount Bracket after the screws are securely inserted

into the wall.

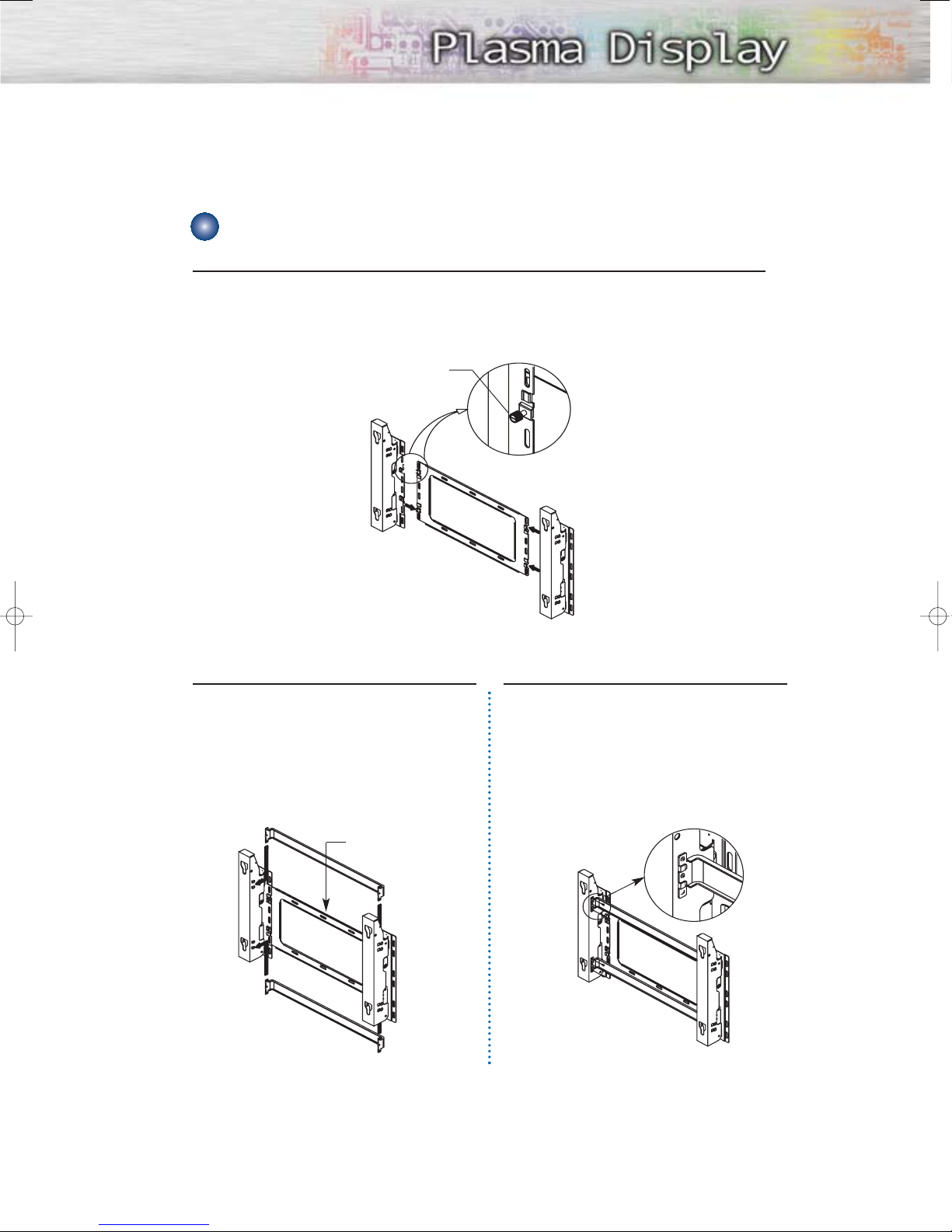

2 After installing the Wall Mount Bracket,

assemble the support bars and hinges

(as illustrated) using screws provided.

(12 screws(

) are provided. For safety

reasons, make sure all 12 screws are

firmly attached.)

How to assemble the Wall Mount Bracket

ASSY-HINGE (LEFT)

Separate ASSY-HINGE

into Left and Right.

Wall Mount Bracket

Support Bars

Captive Screws

ASSY-HINGE

(RIGHT)

ASSY-HINGE

(LEFT)

ASSY-HINGE

(RIGHT)

3 After securing the screws, be sure that

every part is firmly attached (as shown

in the illustration).

ASSY-

HINGE

(LEFT)

ASSY-HINGE

(RIGHT)

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 11

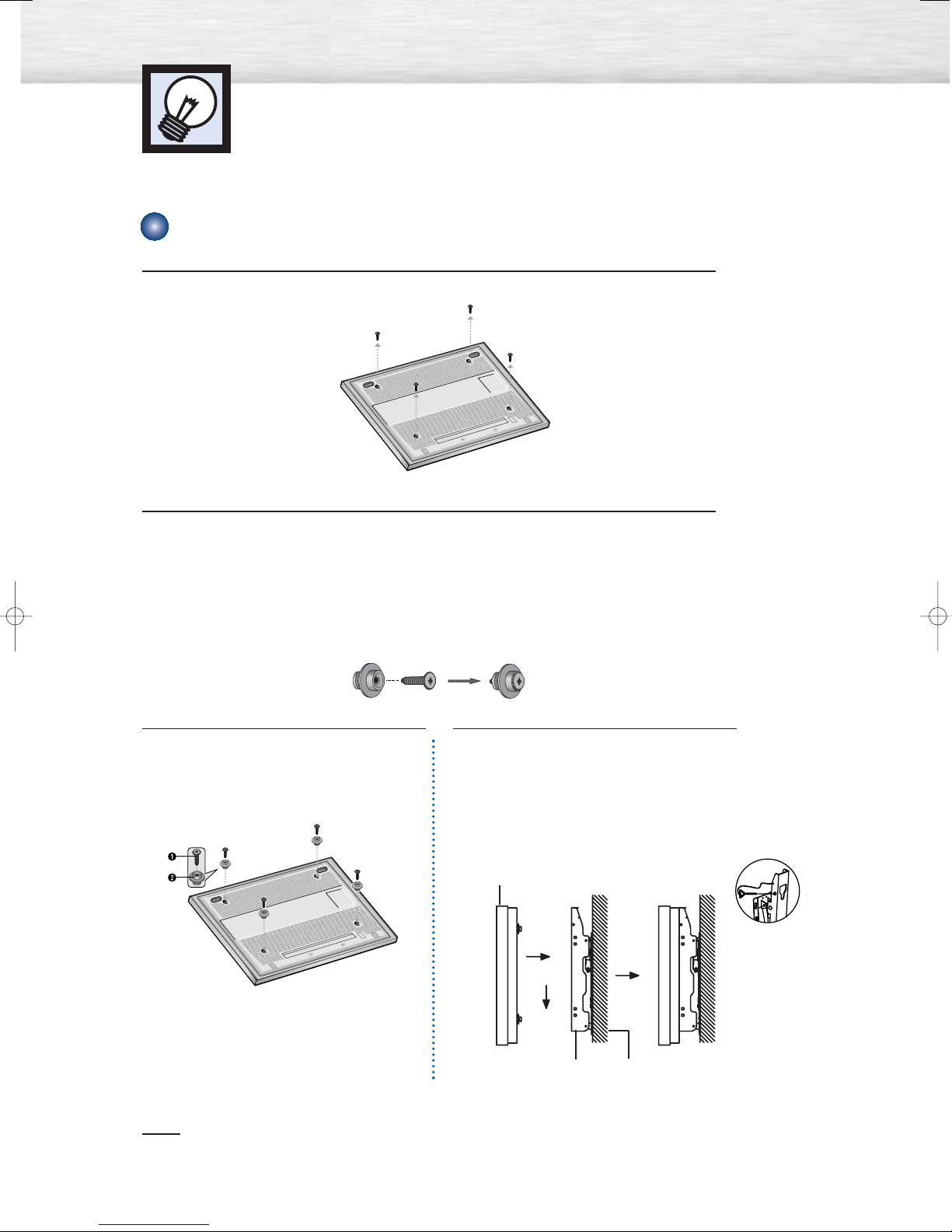

1 Remove the screws from the back of the PDP.

2 Connect insulation holders to screws (see the illustration below).

• If you are uncertain about installation, hire a specialist to install the wall mount bracket.

• Be sure to check that the insulation holders are completely secured on both the left

and right side after hanging the PDP on the wall mount bracket.

• Be careful to avoid getting your fingers caught during installation.

• Make sure the wall attachment panels are tightened. Otherwise the PDP may fall.

Note

•A5 inch gap is needed between the back of the Plasma TV and the wall.

Wall Installation Instructions

Fixing the PDP panel to the wall attachment panel bracket

3 Tighten the screws of the insulation

holders to the back of the PDP. 4 Put the 4 insulation holders on the PDP

in the grooves of the wall mount

bracket and pull down on the PDP (Œ)

to secure it to the wall mount bracket

(´). Tighten the screws as shown (ˇ)

so that the PDP cannot be separated

from wall mount bracket.

PDP panel

Wall attachment panel

bracket Wall

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 12

Note

•Contact an authorized technician when installing the wall attachment panel.

•After hanging the PDP panel on the wall attachment panel, make sure that the Insulation

holders are completely hung.

•Be careful not to get your fingers caught during installation.

•Make sure the wall attachment panel brackets are tightened. Otherwise, the PDP panel may

fall down.

•Please secure the mounting bracket on the wall surface after setting its angle at 0°.

How to Adjust Mounting Angle

Notice

Notice : Please secure the mounting bracket on the wall surface after setting its angle at 0°.

Factory default How to Adjust Mounting Angle

Please tighten the captive screw in the direction

of the arrow after assembling the bracket. Hold onto the middle of the PDP to adjust

the angle (not the sides of the PDP).

1Secure the SET to the wall mount bracket.

(Please refer to the following instructions.)

2Set the angle by pulling the upper end of the SET attached

to bracket in the direction of the arrow.

3The angle can be adjusted from 0° to 15° by ±2°.

Change Angle

1Be sure to remove the safety pins underneath the PDP.

(Caution : If the safety pins are not removed, the angle cannot

be adjusted.) Any attempt to do so may cause damage to the PDP.

2Hold onto the bottom of the PDP and pull forward fully as

directed by the arrow(as illustrated) to adjust the angle.

(0°~20° by 2°). Insert the Safety Pins to the front guide

holes on both sides as illustrated in figure ´.

3Viewing the PDP after connecting the external devices.

Remove the Safety Pins to adjust the angle to 0°, and then

secure the Safety Pins again. (Warning : For safety, be sure to

secure the PDP using the safety pins. If the safety pins are not

used, the PDP may fall, causing serious injury.)

Connecting External Devices to the PDP

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 13

How to assemble the Stand-Base

1 Assemble two support pins with the stand base and firmly secure both sides of the

support pins using 8 screws provided.

2 Assemble the PDP with the stand and firmly secure the PDP using 4 screws provided.

➤

Two or more people should carry the PDP. Never lay the PDP on the floor because of possible damage

to the screen. Always store the PDP upright.

Warning

Firmly secure the stand for the PDP before

moving it, as the stand may fall and

could cause serious injury.

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 14

Connecting VHF and UHF Antennas

Antennas with 75-ohm Round Leads

If your antenna looks like this: it has 75-ohm round leads.

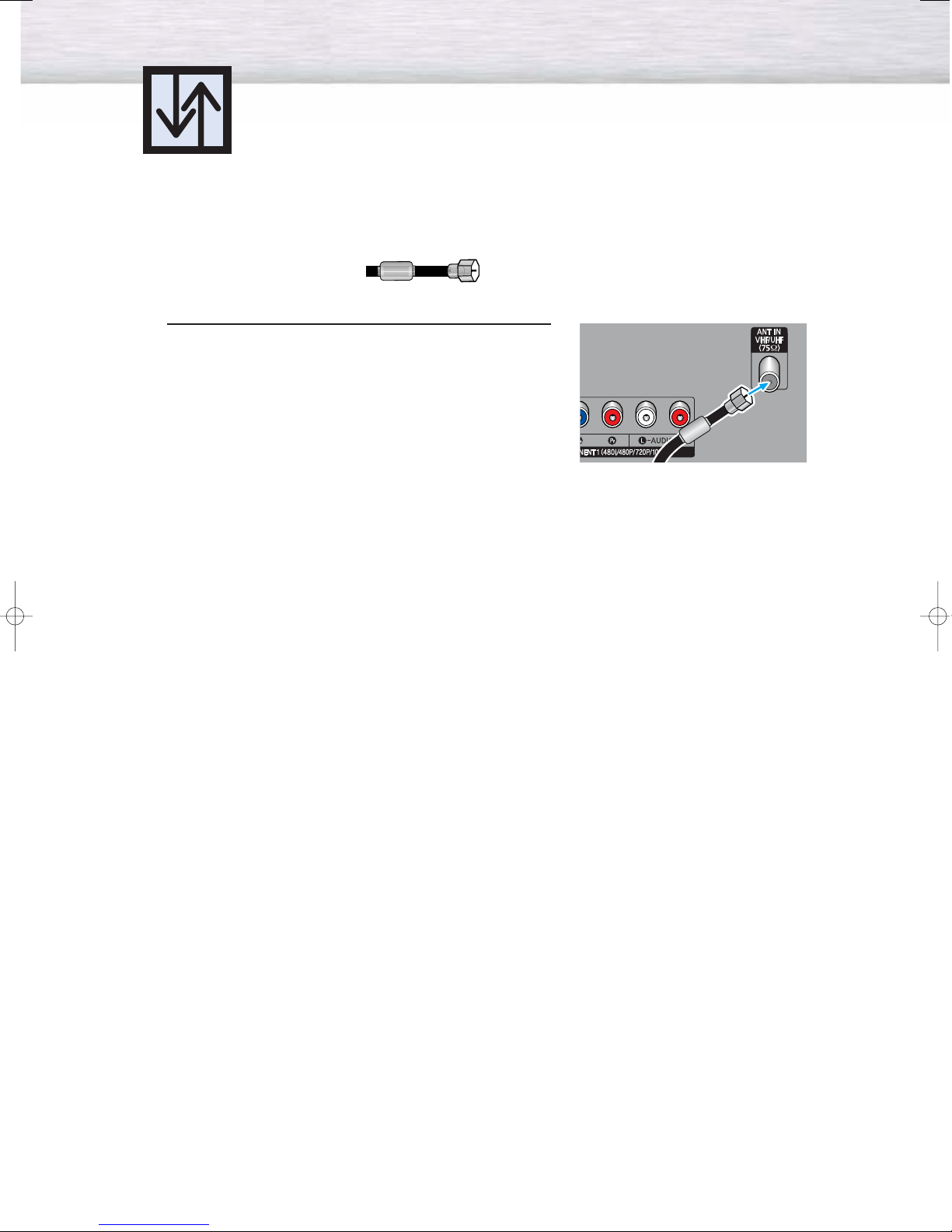

1Plug the antenna lead into the VHF/UHF terminal

on the PDP.

Use the Antenna Cable, an accessory included

in the product package.

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 16

Connecting Cable TV

You can connect different cable systems to your PDP, including cable without a cable box,

and cable with a cable box that descrambles some or all channels.

Cable without a Cable Box

1 Plug the incoming cable into the VHF/UHF terminal on

the PDP.

Use the Antenna Cable, an accessory included

in the product package.

Cable with a Cable Box that Descrambles All Channels.

1 Find the cable connected to the ANTENNA OUT

terminal on your cable box. This terminal might be

labeled "ANT OUT", "VHF OUT" or simply "OUT".

2 Connect the cable to the VHF/UHF terminal on the

PDP.

Use the Antenna Cable, an accessory included

in the product package.

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 17

Cable with a Cable Box that Descrambles Some (But Not All) Channels

To complete this connection you will need a two-way splitter, an RF (A/B) switch, and four coaxial

cables (which you can buy from your Samsung dealer or any electronics store).

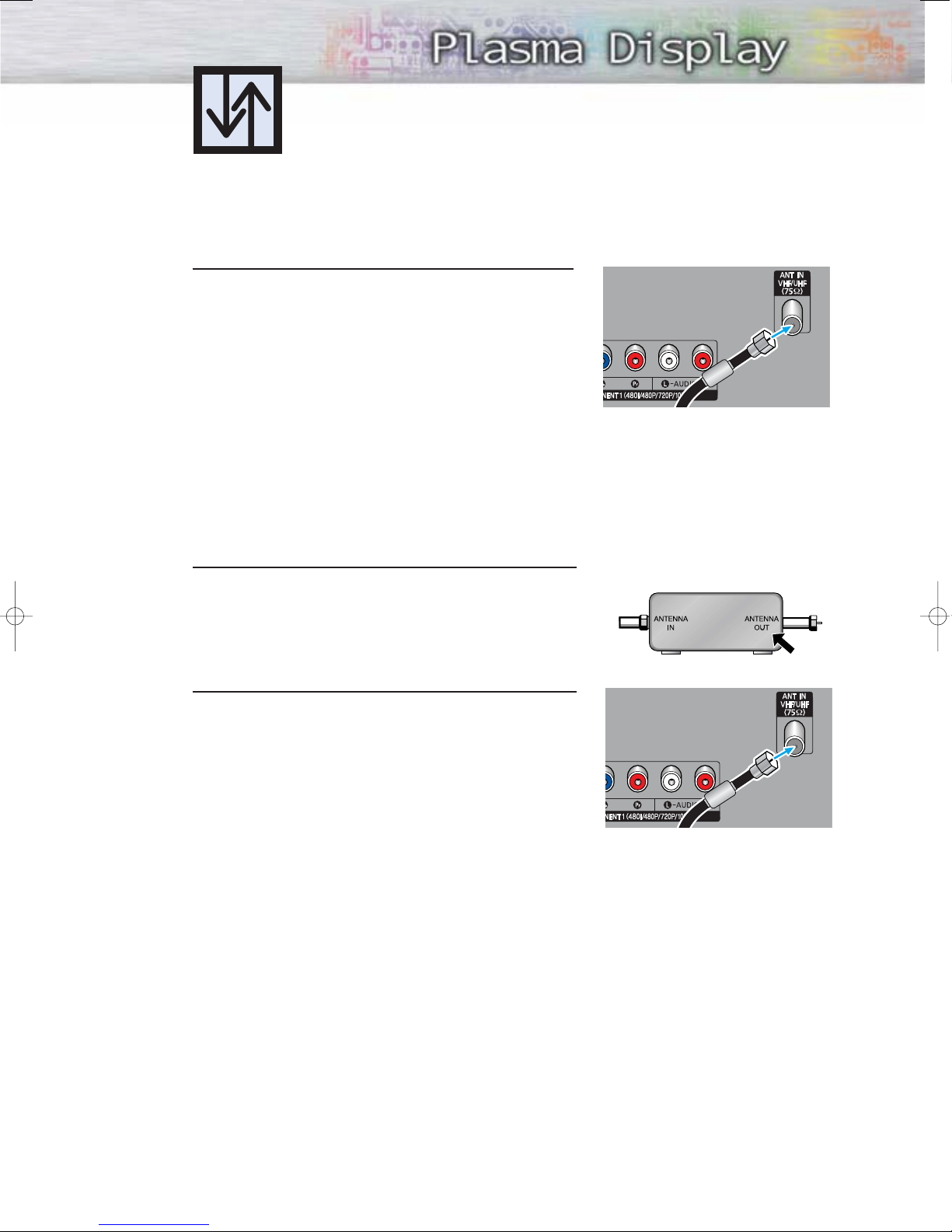

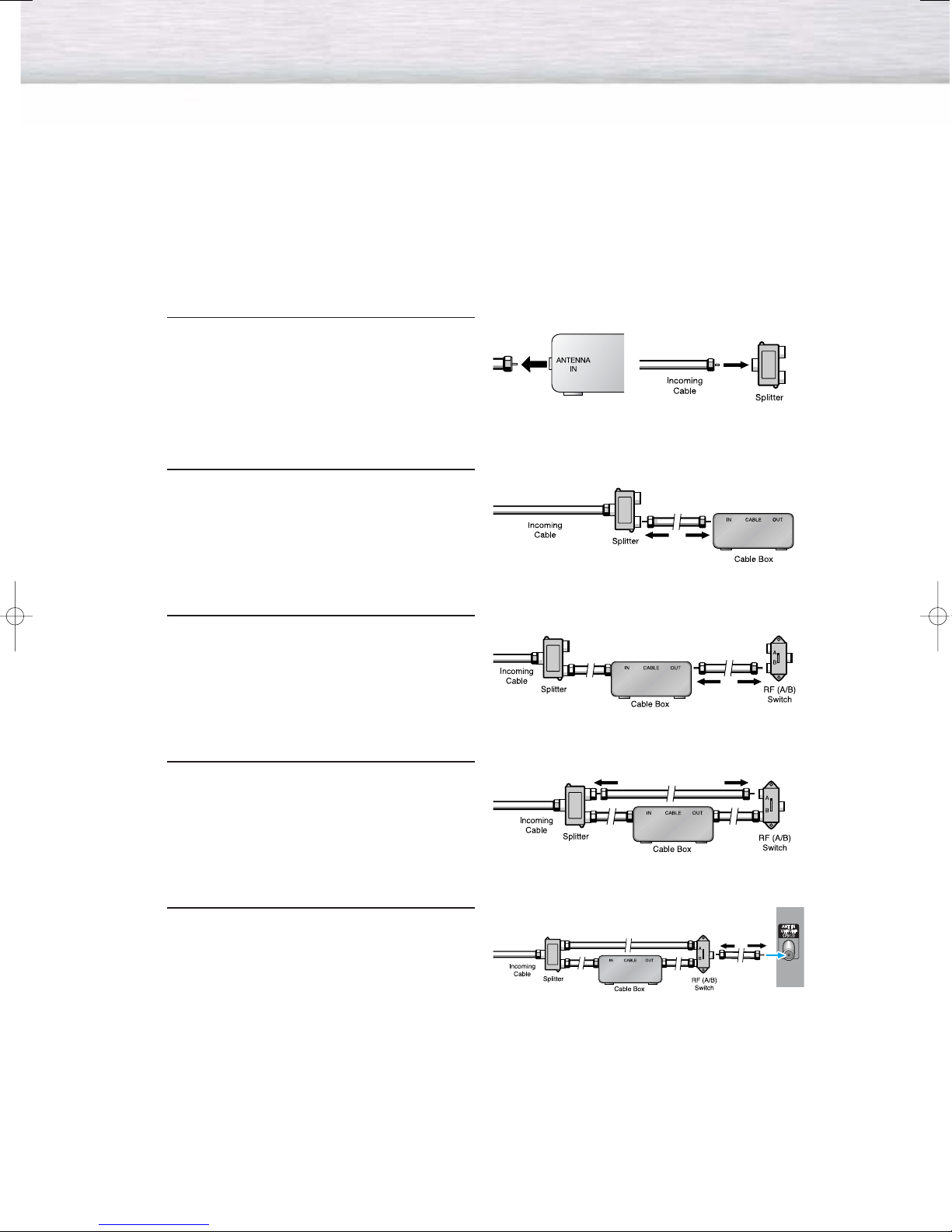

1Find and disconnect the cable that is con-

nected to the ANTENNA IN terminal of

your cable box.

This terminal might be labeled "ANT IN",

"VHF IN" or simply, "IN". Connect this

cable to a two-way splitter.

2Connect a coaxial cable between an OUT-

PUT terminal of the splitter and the IN termi-

nal of the cable box.

3Connect a coaxial cable between the

ANTENNA OUT terminal of the cable box

and the B-IN terminal of the A/B switch.

4Connect a coaxial cable between the

ANTENNA OUT terminal of the cable box

and the B-IN terminal of the A/B switch.

5Connect the last coaxial cable between the

OUT terminal of the RF (A/B) switch and

the VHF/UHF terminal on the PDP.

After you've made this connection, set the A/B switch to the "A" position for normal viewing.

Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch

to "B", you will need to tune your Set-Top Box to the cable box's output channel, which is usually

channel 3 or 4.)

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 18

Connecting a VCR

Connecting a VCR to the Video or S-Video/Audio jack

S-Video Cable

Audio Cable

Video Cable

Power Plug

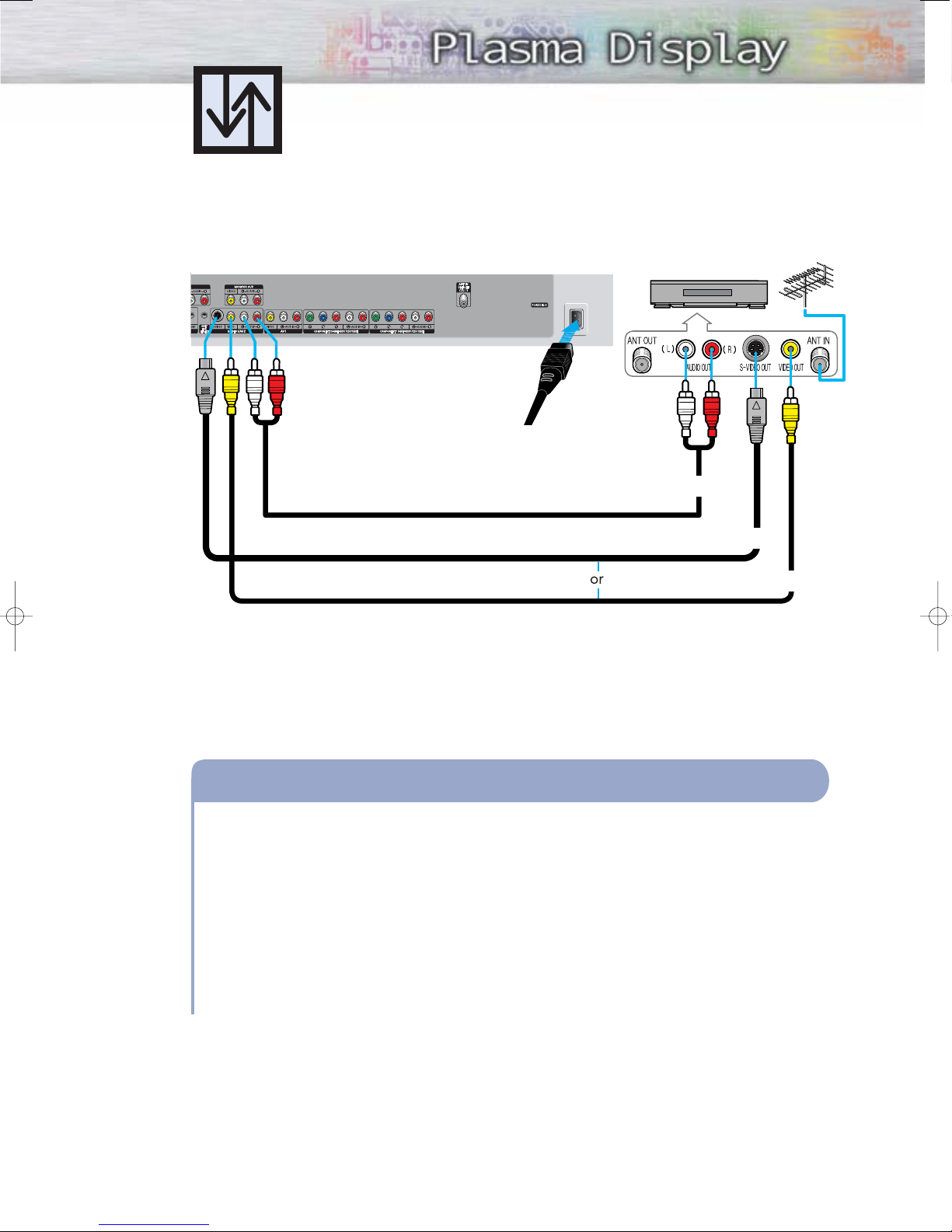

Connect the Video/Audio cables between the VIDEO or S-VIDEO / L - AUDIO - R jacks on the PDP

and VIDEO or S-VIDEO / L - AUDIO - R output jacks on the VCR. (Note: For better video, you can use

an S-Video cable.)

Videotape Playback:

1. Turn on your PDP.

2. Press the SOURCE button to select “Video(AV1, AV2 or AV3)” or “S-Video(S-VIDEO1 or

S-VIDEO2)”.

3. Turn on your VCR, insert a videotape and press the play button.

How to Connect

PDP VCR

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 19

Connecting a Camcorder

Audio Cable

S-Video Cable

Video Cable

Power Plug

Connect a Video/Audio cable between the VIDEO or S-VIDEO / L - AUDIO - R jacks on the PDP

and the VIDEO or S-VIDEO /AUDIO output jacks on the camcorder. (Note: For better video, you

can use an S-VIDEO cable)

Viewing Tapes

1. Turn on your PDP.

2. Press the SOURCE button to select “Video(AV1, AV2 or AV3)” or “S-VIDEO(S-VIDEO1 or

S-VIDEO2)”.

3. Turn on your camcorder and set it to Video Mode. (For details, refer to your camcorder

Owner’s instructions.)

4. Set the IN/OUT switch on your camcorder to OUT.

5. Insert the tape into the camcorder and press the Play button.

How to Connect

Viewing camcorder tapes

PDP(SIDE AV3)

PDP

REAR PANEL

Camcorder

BN68-00618A-02Eng_002-023 2004.5.4 2:2 PM Page 20
