Samsung SyncMaster S19B420B Manuel utilisateur

User manual

SyncMaster

S19B420BW

S19B420B

S19B420M

S22B420BW

S24B420BW

The color and the appearance may differ depending on

the product, and the specifications are subject to

change without prior notice to improve the performance.

BN46-00232A-02

Table Of Contents 2

Table Of Contents

BEFORE USING

THE PRODUCT

7 Copyright

7 Icons used in this manual

7 Symbols for safety precautions

8 Cleaning

9 Securing the Installation Space

9 Precautions for storage

10 Safety Precautions

10 Electricity and Safety

11 Installation and Safety

13 Operation and Safety

16 Correct posture to use the product

PREPARATIONS 17 Checking the Contents

17 Removing the Packaging

18 Checking the Components

19 Parts

19 Frontal Buttons

21 Reverse Side

22 Installation

22 Attaching the Stand

23 Adjusting the Product Tilt and Height

23 Rotating the Monitor

24 Installing a Wall-mount Kit or Desktop Stand

25 Anti-theft Lock

CONNECTING AND

USING A SOURCE

DEVICE

26 Before Connecting

26 Pre-connection Checkpoints

26 Connecting the Power

Table Of Contents

Table Of Contents 3

27 Connecting and Using a PC

27 Connecting to a PC

30 Driver Installation

31 Setting Optimum Resolution

32 Changing the Resolution Using a PC

SCREEN SETUP 35 Brightness

35 Configuring Brightness

36 Contrast

36 Configuring Contrast

37 Sharpness

37 Configuring Sharpness

38 SAMSUNG MAGIC Bright

38 Configuring SAMSUNG MAGIC Bright

39 SAMSUNG MAGIC Angle

39 Configuring SAMSUNG MAGIC Angle

40 Coarse

40 Adjusting Coarse

41 Fine

41 Adjusting Fine

CONFIGURING

TINT

42 SAMSUNG MAGIC Color

42 Configuring SAMSUNG MAGIC Color

43 Red

43 Configuring Red

44 Green

44 Configuring Green

45 Blue

45 Configuring Blue

Table Of Contents

Table Of Contents 4

46 Color Tone

46 Configuring the Color Tone Settings

47 Gamma

47 Configuring Gamma

RESIZING OR

RELOCATING THE

SCREEN

48 H-Position & V-Position

48 Configuring H-Position & V-Position

49 Image Size

49 Changing the Image Size

51 Menu H-Position & Menu V-Position

51 Configuring Menu H-Position & Menu V-

Position

SETUP AND

RESET

52 Reset

52 Initializing Settings (Reset)

53 Language

53 Changing the Language

54 Eco Saving

54 Configuring Eco Saving

55 Off Timer On/Off

55 Configuring Off Timer On/Off

56 Off Timer Setting

56 Configuring Off Timer Setting

57 PC/AV Mode

57 Configuring PC/AV Mode

58 Key Repeat Time

58 Configuring Key Repeat Time

59 Customized Key

59 Configuring Customized Key

Table Of Contents

Table Of Contents 5

60 Auto Source

60 Configuring Auto Source

61 Display Time

61 Configuring Display Time

62 Menu Transparency

62 Changing Menu Transparency

INFORMATION

MENU AND

OTHERS

63 INFORMATION

63 Displaying INFORMATION

INSTALLING THE

SOFTWARE

64 Magic Tune

64 What is MagicTune?

64 Installing the Software

65 Removing the Software

66 MultiScreen

66 Installing the Software

67 Removing the Software

68 MagicRotation

68 Installing the Software

70 Removing the Software

TROUBLESHOOTI

NG GUIDE

71 Requirements Before Contacting

Samsung Customer Service Center

71 Testing the Product

71 Checking the Resolution and Frequency

71 Check the following.

74 Q & A

Table Of Contents

Table Of Contents 6

SPECIFICATIONS 76 General

79 PowerSaver

80 Standard Signal Mode Table

APPENDIX 84 Contact SAMSUNG WORLDWIDE

89 Responsibility for the Pay Service (Cost

to Customers)

89 Not a product defect

89 A Product damage caused by customer's fault

89 Others

90 Correct Disposal

90 Correct Disposal of This Product (Waste

Electrical & Electronic Equipment)

91 Terminology

Before Using the Product

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is

prohibited.

The SAMSUNG and SyncMaster logos are registered trademarks of Samsung Electronics.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Icons used in this manual

Symbols for safety precautions

zAn administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

(b) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

zThe amount of such administration charge will be advised to you before any work or home visit is

carried out.

The following images are for reference only. Real-life situations may

differ from what is shown in the images.

Warning A serious or fatal injury may result if instructions are not followed.

Caution

Personal injury or damage to properties may result if instructions are

not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.

Before Using the Product

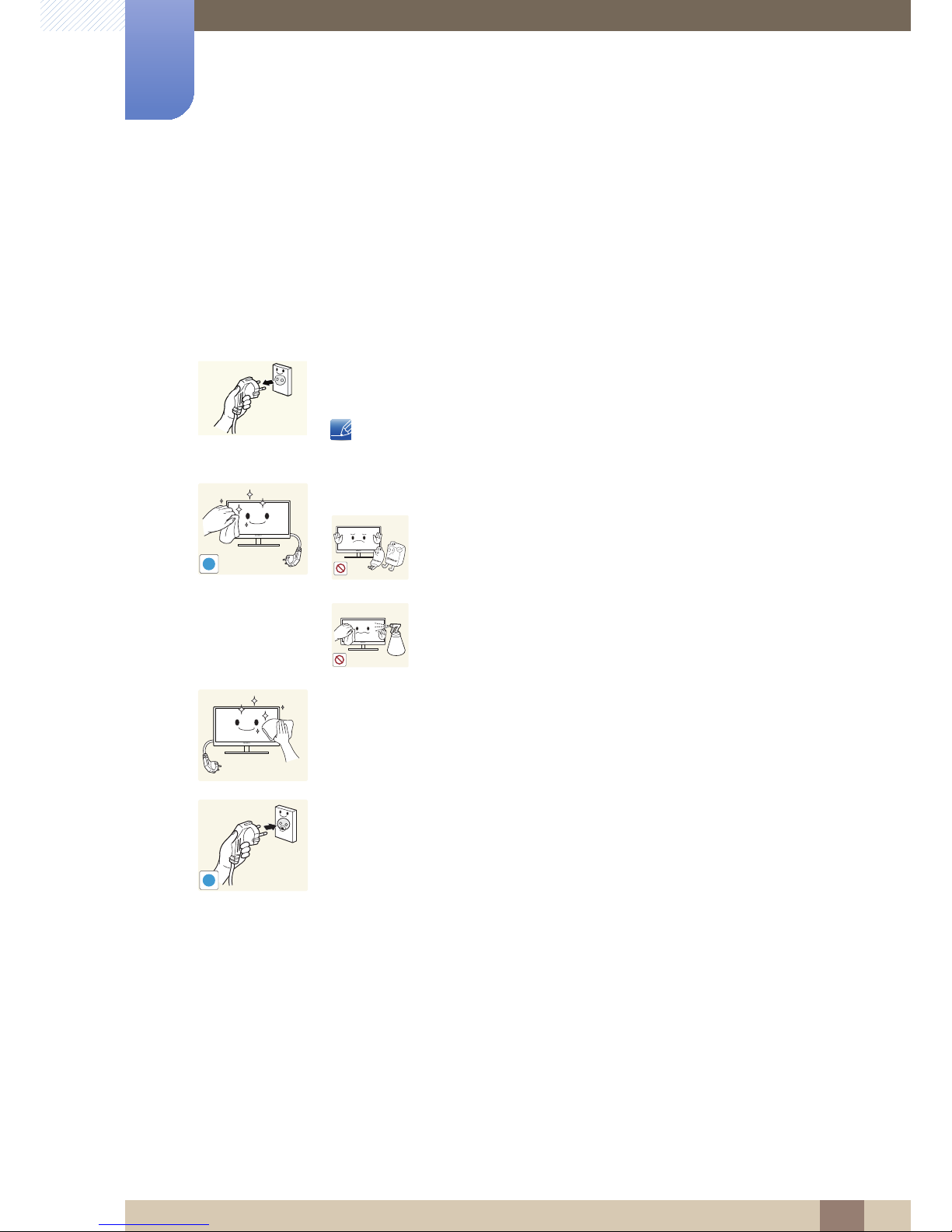

Cleaning

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

Take the following steps when cleaning.

1. Power off the monitor and computer.

2. Disconnect the power cord from the monitor.

Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

3. Wipe the monitor screen using a clean, soft and dry cloth.

zDo not apply a cleaning agent that contains alcohol,

solvent, or surfactant to the monitor.

zDo not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Before Using the Product

Securing the Installation Space

zEnsure some space around the product for ventilation. An internal temperature rise may cause fire

and damage the product. Be sure to allow the amount of space as shown below or greater when

installing the product.

The exterior may differ depending on the product.

Precautions for storage

Be sure to contact Samsung Customer Service Center (page 84) if the inside of the monitor needs

cleaning. (Service fee will be charged.)

10 cm(3.93 inches)

10 cm

(3.93

inches)

10 cm

(3.93

inches)

Before Using the Product

Safety Precautions

Electricity and Safety

The following images are for reference only. Real-life situations may differ from what is shown in the

images.

Warning

Do not use a damaged power cord or plug, or a loose power socket.

zAn electric shock or fire may result.

Do not plug many products into the same power socket.

zOtherwise, the socket may overheat and cause a fire.

Do not touch the power plug with wet hands.

zOtherwise, an electric shock may result.

Insert the power plug all the way in so it is not loose.

zAn unstable connection may cause a fire.

Ensure you connect the power plug to a grounded power socket. (type 1

insulated devices only).

zAn electric shock or injury may result.

Do not bend or pull the power cord with force. Do not weigh the power cord

down with a heavy object.

zA damaged power cord may cause an electric shock or fire.

Do not place the power cord or product near heat sources.

zAn electric shock or fire may result.

Remove foreign substances such as dust around the plug pins and power socket

with a dry cloth.

zOtherwise, a fire may result.
