Samsung SyncMaster 2243FW Manuel utilisateur

LCD MONITOR

quick start guide

2043FW 2043FWX 2243FW 2243FWX

Introduction

Package Contents

Note

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

Monitor & Dual Hinge Stand

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

D-Sub Cable Power Cord DVI Cable (option)

Others

Cleaning Cloth

Note

Cleaning Cloth is only provided for highly polished black products as a product feature.

Your Monitor

Initial Settings

Select the language using the up or down key.

The displayed content will disappear after 40 seconds.

Turn the Power button off and on. It will be displayed again.

It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before

reaching the maximum count.

Note

The resolution displayed on the screen is the optimal resolution for this product.

Adjust your PC resolution so that it is the same as the optimal resolution for this product.

Front

MENU button [MENU/ ]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

Customized Key[ ]

Introduction

You can customize key assignment for the Custom button according to

your preferences.

Note

You can configure the customized key for a required function via Setup >

Customized Key.

Brightness button [ ]

When OSD is not on the screen, push the button to adjust brightness.

>> Click here to see an animation clip

Adjust buttons [ ]

These buttons allow you to adjust items in the menu.

Enter button [ ] / SOURCE button

Activates a highlighted menu item.

Push the ' /SOURCE', then selects the video signal while the OSD is off.

(When the /SOURCE button is pressed to change the input mode, a

message appears in the upper left of the screen displaying the current

mode -- analog or digital input signal.)

Note

If you select the digital mode, you must connect your monitor to the graphic

card's DVI port using the DVI cable.

>> Click here to see an animation clip

AUTO button

Use this button for auto adjustment.

>> Click here to see an animation clip

Power button [ ]

Use this button for turning the product on and off.

Power Indicator

This light is lit when operating normally, and blinks once when your ad-

justments are saved.

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your monitor OFF

when it is not needed or when leaving it unattended for long periods.

Rear

Note

The configuration at the back of the product may vary from product to product.

Introduction

Dual Hinge Stand

POWER port

Connect the power cord for your monitor to the POWER port on the back of

the product.

DVI IN port

Connect the DVI Cable to the DVI IN port on the back of your monitor.

RGB IN port

Connect the D-sub cable to the 15-pin, RGB IN port on the back of your mon-

itor.

Kensington Lock

The Kensington lock is a device used to physically fix the system when using

it in a public place. (The locking device has to be purchased separately.) For

using a locking device, contact where you purchase it.

Note

The location of the Kensington Lock may be different depending on its model.

Using the Anti-Theft Kensington Lock

1. Insert the locking device into the Kensington slot on the Monitor ( )

and turn it in the locking direction ( ).

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a heavy stationary object.

Note

See Connecting Cables for further information regarding cable connections.

Introduction

Cable holding ring

• Fix the cables using the holding ring, as shown in the figure.

Introduction

Connections

Connecting Cables

Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Using the D-sub (Analog) connector on the video card.

• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

[RGB IN]

Using the DVI (Digital) connector on the video card.

• Connect the DVI Cable to the DVI IN Port on the back of your Monitor.

[DVI IN]

Connected to a Macintosh.

•Connect the monitor to the Macintosh computer using the D-sub connection cable.

Note

If the monitor and the computer are connected, you can turn them on and use them.

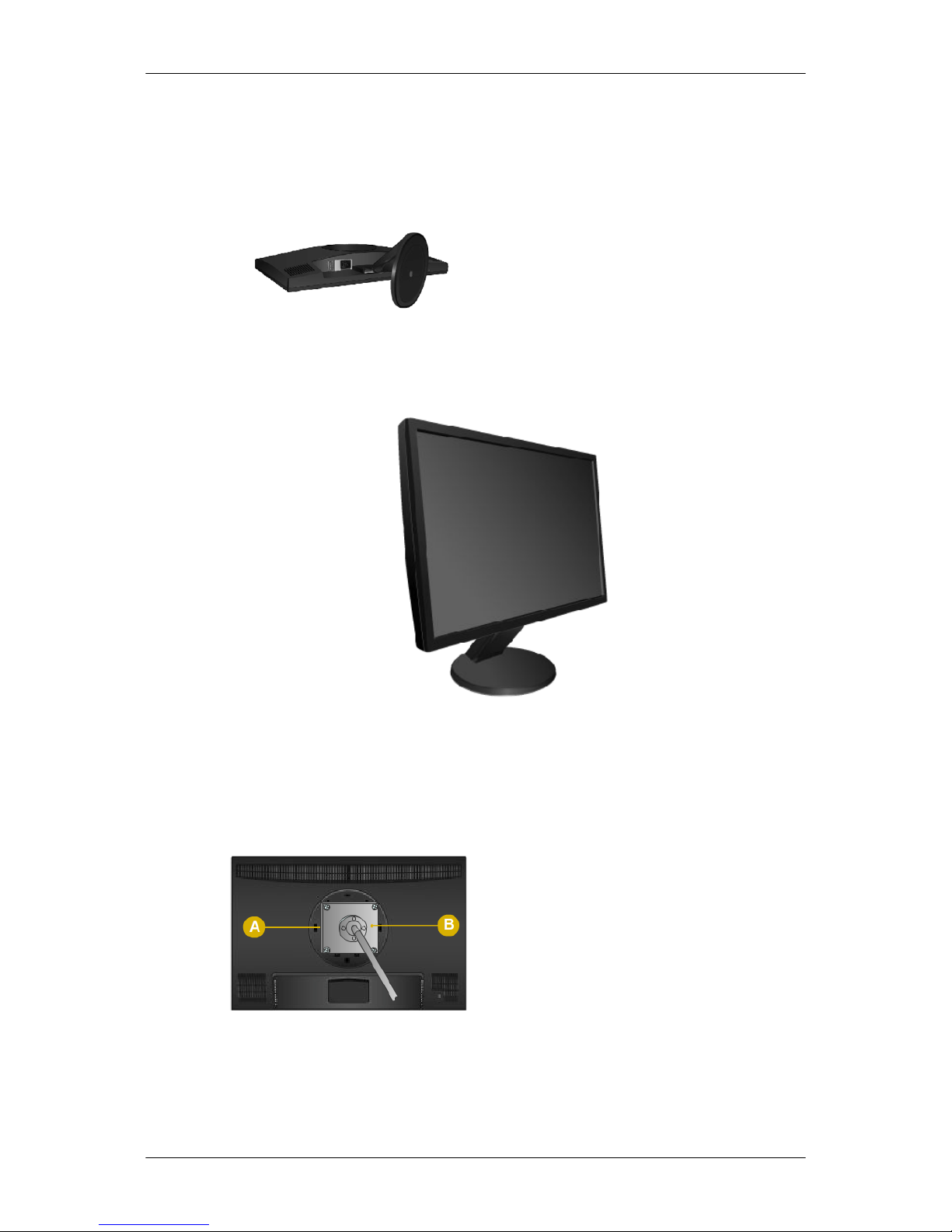

Using the Stand

Monitor Assembly

Dual Hinge Stand

Monitor and Bottom

Attaching a Base

This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.

Dual Hinge Stand

A. Monitor

B. Mounting interface pad (Sold separately)

Connections

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the

screen.

3. Remove four screws and then remove the stand from the LCD monitor.

4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure

it with four screws that came with the arm-type base, wall mount hanger or other base.

•Do not use screws longer than the standard dimension, as they may dam-

age the inside of the Monitor.

•For wall mounts that do not comply with VESA standard screw specifica-

tions, the length of the screws may differ depending on their specifications.

•Do not use screws that do not comply with the VESA standard screw

specifications.

Do not fasten the screws too tightly, as this may damage the product or

cause the product to fall, leading to personal injury.

Samsung is not liable for these kinds of accidents.

•Samsung is not liable for product damage or personal injury when a non-

VESA or non-specified wall mount is used or the consumer fails to follow

the product installation instructions.

•To mount the monitor on a wall, you should purchase the wall mounting

kit that allows you to mount the monitor at least 10 cm away from the wall

surface.

•Contact the nearest Samsung Service Center for more information. Sam-

sung Electronics will not be responsible for damages caused by using a

base other than those specified.

• Please use Wall Mount according to the International standards.

Connections

Connecting Cables

Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Using the D-sub (Analog) connector on the video card.

• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

[RGB IN]

Using the DVI (Digital) connector on the video card.

• Connect the DVI Cable to the DVI IN Port on the back of your Monitor.

[DVI IN]

Connected to a Macintosh.

•Connect the monitor to the Macintosh computer using the D-sub connection cable.

Note

If the monitor and the computer are connected, you can turn them on and use them.
