Installing the Display Vertically

You can install the PDP vertically. (PPM42S3Q/50H3Q/63H3Q

models are available. Other manufacturers do not guarantee a

reliably working.) In this case, the fan automatically works. If you

wish to stop the fan, position the PDP horizontally and then set

“Selectable Fan” to “Off” in the “Function” menu.

Please use the wall attachment panel exclusively when installing

vertically. And you have to put left side of the PDP on top when

viewed from front.

Before Using the Video Wall and the Multiple Display Control function

Example for Multiple Display Control connections

1Please create ID for each PDP before installing

them close together. It may be difficult to create

IDs when operating the remote control for PDPs

that are installed close to each other.

2For details about Video Wall configuration and

operation, refer to “Setting the Multiple Screen”

on page 27.

➢◆Press the MDC button on the remote control.

Select ID input on the menu. Use the numeric

buttons to enter the ID for PDP adjustment.

You can operate the remote control only for

the PDP that has been selected.

◆For details about Multiple Display Control, refer

to “Setting the MDC (Multiple Display Control)”

on page 25 and the Help section in MDC

program CD.

◆The PPM42S3Q model uses the same MDC

program CD used for PPM42S3 model.

The PPM50H3Q/63H3Q models use the

same MDC program CD used for

PPM50H3/63H3 models.

Example for 2x2 Video Wall function

Example for 2x2 Video Wall connections

Rear of the PDP Rear of the PDP

①

②

BN68-00654A-01Eng 4/19/04 4:13 PM Page 12

ENG

Connecting to the Audio/Video Input

The "VIDEO IN" connectors are used for the equipment with an Composite Video output, such as

video game devices or video disc players.

Rear of the PDP

(Input)

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

DVD

①

②

Camcorder

Rear of the PDP

(Output)

The "VIDEO OUT" connectors are used for the equipment with an

Composite Video input, such as a camcorder or VCR.

①

If you have a second VCR and wish to copy cassettes tape, connect the source VCR to

“VIDEO IN”

and

the target VCR to

“VIDEO OUT”

so that you can redirect the signal from

“VIDEO IN”

“VIDEO OUT”

②

When you wish to record a programme, connect the receiver to

“VIDEO IN”

and the VCR to

“VIDEO

OUT”

so that you can redirect the signal from

“VIDEO IN”

“VIDEO OUT”

☛Whenever you connect an audio or video system to your

PDP, ensure that all elements are switched off.

Refer to the documentation supplied with your equipment

for detailed connection instructions and associated safety

precautions.

BN68-00654A-01Eng 4/19/04 4:13 PM Page 35

ENG

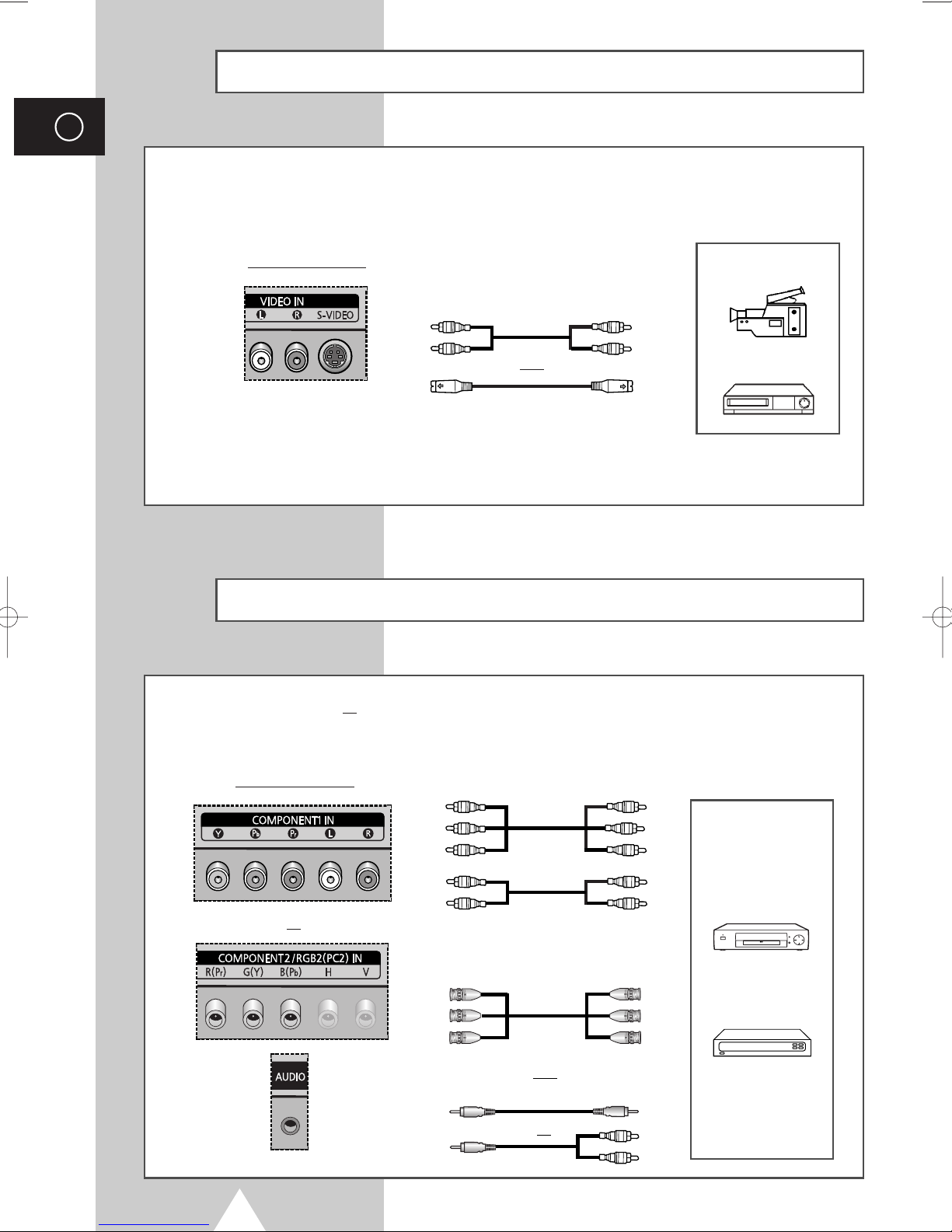

Connecting to the S-Video Input

The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output,

such as a camcorder or VCR.

Rear of the PDP

Camcorder

VCR

①

To play picture and sound, both the S-VIDEO and RCA connectors must be used.

and

①

Connecting to the DVD/DTV RECEIVER Input

The “COMPONENT1 IN” (or “R(Pr)/G(Y)/B(Pb)” (video) and “AUDIO”) connectors are used for

equipment with a DVD/ DTV RECEIVER output. (480i, 480p, 720p, 1080i)

Pr / Y / Pb

and

Rear of the PDP

Y / Pb / Pr

L / R

Digital Set-Top Box

DVD

BN68-00654A-01Eng 4/19/04 4:13 PM Page 36

ENG

Connecting to the RGB(PC) Input

Connecting to the DVI Input

The “DVI IN” (video) and “AUDIO” connectors are used for equipment with a DVI output.

Personal Computer

and

Rear of the PDP

The “RGB1(PC1) IN” (or “R(Pr)/G(Y)/B(Pb)/H/V”) and “AUDIO”

connectors are used for interfacing with your PC.

Personal Computer

Rear of the PDP

BN68-00654A-01Eng 4/19/04 4:13 PM Page 37
