Samsung S27E591C Manuel utilisateur

User manual

S27E591C

The color and the appearance may differ depending on

the product, and the specifications are subject to

change without prior notice to improve the performance.

BN46-00473A-03

Table Of Contents 2

Table Of Contents

BEFORE USING THE

PRODUCT

6 Copyright

6 Icons used in this manual

7 Cleaning

8 Securing the Installation Space

8 Precautions for storage

9 Safety Precautions

9Symbols

10 Electricity and Safety

11 Installation and Safety

13 Operation and Safety

17 Correct posture to use the product

PREPARATIONS 18 Checking the Contents

18 Checking the Components

19 Parts

19 Control Panel

20 Function Key Guide

22 Reverse Side

23 Installation

23 Attaching the Stand

24 Removing the Stand

25 Adjusting the Product Tilt

25 Anti-theft Lock

26 Installing the Wall Mount

CONNECTING AND USING

A SOURCE DEVICE

28 Before Connecting

28 Pre-connection Checkpoints

28 Connecting and Using a PC

28 Connecting to a PC

31 Connecting the Power

33 Driver Installation

34 Setting Optimum Resolution

Table Of Contents

Table Of Contents 3

SCREEN SETUP 35 SAMSUNG MAGIC Bright

35 Configuring SAMSUNG MAGIC Bright

37 Brightness

37 Configuring Brightness

38 Contrast

38 Configuring Contrast

39 Sharpness

39 Configuring Sharpness

40 Color

40 Configuring Red

41 Configuring Green

42 Configuring Blue

43 Configuring the Color Tone Settings

44 Configuring Gamma

45 SAMSUNG MAGIC Upscale

45 Configuring SAMSUNG MAGIC Upscale

46 HDMI Black Level

46 Configuring the HDMI Black Level Settings

47 Eye Saver Mode

47 Configuring Eye Saver Mode

48 Game Mode

48 Configuring Game Mode

49 Response Time

49 Configuring the Response Time

50 Picture Size

50 Changing the Picture Size

52 Screen Adjustment

52 Configuring H-Position & V-Position

53 Adjusting Coarse

54 Adjusting Fine

Table Of Contents

Table Of Contents 4

COORDINATING OSD 55 Transparency

55 Changing Transparency

56 Position

56 Configuring H-Position & V-Position

57 Language

57 Configuring Language

58 Display Time

58 Configuring Display Time

SETUP AND RESET 59 Sound

59 Configuring Volume

60 Configuring Sound Mode

61 Configuring Select Sound

65 Eco Saving Plus

65 Configuring Eco Saving Plus

66 Off Timer

66 Configuring Off Timer

67 Configuring Turn Off After

68 PC/AV Mode

68 Configuring PC/AV Mode

69 Source Detection

69 Configuring Source Detection

70 Key Repeat Time

70 Configuring Key Repeat Time

71 Power LED On

71 Configuring Power LED On

72 Reset All

72 Initializing Settings (Reset All)

INFORMATION MENU AND

OTHERS

73 Information

73 Displaying Information

Table Of Contents

Table Of Contents 5

74 Configuring Brightness, Contrast and

Sharpness from the Initial Screen

75 Configuring Volume in the Initial Screen

75 Volume

INSTALLING THE

SOFTWARE

76 Easy Setting Box

76 Installing the Software

77 Removing the Software

TROUBLESHOOTING

GUIDE

78 Requirements Before Contacting

Samsung Customer Service Center

78 Testing the Product

78 Checking the Resolution and Frequency

78 Check the following.

81 Q & A

SPECIFICATIONS 83 General

85 PowerSaver

86 Standard Signal Mode Table

APPENDIX 88 Contact SAMSUNG WORLD WIDE

96 Responsibility for the Pay Service (Cost

to Customers)

96 Not a product defect

96 A Product damage caused by customer's fault

96 Others

97 Correct Disposal

97 Correct Disposal of This Product (Waste

Electrical & Electronic Equipment)

98 Terminology

INDEX

Before Using the Product

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is

prohibited.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Icons used in this manual

An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual).

(b) you bring the unit to a repair center and there is no defect in the product

(i.e. where you have failed to read this user manual).

The amount of such administration charge will be advised to you before any work or home visit is

carried out.

The following images are for reference only. Real-life situations may

differ from what is shown in the images.

Before Using the Product

Cleaning

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

Take the following steps when cleaning.

1. Power off the monitor and computer.

2. Disconnect the power cord from the monitor.

Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

3. Wipe the monitor screen using a clean, soft and dry cloth.

Do not apply a cleaning agent that contains alcohol,

solvent, or surfactant to the monitor.

Do not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Before Using the Product

Securing the Installation Space

Ensure some space around the product for ventilation. An internal temperature rise may cause fire

and damage the product. Be sure to allow the amount of space as shown below or greater when

installing the product.

The exterior may differ depending on the product.

Precautions for storage

Be sure to contact Samsung Customer Service Center (page 88) if the inside of the monitor needs

cleaning. (A service fee will be charged.)

3.93

inches

(10 cm)

3.93

inches

(10 cm)

3.93 inches (10 cm)

3.93 inches

(10 cm)

Before Using the Product

Safety Precautions

Symbols

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER

(OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING

TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It is dangerous to

make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and

maintenance has been included with this product.

Warning A serious or fatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are

not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.

Before Using the Product

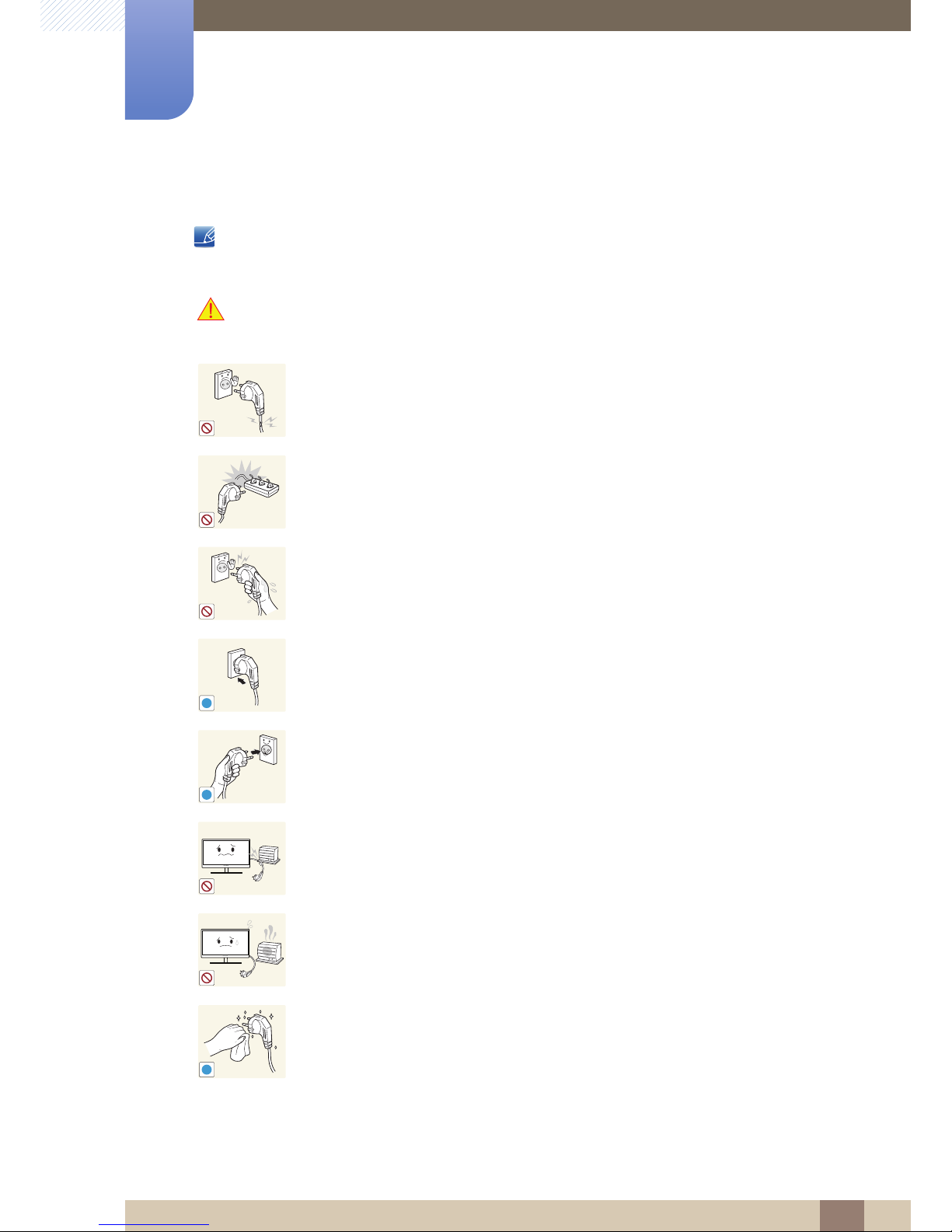

Electricity and Safety

The following images are for reference only. Real-life situations may differ from what is shown in the

images.

Warning

Do not use a damaged power cord or plug, or a loose power socket.

An electric shock or fire may result.

Do not plug many products into the same power socket.

Otherwise, the socket may overheat and cause a fire.

Do not touch the power plug with wet hands.

Otherwise, an electric shock may result.

Insert the power plug all the way in so it is not loose.

An unstable connection may cause a fire.

Ensure you connect the power plug to a grounded power socket. (type 1

insulated devices only).

An electric shock or injury may result.

Do not bend or pull the power cord with force. Do not weigh the power cord

down with a heavy object.

A damaged power cord may cause an electric shock or fire.

Do not place the power cord or product near heat sources.

An electric shock or fire may result.

Remove foreign substances such as dust around the plug pins and power socket

with a dry cloth.

Otherwise, a fire may result.
