Samsung LH008IWJMWR Manuel utilisateur

Samsung Electronics

Ver. 0.3 (2020. 08. 04)

LED Display

Installation Manual

LH008IWJMWR (P0.84)

LH012IWJMWR (P1.26)

LH016IWJMWR (P1.68)

SNOW-1810U (S-Box)

J2014003 (Power Shelf)

CP3500 (Power Rectifier)

Samsung Electronics

Installation Manual History Note

Version Date Last Edited by Detail

0.1 2020. 06. 26 Daehwan Sohn - Initial Release

0.2 2020. 07. 09 Daehwan Sohn - Global Tech Sales Group, B2B Field Quality Group requirements added

0.3 2020. 08. 04 Daehwan Sohn - Monitoring Tool guideline added, VPS code and part number updated

Samsung Electronics

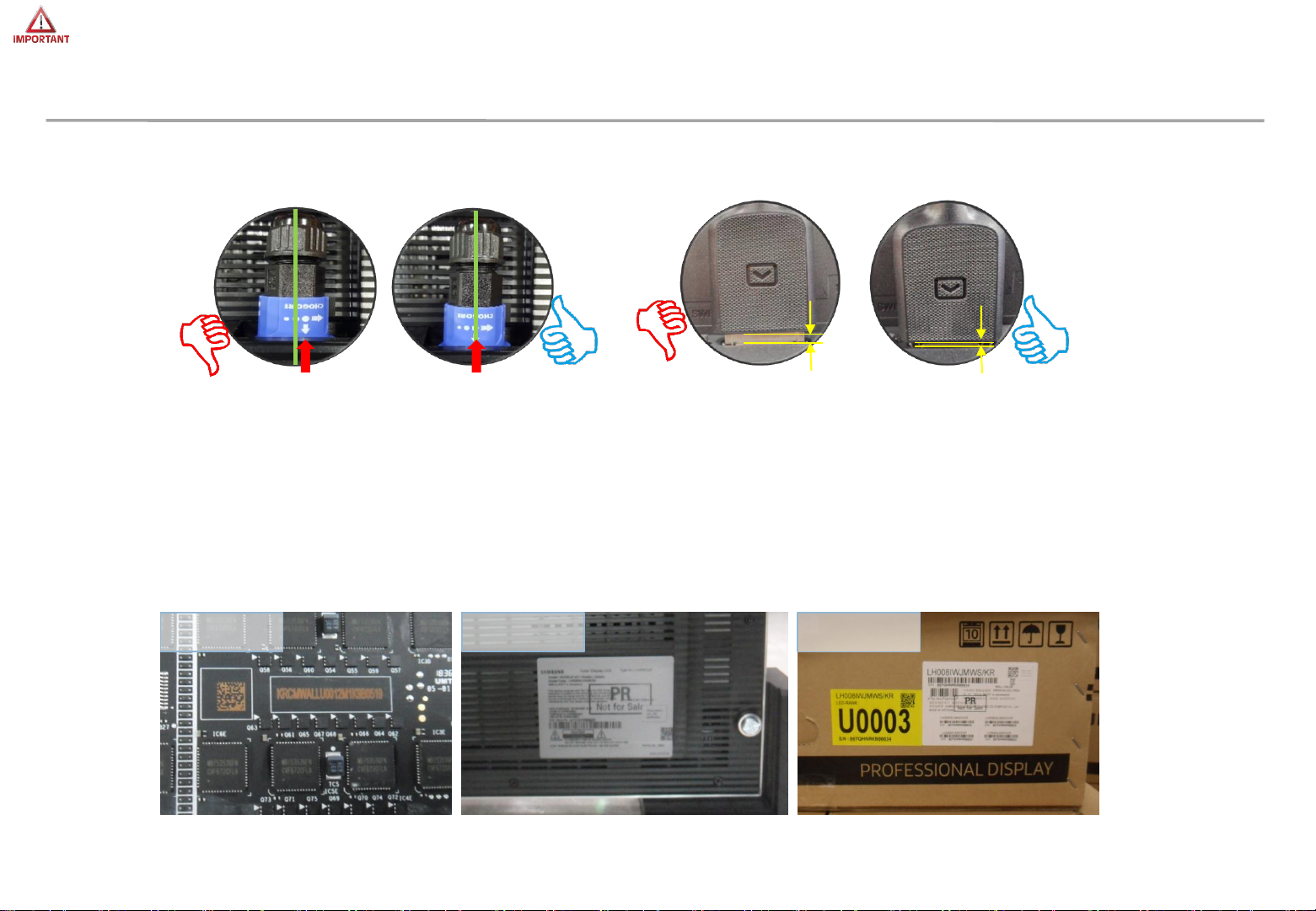

Check first before installation (1/3)

•For HDBT signal stability, use the cable above CAT6 *STP, *FTP level. (Length 15m~100m)

-Do not use “comb” or “pinstripe” cable. “CAT6 UTP cannot be allowed”

•All power cables and OCM cables must be connected firmly.

•Do not mix cabinet which have different Project number, since each cabinet has its own

project number.

Module Cabinet Box

※ You can find Module bin information from ‘U***’ at Module S/N or Box label.

Samsung Electronics

Check first before installation (2/3)

•Install the device only using SNOW-1810U and its supplied IG.

※ Please check below Cabinet and S-Box compatibility table information.

S-Box SNOW-1810U SNOW-1703ULD SNOW-1703U

I/G BN91-20525A BN91-19993A BN91-19100A

Cabinet IF015H,

IF020H,

IF025H,

IF025H-D,

IF040H-D,

IF060H-D,

IF012J,

IW008J

IW012J

IW016J

IW008J-R

IW012J-R

IW016J-R

IF015H,

IF020H,

IF025H,

IF025H-D,

IF040H-D,

IF060H-D,

IF012J

IF015H,

IF020H,

IF025H,

IF025H-D,

IF040H-D,

IF060H-D

Samsung Electronics

Check first before installation (3/3)

•This manual is for LH008IWJMWR / LH012IWJMWR / LH016IWJMWR by Samsung Electronics.

Only essential contents are included for Power Shelf / Power Rectifier by GE.

Use the link below to see all the instructions for products by GE before installation.

Power Shelf :

http://apps.geindustrial.com/publibrary/checkout/CP3500%20i2c%20Shelf?TNR=Data%20Sheets%7CCP3500

%20i2c%20Shelf%7CPDF&filename=CP3500%20i2c%20Shelf%20DS_Aug_07_2015.pdf

Power Rectifier :

https://library.industrialsolutions.abb.com/publibrary/checkout/CP3000-

CP3500?TNR=Data%20Sheets%7CCP3000-CP3500%7CPDF&filename=CP3500AC54TE_DS_20200429.pdf

Power Shelf Monitoring Tool :

http://powertalk.campaigns.abb.com/DigitalPowerInsight.html

Samsung Electronics

1. Product Information and Precautions for Installation ( 6 page )

2. Check Point about the Radiant Heat ( 17 page )

3. Preparation for Cabinet Installation ( 23 page )

4. Frame Installation ( 30 page )

5. Cabinet + Frame Installation ( 38 page )

6. Power OFF Board Installation and Cabinet Connection ( 49 page)

7. Disassembly & Front Service ( 68 page )

8. Cable Connection ( 85 page )

9. S-BOX Installation and Connection ( 97 page )

10. LSM Settings and How to Use ( 114 page )

11. Precaution for LSM Connection ( 129 page )

12. Color Calibration ( 130 page )

13. Bezel Installation ( 133 page )

14. Appendix and Reference ( 141 page )

Table of Contents

Samsung Electronics

1. Product Information and Precautions for Installation

◇Cabinet Product Information

IW008J (P0.84) IW012J (P1.26) IW016J (P1.68)

Basic Spec Pitch 0.84 mm 1.26 mm 1.68 mm

Cabinet Resolution 960 X 540 640 X 360 480 X 270

Picture Spec

Brightness Peak/Max 1000-nit / 500-nit 1600-nit / 800-nit 1400-nit / 1000-nit

Contrast Ratio 10,000 : 1

Viewing angle (H/V) 160°/ 140°160°/ 140°160°/ 140°

Refresh rate 1920 Hz ~ 3840 Hz

Power Spec Input Power 48V DC

Power consumption (Max) 168 (W/Cabinet) 144 (W/Cabinet) 125 (W/Cabinet)

Operating

Condition

Working Temperature 0℃~+40℃ / 10~80%RH

IP Rating IP20

Power Daisy Chain Depends on the length of DC Cable (See Page 11 in detail)

Rating Spec Safety 60950-1

EMC Class A

Samsung Electronics

<S-Box> <I/G>

(Interface Gender)

◇Screen Configuration by LED Pitch (Please refer page 22 for Frame Kit Configuration in detail.)

1. Product Information and Precautions for Installation

◇SNOW-1810U (S-Box, I/G)

◇Cabinet Figure

Spec IWJ

P0.84 P1.26 P1.68

Cabinet

Cabinet Size 806.4 x 453.6 x 72.2 806.4 x 453.6 x 72.2 806.4 x 453.6 x 72.8

Module Size 201.6 mm x 151.2 mm

Weight 12.5kg 12.2kg 12.5kg

Screen

Configuration

FHD

Cabinet Quantity 2x2 (4set) 3x3 (9set) 4x4 (16set)

I/G Quantity 1 1 1

Size 1612.8mm X 907.2mm 2419.2mm X 1360.8mm 3225.6mm X 1814.4mm

Frame Kit VG-LFJ08FWW VG-LFJ08TWW VG-LFJ08UWW

Bezel IWJPA-WP008D2X2 IWJPA-WP008D3X3 IWJPA-WP008D4X4

UHD

Cabinet Quantity 4x4 (16set) 6x6 (36set) 8x8 (64set)

I/G Quantity 4 4 4

Size

3225.6mm X 1814.4mm

4838.4mm X 2721.6mm 6451.2mm X 3628.8mm

Frame Kit VG-LFJ08UWW VG-LFJ08TWW x4 VG-LFJ08UWW x4

Bezel IWJPA-WP008D4X4 IWJPA-WP008D3X3 IWJPA-WP008D4X4

x4 x4

Samsung Electronics

◇Off-Power Board VPS Unit Configuration

1. Product Information and Precautions for Installation

Index Product Name Vendor Part Number Qty

AWG 1

2, 2C, 300V, UL1277 35mKDC 2

Daisy

Power Cable 1.5m KDC 10

MCB (Miniature

Circuit Break) ABB (GE) S201-C25 2

Index Product Name Vendor Part Number Qty

Power Shelf

ABB (GE)

J2014003L001A

Power Rectifier

ABB (GE)

CP3500AC54TEZ

AC Cable

Longwell

P200062

LUG, 2 AWG

BURNDY

YAV2C

-L2TC14-FX-90 6

Heat

Shrinking Tube -

Index Product Name Vendor Part Number Qty

AWG 1

2, 2C, 300V, UL1277

100m

KDC 2

Daisy

Power Cable 1.5m KDC 4

MCB (Miniature

Circuit Break) ABB (GE) S201-C25 2

Index Product Name Vendor Part Number Qty

AWG 1

2, 2C, 300V, UL1277 65mKDC 2

Daisy

Power Cable 1.5m KDC 6

MCB (Miniature

Circuit Break) ABB (GE) S201-C25 2

Index Product Name Vendor Part Number Qty

Power

Rectifier CP3500 ABB (GE)

CP3500AC54TEZ

Index Product Name Vendor Part Number Qty

Shelf

Interface Board KDC 150045498 1

Interface

Cable KDC CC848848960 1

Interface Adapter Kit

ABB (GE) 150036482 1

Monitoring Data Cable

ABB (GE) CC848848952 1

Index Product Name Vendor Part Number Qty

MCB

Rack Mount Frame PEN ELECOM R1299/3UK-KIT 1

Essential

Essential : Selective by

installation condition

Optional

VPS 4 (VG-RPWC035, DC Cable 35m[100ft])

VPS 1 (VG-RPWSKIT, Power Shelf Set)

Samsung Electronics

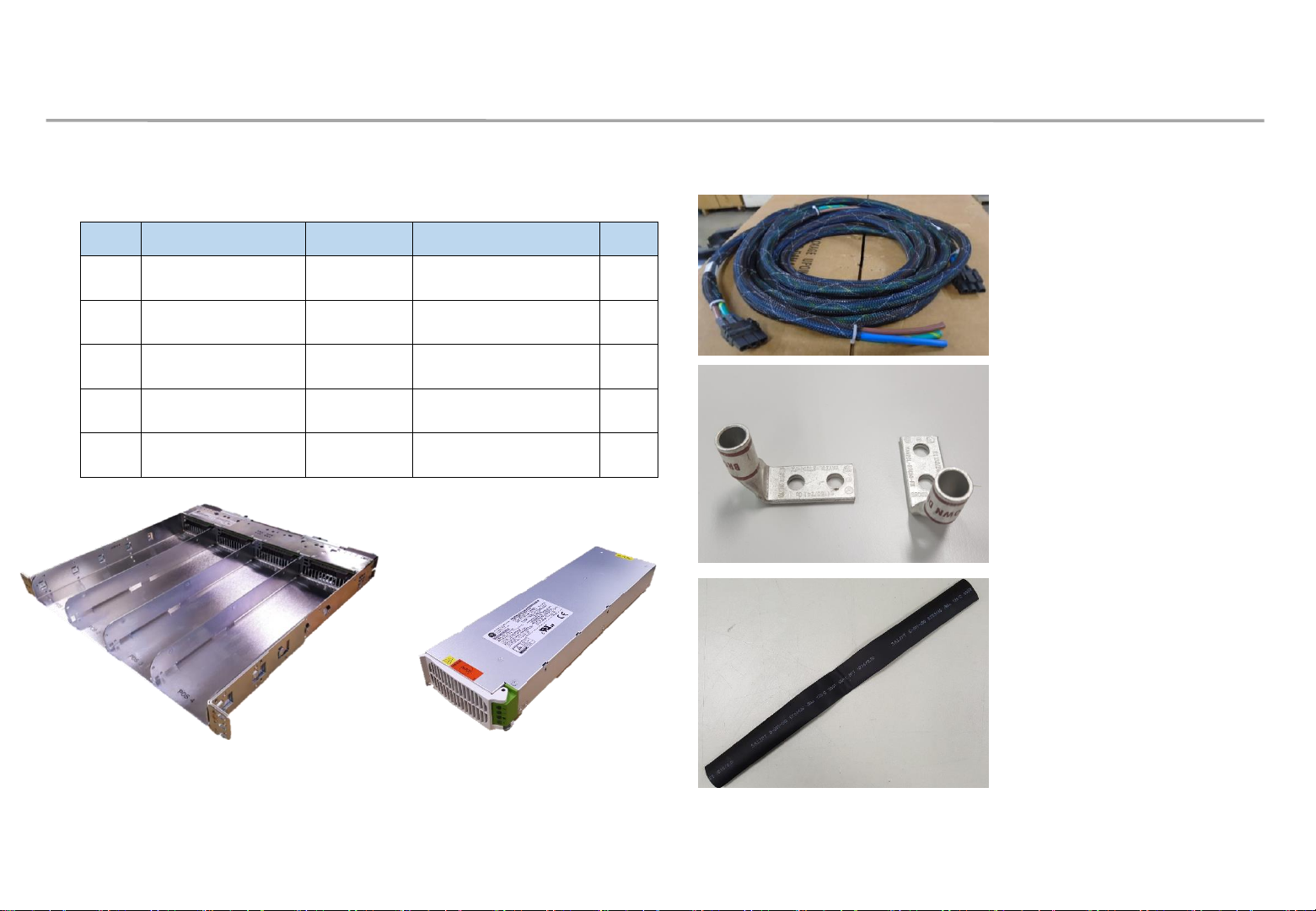

◇Off-Power Board VPS Unit Configuration - Detail

1. Product Information and Precautions for Installation

Index Product Name Vendor Part Number Qty

Power Shelf

ABB (GE)

J2014003L001A

Power Rectifier

ABB (GE)

CP3500AC54TEZ

AC Cable

Longwell

P200062

LUG, 2 AWG

BURNDY

YAV2C

-L2TC14-FX-90 6

Heat Shrink

Tube dalincom

-901-600

300mm

1. Power Shelf 2. Power Rectifier

3. AC Cable

4. LUG, 2 AWG

VPS 1 (VG-RPWSKIT, Power Shelf Set)

5. Heat Shrink Tube
