Samsung DV457E1 Series Manuel utilisateur

Gas and Electric Dryer

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service or accessory

parts, please register your product at or contact

www.samsung.com/register

1-800-SAMSUNG (726-7864)

DV457E1*

DV457E*

This manual is made with 100% recycled paper.

DV457E1_02836J-06_EN_140428.indd 1DV457E1_02836J-06_EN_140428.indd 1 2014-04-28  5:29:522014-04-28  5:29:52

English - 2

Contents

SAFETY INSTRUCTIONS

44What you need to know about safety

instructions

4Important safety symbols and precautions

INSTALLING YOUR DRYER

10 10 Unpacking your dryer

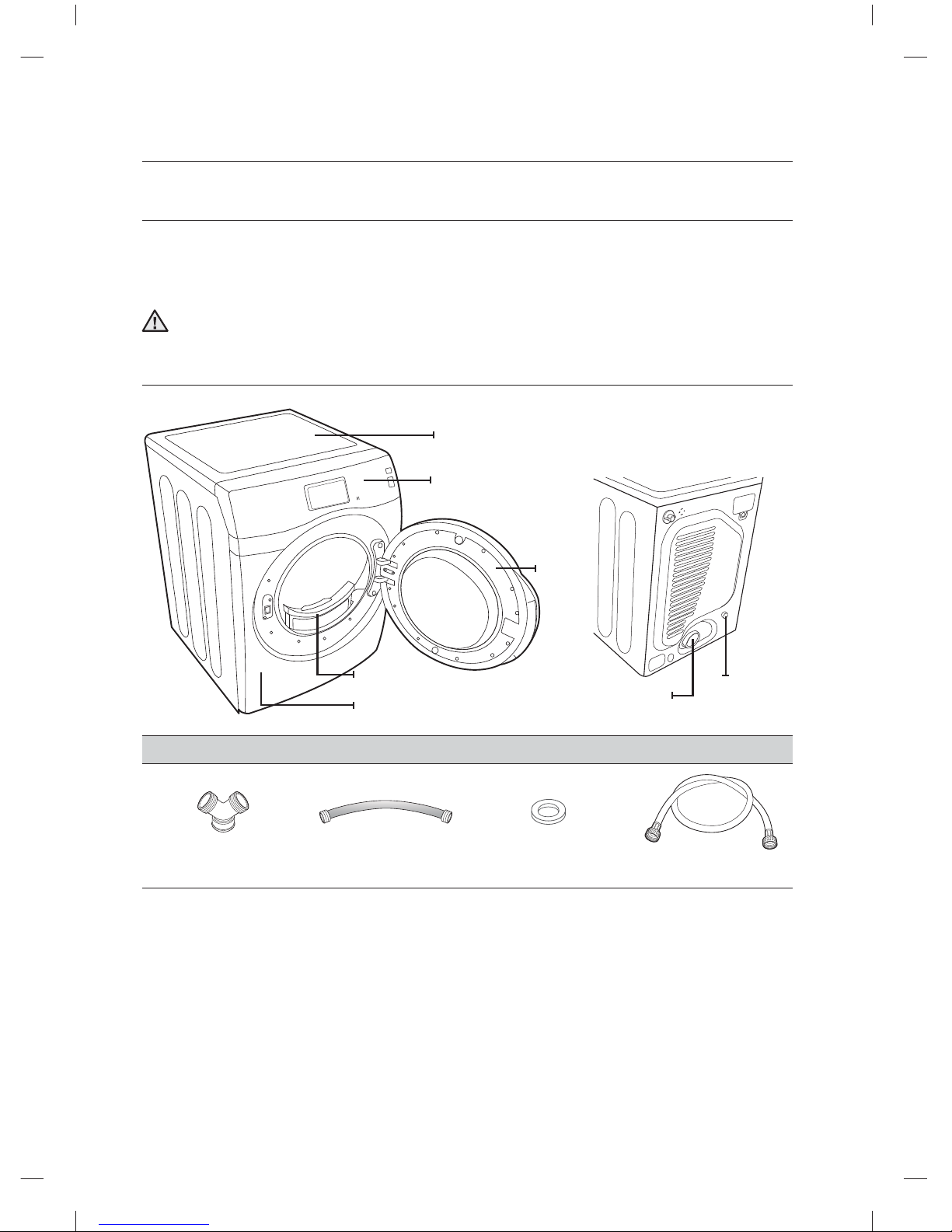

10 The dryer exterior

11 Basic requirements

12 Ducting requirements

13 Important to installer

13 Location considerations

13 Alcove or closet installations

14 Exhausting

15 Gas requirements

15 Commonwealth of massachusetts

installation instructions

16 Electrical requirements

16 Grounding

17 Electrical connections

18 Connecting the inlet hose

20 Replacement parts and accessories

20 Installation

23 Final installation checklist

23 Dryer exhaust tips

24 Door Reversal

26 Setting up your dryer for the ﬁrst time

DRYING A LOAD OF LAUNDRY

28 28 Drying for the ﬁrst time

28 Basic instructions

29 Using the control panel

34 Drying your laundry using the cycle

selection screen

43 Using the Rack Dry

43 Checking the ﬁlter

44 Vent Sensor

DV457E1_02836J-06_EN_140428.indd Sec9:2DV457E1_02836J-06_EN_140428.indd Sec9:2 2014-04-28  5:30:032014-04-28  5:30:03

English - 3

USING YOUR MOBILE PHONE

45 45 Conﬁguring your dryer’s network settings

and connecting to your network

46 Turning on the Wi-Fi networking function of

your dryer

46 Conﬁguring of smart control type

47 How to update the software

48 Downloading and running the mobile app,

Samsung Smart Washer/Dryer App

49 Using the Mobile App

53 Samsung Smart Home app

53 Installation

54 Preparation

55 Using the Samsung Smart Home app

57 Dryer connection

58 Overview of wi-ﬁ settings and ap connection

screens

CARE AND CLEANING

59 59 Control panel

59 Tumbler

59 Stainless steel tumbler

59 Dryer exterior

59 Dryer exhaust system

SPECIAL LAUNDRY TIPS

60 60 Special laundry tips

TROUBLESHOOTING

61 61 Check these points if your dryer…

62 Information codes

64 Network Setup Q&A

APPENDIX

66 66 Fabric care chart

67 Protecting the environment

67 Declaration of conformity

67 Speciﬁcations

68 Cycle chart

DV457E1_02836J-06_EN_140428.indd Sec9:3DV457E1_02836J-06_EN_140428.indd Sec9:3 2014-04-28  5:30:032014-04-28  5:30:03

English - 4

SAVE THESE INSTRUCTIONS

Safety instructions

Congratulations on your new Samsung Dryer. This manual contains important

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer’s many beneﬁts and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Please read this manual thoroughly to ensure that you know how to operate the extensive features and

functions of your new appliance safely and eciently. Retain the manual in a safe place near the appliance

for future reference. Use this appliance only for its intended purpose as described in this instruction manual.

The Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death

and/or property damage. Follow the information in this manual to minimize

the risk of ﬁre or explosion or to prevent property damage, personal injury, or

death.

Do not store or use gasoline or other ﬂammable vapors and liquids near this or

any other appliance.

CAUTION

Hazards or unsafe practices that may result in personal injury and/or

property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

DV457E1_02836J-06_EN_140428.indd Sec11:4DV457E1_02836J-06_EN_140428.indd Sec11:4 2014-04-28  5:30:032014-04-28  5:30:03

English - 5

SAVE THESE INSTRUCTIONS

01 SAFETY INSTRUCTIONS

WARNING - Risk of Fire

• Clothes dryer installation must be performed by a qualiﬁed installer.

• Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Do not install a clothes dryer with ﬂexible plastic venting materials. If ﬂexible metal (foil type) duct

is installed, it must be of a speciﬁc type identiﬁed by the appliance manufacturer as suitable for

use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and

trap lint. These conditions will obstruct the clothes dryer’s airﬂow and increase the risk of ﬁre.

• To reduce the risk of severe injury or death, follow all installation instructions.

TO REDUCE THE RISK OF FIRE OR EXPLOSION:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other ﬂammable or explosive substances. They emit

vapors that could ignite or explode. Any material that has been in contact with a cleaning

solvent or ﬂammable liquids or solids should not be placed in the dryer until all traces of

these ﬂammable liquids or solids and their fumes have been removed.

There are many highly ﬂammable items used in homes, such as acetone, denatured alcohol,

gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes,

and wax removers

• Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured

rubber-like materials on a heat setting. Heated foam rubber materials can, under certain

circumstances, produce ﬁre by spontaneous combustion.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not turn on the appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

• Installation and service must be performed by a qualiﬁed installer, service agency, or the gas

supplier.

WARNING

DV457E1_02836J-06_EN_140428.indd Sec11:5DV457E1_02836J-06_EN_140428.indd Sec11:5 2014-04-28  5:30:032014-04-28  5:30:03

English - 6

SAVE THESE INSTRUCTIONS

Safety instructions

IMPORTANT SAFTY INSTRUCTION

WARNING

To reduce the risk of ﬁre, electric shock, or injury to persons when using your appliance, follow

basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted

with gasoline, dry-cleaning solvents, or other ﬂammable or explosive substances, because

they give o vapors that could ignite or explode.

3. Do not use the dryer to dry clothes which have traces of any ﬂammable substance, such

as vegetable oil, cooking oil, machine oil, ﬂammable chemicals, thinner, etc., or anything

containing wax or chemicals, such as mops and cleaning cloths. Flammable substances may

cause the fabric to catch ﬁre by itself.

4. Do not store or use gasoline or other ﬂammable vapors and liquids near this or any other

appliance.

5. Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

6. Before the appliance is removed from service or discarded, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

7. Do not reach into the appliance when the drum is moving.

8. Do not install or store this appliance where it will be exposed to the weather.

9. Do not tamper with the controls.

10. Do not repair or replace any part of the appliance or attempt any servicing unless speciﬁcally

recommended in the user-maintenance instructions or published in the user-repair

instructions that you understand and have the skills to carry out.

11. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

12. Clean the lint screen before or after each load.

13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

14. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

dirt.

15. The interior of the dryer and exhaust duct should be cleaned periodically by qualiﬁed service

personnel.

16. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking

oils may contribute to a chemical reaction that could cause a load to catch ﬁre.

17. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in the

“Installing your dryer” section.

18. This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately and in accordance with local and national codes. Refer to

installation instructions for grounding this appliance.

WARNING

DV457E1_02836J-06_EN_140428.indd Sec11:6DV457E1_02836J-06_EN_140428.indd Sec11:6 2014-04-28  5:30:042014-04-28  5:30:04

English - 7

SAVE THESE INSTRUCTIONS

01 SAFETY INSTRUCTIONS

19. Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e.

coins, knives, pins, etc. These objects could damage your dryer.

20. Gas leaks may occur in your system, resulting in a dangerous situation.

21. Gas leaks may not be detected by smell alone.

22. Gas suppliers recommend you purchase and install a UL-approved gas detector.

GAS APPLIANCES :

This product contains chemicals known to the State of California to cause cancer and

reproductive toxicity.

Gas appliances can cause low-level exposure to Proposition 65 listed substances, including but

not limited to, benzene, carbon monoxide, formaldehyde and soot, substances resulting from the

incomplete combustion of natural gas or LP fuels.

CAUTION

1. Do not sit on top of the dryer.

2. Because of continuing product improvements, Samsung reserves the right to change

speciﬁcations without notice. For complete details, see the Installation Instructions packed

with your product before selecting cabinetry, making cutouts, or beginning installation.

3. Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.

4. Install and use in accordance with the manufacturer’s instructions.

5. Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain signiﬁcant amounts of these

oils.

6. Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion

increases when items containing vegetable oil or cooking oil are exposed to heat. Heat

sources such as your dryer can warm these items, allowing an oxidation reaction in the oil to

occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough

to catch ﬁre. Piling, stacking, or storing these kinds of items may prevent heat from escaping

and can create a ﬁre hazard.

7. All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous.

Washing these items in hot water with extra detergent will reduce, but not eliminate, the

hazard. Always use the Cool Down cycle for these items to reduce their temperature. Never

remove these items from the dryer hot or interrupt the drying cycle until the items have run

through the Cool Down cycle. Never pile or stack these items when they are hot.

8. Take care that children’s ﬁngers are not caught in the door when closing it. This may result in

injury.

WARNING

CAUTION

DV457E1_02836J-06_EN_140428.indd Sec11:7DV457E1_02836J-06_EN_140428.indd Sec11:7 2014-04-28  5:30:042014-04-28  5:30:04

English - 8

SAVE THESE INSTRUCTIONS

Safety instructions

REGULATORY NOTICE

1. FCC Notice

FCC CAUTION:

Any changes or modiﬁcations not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is Subject to following two

conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received including interference that causes

undesired operation.

For product available in the USA/Canada market, only channel 1~11 can be operated. Selection

of other channels is not possible.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment o and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a dierent circuit from that of the receiver.

• Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20cm

between the radiator and your body. This device and its antenna(s) must not be co-located or

operated in conjunction with any other antenna or transmitter.

CAUTION

DV457E1_02836J-06_EN_140428.indd Sec11:8DV457E1_02836J-06_EN_140428.indd Sec11:8 2014-04-28  5:30:042014-04-28  5:30:04

English - 9

SAVE THESE INSTRUCTIONS

01 SAFETY INSTRUCTIONS

2. IC Notice

The term “IC” before the radio certiﬁcation number only signiﬁes that Industry Canada technical

speciﬁcations were met. Operation is subject to the following two conditions: (1) this device may

not cause interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada.

For product available in the USA/Canada market, only channels 1~11 can be operated. Selection

of other channels is not possible.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance of 20cm

between the radiator & your body. This device and its antenna(s) must not be co-located or

operated in conjunction with any other antenna or transmitter.

DV457E1_02836J-06_EN_140428.indd Sec11:9DV457E1_02836J-06_EN_140428.indd Sec11:9 2014-04-28  5:30:042014-04-28  5:30:04

English - 10

Installing your dryer

UNPACKING YOUR DRYER

Unpack your Dryer and inspect it for shipping damage. Make sure you have received all the items

shown below. If your Dryer was damaged during shipping, or you do not have all the items, contact

1-800-SAMSUNG (726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

The packing materials can be dangerous to children. Keep all packaging material (plastic bags,

polystyrene, etc.) well out of the reach of children.

THE DRYER EXTERIOR

Parts supplied

“Y”-connector Short inlet hose Rubber Washer Long inlet hose

WARNING

Control panel

Top Cover

Door

Frame Front

Filter

Duct Exhaust Water Inlet

[ BACK ]

DV457E1_02836J-06_EN_140428.indd 10DV457E1_02836J-06_EN_140428.indd 10 2014-04-28  5:30:042014-04-28  5:30:04

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Samsung Séchoir

Samsung

Samsung DV80H4100CW Manuel utilisateur

Samsung

Samsung DV433GTGJWR/A1 Manuel utilisateur

Samsung

Samsung DV520 Manuel utilisateur

Samsung

Samsung DV9 TA2 Series Manuel utilisateur

Samsung

Samsung DV218AGB/XAA Manuel utilisateur

Samsung

Samsung DV9 T 2 Series Manuel utilisateur

Samsung

Samsung DVE52M8650 Series Manuel utilisateur

Samsung

Samsung DV50F9A6E(G)* Manuel utilisateur

Samsung

Samsung DV457E Series Manuel utilisateur

Samsung

Samsung DV48H7400E DV48H7400G Manuel utilisateur

Samsung

Samsung DV42H5400 Manuel utilisateur

Samsung

Samsung DV90T Series Manuel utilisateur

Samsung

Samsung DV210A Series Manuel utilisateur

Samsung

Samsung DV448AEW-02555B-05 Manuel utilisateur

Samsung

Samsung DV328 SERIES Manuel utilisateur

Samsung

Samsung DV40J3000GW Manuel utilisateur

Samsung

Samsung DV45K6200E Series Manuel utilisateur

Samsung

Samsung DV56H9100EV/A2 Manuel utilisateur

Samsung

Samsung DV338 series Manuel utilisateur

Samsung

Samsung DV203 SERIES Manuel utilisateur

Samsung

Samsung DV339AG Series Manuel utilisateur

Samsung

Samsung DVG45R6100P Manuel utilisateur

Samsung

Samsung DV50F9A7EV Manuel

Samsung

Samsung DV431AEP/XAA Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
