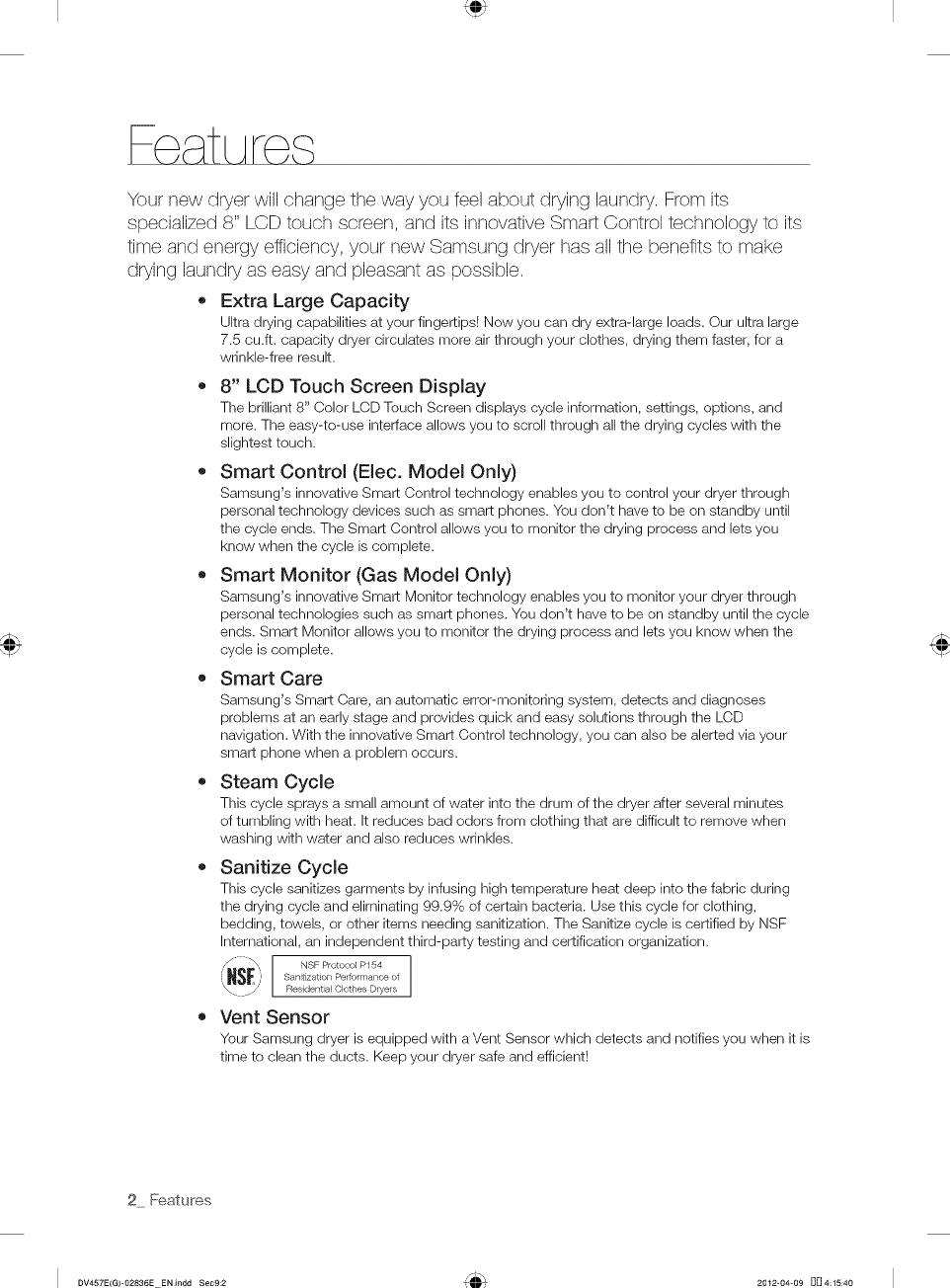

FeatLA ,

Your new dryer will change the way you feel about drying laundry, From its

specialized 8" L©D touch screen, and its innovative Smart Control technology to its

time and energy efficiency, your new Samsung dryer has all the benefits to make

drying laundry as easy and pleasant as possible,

• Extra Large Capacity

Ultra drying capabilities at your fingertips! Now you can dry extra-large loads. Our ultra large

7.5 cu.ft, capacity dryer circulates more air through your clothes, drying them faster, for a

wrinkle-free result.

• 8" LCD Touch Screen Display

The brilliant 8" Color LCD Touch Screen displays cycle information, settings, options, and

more. The easy-to-use interface allows you to scroll through all the drying cycles with the

slightest touch.

• Smart Control (Elec. Model Only)

Samsung's innovative Smart Control technology enables you to control your dryer through

personal technology devices such as smart phones. You don't have to be on standby until

the cycle ends. The Smart Control allows you to monitor the drying process and lets you

know when the cycle is complete.

Smart Monitor (Gas Model Only)

Samsung's innovative Smart Monitor technology enables you to monitor your dryer through

personal technologies such as smart phones. You don't have to be on standby until the cycle

ends. Smart Monitor allows you to monitor the drying process and lets you know when the

cycle is complete.

Smart Care

Samsung's Smart Care, an automatic error-monitoring system, detects and diagnoses

problems at an early stage and provides quick and easy solutions through the LCD

navigation. With the innovative Smart Control technology, you can also be alerted via your

smart phone when a problem occurs.

• Steam Cycle

This cycle sprays a small amount of water into the drum of the dryer after several minutes

of tumbling with heat. It reduces bad odors from clothing that are difficult to remove when

washing with water and also reduces wrinkles.

• Sanitize Cycle

This cycle sanitizes garments by infusing high temperature heat deep into the fabric during

the drying cycle and eliminating 99.9% of certain bacteria. Use this cycle for clothing,

bedding, towels, or other items needing sanitization. The Sanitize cycle is certified by NSF

International, an independent third-party testing and certification organization.

'&lCr _-_ NSF Protocol P154 1

( II_,_F Sanitization Perf ............ f 1_" "_J..- Residential Clothes Dryers

• Vent Sensor

Your Samsung dryer is equipped with a Vent Sensor which detects and notifies you when it is

time to clean the ducts. Keep your dryer safe and efficien!!

2 Features

I DV457E(GFO2836E ENindd Sec9:2 2012-04-09 D_4:15:40

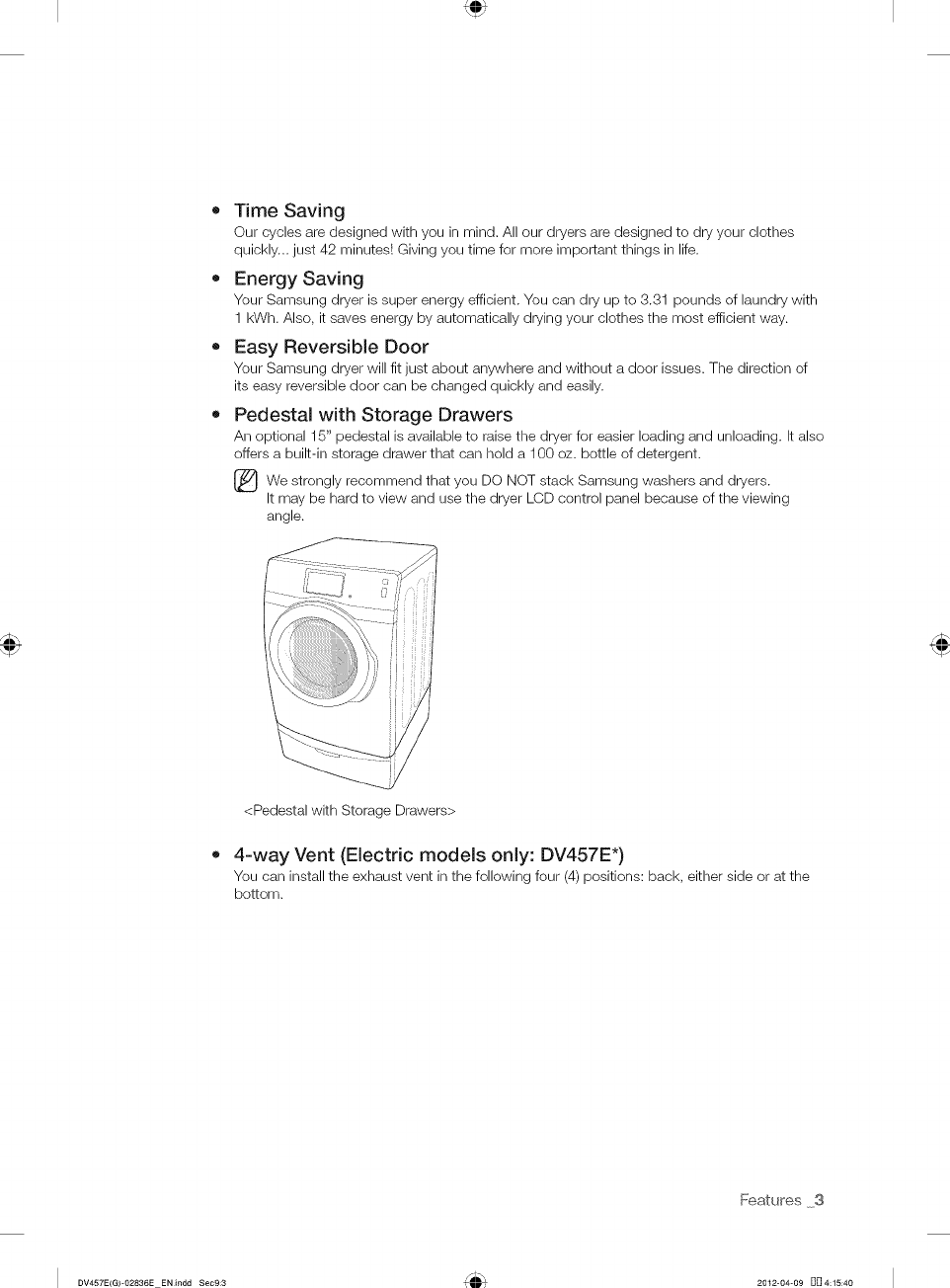

• Time Saving

Our cycles are designed with you in mind. All our dryers are designed to dry your clothes

quickly.., just 42 minutes! Giving you time for more important things in life.

• Energy Saving

Your Samsung dryer is super energy efficient. You can dry up to 3.31 pounds of laundry with

1 kWh. Also, it saves energy by automatically drying your clothes the most efficient way.

• Easy Reversible Door

Your Samsung dryer will fit just about anywhere and without a door issues. The direction of

its easy reversible door can be changed quickly and easily.

• Pedestal with Storage Drawers

An optional 15" pedestal is available to raise the dryer for easier loading and unloading. It also

offers a built-in storage drawer that can hold a 100 oz. bottle of detergent.

[_We recommend that DO NOT stack washers andstrongly you Samsung dryers.

It may be hard to view and use the dryer LCD control panel because of the viewing

angle.

4-way Vent (Electric models only: DV457E*)

You can install the exhaust vent in the following four (4) positions: back, either side or at the

bottom.

Featur'es 3

I DV457E(GI-O2836E ENindd Sec9:3 2012-04-09 D_4:15:40

©ongratulations on your new Samsung Dryer,This manual contains important

information on the installation, use, and care of your appliance, Pleasetake the

time to read this manual to take full advantage of your dryer's many benefits and

features,

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Please read this manual thoroughly to ensure that you know how to operate the extensive features and

functions of your new appliance safely and efficiently. Retain the manual in a safe place near the appliance

for future reference. Use this appliance only for its intended purpose as described in this instruction manual.

The Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

WARNING

Hazards or unsafe practices that may result in severe personal injury, death

and/or property damage. Follow the information in this manual to minimize

the risk of fire or explosion or to prevent property damage, personal injury, or

death.

Do not store or use gasoline or other flammable vapors and liquids near this or

any other appliance.

A Hazards or unsafe practices that may result in personal injury and/or

CAUTION property damage.

Do NOT attempt.

Do NOT disassemble.

[_ Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warninc signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

SAVE THESE INSTRUCTIONS

4 Safety instructions

I DV457E(GF02836E ENindd Sec11:4 2012-04-09 D_4:15:40

WARNING - Risk of Fire

Clothes dryer installation must be performed by a qualified installer.

Install the clothes dryer according to the manufacturer's instructions and local codes.

Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct

is installed, it must be of a specific type identified by the appliance manufacturer as suitable for

use with clothes dryers. Flexible venting materials are known to collapse, be easily crushed, and

trap lint. These conditions will obstruct the clothes dryer's airflow and increase the risk of fire.

To reduce the risk of severe injury or death, follow all installation instructions.

TO REDUCE THE RISK OF FIRE OR EXPLOSION:

WARNinG

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit

vapors that could ignite or explode. Any material that has been in contact with a cleaning

solvent or flammable liquids or solids should not be placed in the dryer until all traces of

these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured alcohol,

gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes,

and wax removers

• Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured

rubber-like materials on a heat setting. Heated foam rubber materials can, under certain

circumstances, produce fire by spontaneous combustion.

/!X WHAT TO DO IF YOU SMELL GAS:

WARNinG

• Do not try to light any appliance.

• Do not turn on the appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency, or the gas

supplier.

SAVE THESE INSTRUCTIONS

Safety instructions 5

I DV457E(GF02836E ENindd Sec11:5 2012-04-09 D_4:15:40

Z_ WARNING

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow

basic precautions, including the following:

t. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted

with gasoline, dry-cleaning solvents, or other flammable or explosive substances, because

they give off vapors that could ignite or explode.

Do not use the dryer to dry clothes which have traces of any flammable substance, such

as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or anything

containing wax or chemicals, such as mops and cleaning cloths. Flammable substances may

cause the fabric to catch fire by itself.

Do not store or use gasoline or other flammable vapors and liquids near this or any other

appliance.

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before the appliance is removed from service or discarded, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with the controls.

t0. Do not repair or replace any part of the appliance or attempt any servicing unless specifically

recommended in the user-maintenance instructions or published in the user-repair

instructions that you understand and have the skills to carry out.

t 1. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

t2. Clean the lint screen before or after each load.

t3. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

t4. Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

dirt.

t 5. The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

t6. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking

oils may contribute to a chemical reaction that could cause a load to catch fire.

t7. This appliance must be grounded. See "Electrical requirements" and "Grounding" in the

"Installing your dryer" section.

t8. This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately and in accordance with local and national codes. Refer to

installation instructions for grounding this appliance.

SAVE THESE INSTRUCTIONS

Safety instructions

I DV457E(GI-02836E ENindd Sec11:6 2012-04-09 _4:15:40

19. Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e.

coins, knives, pins, etc. These objects could damage your dryer.

20. Gas leaks may occur in your system, resulting in a dangerous situation.

21. Gas leaks may not be detected by smell alone.

22. Gas suppliers recommend you _urchase and install a UL-approved gas detector.

Z_ CAUTION

CAUTION

1. Do not sit on top of the dryer.

2. Because of continuing product improvements, Samsung reserves the right to change

specifications without notice. For complete details, see the Installation Instructions packed

with your product before selecting cabinetry, making cutouts, or beginning installation.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.

Install and use in accordance with the manufacturer's instructions.

8°

Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain significant amounts of these

oils.

Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion

increases when items containing vegetable oil or cooking oil are exposed to heat. Heat

sources such as your dryer can warm these items, allowing an oxidation reaction in the oil to

occur. Oxidation creates heat. If this heat cannot escape, the items can become hot enough

to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping

and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be dangerous.

Washing these items in hot water with extra detergent will reduce, but not eliminate, the

hazard. Always use the Cool Down cycle for these items to reduce their temperature. Never

remove these items from the dryer hot or interrupt the drying cycle until the items have run

through the Cool Down cycle. Never pile or stack these items when they are hot.

Take care that children's fingers are not caught in the door when closing it. This may result in

injury.

CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT

ACT

This act requires the governor of California to publish a list of substances known to the state

to cause cancer, birth defects, or other reproductive harm and requires businesses to warn

customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon

monoxide, formaldehyde, and soot, caused primarily by the incomplete combustion of natural

gas or LP fuels.

Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances

can be minimized further by properly venting the dryer to the outdoors.

SAVE THESE INSTRUCTIONS

Safety instructions 7

IDV457E(GF02836E ENindd Sec11:7 2012-04-09 _4:15:40

REGULATORY NOTICE

1. FCC Notice

Z_FCC CAUTION:

CAUTION

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

This device complies with Part 15 of FCC Rules. Operation is Subject to following two

conditions:

t. This device may not cause harmful interference, and

2. This device must accept any interference received including interference that causes

undesired operation.

For product available in the USA/Canada market, only channel 1-11 can be operated. Selection

of other channels is not possible.

FCC STATEMENT:

This equipment has been tested and found to comply within the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a different circuit from that of the receiver.

• Consult the dealer or an experienced radio/TV technician for help.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance of 20cm

between the radiator and your body. This device and its antenna(s) must not be co-located or

operated in conjunction with any other antenna or transmitter.

SAVE THESE INSTRUCTIONS

8 Safety ir_structions

I DV457E(GF02836E ENindd Sec11:8 2012-04-09 D_4:15:40

2. IC Notice

The term "IC" before the radio certification number only signifies that Industry Canada technical

specifications were met. Operation is subject to the following two conditions: (1) this device may

not cause interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil num_rique de la classe Best conforme 6.la norme NMB-003 du Canada.

For product available in the USA/Canada market, only channels 1-11 can be operated. Selection

of other channels is not possible.

IC RADIATION EXPOSURE STATEMENT:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance of 20cm

between the radiator & your body. This device and its antenna(s) must not be co-located or

operated in conjunction with any other antenna or transmitter.

SAVE THESE INSTRUCTIONS

Safety instructions 9

I DV457E(GI-02836E ENindd Sec11:9 2012-04-09 _4:15:40

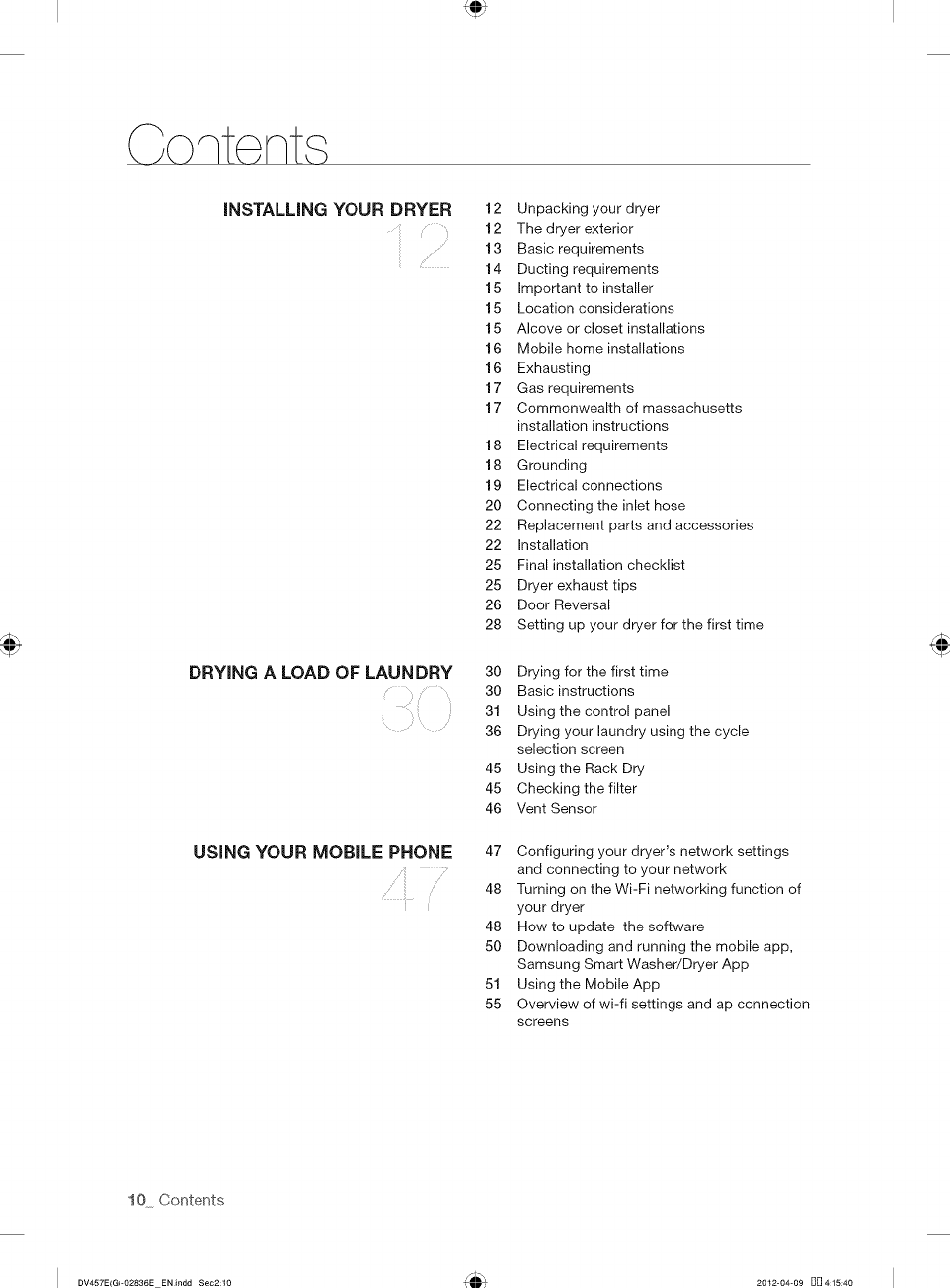

ont nt,s

iNSTALLiNG YOUR DRYER

DRYING A LOAD OF LAUNDRY

USING YOUR MOBILE PHONE

12 Unpacking your dryer

12 The dryer exterior

13 Basic requirements

14 Ducting requirements

15 Important to installer

15 Location considerations

15 Alcove or closet installations

16 Mobile home installations

16 Exhausting

17 Gas requirements

17 Commonwealth of massachusetts

installation instructions

18 Electrical requirements

18 Grounding

19 Electrical connections

20 Connecting the inlet hose

22 Replacement parts and accessories

22 Installation

25 Final installation checklist

25 Dryer exhaust tips

26 Door Reversal

28 Setting up your dryer for the first time

30 Drying for the first time

30 Basic instructions

31 Using the control panel

36 Drying your laundry using the cycle

selection screen

45 Using the Rack Dry

45 Checking the filter

46 Vent Sensor

47 Configuring your dryer's network settings

and connecting to your network

48 Turning on the Wi-Fi networking function of

your dryer

48 How to update the software

50 Downloading and running the mobile app,

Samsung Smart Washer/Dryer App

51 Using the MobileApp

55 Overview of wi-fi settings and ap connection

screens

10 Contents

I DV457E(GFO2836E ENindd Sec2:lO 2012-04-09 D_4:15:40

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Séchoir

Samsung

Samsung DV448AEW-02555B-05 Manuel utilisateur

Samsung

Samsung DC68-02312A-04 Manuel utilisateur

Samsung

Samsung DV8 Series Manuel utilisateur

Samsung

Samsung DVE45T3400 Series Manuel utilisateur

Samsung

Samsung DV400EWHDWR Mode d’emploi

Samsung

Samsung DV50K7500E(G) series Manuel utilisateur

Samsung

Samsung DVE50A8800 Series Manuel utilisateur

Samsung

Samsung DV45H Series Manuel utilisateur

Samsung

Samsung DV40J3000G Manuel utilisateur

Samsung

Samsung DV337AEG Guide de l'utilisateur

Samsung

Samsung DVEG45T3400 Series Manuel utilisateur

Samsung

Samsung SDC17709 Manuel utilisateur

Samsung

Samsung DV9*K60 series Manuel utilisateur

Samsung

Samsung DV25B6900H Series Manuel utilisateur

Samsung

Samsung DC68-02836B Manuel utilisateur

Samsung

Samsung DVE45R6100C/A3 Manuel utilisateur

Samsung

Samsung DV50F9A7GVP Manuel du propriétaire

Samsung

Samsung DV9 BB74 Series Manuel utilisateur

Samsung

Samsung DV484ETHAWR/A1-0001 Manuel utilisateur

Samsung

Samsung DV3C6BGW/XAA Manuel utilisateur

Samsung

Samsung SDC18809 Manuel utilisateur

Samsung

Samsung DVG52M8650V Manuel utilisateur

Samsung

Samsung DVE52B7650 Series Manuel utilisateur

Samsung

Samsung DVE(G)45M5500 series Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
