Samsung DV231AE Series Manuel utilisateur

Gas and Electric Dryer

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service or accessory

parts, please register your product at or contact

www.samsung.com/register

DV231AE*

This manual is made with 100% recycled paper.

DV231AEW-03064B-02_EN.indd 1DV231AEW-03064B-02_EN.indd 1 2012-10-11  5:44:092012-10-11  5:44:09

2_ features

features

1. Extra Large Capacity

Ultra drying capabilities are at your fingertips! Now you can dry extra-large loads. Our ultra

large 7.3 cu.ft. capacity dryer circulates more air through your clothes, drying them faster for

a wrinkle-free result.

2. Various Drying Cycles & Fuzzy Logic Algorithm

Simply turn the Jog Dial to select one of the 9 automatic drying cycles, including normal

and heavy duty, or let the Fuzzy Logic Control measure the degree of dampness and

automatically set the drying time. Precision drying has never been easier than with Samsung.

3. Time Saving

Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in

less time... just 42 minutes! Giving you time for more important things in life.

4. Energy Saving

Samsung dryers are super energy efficient. You can dry up to 3.01 pounds of laundry with

1kWh. Also, both the large capacity and Fuzzy Logic Control save energy by automatically

drying your clothes the most efficient way.

5. Easy Reversible Door

Our dryers will fit just about anywhere. The direction of our reversible door can be changed

easily.

6. Pedestal with Storage Drawers

An optional 15” pedestal is available to raise the dryer for easier loading and unloading.

It also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent

7. Stacking (MODEL NO: SK-3A1, SK-4A, SK-5A)

Samsung’s Washers and Dryers can be stacked to maximize usable space.

The Dryer legs need to be removed to stack the Washer and Dryer. An optional stacking kit

is available for purchase from your Samsung retailer.

8. Sanitize course

This course allows you to sanitize garments by permeating high temperature heat deep into

the fabric during the drying cycle. Use this course to keep your bedding and curtains clean.

When selecting this cycle, 99.9% of all bacteria is eliminated through high temperature heat.

Use this cycle for clothing, bedding, towels, or other items needing sanitization.

This certification is conducted by NSF International, an independent third-party testing and

certification organization.

9. 4-way Vent (electric model only : DV331AE*)

You can install the exhaust vent in the following four (4) positions: back, either side, bottom.

NSF Protocol P154

Sanitization Performance of

Residential Clothes Dryers

DV231AEW-03064B-02_EN.indd Sec9:2DV231AEW-03064B-02_EN.indd Sec9:2 2012-10-11  5:44:142012-10-11  5:44:14

safety instructions _3

SAVE THESE INSTRUCTIONS

safety instructions

Congratulations on your new Samsung Dryer. This manual contains valuable

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer’s many benefits and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

WARNING

Hazards or unsafe practices that may result in severe personal injury or

death.

Follow the information in this manual to minimize the risk of fire or explosion or

to prevent property damage, personal injury, or death.

Do not store or use gasoline or other flammable vapors and liquids near this or

any other appliance.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or

property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicity.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

WARNING - Risk of Fire

• Clothes dryer installation must be performed by a qualified installer.

• Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type)

duct is installed, it must be of a specific type identified by the appliance manufacturer as

suitable for use with clothes dryers. Flexible venting materials are known to collapse, be

easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase

the risk of fire.

• To reduce the risk of severe injury or death, follow all installation instructions.

DV231AEW-03064B-02_EN.indd Sec1:3DV231AEW-03064B-02_EN.indd Sec1:3 2012-10-11  5:44:142012-10-11  5:44:14

4_ safety instructions

SAVE THESE INSTRUCTIONS

safety instructions

IMPORTANT SAFTY INSTRUCTION

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your

appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive

substances, as they give off vapors that could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any servicing unless

specifically recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

9. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

10. Clean lint screen before or after each load.

11. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

12. Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

13. The interior of the appliance and exhaust duct should be cleaned periodically by

qualified service personnel.

14. Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

State of California Proposition 65 Warnings:

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of

California to publish a list of substances known to the State of California to cause cancer,

birth defects, or other reproductive harm, and requires businesses to warn of potential

exposure to such substances.

This product contains a chemical known to the State of California to cause cancer, birth

defects, or other reproductive harm. This appliance can cause low-level exposure to some

of the substances listed, including benzene, formaldehyde, and carbon monoxide.

Gas appliances may cause low-level exposure to some of the substances listed including

benzene, formaldehyde, carbon monoxide, and soot; as a result of possible incomplete

combustion of natural gas or LP fuels. Exposure to these substances can be minimized

further by properly venting the dryer to the outdoors.

WARNING

DV231AEW-03064B-02_EN.indd Sec1:4DV231AEW-03064B-02_EN.indd Sec1:4 2012-10-11  5:44:142012-10-11  5:44:14

safety instructions _5

SAVE THESE INSTRUCTIONS

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not turn on the appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas

supplier.

Read all instructions before using the appliance.

To reduce the risk of fire or explosion:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or flammable liquids or solids should not be placed in the dryer until all

traces of these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers

• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-

like materials must not be dried on a heat setting. Heated foam rubber materials can,

under certain circumstances, produce fire by spontaneous combustion.

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with the controls.

Do not repair, replace, or attempt to service any part of the appliance unless specifi cally

instructed to in the user-repair instructions and only if you have the understanding and skills

to carry out the repair, replacement, or service procedure.

Do not use fabric softeners or products to eliminate static unless the softener or product is

recommended for use in dryers.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

WARNING

DV231AEW-03064B-02_EN.indd Sec1:5DV231AEW-03064B-02_EN.indd Sec1:5 2012-10-11  5:44:142012-10-11  5:44:14

6_ safety instructions

SAVE THESE INSTRUCTIONS

safety instructions

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately and in accordance with local and national codes. See the

installation instructions for information about grounding this appliance.

Do not sit on top of the dryer.

Because of continuing product improvements, Samsung reserves the right to change

specifications without notice. For complete details, see the Installation Instructions

packed with your product before selecting cabinetry, making cutouts, or beginning

installation.

Ensure pockets are free from small, irregularly shaped, hard objects, foreign material, etc.

ie. coins, knives, pins, etc. These objects could damage your dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.

Gas leaks may occur in your system, resulting in a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer’s instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain significant amounts of these

oils.

Residual oil on clothing can ignite spontaneously. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed to

heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction

in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become

hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat

from escaping and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous. Washing these items in hot water with extra detergent will reduce, but not

eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying cycle until

the items have run through the Cool Down cycle. Never pile or stack these items when they

are hot.

WARNING

DV231AEW-03064B-02_EN.indd Sec1:6DV231AEW-03064B-02_EN.indd Sec1:6 2012-10-11  5:44:142012-10-11  5:44:14

contents _7

contents

INSTALLING YOUR DRYER

8Unpacking your dryer

8The Dryer’s Exterior

8Key installation requirements

9Tools needed for installation

9Replacement parts and accessories

10 Ducting requirements

12 Important to installer

12 Location considerations

12 Alcove or closet installation

13 Mobile home installation

13 Exhausting

14 Gas requirements

15 Electrical requirements

15 Grounding

16 Electrical connections

17 Installation - General procedure

19 Final installation checklist

20 Dryer Exhaust Tips

21 Door Reversal

OPERATING INSTRUCTIONS, TIPS

22 Overview of the control panel

24 Child lock

24 Sound Off

25 Drying Rack (Optional Part)

26 Clean the lint filter

26 Load the dryer properly

26 Getting started

CARE AND CLEANING

27 Control Panel

27 Tumbler

27 Powder coated tumbler

27 Dryer Exterior

27 Dryer Exhaust System

SPECIAL LAUNDRY TIPS

28 Special laundry tips

TROUBLESHOOTING

29 Check these pointers if your dryer…

30 Information codes

APPENDIX

31 Fabric care chart

32 Protecting the environment

32 Declaration of conformity

32 Specifications

33 Cycle chart

DV231AEW-03064B-02_EN.indd Sec3:7DV231AEW-03064B-02_EN.indd Sec3:7 2012-10-11  5:44:152012-10-11  5:44:15

8_ installing your dryer

installing your dryer

UNPACKING YOUR DRYER

Unpack your Dryer and inspect it for shipping damage. If your Dryer was damaged during shipping,

contact 1-800-SAMSUNG (726-7864).To prevent personal injury or strain, wear protective gloves whenever

lifting or carrying the dryer.

Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,

etc.) well out of children’s reach.

THE DRYER’S EXTERIOR

A Drying Rack is not supplied with this model. The Drying Rack is optional. You can purchase it

through a service center.

KEY INSTALLATION REQUIREMENTS

Hire a professional to install this dryer properly. If a service call has to be made as a result of poor setup,

adjustment, or connection, it is considered the responsibility of the installer. If you install the dryer, you are

responsible.

Make sure you have everything necessary for proper installation:

• A GROUNDED ELECTRICAL OUTLET. See Electrical Requirements. See page 15

• A POWER CORD for electric dryers (except Canada). See page 16.

• GAS LINES (if you are installing a gas dryer) must meet national and local codes.

• EXHAUST SYSTEM – must be rigid metal or flexible stiff-walled metal exhaust ducting. See the ducting

and exhaust requirements on pages 10 - 11 and 13 and the dryer exhaust tips on page 20..

Adjustable legs

Control panel

Door

WARNING

DV231AEW-03064B-02_EN.indd Sec11:8DV231AEW-03064B-02_EN.indd Sec11:8 2012-10-11  5:44:152012-10-11  5:44:15

installing your dryer _9

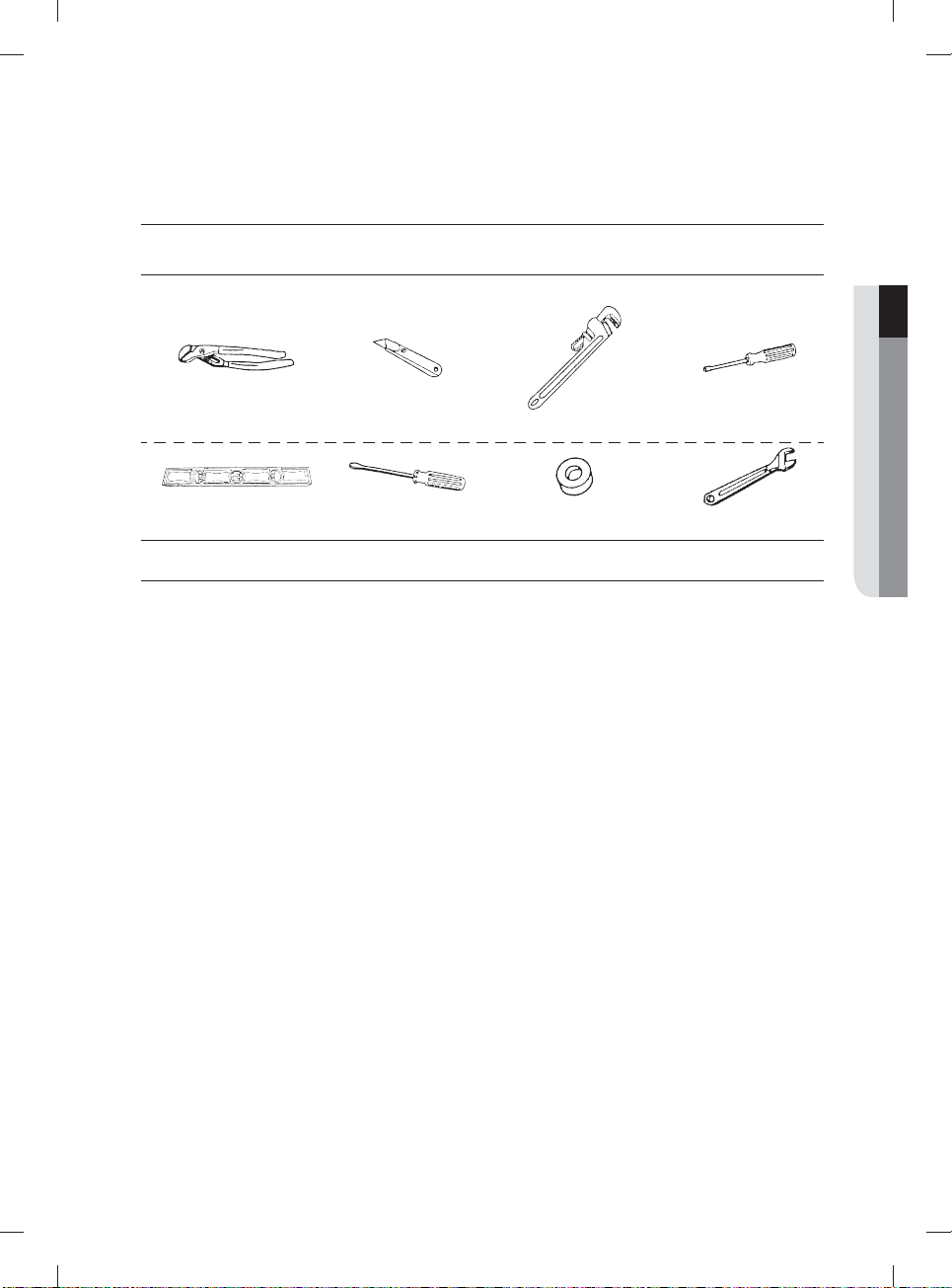

TOOLS NEEDED FOR INSTALLATION

Gather the required tools and parts before starting the installation.

Read and follow the instructions provided with any tools listed here.

Tools and Parts

Pliers Cutting knife Pipe wrench (gas only) Nut drivers

Level Phillips Screwdriver Duct tape Wrench

REPLACEMENT PARTS AND ACCESSORIES

If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased your

dryer or the SAMSUNG customer care center at 1-800-SAMSUNG (726-7864).

01 installing your dryer

DV231AEW-03064B-02_EN.indd Sec11:9DV231AEW-03064B-02_EN.indd Sec11:9 2012-10-11  5:44:152012-10-11  5:44:15

10_ installing your dryer

DUCTING REQUIREMENTS

• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

• Do not use a smaller duct.

• Ducts larger than 4 inches (10.2 cm) in diameter can cause increased lint accumulation.

Lint accumulation should be cleaned regularly.

• If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct

with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.

• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

• Only a rigid or flexible metal duct should be used for exhausting.

• Keep the exhaust duct as straight and short as possible.

• Secure joints with duct tape. Do not use screws.

• DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF

A BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY. THIS COULD CREATE A

FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.

• A plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer

operation.

• Exhaust systems longer than recommended can extend drying times, affect machine operation, and

may collect lint.

• The exhaust duct should end with an exhaust hood that has a swing-out damper to prevent back drafts

and the entry of wildlife. Never use an exhaust hood with a magnetic damper.

• The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

• Never install a screen over the exhaust outlet.

• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

• If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

• Check frequently to be sure the exhaust hood damper opens and closes freely.

• Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then

check ducting for obstructions.

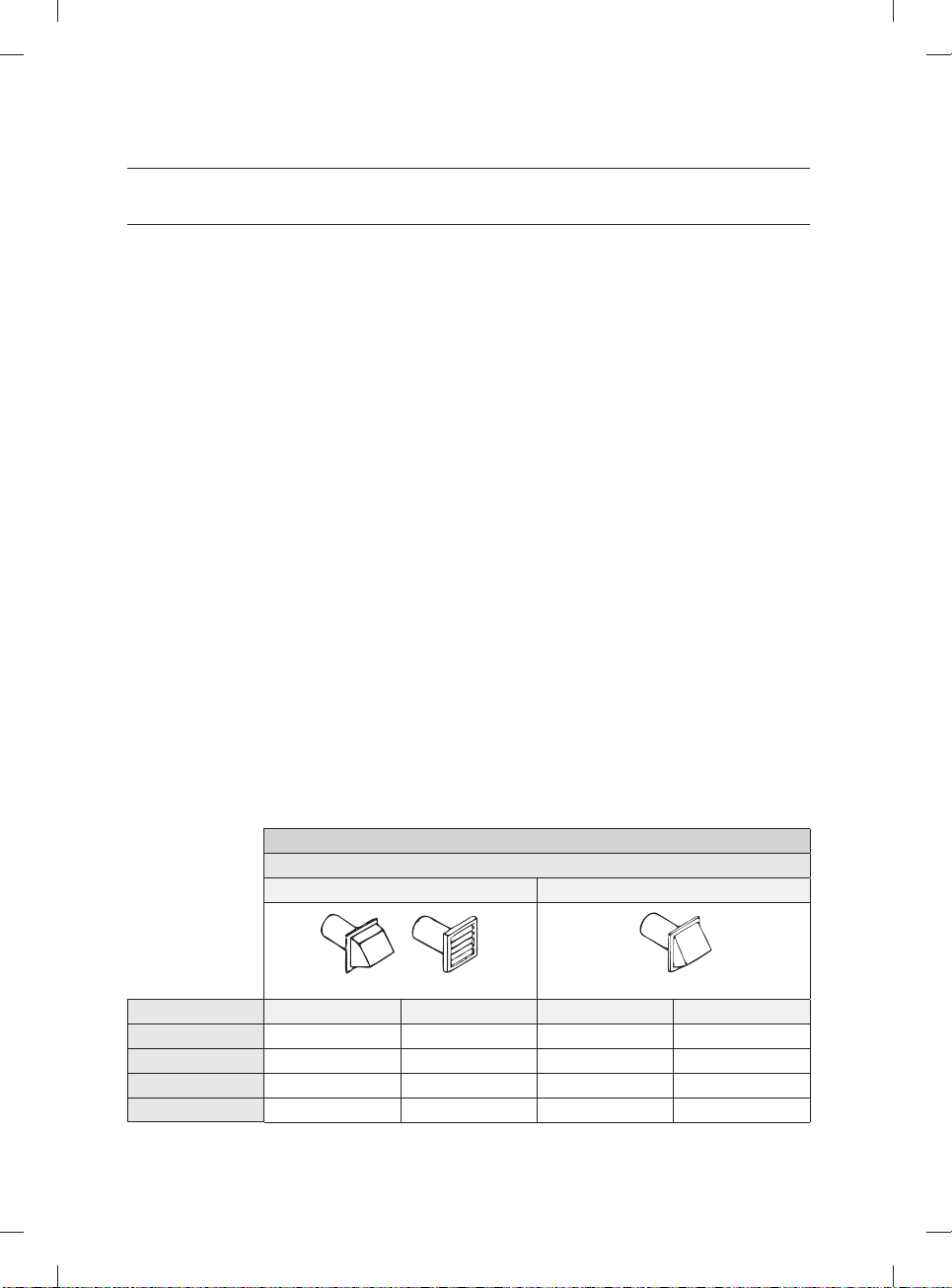

ELECTRIC AND GAS DRYER

Weather Hood Type

Recommended Use only for short-run installation

4” (10.16 cm) 2.5” (6.35 cm)

No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*

0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)

1 20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m (62 ft.) 8.8 m (29 ft.)

2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m (51 ft.) 7.6 m (25 ft.)

3 14.3 m (47 ft.) 9.0 m (29 ft.) 12.5 m (41 ft.) 6.5 m (21 ft.)

* Do not use non-metallic flexible duct.

installing your dryer
