Samsung DV365 Series Manuel utilisateur

Gas and Electric Dryer

user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service or accessory

parts, please register your product at or contact

www.samsung.com/register

1-800-SAMSUNG (726-7864)

DV365*

This manual is made with 100% recycled paper.

DV365_03064C-04_EN.indd 1DV365_03064C-04_EN.indd 1 2013-12-12  6:07:232013-12-12  6:07:23

English - 2

contents

SAFETY INSTRUCTIONS

3What you need to know about Safety Instructions

3Important safety symbols and precautions

5What to do if you smell gas :

INSTALLING YOUR DRYER

7Unpacking your dryer

7The dryer’s exterior

8Key installation requirements

8Tools needed for installation

8Replacement parts and accessories

9Ducting requirements

10 Important to installer

10 Location considerations

10 Alcove or closet installation

11 Mobile home installation

11 Exhausting

12 Gas requirements

13 Electrical requirements

13 Grounding

14 Electrical connections

15 Installation - General procedure

17 Final installation checklist

18 Dryer exhaust tips

19 Door reversal

20 Connecting the inlet hose

OPERATING INSTRUCTIONS, TIPS

22 Overview of the control panel

24 Child Lock

24 Sound Off

25 Drying rack (optional part)

26 Clean the lint filter

26 Load the dryer properly

26 Getting started

CARE AND CLEANING

27 Control panel

27 Tumbler

27 Powder coated tumbler

27 Dryer exterior

27 Dryer exhaust system

SPECIAL LAUNDRY TIPS

28 Special laundry tips

TROUBLESHOOTING

29 Check these pointers if your dryer…

30 Information codes

APPENDIX

31 Fabric care chart

32 Protecting the environment

32 Declaration of conformity

32 Specifications

33 Cycle chart

DV365_03064C-04_EN.indd Sec9:2DV365_03064C-04_EN.indd Sec9:2 2013-12-12  6:09:052013-12-12  6:09:05

English - 3

SAVE THESE INSTRUCTIONS

safety instructions

Congratulations on your new Samsung Dryer. This manual contains valuable

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer’s many benefits and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. It is your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

Follow the information in this manual to minimize the risk of fire or explosion or

to prevent property damage, personal injury, or death.

Do not store or use gasoline or other flammable vapors and liquids near this or

any other appliance.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or

property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicity.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

WARNING - Risk of Fire

• Clothes dryer installation must be performed by a qualified installer.

• Install the clothes dryer according to the manufacturer’s instructions and local codes.

• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type)

duct is installed, it must be of a specific type identified by the appliance manufacturer as

suitable for use with clothes dryers. Flexible venting materials are known to collapse, be

easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase

the risk of fire.

• To reduce the risk of severe injury or death, follow all installation instructions.

01 safety instructions

DV365_03064C-04_EN.indd Sec1:3DV365_03064C-04_EN.indd Sec1:3 2013-12-12  6:09:052013-12-12  6:09:05

English - 4

SAVE THESE INSTRUCTIONS

safety instructions

IMPORTANT SAFTY INSTRUCTION

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your

appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive

substances, as they give off vapors that could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any servicing unless

specifically recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

9. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

10. Clean lint screen before or after each load.

11. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

12. Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

13. The interior of the appliance and exhaust duct should be cleaned periodically by

qualified service personnel.

14. Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

Gas Appliances :

WARNING : This product contains chemicals known to the State of California to cause

cancer and reproductive toxicity.

Gas appliances can cause low-level exposure to Proposition 65 listed substances, including

but not limited to, benzene, carbon monoxide, formaldehyde and soot, substances

resulting from the incomplete combustion of natural gas or LP fuels.

WARNING

DV365_03064C-04_EN.indd Sec1:4DV365_03064C-04_EN.indd Sec1:4 2013-12-12  6:09:052013-12-12  6:09:05

English - 5

SAVE THESE INSTRUCTIONS

WHAT TO DO IF YOU SMELL GAS :

• Do not try to light any appliance.

• Do not turn on the appliance.

• Do not touch any electrical switch.

• Do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the gas

supplier.

Read all instructions before using the appliance.

To reduce the risk of fire or explosion:

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or flammable liquids or solids should not be placed in the dryer until all

traces of these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers

• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-

like materials must not be dried on a heat setting. Heated foam rubber materials can,

under certain circumstances, produce fire by spontaneous combustion.

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with the controls.

Do not repair, replace, or attempt to service any part of the appliance unless specifi cally

instructed to in the user-repair instructions and only if you have the understanding and skills

to carry out the repair, replacement, or service procedure.

Do not use fabric softeners or products to eliminate static unless the softener or product is

recommended for use in dryers.

Clean the lint screen before or after each load.

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and

dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

01 safety instructions

WARNING

DV365_03064C-04_EN.indd Sec1:5DV365_03064C-04_EN.indd Sec1:5 2013-12-12  6:09:062013-12-12  6:09:06

English - 6

SAVE THESE INSTRUCTIONS

safety instructions

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately and in accordance with local and national codes. See the

installation instructions for information about grounding this appliance.

Do not sit on top of the dryer.

Because of continuing product improvements, Samsung reserves the right to change

specifications without notice. For complete details, see the Installation Instructions

packed with your product before selecting cabinetry, making cutouts, or beginning

installation.

Ensure pockets are free from small, irregularly shaped, hard objects, foreign material, etc.

ie. coins, knives, pins, etc. These objects could damage your dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid objects.

Gas leaks may occur in your system, resulting in a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer’s instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or

cooking oil. Even after being washed, these items may contain significant amounts of these

oils.

Residual oil on clothing can ignite spontaneously. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed to

heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction

in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items can become

hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat

from escaping and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous. Washing these items in hot water with extra detergent will reduce, but not

eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying cycle until

the items have run through the Cool Down cycle. Never pile or stack these items when they

are hot.

WARNING

DV365_03064C-04_EN.indd Sec1:6DV365_03064C-04_EN.indd Sec1:6 2013-12-12  6:09:062013-12-12  6:09:06

English - 7

installing your dryer

UNPACKING YOUR DRYER

Unpack your Dryer and inspect it for shipping damage. If your Dryer was damaged during shipping,

contact 1-800-SAMSUNG (726-7864).To prevent personal injury or strain, wear protective gloves whenever

lifting or carrying the dryer.

Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene,

etc.) well out of children’s reach.

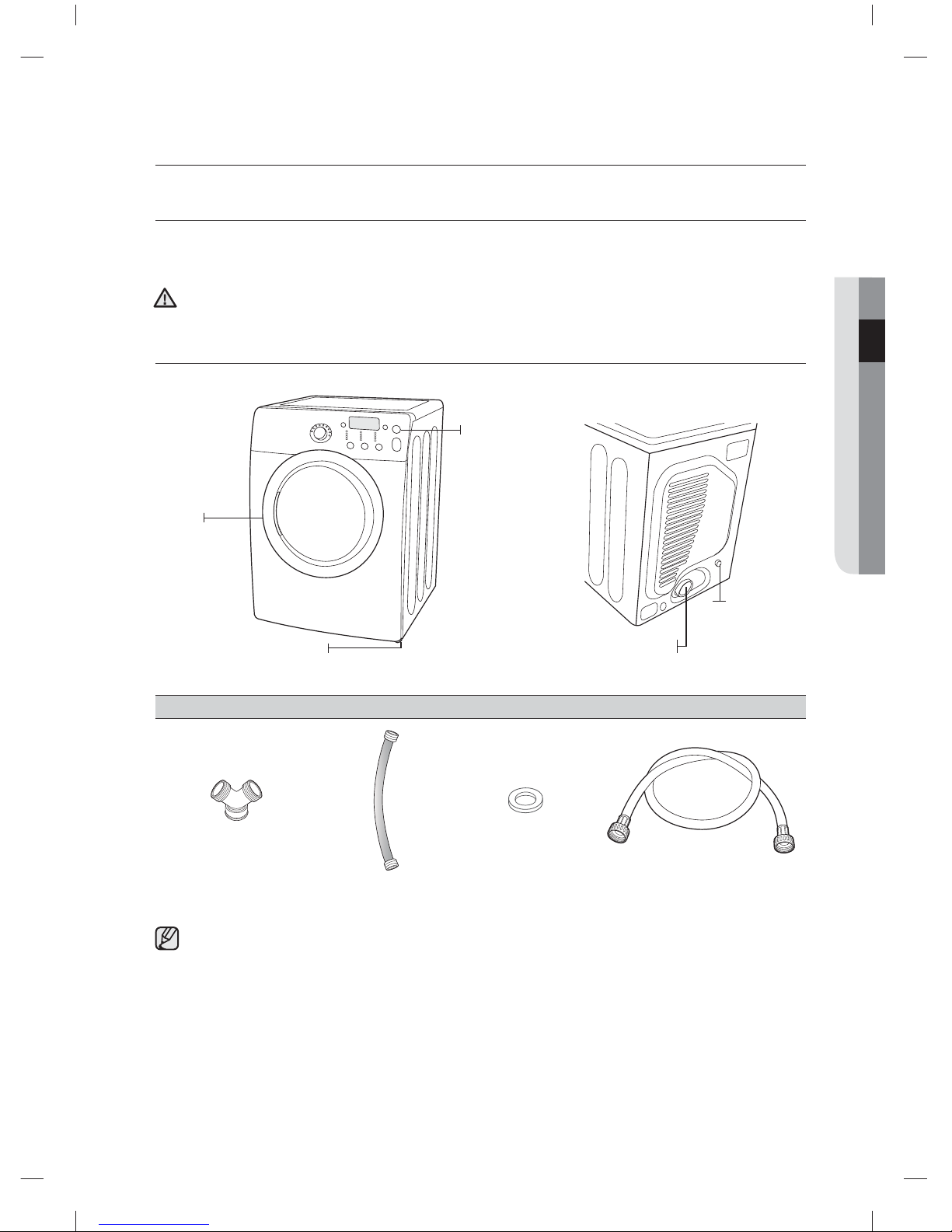

THE DRYER’S EXTERIOR

Parts supplied

“Y”-connector Short inlet hose Rubber Washer Long inlet hose

A Drying Rack is not supplied with this model. The Drying Rack is optional. You can purchase it

through a service center.

02 installing your dryer

WARNING

Control panel

Adjustable legs

Filtro

Duct Exhaust

Water Inlet

[ BACK ]

DV365_03064C-04_EN.indd Sec11:7DV365_03064C-04_EN.indd Sec11:7 2013-12-12  6:09:062013-12-12  6:09:06

English - 8

KEY INSTALLATION REQUIREMENTS

Hire a professional to install this dryer properly. If a service call has to be made as a result of poor setup,

adjustment, or connection, it is considered the responsibility of the installer. If you install the dryer, you are

responsible.

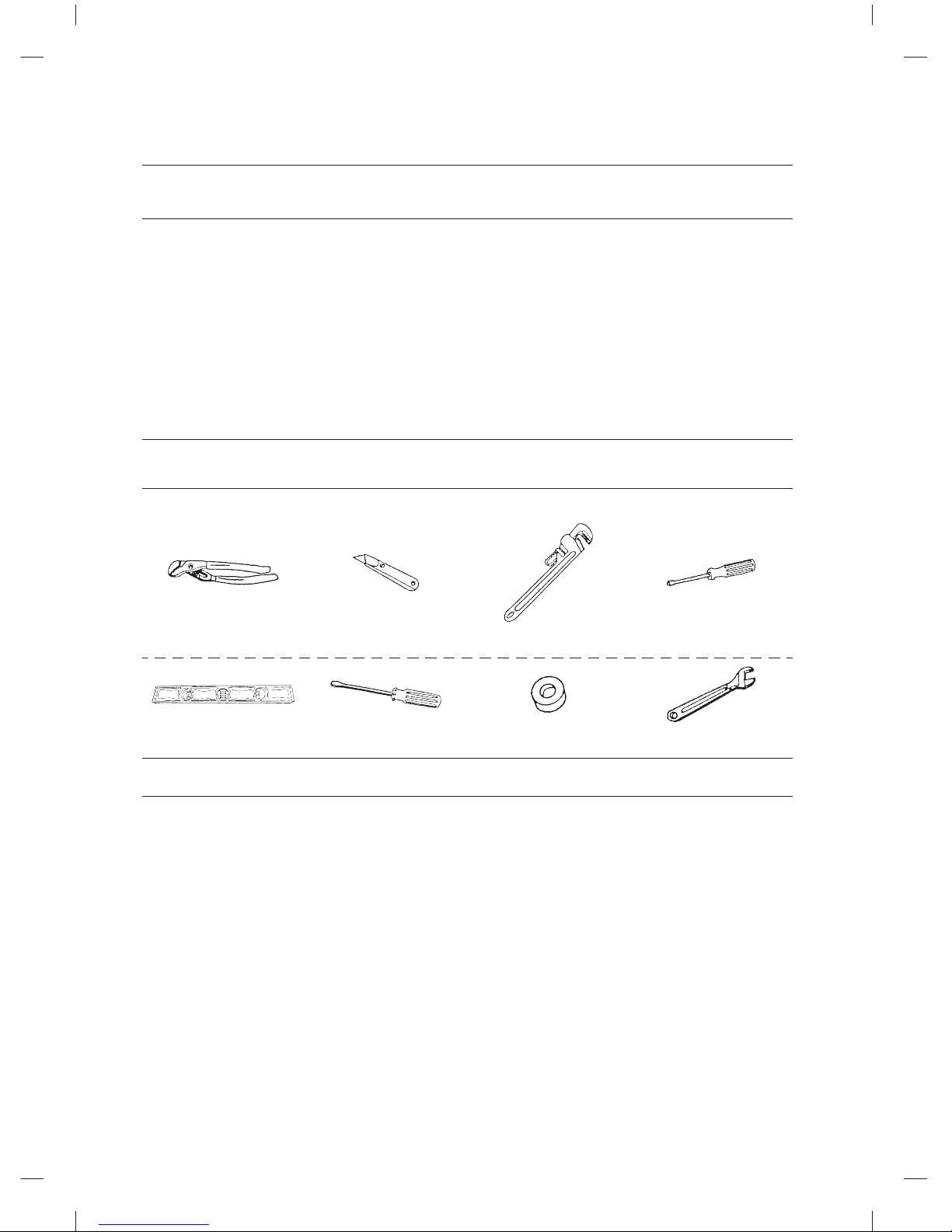

Make sure you have everything necessary for proper installation:

• A GROUNDED ELECTRICAL OUTLET. See Electrical Requirements. See page 15.

• A POWER CORD for electric dryers (except Canada). See page 16.

• GAS LINES (if you are installing a gas dryer) must meet national and local codes.

• EXHAUST SYSTEM – must be rigid metal or flexible stiff-walled metal exhaust ducting. See the ducting

and exhaust requirements on pages 10 - 11 and 13 and the dryer exhaust tips on page 20.

TOOLS NEEDED FOR INSTALLATION

Gather the required tools and parts before starting the installation.

Read and follow the instructions provided with any tools listed here.

Tools and Parts

Pliers Cutting knife Pipe wrench (gas only) Nut drivers

Level Phillips Screwdriver Duct tape Wrench

REPLACEMENT PARTS AND ACCESSORIES

If your dryer requires replacement parts or accessories, contact the dealer from whom you purchased your

dryer or the SAMSUNG customer care center at 1-800-SAMSUNG (726-7864).

installing your dryer

DV365_03064C-04_EN.indd Sec11:8DV365_03064C-04_EN.indd Sec11:8 2013-12-12  6:09:062013-12-12  6:09:06

English - 9

DUCTING REQUIREMENTS

• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.

• Do not use a smaller duct.

• Ducts larger than 4 inches (10.2 cm) in diameter can cause increased lint accumulation.

Lint accumulation should be cleaned regularly.

• If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct

with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.

• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.

• Only a rigid or flexible metal duct should be used for exhausting.

• Keep the exhaust duct as straight and short as possible.

• Secure joints with duct tape. Do not use screws.

• DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF

A BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY. THIS COULD CREATE A

FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.

• A plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer

operation.

• Exhaust systems longer than recommended can extend drying times, affect machine operation, and

may collect lint.

• The exhaust duct should end with an exhaust hood that has a swing-out damper to prevent back drafts

and the entry of wildlife. Never use an exhaust hood with a magnetic damper.

• The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and

the ground or other obstruction. The hood opening should point down.

• Never install a screen over the exhaust outlet.

• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house

or porch.

• If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly

down towards the exhaust hood to reduce condensation and lint buildup.

• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before

cleaning.

• Check frequently to be sure the exhaust hood damper opens and closes freely.

• Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then

check ducting for obstructions.

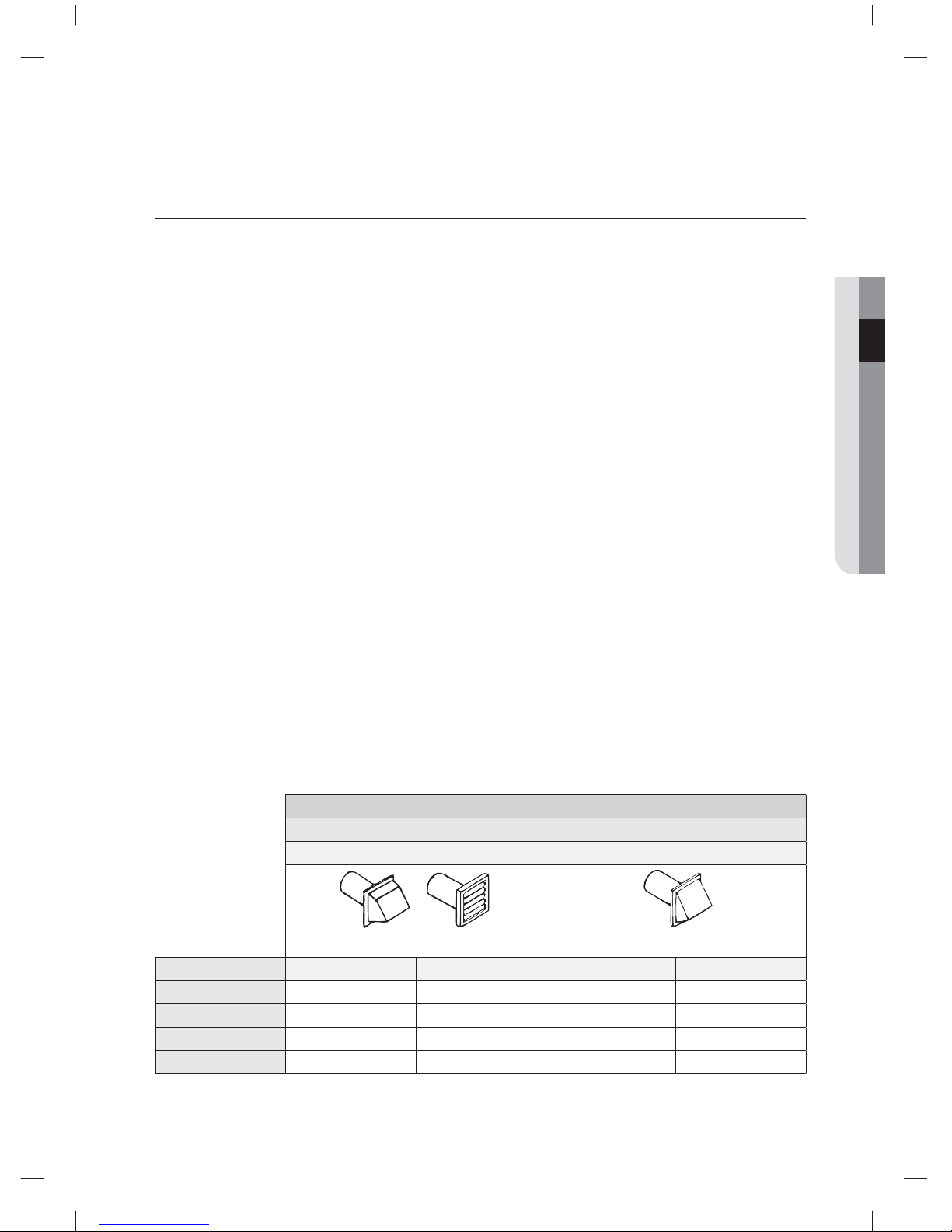

ELECTRIC AND GAS DRYER

Weather Hood Type

Recommended Use only for short-run installation

4” (10.16 cm) 2.5” (6.35 cm)

No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*

0 24.4 m (80 ft.) 12.4 m (41 ft.) 22.6 m (74 ft.) 10.1 m (33 ft.)

1 20.7 m (68 ft.) 11.2 m (37 ft.) 18.9 m (62 ft.) 8.8 m (29 ft.)

2 17.4 m (57 ft.) 10.1 m (33 ft.) 15.5 m (51 ft.) 7.6 m (25 ft.)

3 14.3 m (47 ft.) 9.0 m (29 ft.) 12.5 m (41 ft.) 6.5 m (21 ft.)

* Do not use non-metallic flexible duct.

02 installing your dryer

DV365_03064C-04_EN.indd Sec11:9DV365_03064C-04_EN.indd Sec11:9 2013-12-12  6:09:062013-12-12  6:09:06

English - 10

If the new Dryer is being installed into an existing exhaust system, you must

make sure:

• The exhaust system meets all local, state, and national codes.

• That a flexible plastic duct is not used.

• To Inspect and clean all lint buildup from inside the existing duct.

• The duct is not kinked or crushed.

• The exhaust hood damper opens and closes freely.

The static pressure in any exhaust system must not exceed 0.83 inches of water column or be

less than 0.

This can be measured while the Dryer is running with a manometer at the point where the

exhaust duct connects to the Dryer. A no-heat setting should be used. The Dryer tumbler should

be empty and the lint filter clean.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept

for future reference.

REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD

SUFFOCATING.

LOCATION CONSIDERATIONS

Locate the Dryer where there is enough space at the front for loading and enough space behind for the

exhaust system. This Dryer is factory-ready for rear exhaust. To exhaust out the bottom or the left, use

the accessory exhaust kit. Instructions are included with the kit. It’s important to make sure the room has

enough fresh air. The Dryer must be located where there is no air-flow obstruction.

For gas Dryers, you must provide the clearance noted on the data plate to ensure adequate air for

combustion and proper Dryer operation.

DO NOT INSTALL OR STORE THE DRYER IN AN AREA WHERE IT WILL BE EXPOSED TO WATER AND/

OR WEATHER. KEEP THE DRYER AREA CLEAR OF COMBUSTIBLE MATERIALS, GASOLINE, AND

OTHER FLAMMABLE VAPORS AND LIQUIDS. A DRYER PRODUCES COMBUSTIBLE LINT. THE AREA

AROUND THE DRYER SHOULD BE KEPT LINT-FREE.

ALCOVE OR CLOSET INSTALLATION

You must exhaust the dryer to the outside to reduce the risk of fire when installed in an alcove or

closet.

• No other fuel-burning appliance should be installed in the same closet as the Dryer.

• WARNING: To reduce the risk of fire, YOU MUST EXHAUST THIS DRYER TO THE OUTDOORS.

See the EXHAUST INFORMATION section.

• Minimum clearances between the Dryer and adjacent walls or other surfaces are:

2” in front, 17” on top, 1” on either side, and 5” in the back.

• The closet front must have two unobstructed air openings for a combined minimum total area of 72 in²

with 3” minimum clearance on the top and bottom. A louvered door with equivalent space clearance is

acceptable.

installing your dryer

WARNING

DV365_03064C-04_EN.indd Sec11:10DV365_03064C-04_EN.indd Sec11:10 2013-12-12  6:09:072013-12-12  6:09:07

Table des matières

Langues :

Autres manuels Samsung Séchoir

Samsung

Samsung FlexDry DVE60A9900 Series Manuel utilisateur

Samsung

Samsung DV476 Series Manuel utilisateur

Samsung

Samsung DV9 Series Manuel utilisateur

Samsung

Samsung DVG45T6200W/A3 Manuel utilisateur

Samsung

Samsung DVG54M8750 Series Manuel utilisateur

Samsung

Samsung DV409SEL Manuel utilisateur

Samsung

Samsung DV50K7500E(G) series Manuel utilisateur

Samsung

Samsung DV448AE series Manuel utilisateur

Samsung

Samsung FlexDry DVG60M9900 Manuel utilisateur

Samsung

Samsung DV409AEW Manuel utilisateur

Samsung

Samsung DV363EWBEUF/A1 Manuel utilisateur

Samsung

Samsung DV48H7400E(G) Manuel utilisateur

Samsung

Samsung DVEG45T3400 Series Manuel utilisateur

Samsung

Samsung DV56H9000G Series Manuel

Samsung

Samsung DV331AE Series Manuel utilisateur

Samsung

Samsung DVE54M8750 Series Manuel utilisateur

Samsung

Samsung DVG50R5400 Series Manuel utilisateur

Samsung

Samsung DVE47CG3500 Series Manuel utilisateur

Samsung

Samsung DVE22N6850W Manuel utilisateur

Samsung

Samsung DV45K7100E(G) series Manuel utilisateur

Samsung

Samsung DV50K8600EW Manuel utilisateur

Samsung

Samsung DV422 Series Manuel utilisateur

Samsung

Samsung DV435GTGJRA Manuel utilisateur

Samsung

Samsung DV48H7400E DV48H7400G Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
