Samsung DW60M6050 Series Instructions de montage
DISHWASHER
REPAIR Guide
DISHWASHER
BASIC MODEL : DW60M6050 series
DW60M6040 series
MODEL NAME : DW60R7070 Series
DW60R7050 Series
DW60R7040 Series
MODEL CODE : DW60R7070BB DW6KR7071BB
DW60R7070US DW60R7070UW
DW60R7070UG DW60R7050BB
DW6KR7051BB DW60R7050SS
DW6KR7051SS DW60R7050SG
DW60R7050US DW6BR7051US
DW60R7050FS DW60R7050FW
DW60R7040BB DW6KR7041BB
DW60R7040US DW60R7040UW
DW60R7040FS DW60R7040FW
DW6*R70**U* DW6*R70**F*DW6*R70**BB DW6*R70**S*
* For End User.
IMPORTANT SAFETY NOTICE
Following the repair by a non-authorized service provider self-repair or
non-professional repair of the product Samsung is not liable for any
damage to the product any injury or any other product safety issue caused
by any attempt to repair the product which does not carefully follow these
repair and maintenance instructions. Any damage to the product caused by
an attempt to repair the product by any person other than a Samsung
certified service provider will not be covered by the warranty.
All rights reserved.
This service guide may not be reproduced in whole or
as a part in any form whatsoever without the written permission of
the SAMSUNG ELECTRONICS Company.
WARNING
Note
1. You can check where to buy replacement parts at http://samsung.com
2. Visit the part purchase site and enter the model code of your product to check the parts available
for purchase. The model code is labelled on the edge of the tub. When you open the dishwasher’s
door, you can check the model code and version on the barcode label at the left side of the tub.
3. For replacement parts make sure the part name matches that of the illustration in this manual.
- User-serviceable parts are limited to door hinge and seals other seals spray arms drain lters
interior racks and plastic peripherals such as baskets and lids.
Caution
1. The part name listed on the site may differ from that in this manual. Please make sure you choose
the right part name.
2. Be sure to wear safety gloves while making repairs.
3. Must working more than 2 people to handling heavy weight.
Tools For Removal And Reassembly _ 3
1. TOOLS FOR REMOVAL AND REASSEMBLY
Tool image
No. Tool Type Remarks
①Adjustable Wrench
②Open-end Wrench 1-7/16”
③Vice Pliers
④Others
(screwdriver, nipper, long nose pliers) Common tools for servicing
Screwdriver – Phillip, Flat, Torx T15
⑤Ear clamping tool In reassembling of the clamp-bend(ear clamp) using our
SVC part, this tool is needed.
NOTE :
Preparation for parts replacement
1. Take out the residual water inside the product. (Drain the water by operating the drain pump)
2. Close the water supply valve.
3. Turn off the power & disconnect power cable.
You must turn off the circuit breaker connected to the product.
4. Pull out the unit from the sink and lay it on the oor.
Be careful of the drain hose when pulling out the unit.
4 _ Standard Disassembly Drawings
2. STANDARD DISASSEMBLY DRAWINGS
2-1. PRECAUTION
Caution
Before servicing,
- Make sure to remove all items include baskets inside dishwasher.
- Drain the water in the dishwasher and disconnect the power supply.
- Lock the water faucet that connected with inlet hose.
- Uninstall the dishwasher from the furniture cabinet except simple work.
- Disconnect the Inlet & Drain hoses from the duct, if the hoses are too short to pull the dishwasher out of the furniture
cabinet enough.
- Make sure to remove any remaining water in the Sump and hoses by rag or vacuum.
→ There is a risk of water spill on the oor.
Standard Disassembly Drawings _ 5
2-2. GASKET BRAKE / CAP CASE BRAKE
- Gasket Brake : DD81-02726A / SVC-GASKET-BRAKE
- Cap Case Brake : DD81-02725A / SVC-CAP CASE BRAKE
Part Figure Description
GASKET
BRAKE / CAP
CASE BRAKE
A
B
[DISASSEMBLY]
1. Remove 3 screws that connect left SIDE PANEL to
front side of dishwasher.
■ Type A: DD81-02693A / 2 pcs
■ Type B: DD81-02694A / 1 pc
Warning
Be sure to remove the power plug before servicing.
NOTE :
In case of Free Standing models, there’re no
screws of type B.
C
B
2
1
2. Remove 3 screws at the back side of dishwasher.
■ Type C: DD81-02692A / 1 pc
■ Type B: DD81-02694A / 2 pcs
NOTE :
In case of Free Standing models, take off the
COVER TOP by removing 2 screws of type A.
After removing screws, pull the COVER TOP
backward rst, and take it off upward.
Guide Tub Top
3. Remove 1 screw at the left side of GUIDE TUB
TOP.
■ Screw: DD81-02694A / 1 pc
6 _ Standard Disassembly Drawings
Part Figure Description
GASKET
BRAKE / CAP
CASE BRAKE
4. Take off the left SIDE PANEL.
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
5. Take off the CAP CASE BRAKE by rotating to
counter-clockwise direction with long-nose pliers.
Caution
It can be broken easily when you use iron part of
the pliers. Take off the cap using handle part to
prevent damage.
Cap Case brake Gasket brake
6. Remove the GASKET BRAKE from the CASE
BRAKE assembly.
[ASSEMBLY]
1. Put the GASKET BRAKE on the CASE BRAKE,
and fasten the CAP CASE BRAKE by rotating to
clockwise direction with long-nose pliers.
Caution
It can be broken easily when you use iron part of
the pliers. Take off the cap using handle part to
prevent damage.
Caution
Pay attention to assemble the seal correctly.
It can cause the water leakage when it’s
assembled wrong.
2. Assemble the left SIDE PANEL with the screws.
Caution
Fasten the screws that was assembled to origin
location. Don’t assemble to other locations.
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
Standard Disassembly Drawings _ 7
2-3. COVER TOP
- Cover Top : DD81-02552C / SVC-COVER TOP (DW6*R70**FS)
DD81-02552D / SVC-COVER TOP (DW6*R70**FW)
Part Figure Description
COVER TOP
(Only for Free
standing models /
DW6*R70**F*)
[DISASSEMBLY]
1. Release 2 screws.
■ Screws: DD81-02692A / 2 pcs
Warning
Be sure to remove the power plug before servicing.
1
2
2. Pull the COVER TOP backward to release hooks,
and take it off upward.
1
2
Hook Of Cover Top
Guide Of Cover Top
Tub Frame
[ASSEMBLY]
1. Put the COVER TOP on the top of dishwasher, and
push it forward to assembly.
NOTE :
Pay attention to lock the hooks(COVER TOP) to
TUB FRAME.
2. Fasten 2 screws.
■ Screws: DD81-02692A / 2 pcs
8 _ Standard Disassembly Drawings
2-4. SIDE PANEL / GUIDE TUB TOP / COVER TUB REAR
- Side Panel : DD81-02880A, DD81-02881A / SVC-HOUSING-LEFT, RIGHT (DW6*R70**FS)
DD81-02880C, DD81-02881C / SVC-HOUSING-LEFT, RIGHT (DW6*R70**FW)
- Guide Tub Top : DD81-02733A / SVC-GUIDE TUB TOP
- Cover Tub Rear : DD81-02734A / SVC-COVER TUB REAR

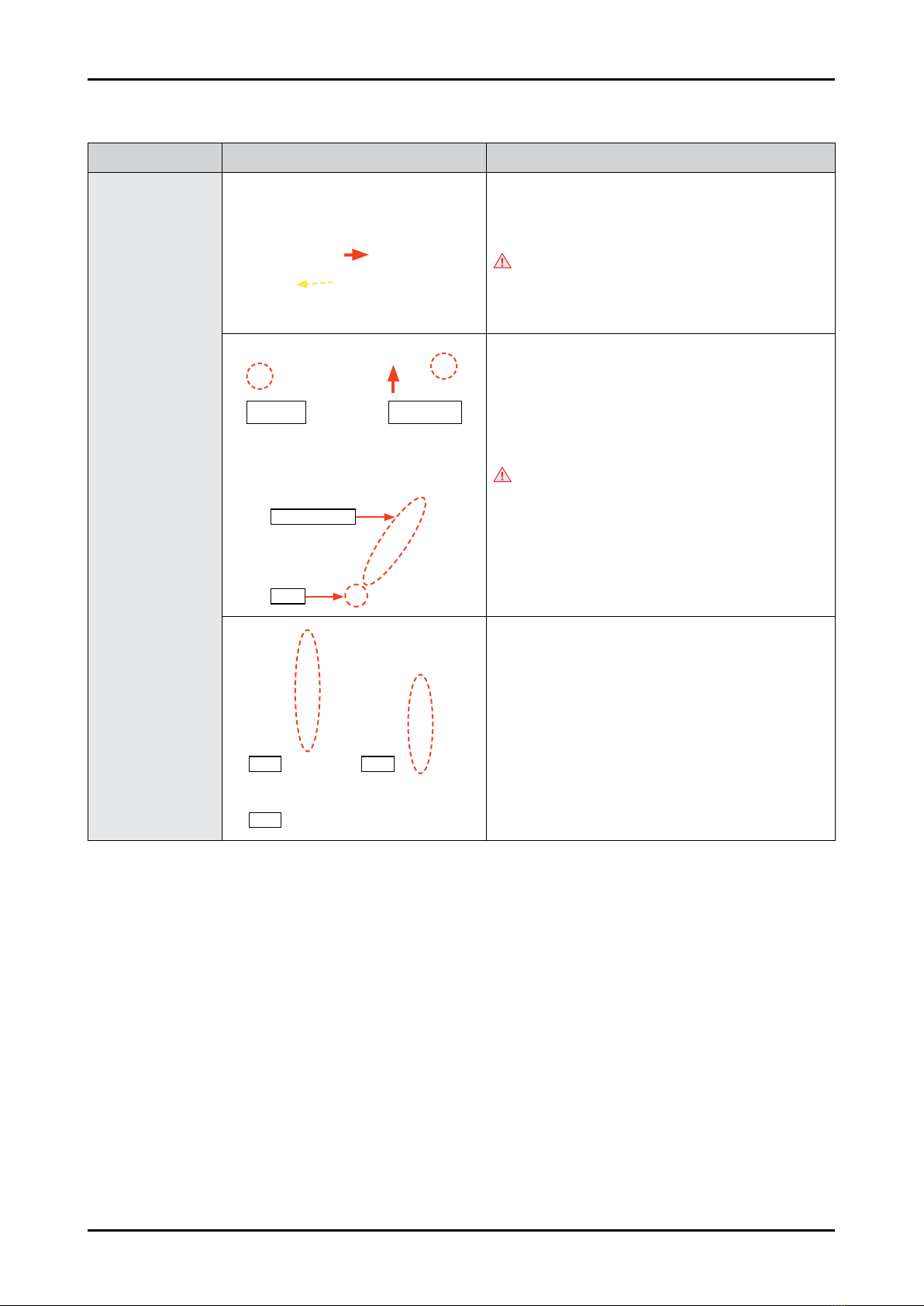

Part Figure Description
SIDE PANEL/
GUIDE TUB TOP/
COVER TUB
REAR
(DW6*R70**F*)
[DISASSEMBLY]
1. Release 2 screws.
■ Screws: DD81-02692A / 2 pcs
Warning
Be sure to remove the power plug before servicing.
1
2
2. Pull the COVER TOP backward to release hooks,
and take it off upward.
A
B
Cover Tub Rear
B
Guide Tub Top
3. Release Screws.
■ Front side : Type A: DD81-02693A / 4 pcs
■ Rear side : Type B: DD81-02694A / 4 pcs
■ Top side : Type B: DD81-02694A / 2 pcs
Standard Disassembly Drawings _ 9
Part Figure Description
SIDE PANEL/
GUIDE TUB TOP/
COVER TUB
REAR
(DW6*R70**F*)
Not to get
stuck
Could be dented
Hook
4. Take the SIDE PANEL off a little, just enough not to
get stuck to TUB FRAME.
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
Caution
Be careful not to be dented SIDE PANEL because
of hook.
Side Panel Left Side Panel Right
Guide Tub Top
Cover Tub Rear
5. Pull the SIDE PANEL off from the COVER PLINTH.
GUIDE TUB TOP and COVER TUB REAR are
disassembled together.
[ASSEMBLY]
1. Assemble the GUIDE TUB TOP and COVER TUB
REAR to back of dishwasher.
Caution
They are not xed without SIDE PANEL.
Recommend to work by 2 people.
10 _ Standard Disassembly Drawings
Part Figure Description
SIDE PANEL/
GUIDE TUB TOP/
COVER TUB
REAR
(DW6*R70**F*)
2. Put the hook of SIDE PANEL into the COVER
PLINTH.
Warning
Do not this work without safety gloves. It can cause
injury from sharp edge.
On The Tub
Frame On The Guide
Tub Top
Could be dented
Hook
3. Assemble the SIDE PANEL left & right to each side.
Caution
Be careful not to be dented SIDE PANEL because
of hook.
Front
Top
Rear
4. Make sure to t the SIDE PANEL correctly.
