Samsung DW60M9990AP Manuel utilisateur
Dishwasher
Installation manual
DW60M9990AP
DW9900M_DD68-00197B-01_EN.indd 1 2017-09-04 4:42:11
Installation
English 3
Installation
Follow these instructions carefully to ensure proper installation of the dishwasher and to
prevent accidents when washing dishes.

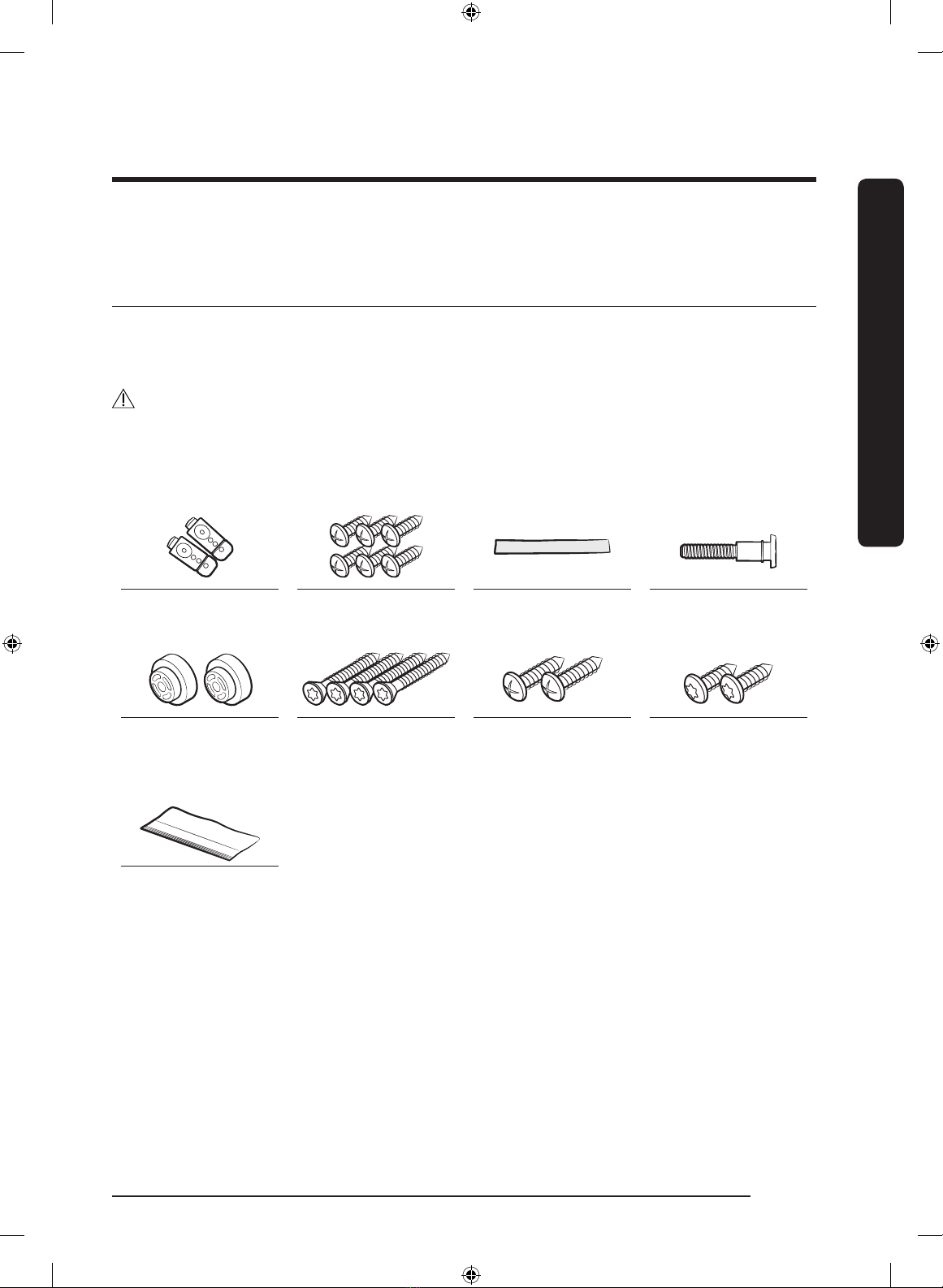

What’s included
Make sure all the parts are included in the product package. If you have a question about
the dishwasher or the parts, contact a local Samsung customer center or your retailer. The
actual appearance of the dishwasher may differ, depending on your model and country.
CAUTION
After unpacking the dishwasher, keep the packaging materials out of children’s reach to
ensure their safety.
DW60M9990AP
Top brackets (2 ea) Ø4 X 12 screws
(6 ea)
Protective sticker Sub foot
Custom panel
xers (wood panel
holders, 2 ea)
Ø4 X 43 screws
(4 ea)
Ø4 X 20 screws
(2 ea)
Ø4 X 16 screws
(2 ea)
Rubber skirt
DW9900M_DD68-00197B-01_EN.indd 3 2017-09-04 4:42:11
Installation
Installation
English4

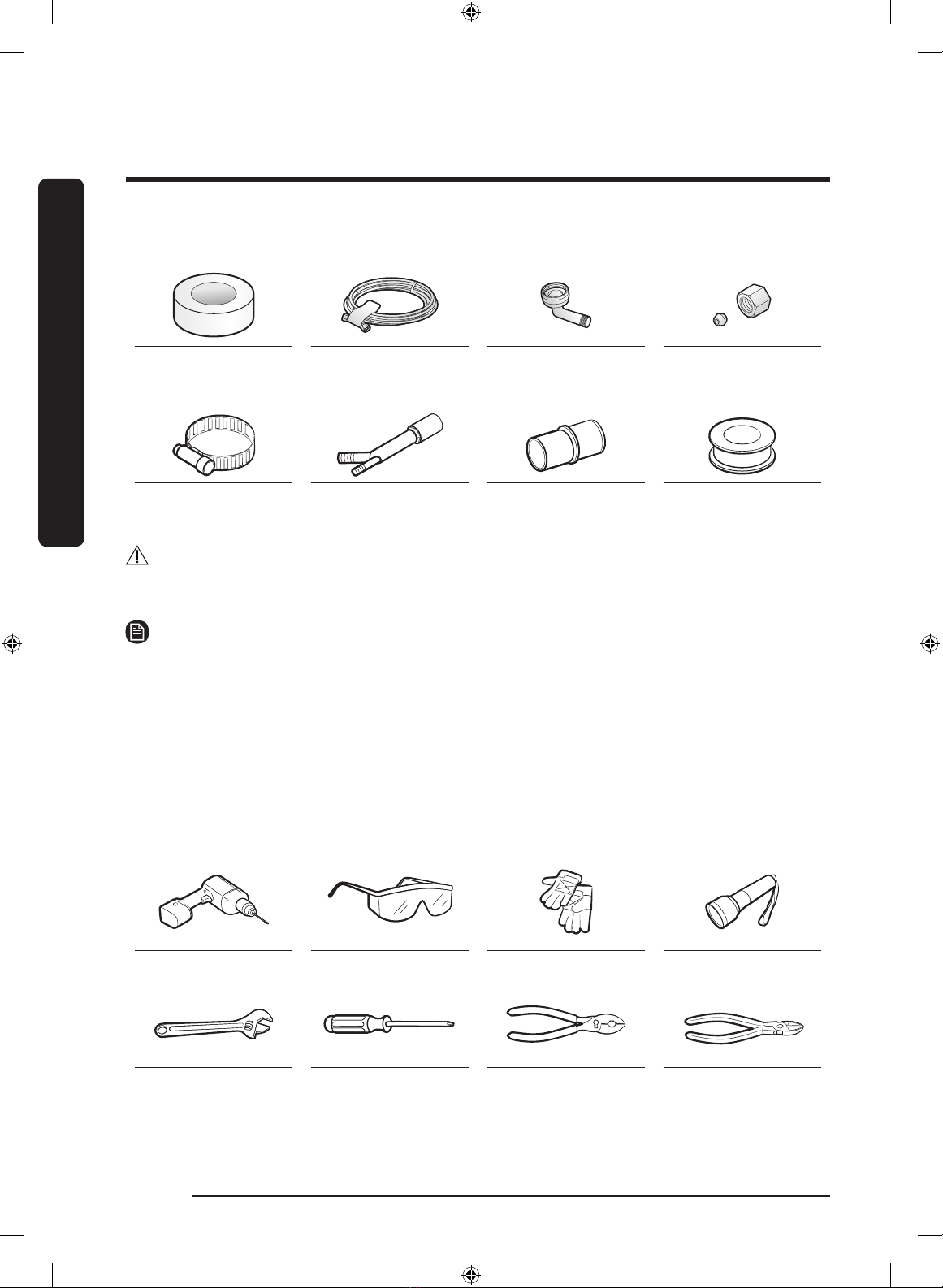

Installation kit (not provided)
Electrical tape &
Standard duct tape
Hot water line 90°Fitting (⁄") Tube ttings
Hose clamp Air gap Rubber connector Teon tape or
sealing compound
WARNING
Do not use plastic tubing. Plastic tubing can deteriorate over time and cause a leak inside
the tube tting.
NOTE
• For the hot water line, we strongly recommend using ⁄" minimum O.D. copper tubing
with a compression tting or a exible stainless steel braided hot water supply line.
• You also need a 90°Fitting with ⁄" N.P.T. external pipe threads on one end and a tting
sized to t your hot water line (copper tubing/compression tting or braided hose) on
the other.
• For the power cable, we recommend a jacketed grounded 12-2 cable. Note that some
local codes may require the cable to have a BX style metal jacket.
Tools required (not provided)
Electric drill Safety glasses Gloves Flashlight
Adjustable wrench Torx T20 Pliers Nipper
DW9900M_DD68-00197B-01_EN.indd 4 2017-09-04 4:42:12
Installation
English 5

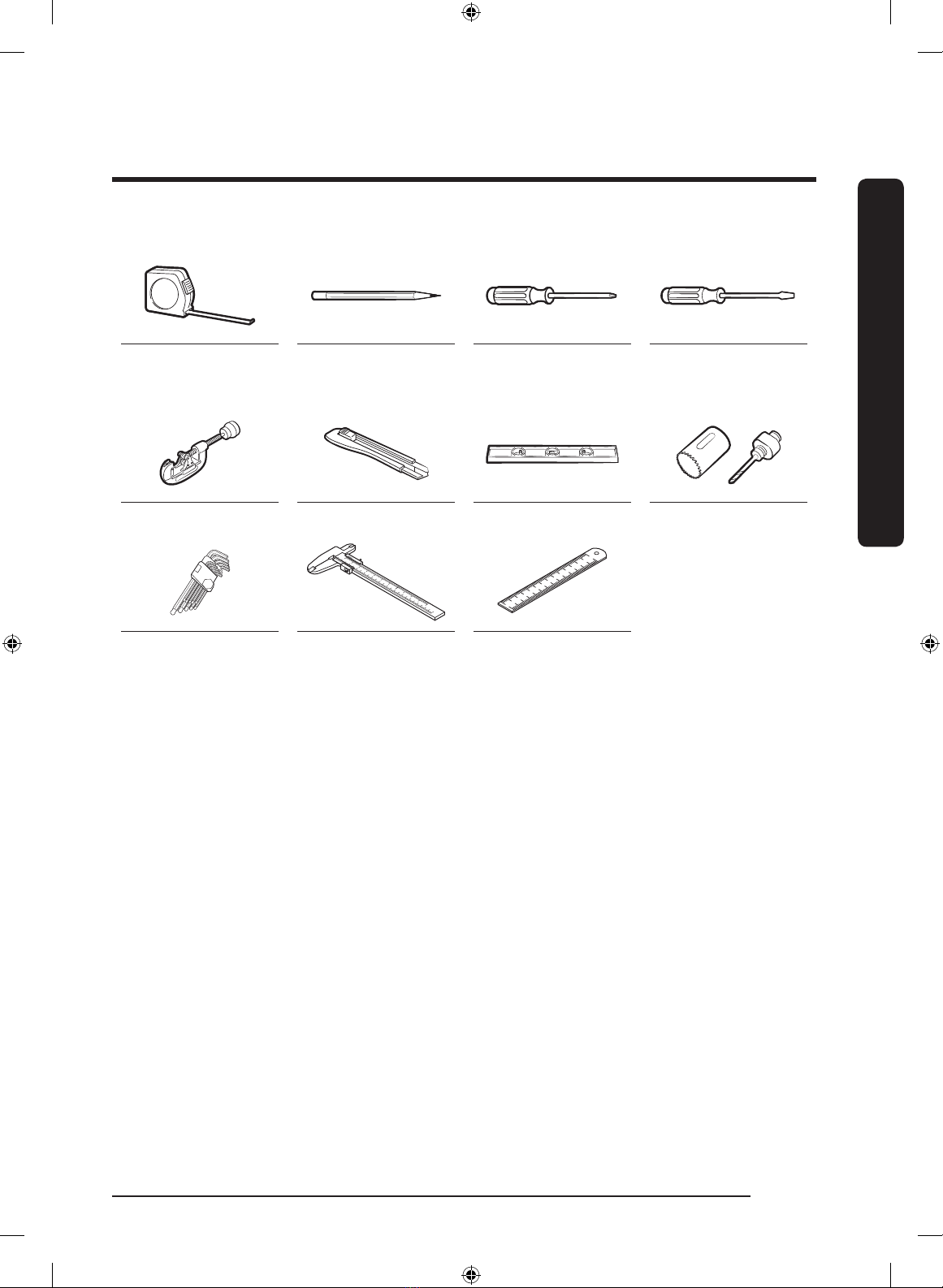

Tape measure Pencil Phillips screwdriver Flat head
screwdriver
Tubing cutter Cutting knife Level Hole saw
Hex L-wrench Vernier calipers Steel ruler
DW9900M_DD68-00197B-01_EN.indd 5 2017-09-04 4:42:13
Installation
Installation
English6

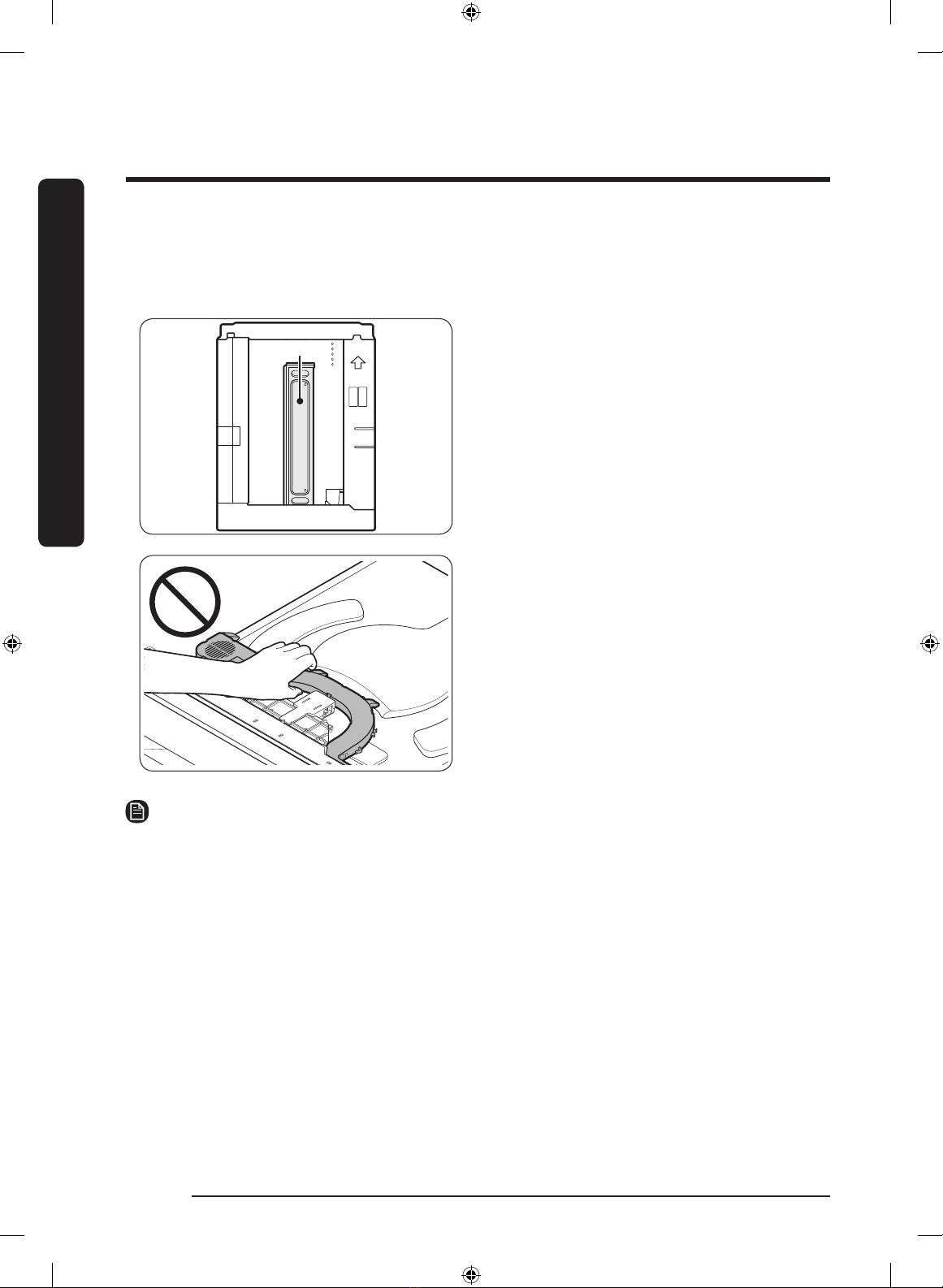

Unpacking
Unpack the dishwasher in an open area free of obstruction. We recommend keeping all
the packing materials until the dishwasher is completely installed.
Kick plate
1. Position the carton right-side-up with
the top arrows pointing upwards.
2. Unbuckle or cut the straps securing the
packaging.
3. Unpack the product packaging with
care.
4. Inspect every component for any signs
of damage.
5. Locate and set aside the dishwasher's
kick plate. The kick plate is attached
beside of the dishwasher.
6. Lift the dishwasher from the packing
material, and then place it on the oor.
NOTE
• There are also packing materials inside the dishwasher. Leave them in place until the
dishwasher is installed.
• Do not remove the sound-absorbent padding that surrounds the exterior of the
dishwasher.
DW9900M_DD68-00197B-01_EN.indd 6 2017-09-04 4:42:13
Installation
English 7
Installation requirements
To prevent a risk of re, electric shock, or
personal injury, all wiring and grounding
must be done by a qualied technician.
Power supply
• To prevent the risk of re, electric
shock, or personal injury, all wiring
and grounding must be performed in
accordance with the National Electrical
Code ANSI/FNPA, No. 70 Latest Revision
and local codes and ordinances. It is the
personal responsibility of the appliance
owner to provide adequate electrical
service for this appliance.
• When preparing for installation, make
sure that your power supply provides
an individual 120 Volt, 60 Hz branch
circuit serving only your dishwasher
with a 15 AMP fuse or circuit breaker.
• Your dishwasher must be grounded. If
your dishwasher malfunctions or breaks
down, grounding will reduce the risk of
electric shock by providing a path of
least resistance for the electric current.
WARNING
• Do not use an extension cord.
• Use only the power plug that comes
with the dishwasher.
Grounding
For permanent grounding, the dishwasher
must be properly grounded to a grounded
metal or permanent wiring system. The
grounding conductor must be run with
the circuit conductors and then connected
to the grounding terminal or lead on the
dishwasher.
WARNING
• Do not connect the ground wire to
plastic plumbing, gas lines, or hot water
pipes. Improperly connected grounding
conductors may cause electric shock.
• Do not modify the power plug of the
dishwasher. If the power plug does
not t the outlet, have a proper outlet
installed by a qualied electrician.
DW9900M_DD68-00197B-01_EN.indd 7 2017-09-04 4:42:13
Installation
Installation
English8
Water supply
• The hot water supply line must support
water pressures between 20 psi and
120 psi (140-830 kPa).
• Water temperatures must be between
120 °F (49 °C)and 149 °F (65 °C).
To reduce a risk of leaks:
• Make sure water taps are easily
accessible.
• Turn the water tap off when the
dishwasher is not in use.
• Check for any leaks at the water hose
ttings on a regular basis.
Flooring
For safety, the dishwasher must be
installed on a solidly constructed oor.
Wooden oors may need to be reinforced
to minimize vibrations. Avoid installing
on carpet or soft tile. Carpeting and soft
tile may cause vibrations and may cause
your dishwasher to move slightly while
operating.
WARNING
Do not install the dishwasher on a poorly
supported structure.
DW9900M_DD68-00197B-01_EN.indd 8 2017-09-04 4:42:13
Installation
English 9

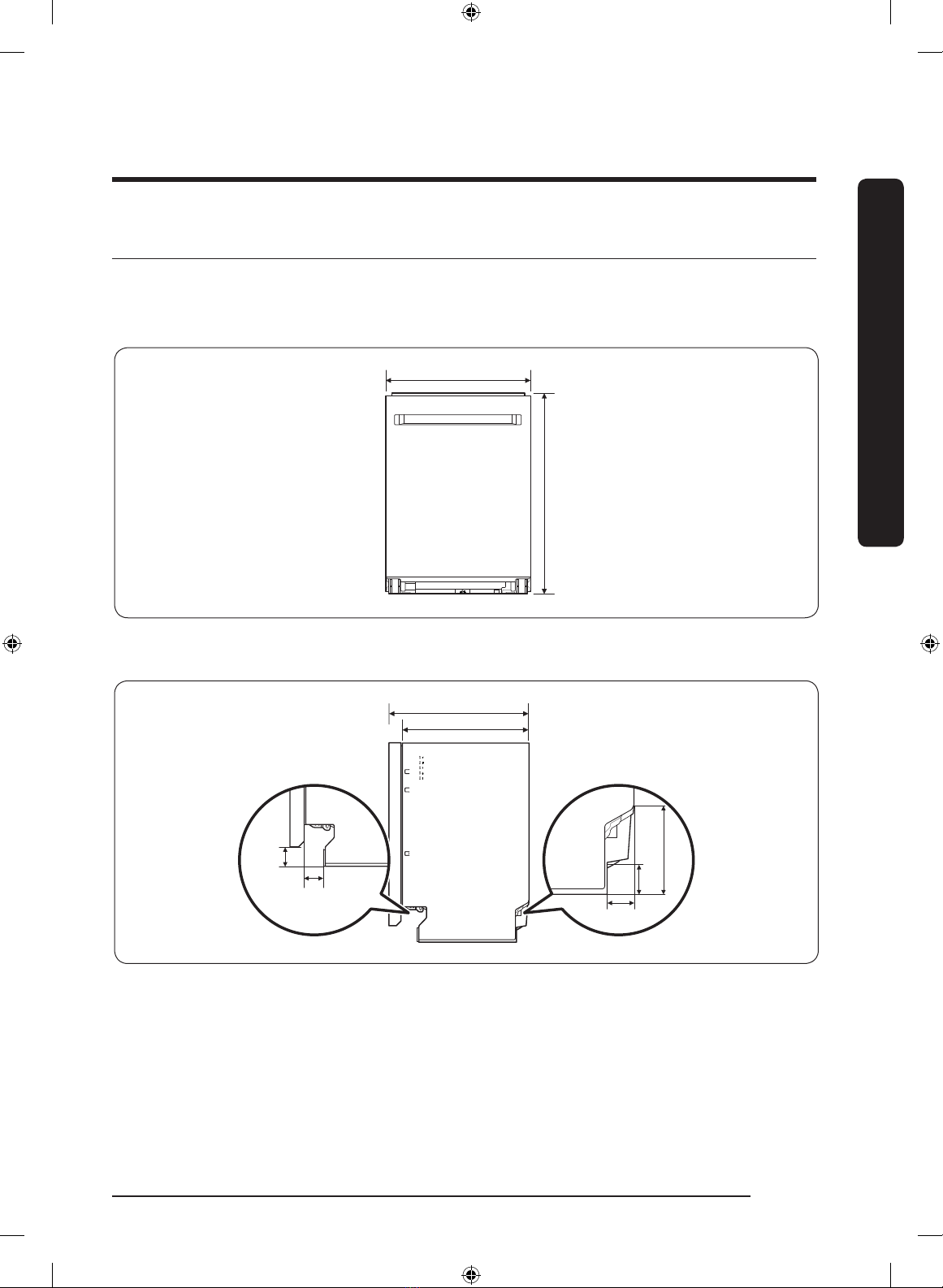

Dimensions and specications
Dishwasher
DW60M9990AP
23⁄" (598 mm)
32⁄"-34⁄" (820-880 mm)
Front view
2⁄" (67 mm)
2⁄" (70 mm)
20⁄" (520 mm)
21⁄" (555 mm)
6" (152 mm)
2" (50 mm)
2⁄" (60 mm)
Side view
DW9900M_DD68-00197B-01_EN.indd 9 2017-09-04 4:42:14
Installation
Installation
English10

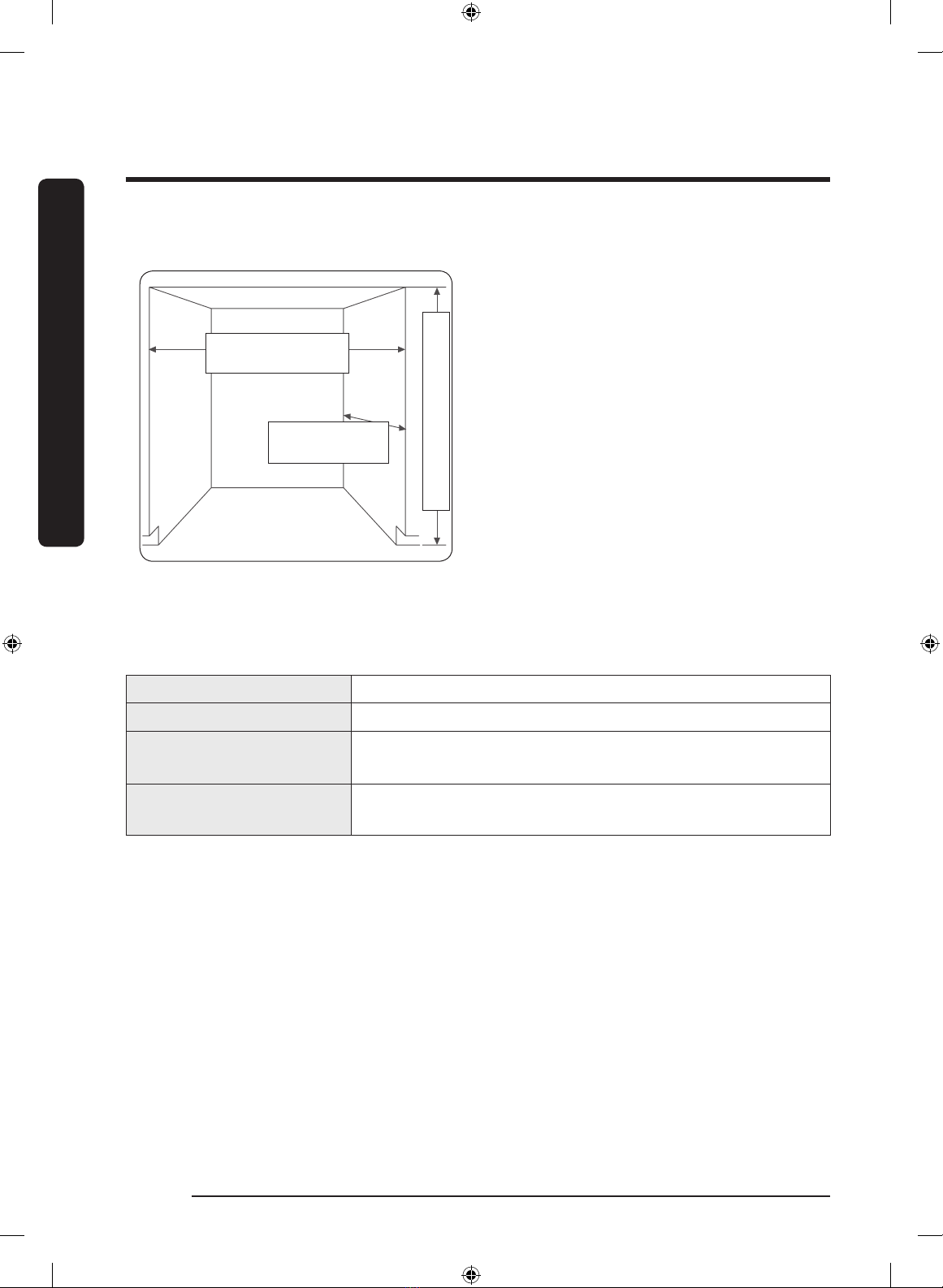

Cabinet
23⁄" (603.0 mm)
minimum
22⁄" (580 mm)
minimum
34⁄" - 34⁄" (874-886 mm)
• This dishwasher is designed to be
enclosed on the top and on both sides
by a standard, residential kitchen
cabinet.
• The installation enclosure must be clean
and free of any obstructions.
• The enclosure must be at least 23⁄"
wide, 22⁄" deep, and 34⁄" high.
• For the front door of the dishwasher to
be ush with the leading edge of the
countertop, the countertop must be at
least 23 inches deep.
Specications
Specications are subject to change without notice for improved quality. The actual
appearance of the dishwasher may differ from the illustrations in this manual.
Power supply 120 V, 15 A, 60 Hz AC
Water pressure 20 - 120 psi (140 - 830 kPa)
Dimensions
(Width x Depth x Height)
DW60M9990AP :
231/2" X 217/8" X 321/4" (598 X 555 X 820 mm)
Minimum inlet water
temperature 120 °F (49 °C)
DW9900M_DD68-00197B-01_EN.indd 10 2017-09-04 4:42:14
