Samsung DW60 8 Series Instructions de montage
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
DISHWASHER
DISHWASHER
REPAIR
Guide
Basic model : DW60M9970US
Model Name : DW60**8***Series
Model Code :
DW60BG850UB1
DW60BG850I00
DW60BG850I00
DW60BG850I00
DW60BG850FSL
DW60BG850FSL
DW60BG850FSL
DW60BG850B00
DW60BG830I00
DW60BG830I00
DW60BG830FSL
DW60BG830FSL
DW60BB890UAP
DW60BB890UAP
DW60BB890FAP
DW60BB890FAP
DW60BB890FAP
DW60CB895UAP
DW60CG880B00
DW60CB880FSL
DW60BG770FSL
DW60BG770FGL
DW60BG750USL
DW60BG750SSL
DW60BG750FSL
DW60BG750FSL
DW60BG750FSL
DW60BG750FSL
DW60BG750FSL
DW60BG750B00
DW60BG750B00
DW60BG750B00
DW60BG730FSL
DW60BG730FSL
DW60BG730FSL
DW60BG730B00
DW60BB770APT
DW60**7***Series
* For End User.
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
This Document can not be usedwithout Samsung’s authorization.
IMPORTANT SAFETY NOTICE
Following the repair by a non-authorized service provider self-repair or non-professional
repair of the product Samsung is not liable for any damage to the product any injury or
any other product safety issue caused by any attempt to repair the product which does
not carefully follow these repair and maintenance instructions. Any damage to the
product caused by an attempt to repair the product by any person other than a
Samsung certified service provider will not be covered by the warranty.
All rights reserved.
This service guide may not be reproduced in whole or
as a part in any form whatsoever without the written permission of
the SAMSUNG ELECTRONICS Company.
WARNING
Note
1. You can check where to buy replacement parts at http://www.samsung.com/support/
2. Visit the part purchase site and enter the model code of your product to check the parts available
for purchase. The model code is labelled on the edge of the tub. When you open the dishwasher’s
door, you can check the model code and version on the barcode label at the left side of the tub.
3. For replacement parts make sure the part name matches that of the illustration in this manual.
- User-serviceable parts are limited to door hinge and seals other seals spray arms drain lters
interior racks and plastic peripherals such as baskets and lids.
Caution
1. The part name listed on the site may differ from that in this manual. Please make sure you choose
the right part name.
2. Be sure to wear safety gloves while making repairs.
3. Due to the heavyweight it is recommended for 2 or more people to handle the product.
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
Disclaimer:
This manual contains condential and proprietary information of Samsung
Electronics Co., Ltd. ("Samsung")
All text, graphics, user interfaces, visual interfaces, photographs,
trademarks, and logos (collectively, "Content"), including but not
limited to the design, structure, selection, coordination, "look and feel"
and arrangement of such Content, contained in this manual is owned,
controlled or licensed by or to Samsung, and is protected by trade dress,
copyright, patent and trademark laws, and various other intellectual
property rights and unfair competition laws.
No part of this manual or the Content may be copied, reproduced,
republished, uploaded, posted, publicly displayed, encoded, translated,
transmitted or distributed in any way (including "mirroring") to anyone, any
entity, any other computer, server, Web site or other medium for publication
or distribution or for any commercial purpose, without Samsung’s express
prior written consent.
Samsung reserves the right, at its sole discretion, to change, modify,
add or remove portions of any part of this manual at any time. It is your
responsibility to check the manual periodically for changes. Your use of the
manual will mean that you accept and agree to this disclaimer. If you do
not agree with any part of this disclaimer, please stop using this manual
immediately.
This Document can not be usedwithout Samsung’s authorization.
4 _ Disassemblyand Reassembly
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
This Document can not be usedwithout Samsung’s authorization.
Part Figure Description

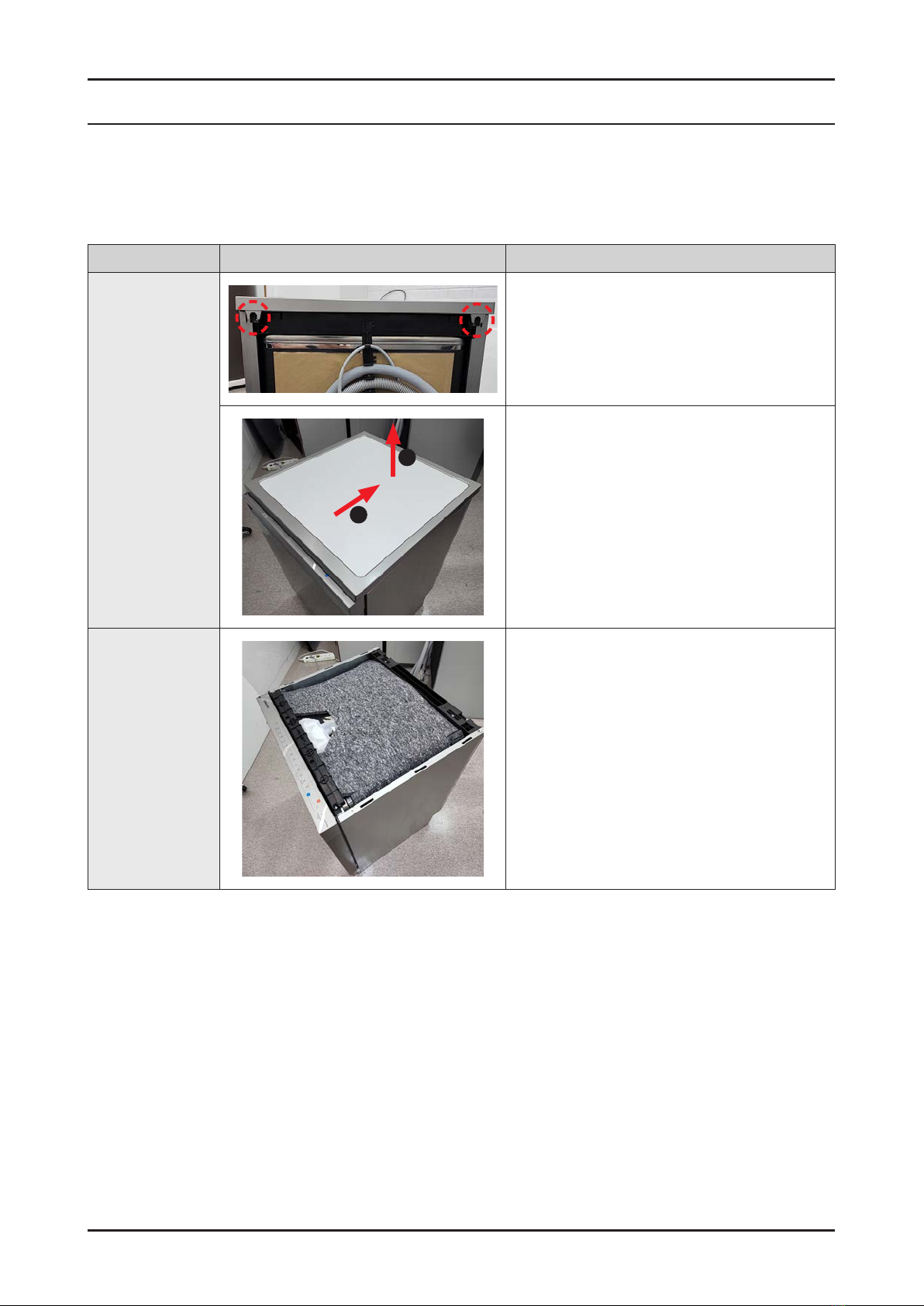

ASSY COVER TOP
[DISASSEMBLY]
1. Remove 2 screws at back of ASSY COVER TOP.
2
12. PulltheCOVERTOPbackwardrst,andtakeitoff
upward.
ASSY COVER TOP
[ASSEMBLY] *Reassemblyisthereverseorderofdisassembly.
1. DISASSEMBLY AND REASSEMBLY
1-1. DISASSEMBLY AND REASSEMBLY
1-1-1. ASSY COVER TOP
Disassemblyand Reassembly _ 5
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
This Document can not be usedwithout Samsung’s authorization.
Part Figure Description
SEALTUB PACKING
[DISASSEMBLY]
BRACKET SEAL TUB
SEAL TUB PACKING
1. Remove the old seal from the BRACKETSEAL TUB.
Besuretoremovethepowerplugbeforeservicing
Be careful to touch the BRACKET SEALTUB afterremoved
theseal.Itmaycauseinjuryfromsharpedges.
SEALTUB PACKING
[ASSEMBLY]
1. PutsomewateronnewSEALTUBPACKINGtoassemble
iteasily.FoldtheSEALTUBPACKINGinhalfwiththetip
ofthesealfacinginward.
CAUTION
Payattentiontothedirectionofseal.Ifitisassembledin
reverse,itmaycauseleakageofsteamorwater.
SEAL TIP
InserttoBracketsealtub
Sealtipfacestoinside
Center
About 20cm
2. AssembletheSEALTUBPACKINGtocenterofthe
BRACKETSEAL TUB. Press seal about 20 cm (red dotted
line)onbothsidesbasedonthecenterline.
About 3~4cm
3. PutSealintheleft&rightsideofthebottom.
Thefoldedsealisabout3~4cmlong.
1-1-2. SEALTUB PACKING
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
This Document can not be usedwithout Samsung’s authorization.
Part Figure Description
SEALTUB PACKING
[ASSEMBLY]
4. Pressthesealfromthetopcornertowardremainingside.
CAUTION
Payattentiontoassemblenottodeformthesealtip
atthecorner.Ifthegapisopened,itmaycausesteam
leakage.
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
This Document can not be usedwithout Samsung’s authorization.
Part Figure Description

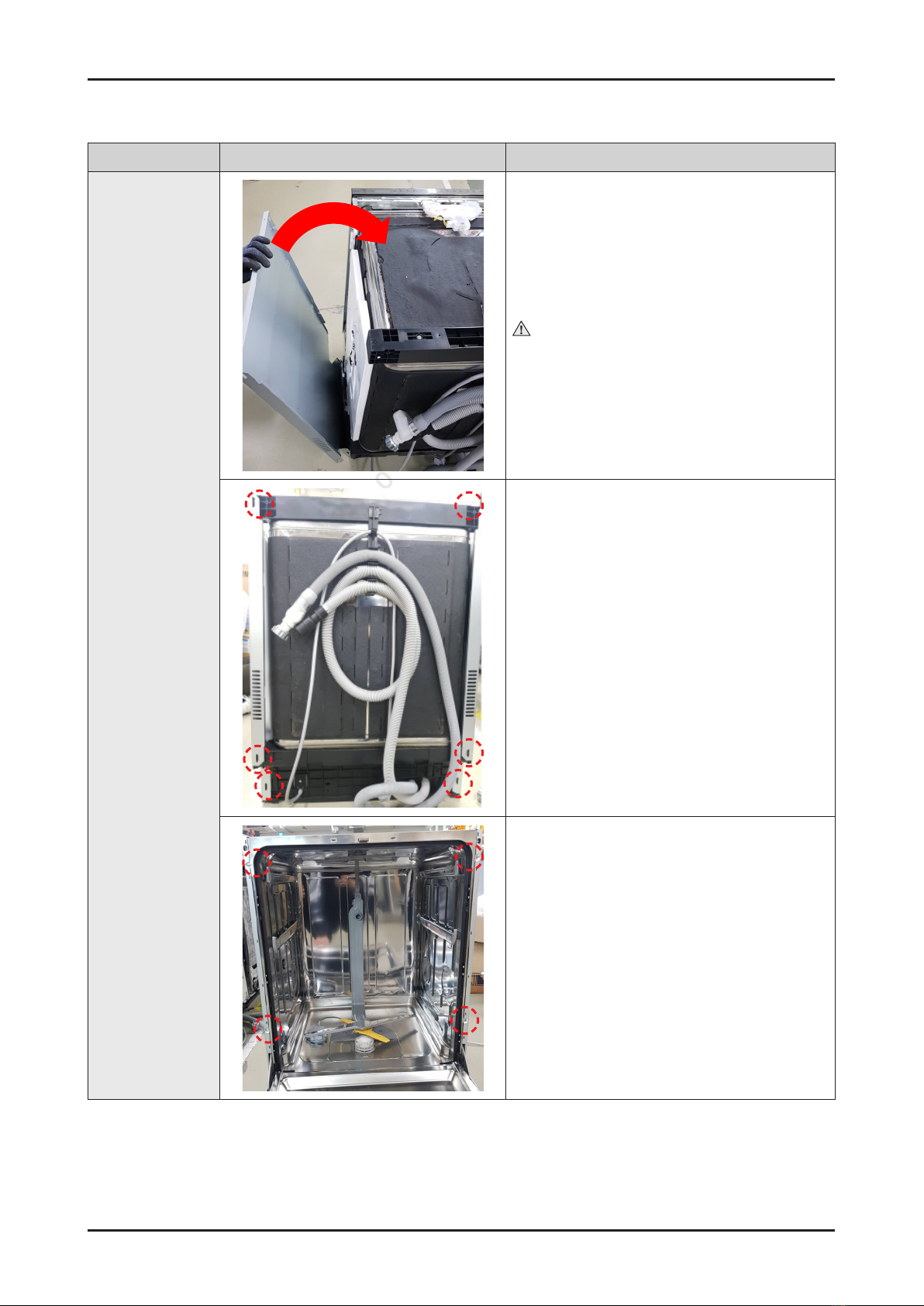

HOUSING
[DISASSEMBLY]
1. Remove4screwsatfrontofHOUSING
2. Release6hooksatbackofDishwashertoremove
HOUSING
3. RemoveHOUSINGfromDishwasher.
CAUTION
Donotdothisworkwithoutsafetygloves.
Itmaycauseinjuryfromsharpedges.
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
This Document can not be usedwithout Samsung’s authorization.
Part Figure Description
HOUSING
[ASSEMBLY]
1. AssembleHousingtosideofDishwasher
CAUTION
Donotdothisworkwithoutsafetygloves.
Itmaycauseinjuryfromsharpedges.
2. Secure6hooksatbackofDishwasher
3. Fasten4screwsatfrontofHOUISNG
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
This Document can not be usedwithout Samsung’s authorization.
Part Figure Description

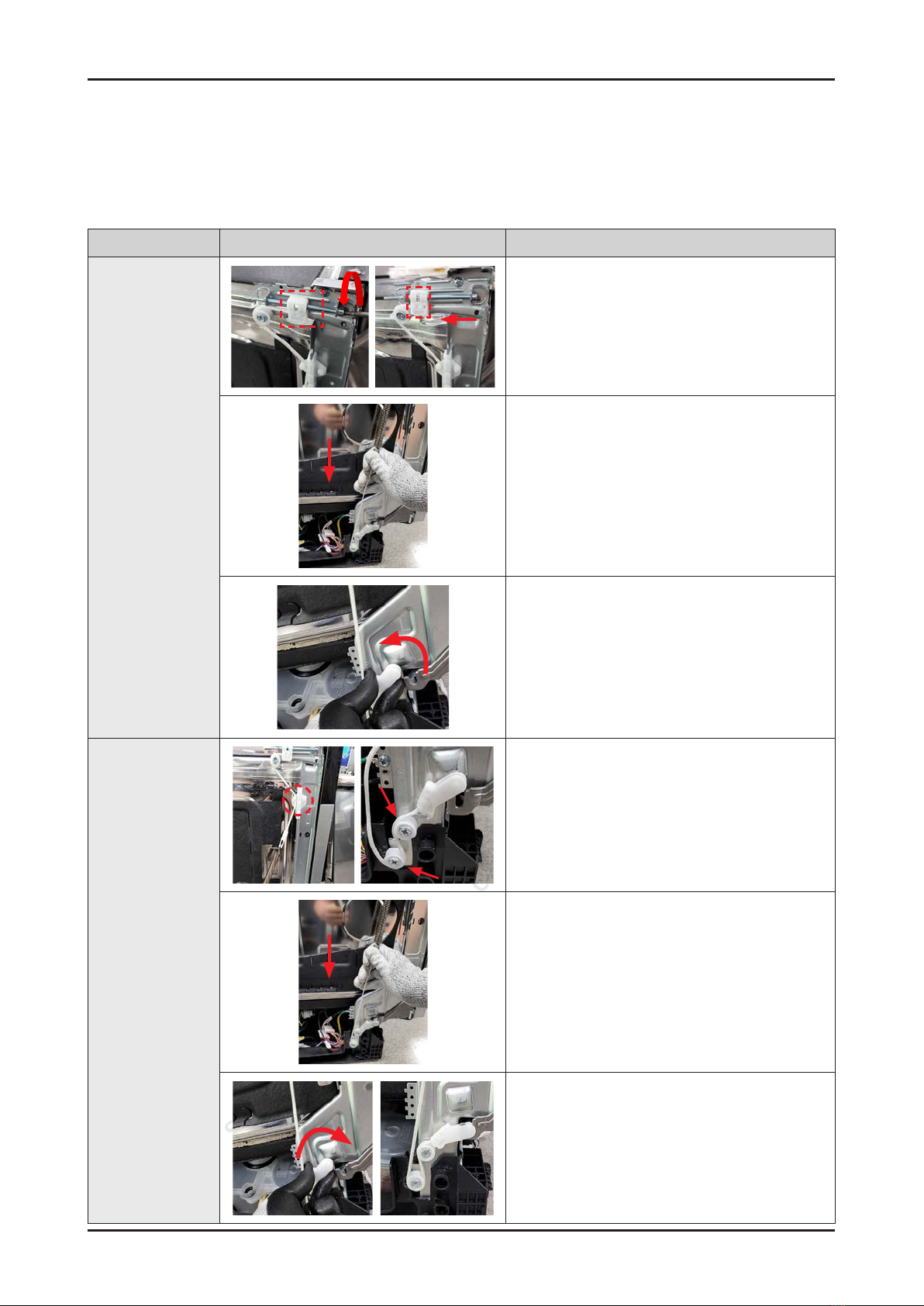

DOOR SPRING
[DISASSEMBLY]
Preparation:DisassembleHOUSINGfromDishwasher
1. TurnSHAFT-ADJUSTERcounterclockwiseto
loosenspring
2. Toloosentheforceonthehinge,pulltheropedown
andhold
3. separateHOLDERROPEfromhinge
DOOR SPRING
[ASSEMBLY]
1. Assemble rope at BRACKETWIRE
2. Assembleropewith2rollers
3. Toloosentheforceonthehinge,pulltheropedown
andhold
4. AssembleHOLDERROPEtoHINGE
1-1-4. DOOR SPRING
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION
This Document can not be usedwithout Samsung’s authorization.
Part Figure Description
ASSY DOOR
[DISASSEMBLY]
Preparation:DisassembleHOUSINGfromDishwasher
1. Remove1screwatSUPPORTHINGE-RIGHTtoremove
Groundwirefromthedoor
2. Disassemble3connectorsfromthedoor
3. Release2hooksanddisassembleCOVERWIRE
Donotdothisworkwithoutsafetygloves.
Itmaycauseinjuryfromsharpedges.
4. Pulloutwiresfromdishwasher
Preparation:DisassembleHOUSINGfromDishwasher
5. ClampGUIDEHINGEwithPlierandpulloutto
disassemble.Dothesamedisassemblyontheotherside
6. Pullropedown,andtakeoffHOLDERROPEDOORfrom
DOORHINGE.Dothesamedisassemblyontheotherside
Donotdothisworkwithoutsafetygloves.
Itmaycauseinjuryfromsharpedges.
7. OpentheASSYDOOR30~45degree
8. PulloutASSYDOORtodisassemble
CAUTION
BecarefulnottodenttheDOORduringdisassembly.
1-1-5. ASSY DOOR
