SAMS Pro / SAMS Pro Lite

User Manual

English Englis_ English _3

CONTENTS

SAMS SETUP

6System Requirements

6Software Package

6General Installation

14 Running Sams

LOGGING IN SAMS PRO

16 Logging In Sams Pro

SCREEN COMPOSITION

17 Icons And Descriptions

18 Main Screen

SYSTEM MANAGEMENT

19 Device Setting Wizard

23 Building-ﬂoor Setting

24 Communication Setting

25 Loop Setting

29 Device And Reader Setting

34 Door Setting

36 Reader/input/output Setting

40 User Accounts Setting

41 User Accounts Group Settin

42 User Accounts Role Setting

43 Setting The Door Access By Users

DEVICE MANAGEMENT

44 Initialize Device

45 Device Time Setting

46 Batch Transmit By Device

47 Card Holder Batch Transmit By Device

49 Device Version And Registered No. Of User

50 Master Card Management

Contents

OPERATION MANAGEMENT

53 Company Setting

54 Department Setting

54 Title Setting

55 Position Setting

55 Company-department Setting

56 Company-title Setting

57 Company-position Setting

58 Access Type Setting

58 Fire Group Setting

60 Area Setting

62 Conﬁrm Card Has Left The Area [Area Out]

63 Graphic Map Setting

66 Patroller Setting

66 Patrol Setting

67 Patrol Status Management

4_ Contents

Contents

ATTENDANCE

79 Closing Hour [Save]

79 Work Code Setting [Save]

80 Overtime Setting

83 Work Time Code Setting

84 Work Schedule Setting

85 Closing Rule Setting

86 Holiday Setting(Attendance)

87 Reader Setting(Attendance) [Add]

87 Daily Closing

88 Monthly Closing

90 Revise Daily Closing

91 Closing Report

92 Setting The Reader (Meal Counting)

[Register]

93 Meal Count Report

ACCESS CONTROL

69 Holiday Setting

70 Time Interval Setting

71 Time Schedule

72 Access Group Setting

73 Card Holder Management

VIDEO MONITORING

94 Recorder Setup [Register]

97 Camera Settings

99 Camera Mapping

100 Search Video Data [Search & Play]

101 Recorder & Camera Settings Report

102 Live Video

103 Conﬁguring The Live Screen

104 Event Video Screen

104 Conﬁguring The Event Video Search

LIFT

105

105 Lift Setting

107 Lift Output Point Setting

109 Lift Access Group Setting

110 Lift Access Group Report

111 Accessible Floor Report By Card Holder

113 Accessible Floor Report By Lift

CARD DESIGN

115

115 New Card Design Wizard

122 Add Card Design

140 Print Employee Card

143 Setting The Allowed Card Copies

144 Individual Card Report

146 Card Report

MONITORING

148

148 Setting The Instructions

English Englis_ English _5

CONTENTS

TOOLS

149

149 E-mail/sms Server Setting [Save]

151 Recipient Setting

152 Database Backup And Restore

154 Database Backup And Restore (Auto

Management For Event Data)

155 Data Import/export

157 Options

161 Icon Setting [Save]

REPORT

162

162 Device Setting Report

163 Holiday Setting Report

164 Time Schedule Report

166 Access Group Setting Report

167 Card Holder Report

168 Allowed Card Holders By Doors

169 Accessible Door Report By Person

170 Normal Event Report

172 Alarm Report

173 Reader Event Summary

175 Access Event Summary

176 Mustering Report

177 Auditing Log Report

179 Notiﬁcation Report

180 Login/out Report

182 Patrol Report

183 Visitor Information Report

TROUBLESHOOTING

184

184 Troubleshooting

APPENDIX A.

187

187 Introduction On Sams Pro

188 Understanding Sams Pro

189 Sams Pro Conﬁgurations

190 Features

APPENDIX B.

192

192 Install Net Framework 3.5 Sp1 On Windows

Server 2008

APPENDIX C.

193

193 Setting Up The Card Reader For Card

Registration

APPENDIX D.

198

198 Sams Manager

6_ SAMS Setup

SAMS Setup

SYSTEM REQUIREMENTS

Table below shows the hardware and operating system requirements to run SAMS Pro / SAMS Pro Lite.

Hardware / OS Minimum Speciﬁcations Recommended Speciﬁcations

CPU Intel Core 2 Duo 2.4GHz Intel Core i7

Memory 2GB 4GB

VGA Memory 512MB 1GB

Display 1024 x 768 1280 x 1024

Operating System

Windows XP with SP3

Windows Vista

Windows 2008 Server

Windows 7,8 (Recommended)

※Supports both 32-bit and 64-bit operating systems.

Network 10/100/1000 Ethernet NIC

SOFTWARE PACKAGE

SAMS consists of the following:

- SAMS Pro / SAMS Pro Lite

- SAMS Pro / SAMS Pro Lite USB Keylock Driver

- SSA-X500 Installation

- User Manual

SAMS Pro / SAMS Pro Lite:

Installation ﬁles of SAMS Pro / SAMS Pro Lite

SAMS Pro / SAMS Pro Lite USB Keylock Driver:

SAMS is free of charge for controlling less than 40 doors and 1,000 card holders. For bigger capacity, it is

required to purchase a Keylock.

To enable use of Keylock, you need to install the USB Keylock driver on your computer.

SSA-X500 Installation :

To use ﬁngerprint scanner SSA-X500, it is required to install the SSA-X500 USB Driver on your computer.

User Manual :

User manual of SAMS.

GENERAL INSTALLATION

Before starting

SAMS consists of below 6 components.

•

❖

English Englis_ English _7

SAMS SETUP

SAMS Pro / SAMS Pro Lite:

This program provides methods of access control related settings and user interface for handling events.

SAMS Communication Server:

A program that provides communication between access control devices and SAMS Pro / SAMS Pro Lite. Run

this program and ﬁnd it from the tray icons.

SAMS Database:

All SAMS settings and event information are saved here. Uses SQL Server 2008 R2 Express, and it acts as the

server of SAMS database.

SAMS Visitor Management:

Provides tools for visitor management.

SAMS Integrated Monitoring

A program that provides integrated monitoring of access control events and video

SAMS Manager

A program that provides scheduled task execution for SAMS

(e.g., Scheduled DB backup, Device Time sync. etc.) - refer Appendix D

Installing

Run SAMS Setup ﬁle and select preferred language for your installation process. You can select from Korean

and English.

Click “OK” to proceed, and all installation components are uncompressed into a temporary folder. This step may take

several minutes depending on your computer’s performance.

Installation requires certain program components, it shows such installation items as shown below.

Click Install button to proceed installing required items.

•

J

8_ SAMS Setup

SAMS Setup

Once completed with uncompressing, it displays the installation dialog as shown below.

Installation cannot proceed unless you agree to the terms of use.

If you computer is not installed with Microsoft SQL Server already, below screen appears for SQL Server

installation.

For the Windows Server 2008 operating system, install Microsoft.NET Framework 3.5 SP1 by referring to Appendix

B [Install .NET Framework 3.5 SP1 on Windows Server 2008].

J

English Englis_ English _9

SAMS SETUP

If your computer is not installed with .NET framework 3.5 with SP1, it may require restarting the computer for its

installation. In the case, restart when prompted and continue to install.

The sa logon password may be restricted depending on the security policy of your PC.

Custom installation is recommended only for those accustomed to MS SQL Server 2008 R2 Express.

The SQL Server 2008 R2 Express installation may require several minutes.

When installing the SQL Server 2008 R2 Express, screens shown below appears.

On a certain case, installing SQL Server 2008 R2 Express may fail to ﬁnish due to conﬂicts to existing application

programs installed on the computer. No further support is provided in such occasions. Refer to Microsoft knowledge

base or forums, or try clean installation of the operating system.

For custom installation or installation with existing MS SQL Server products, make sure to select mixed authentication

mode (Windows authentication and SQL Server authentication). SAMS database connection supports SQL Server

authentication only.

For custom installation or installation with existing MS SQL Server products, and if the computer’s operating system is

Windows Vista or Windows 7, make sure to log on as local system for database restore, to avoid security problems.

When installing, set NT AUTHORITY\LOCAL SERVICE of the service or set SQL Server service property to local service

in Control Panel →Administrative Tools →Services.

If failed to install the SQL Server 2008 R2, a warning message appears and the installation aborts.

In such cases, refer to the SQL Server Setup Log shown in the message box to clear the problem and try installation

again.

J



10_ SAMS Setup

SAMS Setup

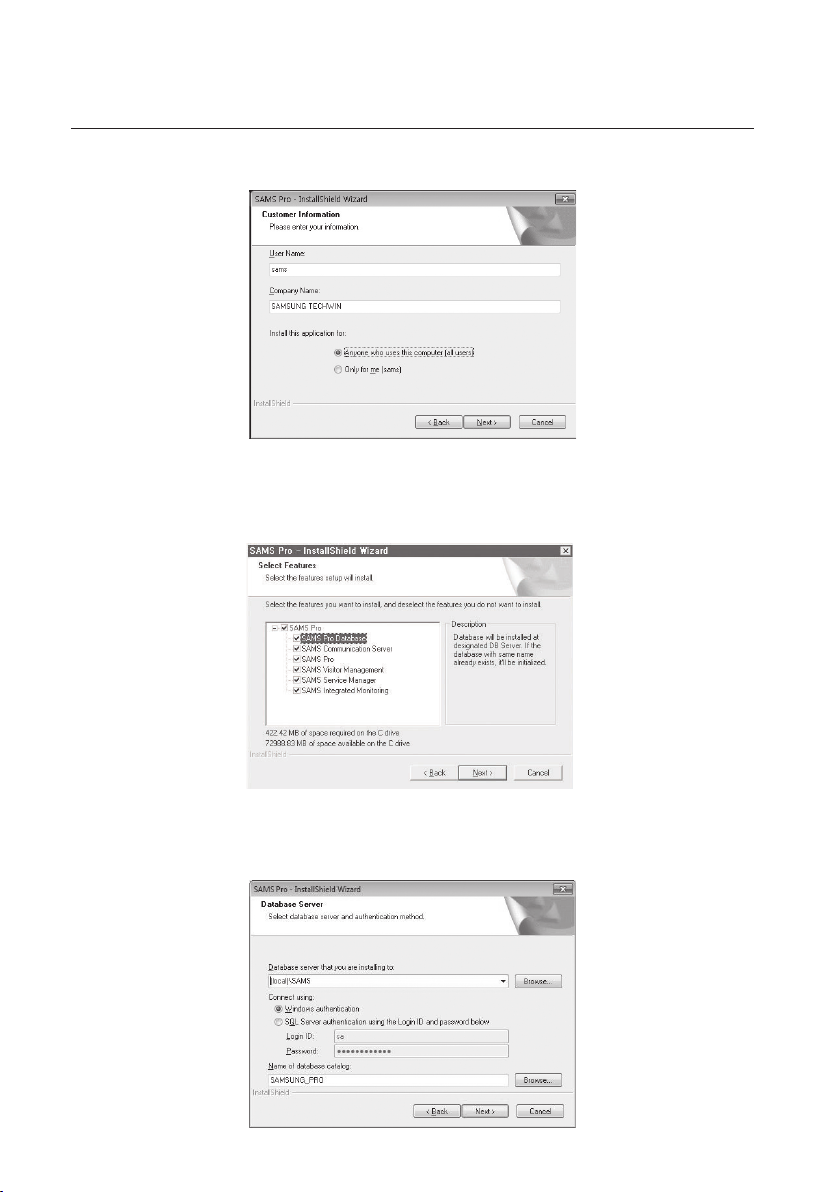

Once completed with database properly, user information settings window appears as below:

Enter the account information.

Select a program to install. Individual program may differ depending on the package.

In general installation, all programs are installed onto one computer.

If selected database from the installable programs, a screen for selecting database server appears as shown below.

In this installation example, the database server name is SAMS and its password is set to samsp&w4321?. Set

as shown below and continue.
