Samsung DIGIMAX 220 SE Manuel utilisateur

Thank you for buying a Samsung Camera. This manual will guide you through using the Digimax 220 SE, including taking

pictures, downloading images and using Adobe PhotoDeluxe software.

Please read this manual before using your new camera.

ENGLISH

SPECIAL FEATURES

Thank you for buying a Samsung Digital Camera.

This digital camera possesses the following features.

A high resolution of 2.1 mega pixels

A 3 x optical and 2 x digital zoom lens

Moving image function

Date/time printing on still images

A USB interface function with Storage Driver

1.8 inch TFT LCD monitor

This device has been tested in accordance with the limits of a class B digital device under

item 15 of the FCC rules. These limits are designed to provide protection against harmful

interference in commercial installation.

This equipment generates, absorbs and can emit radio frequency energy. If it is not installed

and used in accordance with the instructions, it may cause harmful interference to radio

communication.

There is however, no guarantee that interference will not occur in a some situations.

Should any interference occur when this device is in operation, please try one or more of the

following measures.

Change the location and direction of any aerial.

Increase distance between camera and affected device.

Use a different socket away from the affected device.

Please contact a Samsung agent or a radio/TV engineer.

This device complies with part 15 of the FCC Rules.

A FCC warning

READY

MANUFACTURE S CONTENTS

MANUFACTURE’S CONTENTS

Please check that you have the correct contents before using this product.

AC Adapter (optional)

Digital camera CompactFlash card

(CF CARD) 4 AA Alkaline

Batteries Pouch

Video cable USB cable Application S/W,

Driver CD-ROM User manual

Product warranty Lens cap Lens cap retaining

cord Camera strap

SAMSUNG INTERNATIONAL WARRANTY CERTIFICATE

INTERNATIONALES SAMSUNG GARANTIEZERTIFIKAT

CARTE DE GARANTIE INTERNATIONALE SAMSUNG

CERTIFICADO DE GARANTIA INTERNACIONAL DE SAMSUNG

Accessories (Optional)

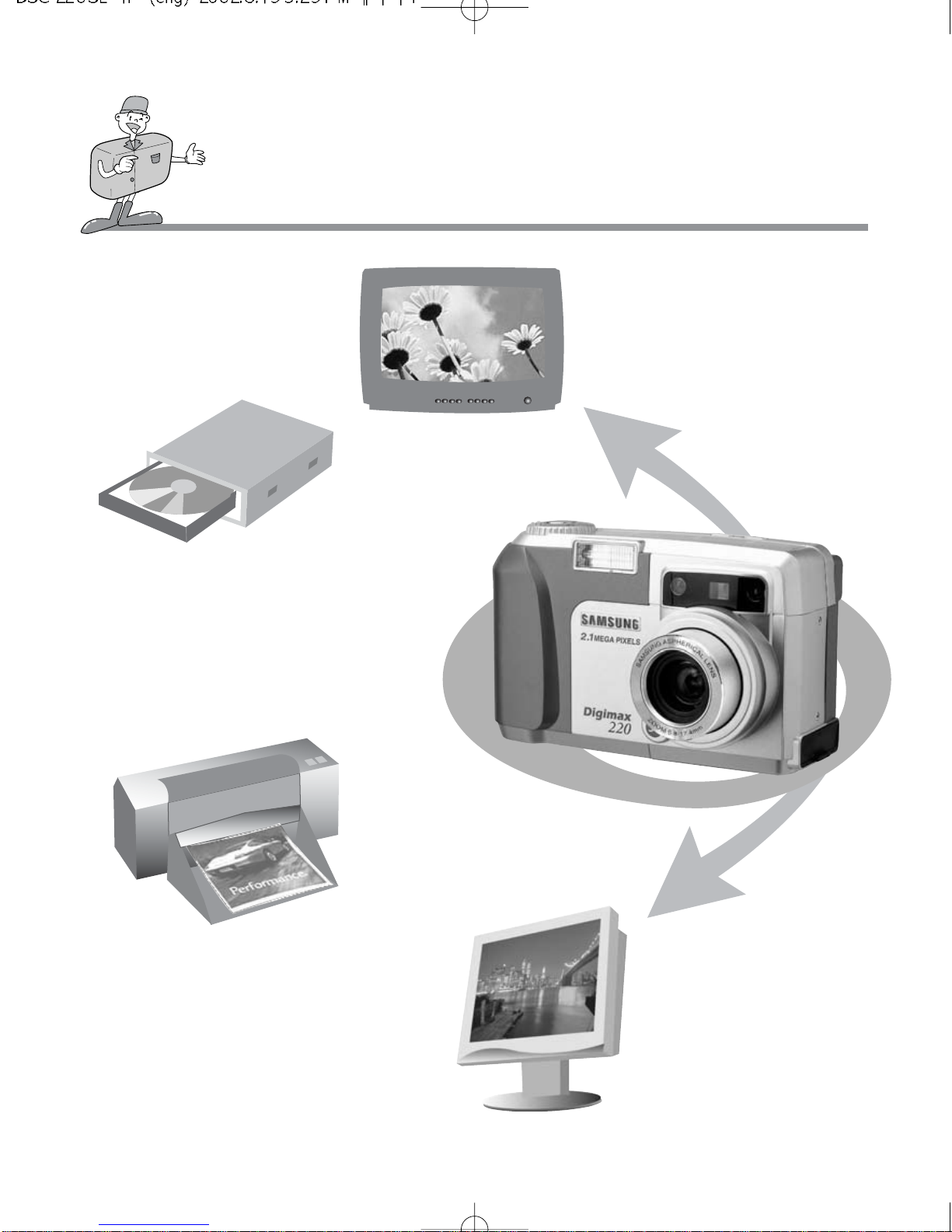

THIS DIGITAL CAMERA CAN BE USED FOR

Viewing images on TV

Editing images

on a PC

Recording images onto CD

Printing images

THIS DIGITAL CAMERA CAN BE USED FOR

Inserting images

directly into any

electronic document

Taking a self-portrait

and using the image

to personalize name

cards

You can even create your own

unique gift-wrap paper by using

your digital images.

Creation of

a digital photo album

READY

Software

Ready

CONTENTS

Basic

GETTING TO KNOW YOUR CAMERA 7

SAFETY NOTE 8

IDENTIFICATION OF FEATURES 10

Product Exterior 11

Viewfinder 12

LCD panel indicator 13

LCD monitor symbol 14

Ready 16

Connecting to Power 16

Using the batteries 16

Using the AC power adapter 18

Attaching the strap 19

Attaching the lens cap 19

Inserting CF CARD 20

Removing CF CARD 20

InstructionsonhowtouseCFCARD

Selecting the date and time 23

Camera working mode 24

Taking photos 25

Now let s take a picture 25

Setting up shooting function 28

Setting up shooting function by using the LCD panel 28

Select the Flash mode 31

Select the quality mode

Select the image resolution 32

Select the self-timer mode 33

Other indicated items of LCD panel 34

Macro picture indicator 34

Battery status indicator 34

Exposure compensation status mark 34

Indicatorforthenumberoftheremainingshot,

conditionofthecardandotherinformation

Digital Zoom 36

Setting up the shooting function by using the LCD monitor 37

The following options are available on the

LCD monitor by pressing the menu button

The shooting functions in more detail 42

PROPERTY 42

CAPTURE 43

ADVANCE 49

SYSTEM 51

Play mode 55

Starting the Play Mode 56

Setting the play mode 56

Play function 57

Thumbnail 58

SLIDE SHOW 59

Protect (Lock/ unlock) 60

Erase all 61

Format 63

Enlarging image 64

DPOF(Digital print order format) 65

Connection to an external monitor 66

PC mode 67

Starting PC mode 67

Function of PC mode 68

Note in using 69

Caution 68

Warning indicator 70

Before contacting service center 71

Specifications 73

Software manual 74

Before you set up the software 76

How to set up the software 77

Setting up USB Driver for windows 78

Set up the editing software 80

Connecting the camera 81

Removeable Disk 82

Editing software 84

Connecting the camera for MAC 96

How to install and use USB driver for MAC

FAQ 98

Advanced

READY

About the image mark

GETTING TO KNOW YOUR CAMERA

Prior to using this camera, please read the user manual thoroughly.

Keep the manual in a safe place.

This manual contains instructions on using this camera that will help you to use this camera safely

and correctly. This will help prevent danger and injury to others.

Warning

This is a descriptive statement warning of the result if the instructions are ignored

or not understood.

Note

This explains use of the camera, please refer to this.

Reference

This should assist further in the operation of the camera.

SAFETY NOTE

WARNING

Do not attempt to modify this camera in any way. This may result in fire, injury, electric

shock or severe damage to you or your camera. Internal inspection, maintenance and

repairs should be carried out by your dealer or Samsung Camera Service Center.

Do not use the flash in close proximity to the people or animals.

Positioning the flash too close to your subject’s eyes, may cause eyesight damage.

Do not attempt to photograph children using a flash, closer than a 1 meter proximity.

When taking photographs, never point the lens of the camera directly into very strong

light. This may result in permanent damage to the camera or your eyesight.

Please do not use this product in close proximity to flammable or explosive gases,

as this could increase the risk of explosion.

For safety reasons keep this product and accessories out of reach of children or animals to

prevent accidents e.g.:

Swallowing batteries or small camera accessories.

In case of accidents, please consult a doctor immediately.

There is a risk of permanent eye damage if the flash is operated at a distance of less

than one meter from a person’s eyes.

There is a possibility of injury from the camera’s moving parts.

Should any form of liquid enter the camera, do not use it. Switch off the camera, and

then disconnect the power source (batteries or AC Power Adapter).

You must contact your dealer or Samsung Camera Service Center.

Do not continue to use the camera as this may cause a fire or electric shock.

Turn the camera off immediately, then disconnect the power source

(batteries or AC Power Adapter).

Then contact your dealer or Samsung Camera Service Center.

Do not continue to use the camera as this may cause a fire or electric shock.

Do not insert or drop metallic or inflammable foreign objects into the camera through

access points e.g. CF CARD slot and battery chamber. This may cause a fire or

electric shock.

Do not operate this camera with wet hands.

This could pose a risk of electric shock.

READY

SAFETY NOTE

NOTE

Do not leave this camera in places subject to extremely high temperatures, such as a

sealed vehicle, direct sunlight or other places of extreme variances in temperature.

Exposure to extreme temperatures may adversely affect the camera’s internal

components and could cause a fire.

When in use, do not cover the camera or AC Power Adapter.

This may cause heat to build up and distort the camera case or cause a fire.

Always use the camera and its accessories in a well-ventilated area.

Leakage, overheating, or burst batteries could result in fire or injury.

Do not short circuit, heat or dispose of batteries in fire.

Do not use old batteries with new ones, or mix brands of batteries.

Ensure the batteries are positioned correctly with regard to polarity (+ / -).

When the camera is not in use for long periods, always unplug the camera from its

power source (batteries or AC Power Adapter) for safety purposes.

Leaking batteries can cause fire and pollution to the environment.

Allowing dust to accumulate in the camera over a long period is hazardous as

extreme circumstances may cause a fire. It is best to clean your camera prior to

seasonal periods of high humidity.

Consult your dealer or Samsung Camera Service Center for information on the cost of

cleaning your camera.

Do not move the camera while it is switched on, if you are using the AC Power

Adapter. After use, always switch off the camera before unplugging the adapter from

the AC Power wall socket. Then make sure that any connector cords or cables to

other devices are disconnected before moving the camera.

Failure to do so may damage the cords or cables and cause a fire or electric shock.

Product Exterior (Rear)

Product Exterior (Front)

IDENTIFICATION OF FEATURES

Select button

LCD panel

Viewfinder

Scroll button

Flash fading control

sensor

Lens

External interface

cover

Self-timer lamp

Flash

Shutter button

Mode dial

Flash indicator(Red LED)

Viewfinder

LCD monitor

Status button / button

ERASE

Menu button

Zoom button(WIDE)

Zoom button(TELE)

Direction button : Up

Direction button : Right

Direction button : Down

Direction button : Left

LCD button / ( ) button

Power button

DPOF

Autofocus indicator

(Green LED)
