Samsung MIM-H14UN Mode d’emploi

Airconditioner

User&installationmanual

Wi-Fi Kit Single MIM-H14UN

• Thank you forpurchasing this Samsung Product.

• Before operating this unit, please read this manual carefullyand retain it forfuture reference.

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGGX YWYXTW`TW_GGG㝘䟸GXaZ]aY\

2English

Safetyprecautions 3

ChecksbeforeInstallation 5

Checks before Installation 5

Accessories • External Dimensions 5

Installing theWi-FiKitSingle 6

Installing the Wi-Fi Kit Single 6

4WayCassette (PC4NUFMUN) 6

Mini 4WayCassette (PC4SUFMUN) 8

1WayCassette (PC1NWFMUN/PC1BWFMUN) 10

360 Cassette (PC4NUNMUN/PC4NBNMUN/PC4NUDMUN/PC4NBDMUN) 12

SmartThingsapp 15

SmartThings app 15

Checking the powerconnections • 15

Setting up and connecting to aWi-Fi access point usingyoursmartphone •

Downloadingthe SmartThings app and registeringyourSamsung account

Connecting the SmartThings app toyourproduct 16

Startingthesystemairconditionerapp 17

Starting the system airconditionerapp 17

Controlling the air conditioner 17

Appendix 18

Troubleshooting 18

Specifications 19

Open Source Announcement 20

Reference 21

Contents

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGGY YWYXTW`TW_GGG㝘䟸GXaZ]aY\

English

Safetyprecautions

California Proposition 65Warning (US)

WARNING:

Cancerand Reproductive Harm -www.P65Warnings.ca.gov.

This installation manual explains howto install a Wi-Fi Kit Single to an indoorunit of Samsung system air

conditioners.

Read the installation manual thoroughlybefore installing theWi-Fi Kit Single.

(Referto the appropriate manual forinstalling product orotheroptional parts.)

WARNING

Hazards orunsafe practicesthat mayresult in severe personal injuryordeath.

CAUTION

Hazards orunsafe practicesthat mayresult in minorpersonal injury orpropertydamage.

WARNING

Contactservicecenterforinstallation.

• There is a risk of product malfunction, waterleakage, electric shock orfire.

Installthe productsecurelyin aplacethat canwithstandtheweight oftheproduct.

• If the installation location is not strong enough, product mayfall and be damaged.

Connectthepowerwithratedvoltagewhen installing.

• If not, there is risk offire ordamage tothe product.

Donot attemptto moveorre-installtheproductthat isalreadyinstalled.

• There is risk of electric shock andfire.

Donot attemptto modifyorrepairthe productonyourown.

• There is potential risk of product damage, electric shock orfire.When repairis needed, consult

service center.

Checkif theinstallationwasdone properlyaccordingto theinstallationmanual.

• If the product is installed incorrectly, there is risk of electric shock orfire.

Make sure that allwiring work is done bya qualified person complyingwith regionalstandards and

instructionsin thismanual.

• If the installation is done byunqualified person, there is risk of product malfunction, electric

shock orfire caused byincorrect installation.

Contacttheservice centerifyouneedto disposetheproduct.

Safetyprecautions

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGGZ YWYXTW`TW_GGG㝘䟸GXaZ]aY\

Safetyprecautions

English

Safetyprecautions

CAUTION

Do not installthe product in aplacewhere it isormight be exposedto inflammable gas leakage.

• There is risk of fire orexplosion.

Donot installtheproduct ina placewhere itwill beexposedtooil orvaporetc.

• If the product is used in a place where it is exposed to oil, vapor orsulphurdioxide, parts of the

product mayget damaged or product mayfunction abnormally.

Makesurethatwaterdoes notget intothe product.

• There is risk of electric shock andfire.

Makesurethereis notensiontothe cable duringinstallation.

• Cable mayget cut and cause fire.

Install the product in a placewith temperature between 0°C~39 °C (32 °F~102 °F) with nodirect

sunlight.

• If not, there is risk of electric shock orabnormal operation.

Donot installtheproduct ina placewhere specialsprayoracid/alkalisolution isused.

• There is risk of electric shock orabnormal operation.

Donot pressthe buttonswith sharpobjects.

• There is risk of electric shock ordamaging the parts.

Donot connectthepowercabletothe communication cableterminal.

• There is risk of fire.

When installing the product in hospitals orotherplaces, make surethat the productdoes not

interruptwith otherproducts.

• Abnormal operation mayoccur.

Thiswirelessdevicehas apossibilityof radiowaveinterference duringoperation.

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGG[ YWYXTW`TW_GGG㝘䟸GXaZ]aY\

English

ChecksbeforeInstallation

Accessories

Wi-Fi Kit Single -with WIRE UserManual / Installation Manual

CAUTION

• TheWi-Fi Kit Single must be installed bya certified technician.

• Before installation, be sure to cut off power.

• Install the cables ofthe Wi-Fi Kit Single insidethe product to prevent useraccess, in accordancewith the

relevant electricalwiring regulations.

ExternalDimensions

[Unit : mm (inch)]

66 (2.59) 14 (0.55)

50 (1.96)

Checksbefore Installation

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGG\ YWYXTW`TW_GGG㝘䟸GXaZ]aY\

InstallingtheWi-FiKitSingle

English

Installing theWi-Fi KitSingle

4WayCassette(PC4NUFMUN)

Wheretoinstall

Wi-Fi Kit Single Wi-Fi Kit SingleMotion sensor Motion sensor

Refrigerant

piping

Drain hose is

connected here

Remote control receiver/indicator

Remote control receiver/indicatorAirquality sensorAirquality sensor

MAIN PBA MAIN PBA

CAUTION

• If it is not installed at the specified position, communication interference orfailure may occur. Make sure

to install it at the specified position.

• If the panel is alreadyinstalled on the indoorunit, first remove the panel from the indoorunit before

installing the Wi-Fi Kit Single.

Fordetails on howto removethe panel, referto the panel installation manual.

AttachingtheWi-FiKit Single

InstallingtheWi-FiKitSingle

1 Afterseparating the cornerpanel, use the

double-sided tape attached to the inside of the

Wi-Fi Kit Single and fix it to the cornerpanel

indentation.

• Arrange thewire in the direction of the arrow

of the indentation.

Wi-Fi Kit Single

Corner panel

2 Arrange thewiring as follows.

a Unfastenthe single screw(幩) on the back

cover.

b Lift up the back cover inthe arrowdirection

(幪), as shown in the figure.

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGG] YWYXTW`TW_GGG㝘䟸GXaZ]aY]

English

Installing theWi-Fi KitSingle

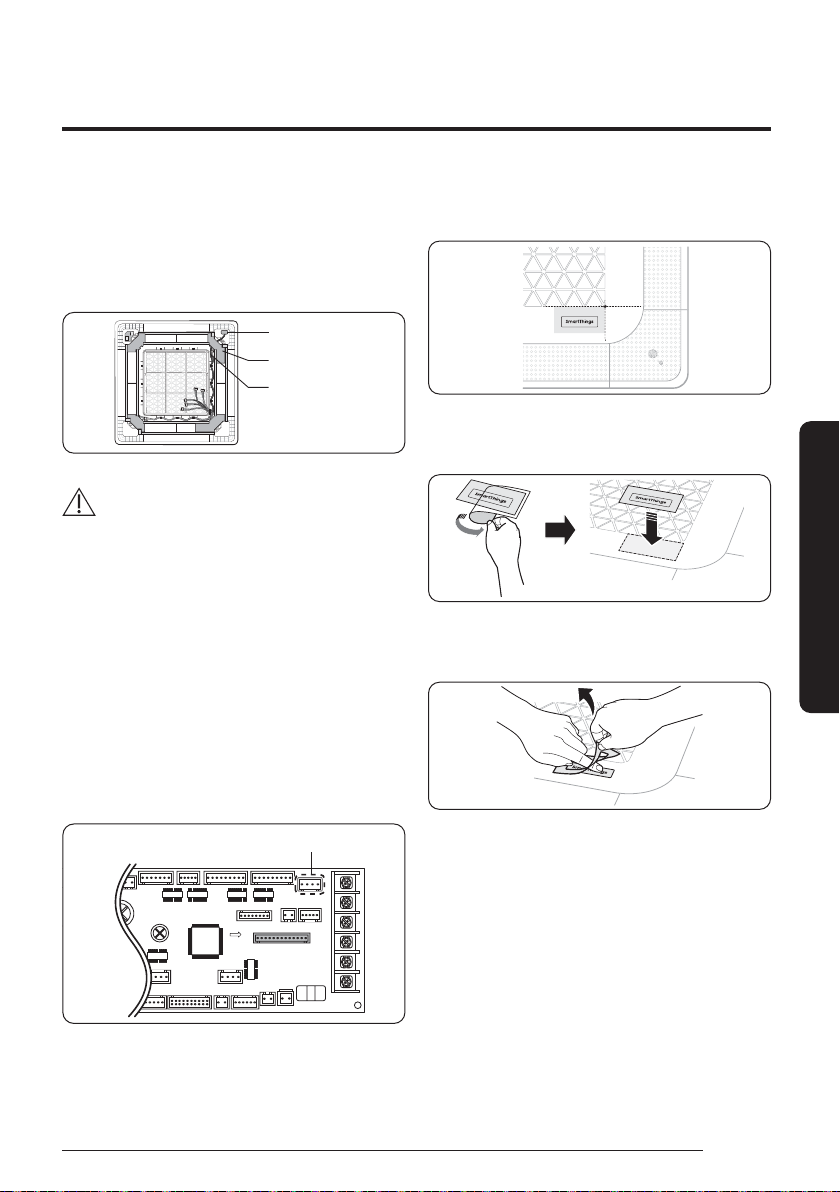

c Arrangethe wiring so that it is placed under

the back coverwhen the cover is in place.

d Tidyup the WIRE of theWi-Fi Kit Single along

the inside of the panel.

e Attach the back cover.

Wi-Fi Kit Single

Back cover

Electricalwiring

CAUTION

• TheWIRE may get damaged if it is pinched

between the back coverand the panel main

bodywhen attaching the back cover. Exercise

caution to ensure that theWIRE is not pinched.

• When attaching the back cover, fix the panel

insulation to the original position.

3 Attach the panel to the indoorunit.

(Fordetails on howto attach the panel, referto

the panel installation manual.)

4 Open the electric unit coveron the indoorunit,

and connect theWIRE of theWi-Fi Kit Single to

the ‘WIFI’ connector (yellow, 5-pin) at the top

right.

Connect theWIRE of Wi-Fi Kit Single here

5 Close the electric unit coveron the indoorunit.

6 Attach the SmartThings stickerto the spot

specified in the figure below.

a Remove the back film from the sticker, and

then attach the label at the specified spot.

b Remove the front film while pressing down

on the sticker.

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGG^ YWYXTW`TW_GGG㝘䟸GXaZ]aY]

InstallingtheWi-FiKitSingle

English

Installing theWi-Fi KitSingle

Mini4WayCassette(PC4SUFMUN)

Wheretoinstall

Wi-Fi Kit Single Wi-Fi Kit SingleMotion sensor Motion sensor

Refrigerant

piping

Drain hose is

connected here

Remote control receiver/indicator

Remote control receiver/indicator

MAIN PBA MAIN PBA

CAUTION

• If it is not installed at the specified position, communication interference orfailure may occur. Make sure

to install it at the specified position.

• If the panel is alreadyinstalled on the indoorunit, first remove the panel from the indoorunit before

installing the Wi-Fi Kit Single.

Fordetails on howto removethe panel, referto the panel installation manual.

AttachingtheWi-FiKit Single

1 Afterseparating the cornerpanel, use the double-

sided tape attached tothe inside of theWi-Fi Kit

Single and fix it to the cornerpanel indentation.

• Arrange thewire in the direction of the arrow

of the indentation.

Wi-Fi Kit Single

Cornerpanel

2 Arrange thewiring as follows.

a Unfastenthe single screw(幩) on the back

cover.

b Lift up the back cover inthe arrowdirection

(幪), as shown in the figure.

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGG_ YWYXTW`TW_GGG㝘䟸GXaZ]aY_

English

Installing theWi-Fi KitSingle

c Arrangethe wiring so that it is placed under

the back coverwhen the cover is in place.

d Tidyup the WIRE of theWi-Fi Kit Single along

the inside of the panel.

e Attach the back cover.

Wi-Fi Kit Single

Back cover

Electricalwiring

CAUTION

• TheWIRE may get damaged if it is pinched

between the back coverand the panel main

bodywhen attaching the back cover. Exercise

caution to ensure that theWIRE is not pinched.

• When attaching the back cover, fix the panel

insulation to the original position.

3 Attach the panel to the indoorunit.

(Fordetails on howto attach the panel, referto

the panel installation manual.)

4 Open the electric unit coveron the indoorunit,

and connect theWIRE of theWi-Fi Kit Single to

the ‘WIFI’ connector (yellow, 5-pin) at the top

right.

Connect theWIRE of Wi-Fi Kit Single here

5 Close the electric unit coveron the indoorunit.

6 Attach the SmartThings stickerto the spot

specified in the figure below.

a Remove the back film from the sticker, and

then attach the label at the specified spot.

b Remove the front film while pressing down

on the sticker.

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGG` YWYXTW`TW_GGG㝘䟸GXaZ]aZW

InstallingtheWi-FiKitSingle

English

Installing theWi-Fi KitSingle

1WayCassette (PC1NWFMUN/PC1BWFMUN)

Wheretoinstall

Wi-Fi Kit Single

CAUTION

• If it is not installed at the specified position, communication interference orfailure may occur. Make sure

to install it at the specified position.

• If the panel is alreadyinstalled on the indoorunit, first remove the panel from the indoorunit before

installing the Wi-Fi Kit Single.

Fordetails on howto removethe panel, referto the panel installation manual.

ki]_TXXZW^hTWWpiptzvsG~TmGrp{Gzj}luUGGGXW YWYXTW`TW_GGG㝘䟸GXaZ]aZW

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung SH09AI8VX Manuel utilisateur

Samsung

Samsung FH052EAMC Manuel utilisateur

Samsung

Samsung AC026RN1DKG Manuel utilisateur

Samsung

Samsung AQV12ACME Manuel utilisateur

Samsung

Samsung AQ18WJWB Manuel utilisateur

Samsung

Samsung AW0719 Manuel utilisateur

Samsung

Samsung AJ035TN1DKG/EU Manuel utilisateur

Samsung

Samsung AC36BTVA Manuel utilisateur

Samsung

Samsung AM JN1DEH Series Manuel utilisateur

Samsung

Samsung AWT18S1WDCG Manuel utilisateur

Samsung

Samsung SC07ZK8 Manuel utilisateur

Samsung

Samsung AR07MSPXASINEU Manuel utilisateur

Samsung

Samsung AR12HSSDPWKNEE Manuel utilisateur

Samsung

Samsung AR**FS**WK** Series Mode d’emploi

Samsung

Samsung AW12ZKB Manuel utilisateur

Samsung

Samsung AC NN4DKC Series Manuel utilisateur

Samsung

Samsung AVMBH Series Manuel utilisateur

Samsung

Samsung AJ NBNDEH Series Manuel utilisateur

Samsung

Samsung APH289SEF Manuel utilisateur

Samsung

Samsung ASV10P Series Mode d’emploi

Samsung

Samsung AQ12F Series Manuel utilisateur

Samsung

Samsung AR MRFQ Series Manuel utilisateur

Samsung

Samsung AR**MSWX series Manuel d'utilisation

Samsung

Samsung MOK-100LA Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
