SAMSUNG DVM-Pro 2008
User’s Manual (Sales mode)
English Version
2008 . 02 . 28
SAMSUNG DVM-Pro 2008 User Guide
2
Contents
1. User’s manual for Sales mode of DVM Pro
1-1. Architecture of sales mode
2. Top Down menu
2-1. File
2-2.View
2-3. Setup
2-4.Help
3. Project
3-1. Project Information
3-1-1. Project name
3-1-2. Country
3-1-3. Customer Information
3-1-4. Designer Information
3-2. Setup Space
3-3. Workspace management
4. Indoor unit
4-1. Workspace
4-2. Add Indoor
4-3. Edit Indoor
4-4. Delete Indoor
4-5. View Indoor
4-6. Setup options
5. Outdoor unit
5-1. Workspace
5-2. Add Outdoor
5-3. Edit Outdoor
5-4. Delete Outdoor
5-5. Copy Outdoor
5-6. Compensate Outdoor
5-7. Window for Outdoor Information
5-8. Indoor which not linked
6. Piping
SAMSUNG DVM-Pro 2008 User Guide
3
6-1. Workspace
6-2. Piping
6-2-1. Select Indoor
6-2-2. Select Piping connection tools
6-2-3. Basic Pipe, Standard Pipe, Manual Pipe
6-2-4. Draw Piping manually
6-2-5. View Diagram
6-2-6. Check System
7. Wiring
8. Control System
9. Report
9-1. Insert Logo
9-2. Reporting Information
9-3. Workspace to include in Report
9-4. Currency
9-4. Takes Report off
SAMSUNG DVM-Pro 2008 User Guide
4
1. User’s manual for Sales mode of DVM Pro
1-1. Architecture of sales mode
-. The sales mode of DVM Pro is an application software to help business of System A/C. It’s
configured with Project, Indoor, Outdoor, Piping, Wiring, Control System and Report. And
can’t move to next step if no completion of current step because these works would be
executed, step by step.
2. Top Down menu : This menus are shown on upper-end the screen and configured with File, View, Setup
and Help. If select each menu, it shows the related commands.
2-1. File : Configured wiith NEW, Open, Close, Save, Save As and View Recent files.
2-2. View : Manage the status bar line showing at lower-end of program. It’s toggled as on or
off.

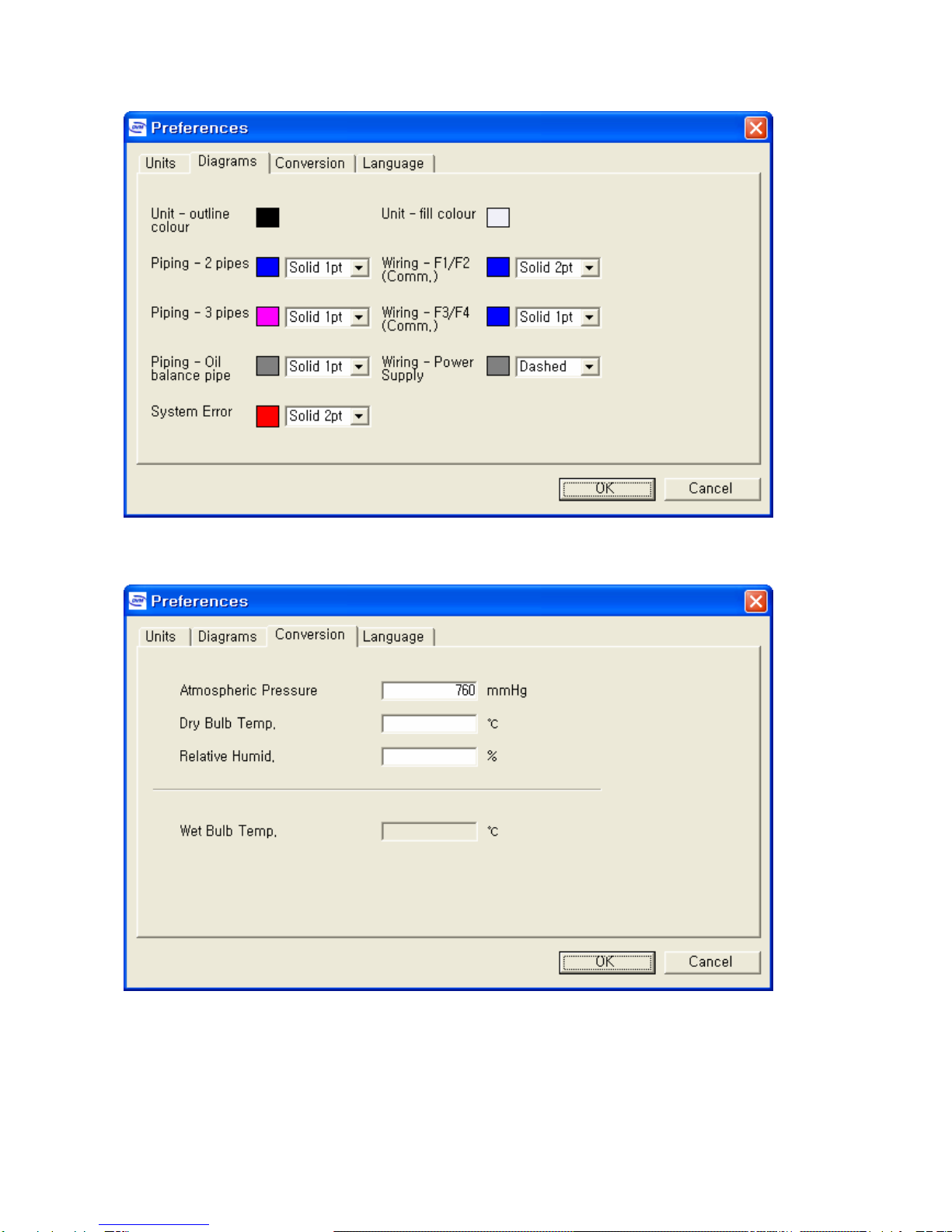

2-3. Setup : Select Unit, Diagrams, Conversion, Language.
-.Unit
-.Diagrams
SAMSUNG DVM-Pro 2008 User Guide
5
-. Conversion
SAMSUNG DVM-Pro 2008 User Guide
6

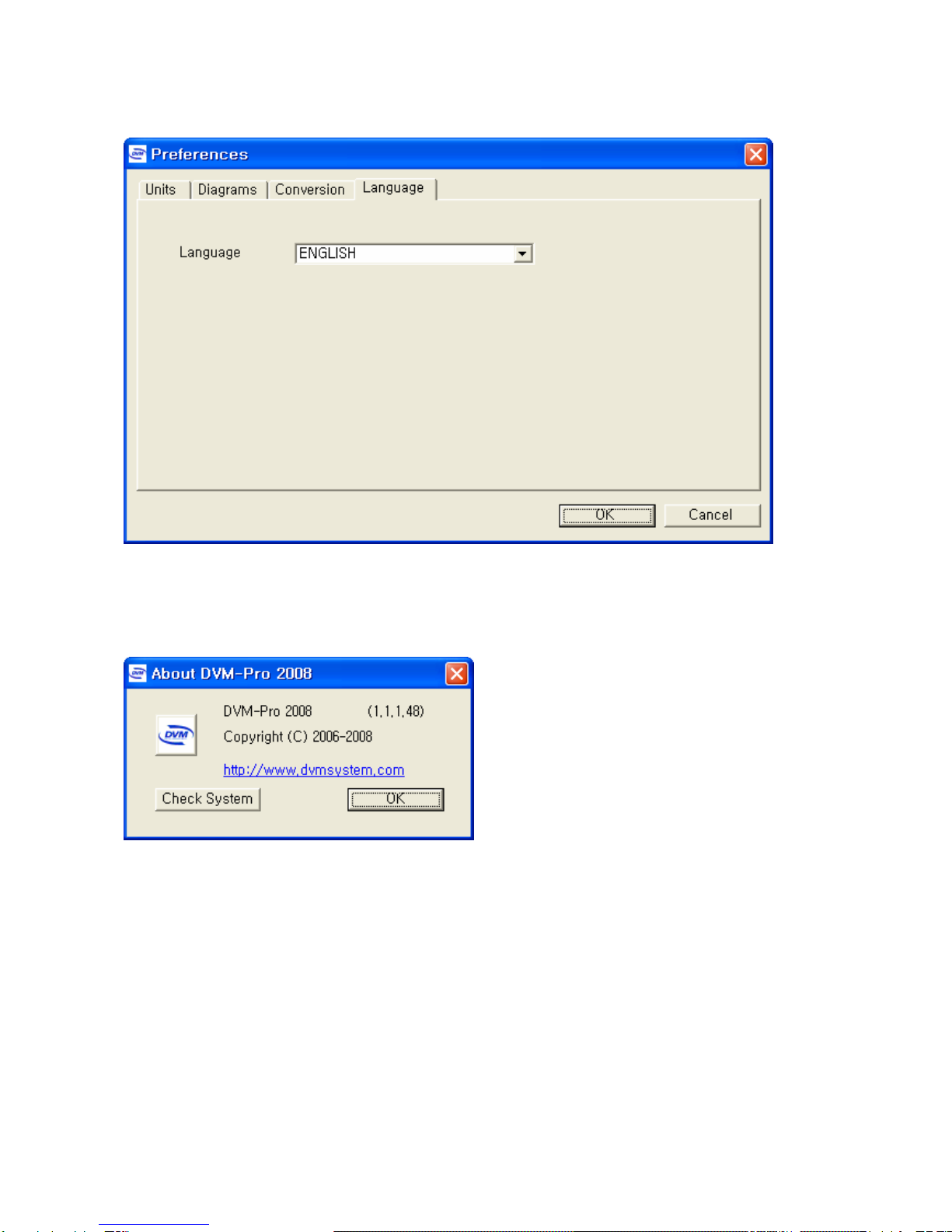

-. Languages
2-4. Help : Show the version information of DVM program and user can move to the related
web page directly.
SAMSUNG DVM-Pro 2008 User Guide
7
3. Project : Set Project registration and Workspace.
3-1. Project Information :
. User can register the project when start new project. User must fill out all blanks of
project registration fields if new project.
. Show the related information if it’s current project.
3-1-1. Project name : Enter project name to be registered.
3-1-2. Country : Select country.
3-1-3. Customer information : Enter customer information.
3-1-4. Designer information : Enter designer name.
3-2. Setup space : Show and edit the building, floor, name, status of connected drawing of
Project.
-. Press “Setup space”
SAMSUNG DVM-Pro 2008 User Guide
8
-. Setup building
a. Add Building : add the building.
-. New building is added if enter building code and name after press [add
building].
* Can’t duplicate the code name and the code are configured with alphabet
and Arabic.
b. Make Floor : Form the floor per each building.
-.Selectthebuildingtomakefloor.
-. Enter the number of floor for Basement and Ground.
-. Select [Yes] if it shows a message that “Are you going to make Floor again
after delete all floor information ?” if press [Make Floor].
Floor Area
Bldg Area
SAMSUNG DVM-Pro 2008 User Guide
9
c. Add / delete floor : Can create or delete additional floor after make the floor. .
-. New floor is added if enter building code and name after press [add floor].
* Can’t duplicate the code name and the code are configured with alphabet
and Arabic.
d. Edit Floor height : Edit current floor height.
-. Edit the floor height after select the relevant position of floor under title of floor
height.
-. Can edit the height of one floor and several floor using CTRL+ c and CTRL+
v if want to be same floor in different floor, too.
e. Link file : Connect the drawing file to be used to project.
-. Because drawing connection means to link only one file, it must be
architecture basis drawing of all floors in a file.
* Drawing connection does not mean to connect the each file.
-. Select any space under title that is a file in floor area.
-. Select drawing to connect after press [link file], and presses confirmation.
3-3. Setup Workspace :
User can define the same refrigerant, product series and A/C type to one standard
unit. All works is done by workspace base. If chooses indoor unit in one workspace,
choose Outdoor unit that is correct for the product automatically. If do not choose
workspace, can't move to the step of Indoor unit that is next step.
-. Press [setup workspace]
Enter name
Choose the refrigerant piping, product series, A/C type and building.
If press addition button, it's added on workspace area of right-side.
Can edit or delete according to need.
-. It shows Workspace's status that is added on workspace inquiry window of screen right-
side.
SAMSUNG DVM-Pro 2008 User Guide
10

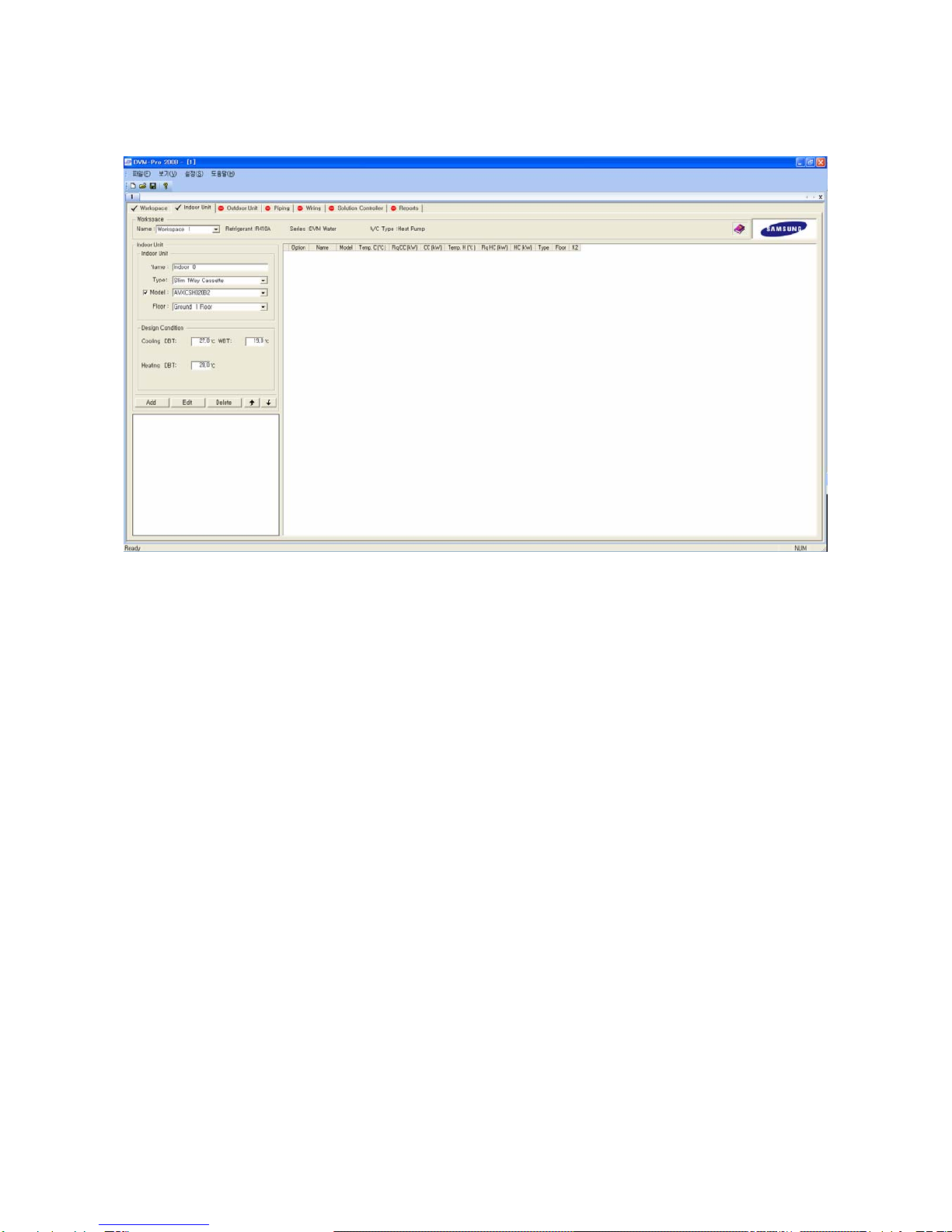

4. Indoor unit : User can select, add and delete Indoor unit. And can select option per each Indoor
unit.
4-1
Workspace : It shows the detailed information about workspace that displays,
and can change, and using workspace that is using present in workspace
selection window.
4-2. Add Indoor : Can add Indoor unit that wish to use.
a. Indoor unit : Select name, type, Model Name.
* If cancel check indication in front of Model Name, it's selected according to
design condition of lower column.
b. Design condition : A/C load, heating load appears if check near Model Name part.
* In case of choose Indoor unit on design condition, it's displayed the yellow
mark in query of Indoor unit.
c. If Indoor unit selection is ended, it's added by [add] button. The added Indoor unit
appears on Indoor unit query window in right-side..
4-3. Edit Indoor unit : Select and edit the Indoor unit that wish to be edited.
-. Select Indoor unit that wish to be edited in Indoor unit query window.
-. Press [edit] button after change the item that wish to change from Indoor unit part and
design condition part on screen left-side of Indoor unit.
4-4. Delete Indoor unit : Select and delete Indoor unit that wish to delete.
-. Select Indoor unit that wish to delete in Indoor unit query window.
-. Press [Yes] if it shows message that "Do you want to delete the selected ‘Indoor xx ?"
