Samsung AZ09A7KB Manuel utilisateur
Window-type Room Air Conditioner ( Cool and Heat )
Climatiseur de type Fenêtre ( Refroidissement et Chauffage )
AZ09F7KE
AZ09A7KE
AZ09F8KE
AZ09A8KE
ENGLISH
FRANÇAIS
OWNER’S INSTRUCTIONS
MANUEL D’UTILISATION
EFADB98-05458A(1)
The following safety precautions must be taken when installing
and using your air conditioner.
Safety Precautions
1The air conditioner must be plugged into its own specific power source, which must be
installed in compliance with national wiring, earthing and safety regulations.
Depending on national regulations and your specific installation, you may need to install:
◆ A circuit breaker
For further information on electrical requirements, contact a professional electrician.
This device must be installed according to the national electrical rules.
2Make sure that the unit is correctly ventilated at all times;
do NOT place clothing or other materials over it.
4Do NOT insert anything between the air outlet blades, as it may damage the inner fan
and you may be hurt. Keep children away from the unit.
5ALWAYS ensure that the power cable is in good condition.
If the power cord is damaged in any way, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:
◆ An authorized service center
◆ The dealer from whom you purchased the air conditioner.
7Do NOT place any brocking objects in front of the unit.
3NEVER spill liquids of any kind into the unit.
Should this happen, unplug the unit and contact your installation specialist.
8If the remote control will not be used for a long time, remove the batteries.
9Before throwing out the device, it is necessary to pull back the battery cells
and get rid of them safely.
E-2
Contents
◆PREPARING YOUR AIR CONDITIONER
■Safety Precautions ......................................................................................... 2
■Air Conditioning Unit - Main Parts, Buttons and Display ............................... 4
■Remote Control Buttons ................................................................................. 5
■Getting Started ............................................................................................... 6
■Inserting the Remote Control Batteries .......................................................... 7
◆OPERATING YOUR AIR CONDITIONER
■Cooling Your Room ........................................................................................ 8
■Heating Your Room ........................................................................................ 9
■Airing Your Room ........................................................................................... 10
■Adjusting the Air Flow Direction Horizontally .................................................. 11
■Adjusting the Air Flow Direction Vertically ...................................................... 11
◆PROGRAMMING YOUR AIR CONDITIONER
■Switching the Unit Off Automatically (Off Timer) ............................................ 12
■Canceling the Off Timer .................................................................................. 12
◆RECOMMENDATIONS FOR USE
■Operating Recommendation ........................................................................... 13
■Temperature and Humidity Ranges ................................................................ 14
■Cleaning Your Air Conditioner ........................................................................ 15
■Solving Common Problems ............................................................................ 17
■Technical Specifications ................................................................................. 17
◆METHOD OF INSTALLATION .................................................................................... 18
E-3
ENGLISH

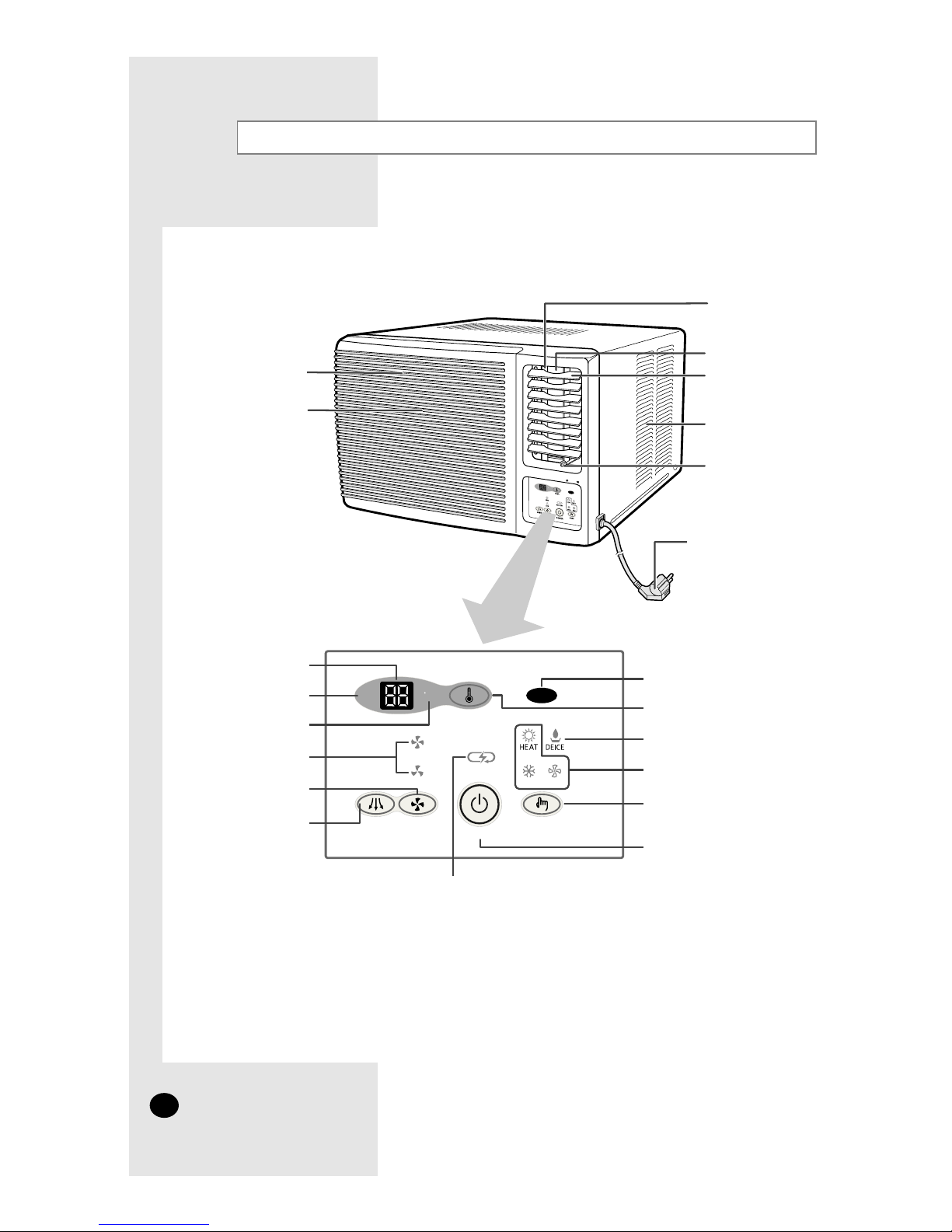

Air Conditioning Unit - Main Parts, Buttons and Display
MODE
FAN SPEED
HIGH
TEMP.
SWING
LOW FAN
COOL
POWER
CHr.
RESTART
FANSPEED
C
Hr.
Inner air flow blades
(right/left orientation)
Outer air flow blades
(up/down orientation)
Air inlet (inside)
Air filter
(The air filter is
located inside)
Ventilation lever
Air outlet
Air inlet (Outside)
Power plug
(The type of the power
plug may differ
according to the type of
local power supply.)
Temperature indicator
Fan speed indicators
Operating mode selection
button
Temperature
adjustment button
Deice indicator
Operating mode indicators
(HEAT, COOL, FAN)
Timer indicator
Temperature/Timer setting Remote control sensor
ON/OFF button
Restart Indicator
■When the power plug is connected,
the indicator comes on.
■If a power failure occurs when the air
conditioner is operating, the unit is switched off.
Then the power returns, the air conditioner
starts up again automatically and the restart
indicator blinkes. The indicator lights up
after 2 minutes.
(Only AZ09F8KE / AZ09A8KE)
Air flow blade swing button
Fan speed button
❄The design and shape are subject to
change according to the model.
E-4

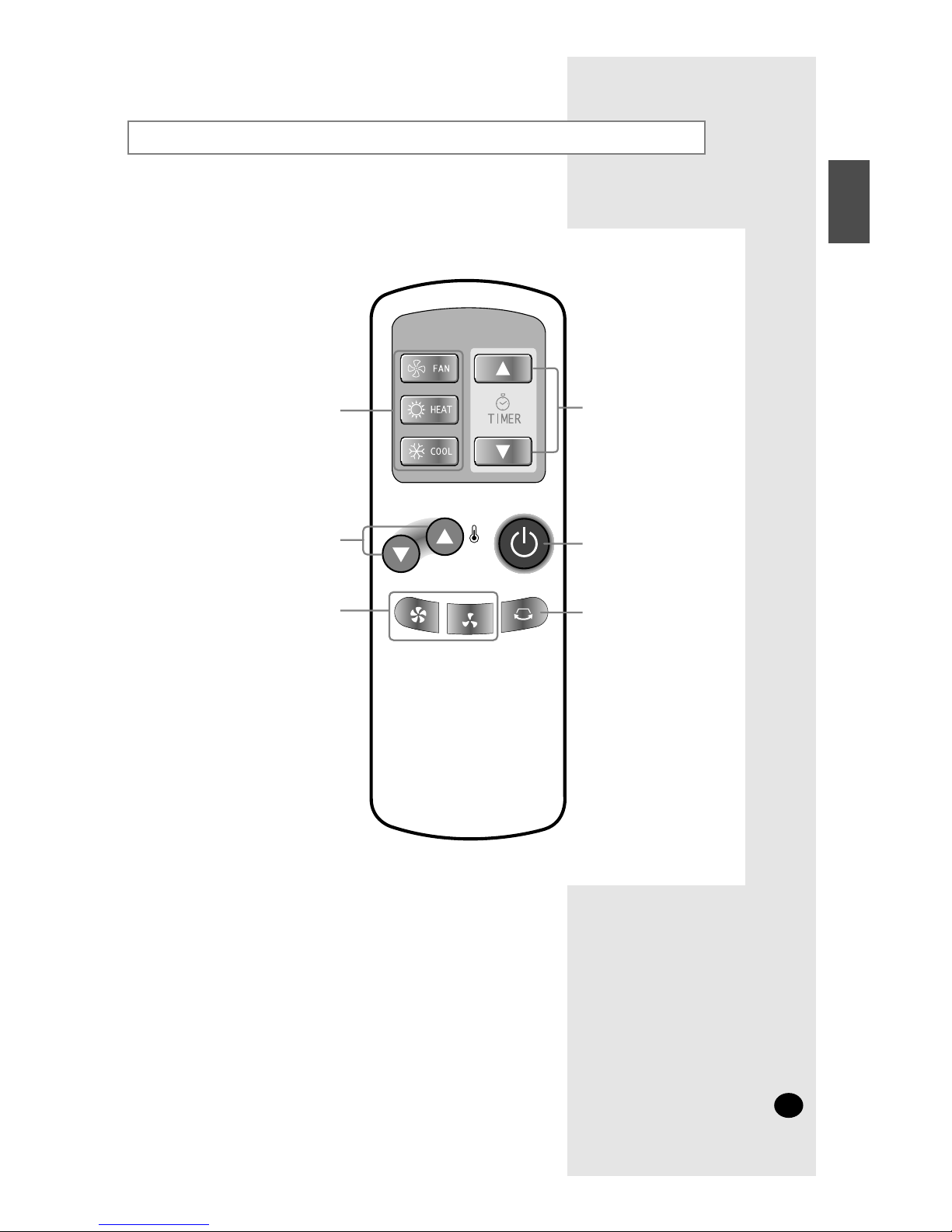

Remote Control - Buttons
Timer setting buttons
Operating mode selection buttons
(FAN, HEAT, COOL)
Air flow blade swing button
Fan speed adjustment buttons
ON/OFF Button
Temperature adjustment buttons
E-5
ENGLISH

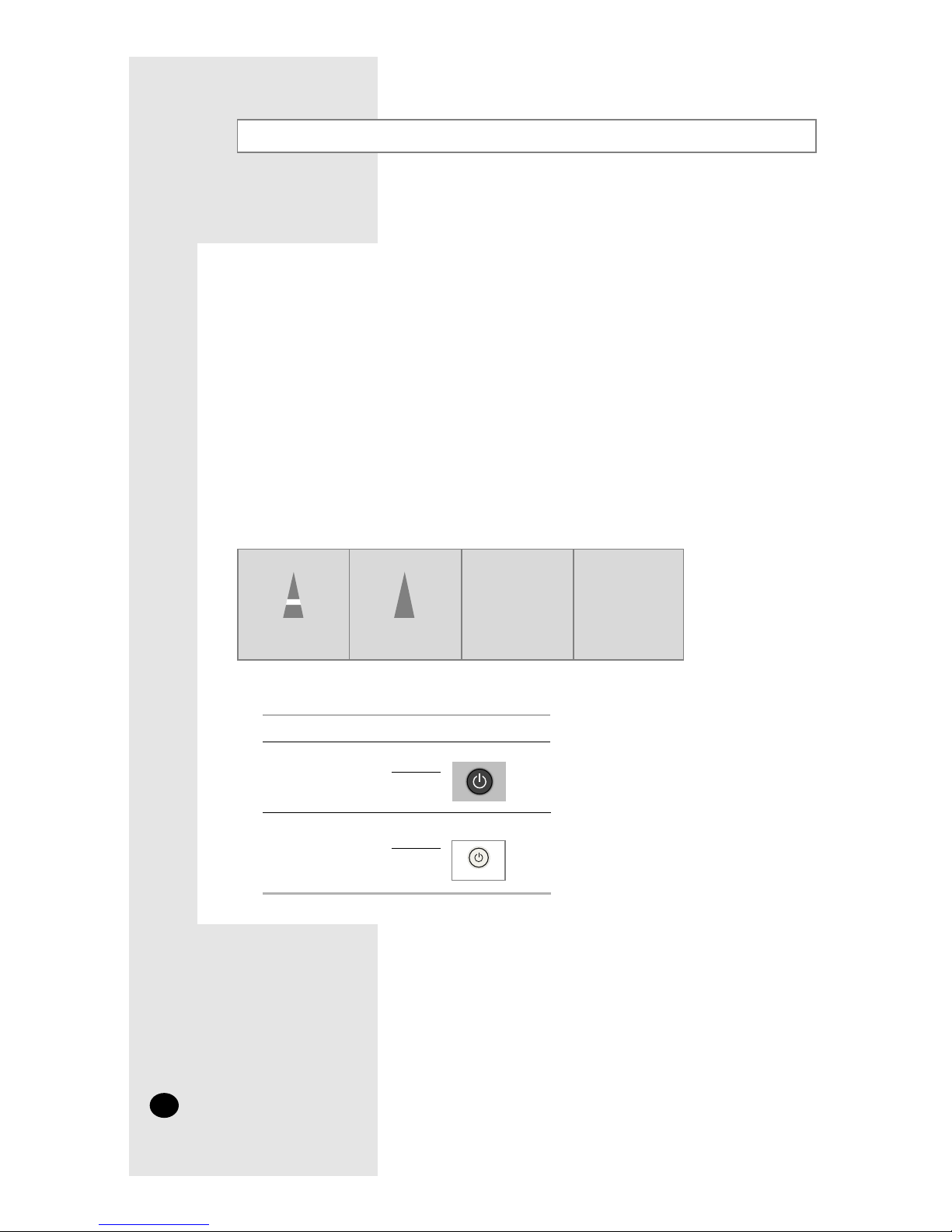

Getting Started
You have just purchased a window-type room air conditioner and it has been installed by your
installation specialist.
Your Owner’s Instructions contain valuable information on using your air conditioner.
Please take the time to read them as they will help you take full advantage of the unit’s functions.
The booklet is organized as follows.
◆The following figures are shown on pages 4 and 5:
-Air conditioning unit (main parts, buttons and display)
-Remote control (buttons)
They will help you find the buttons and understand the symbols displayed.
◆In the main part of the document, you will find a series of step-by-step procedures for each
function available.
The illustrations in the step-by-step procedures use four different symbols:
Moreover, applicable, wherever the illustrations show the positions of the buttons on both the
remote control and the unit itself.
For the... The illustrations have a...
Remote control Gray background.
Example:
Unit itself White background.
Example:
POWER
PRESS PUSH IMPORTANT NOTE
☛
➢
E-6

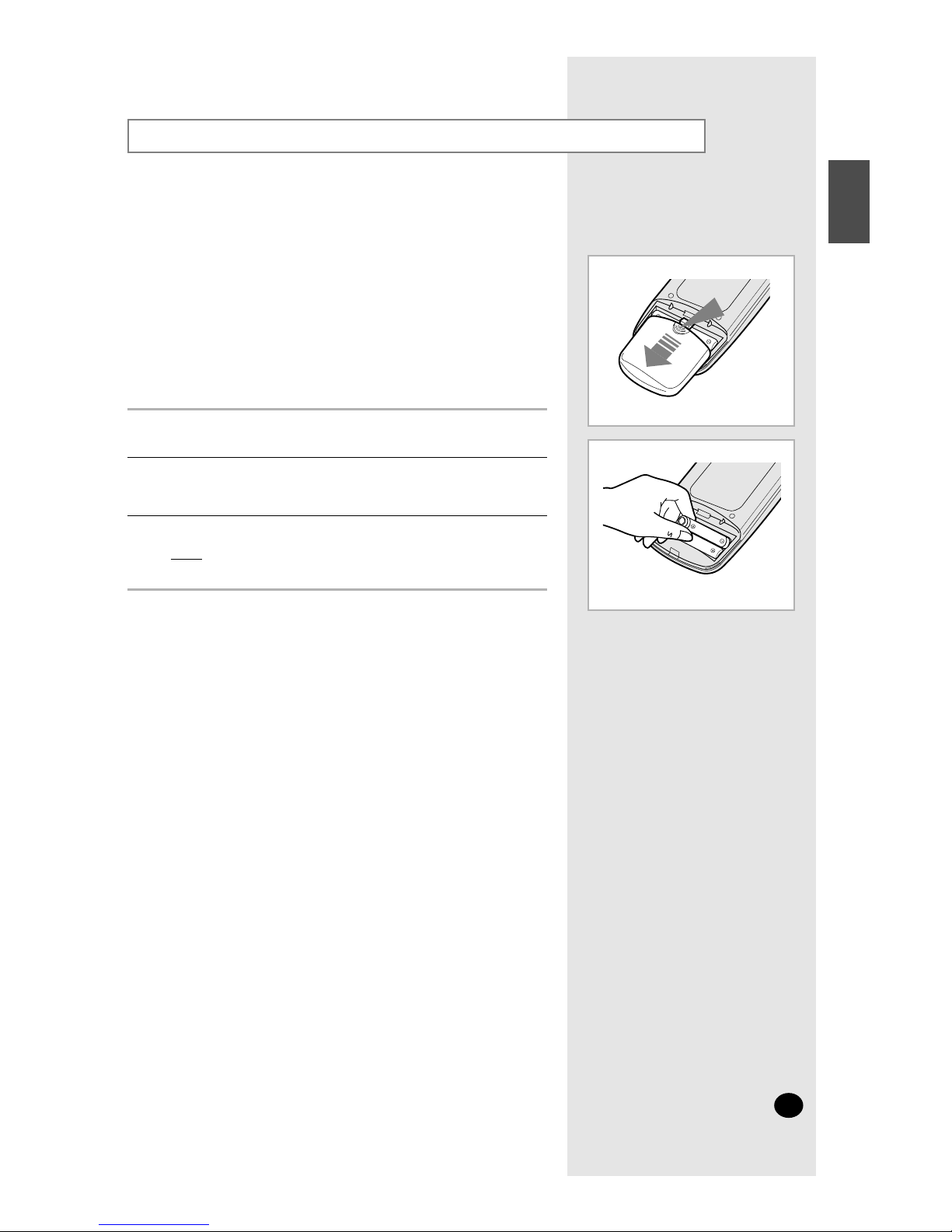

Inserting the Remote Control Batteries
You must insert or replace the remote control batteries when:
◆You purchase the air conditioner
◆The remote control does not work correctly
☛Use two LR03 (R03) 1.5 V batteries. Do not use old
batteries or different kinds of batteries together.
Batteries may be completely discharged after 12 months,
even if they have not actually been used.
1
Push the battery cover on the rear of the remote control with your thumb in
the direction of the arrow and remove it.
2
Insert the two batteries, taking care to respect the polarities:
◆+ on the battery with + on the remote control
◆– on the battery with – on the remote control
3
Close the cover by sliding it back until it clicks into place.
Result:
You can control all the functions on your air conditioning unit
directly from your seat, using the remote control.
E-7
ENGLISH
POWER

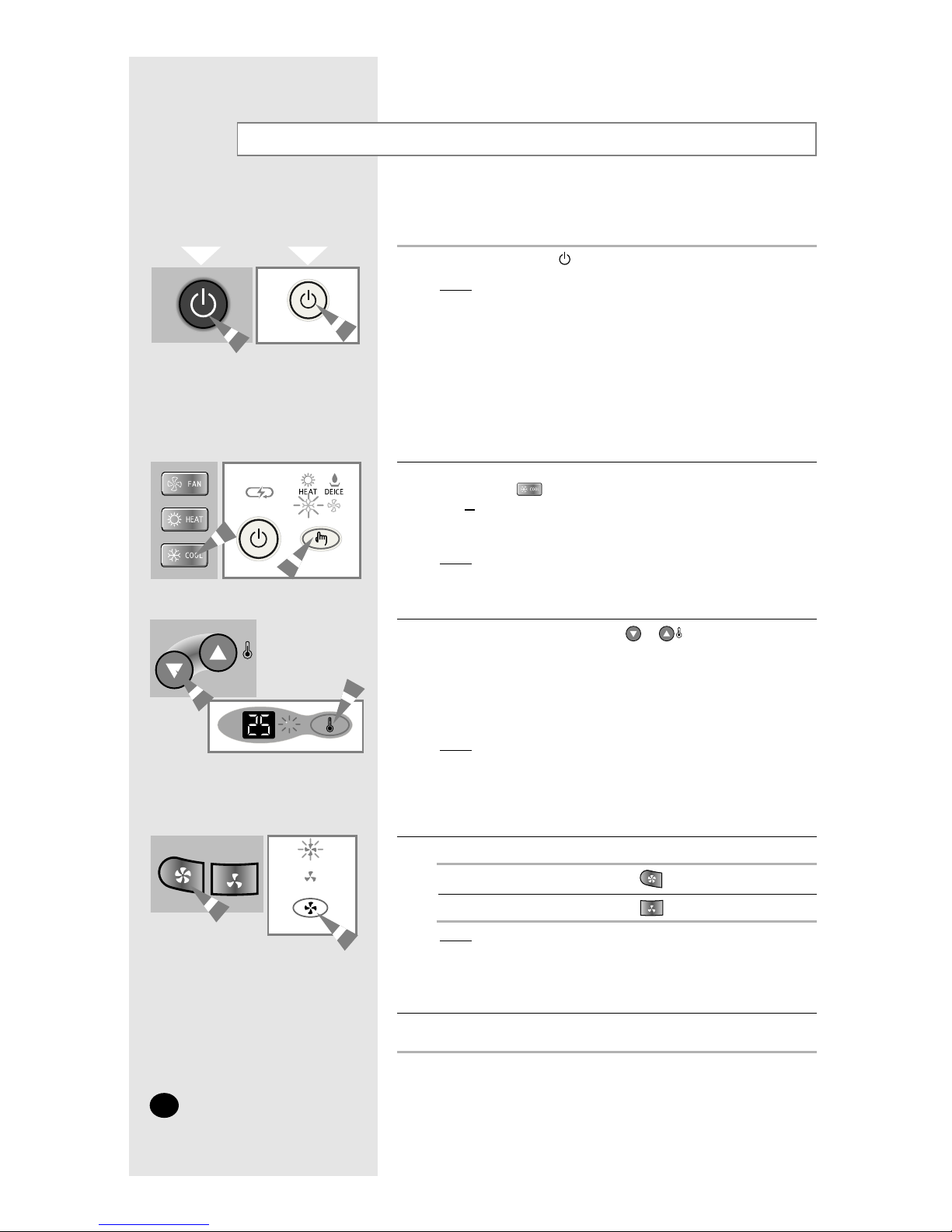

You must select the Cool mode if you wish to lower the temperature
in your room. You can also set the fan speed.
1If necessary, press the (On/Off) button.
Result: ◆The operating mode indicator (COOL, HEAT or FAN)
on the unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
☛The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
◆Plugged in
◆Stopped
It will start up automatically after a three-minute rest period.
2
If the COOL indicator is not lit up on the unit:
◆Press the button on the remote control
or
◆Press the MODE button on the unit one or more times until the COOL
indicator lights up
Result:◆The unit beeps each time you press MODE.
◆The air conditioner starts up in Cool mode.
➢You can change modes at any time.
3
To adjust the temperature, press the or buttons on the remote
control one or more times until the required temperature is displayed.
To adjust the temperature, press the TEMPERATURE button on the unit
one or more times until the required temperature is displayed.
◆ 24°C --> 25°C --> .... --> 29°C --> 30°C --> 18°C --> 19°C --> ....
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆Each time you press the temperature buttons:
– The temperature is adjusted by 1°C and
displayed on the control panel
– The unit beeps
◆The air conditioner starts cooling if the room temperature
is higher than the selected temperature.
4
To set the fan speed to... Then...
High Press the button on the remote control.
Low Press the button on the remote control.
Result: Each time you press a button, the unit beeps.
5
To control the direction of the air flow, refer to page 11.
Cooling Your Room
Remote Control Control Panel
MODE
FAN
COOL
POWER
RESTART
TEMP.
CHr.
FAN SPEED
HIGH
LOW
E-8

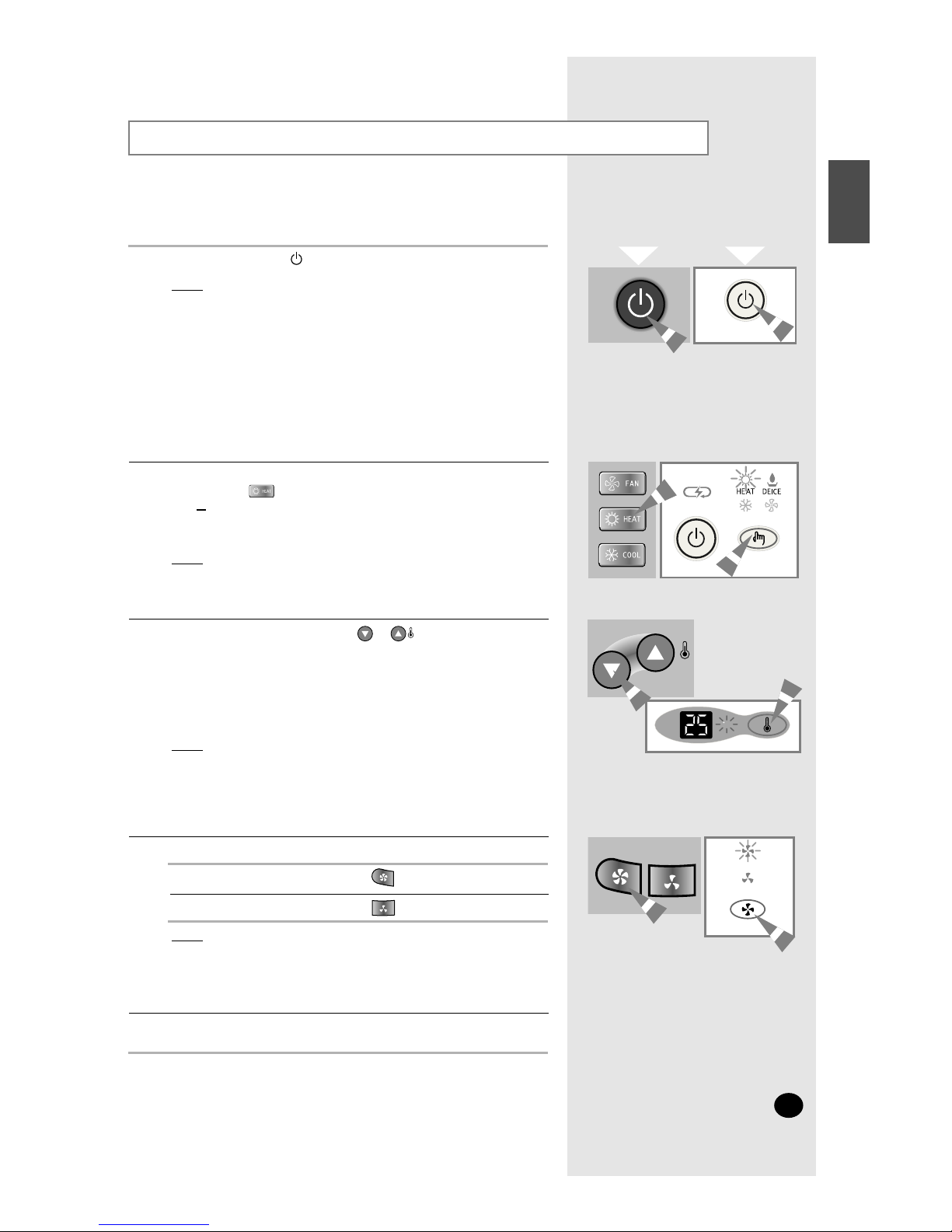

Heating Your Room
You must select the Heat mode if you wish to heat your room to a
specific temperature. You can also set the fan speed.
1If necessary, press the (On/Off) button.
Result: ◆The operating mode indicator (COOL, HEAT or FAN)
on the unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
☛The air conditioner is fitted with a protection mechanism to prevent
the unit from being damaged when it is started immediately after
being:
◆Plugged in
◆Stopped
It will start up automatically after a three-minute rest period.
2
If the HEAT indicator is not lit up on the unit:
◆Press the button on the remote control
or
◆Press the MODE button on the unit one or more times until the HEAT
indicator lights up
Result:◆The unit beeps each time you press MODE.
◆The air conditioner starts up in Heat mode.
➢You can change modes at any time.
3
To adjust the temperature, press the or buttons on the remote
control one or more times until the required temperature is displayed.
To adjust the temperature, press the TEMPERATURE button on the unit
one or more times until the required temperature is displayed.
◆ 24°C --> 25°C --> .... --> 29°C --> 30°C --> 16°C --> 17°C --> ....
Possible temperatures are between 16°C and 30°C inclusive.
Result:◆Each time you press the temperature buttons:
– The temperature is adjusted by 1°C and
displayed on the control panel
– The unit beeps
◆The air conditioner starts heating if the room temperature
is lower than the selected temperature.
4
To set the fan speed to... Then...
High Press the button on the remote control.
Low Press the button on the remote control.
Result:◆ Each time you press a button, the unit beeps.
◆For the first three to five minutes, the fan operates very
slowly until the air has been sufficiently warmed.
Once the correct temperature has been reached, the
fan is automatically set to the required speed.
5
To control the direction of the air flow, refer to page 11.
POWER
Remote Control Control Panel
MODE
FAN
COOL
POWER
RESTART
TEMP.
CHr.
FAN SPEED
HIGH
LOW
E-9
ENGLISH

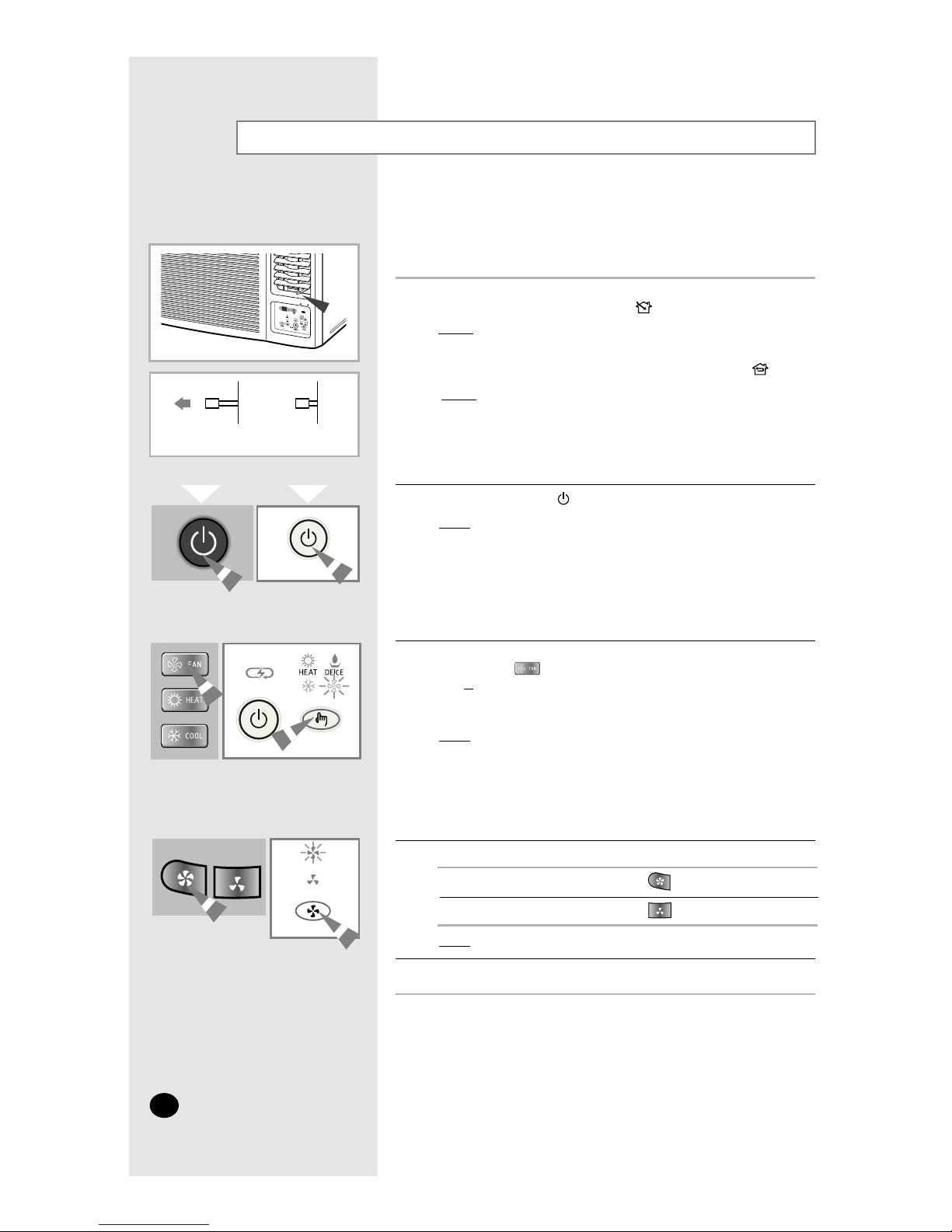

Airing Your Room
If the atmosphere in your room is stale, you can air it using the Fan
feature and if necessary, evacuate the stale air outside.
1
If you wish to evacuate stale air outside, pull the ventilation lever on the
front of the unit and the open position ( ).
Result: The air inside the room circulates and stale air is evacuated
outside.
Otherwise, push the ventilation lever and the closed position ( ).
Result: The air simply circulates inside the room.
2
If necessary, press the (On/Off) button.
Result: ◆The operating mode indicator (COOL, HEAT, or FAN)
on the unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The unit beeps twice.
3
If the FAN indicator is not lit up on the unit:
◆Press the button on the remote control
or
◆Press the MODE button on the unit one or more times until the FAN
indicator lights up
Result: ◆The unit beeps each time you press MODE.
◆The air conditioner starts up in Fan mode.
➢◆You can change modes at any time.
◆When the air conditioner is in Fan mode, the
temperature is not displayed; in this case, you do not
need to set the temperature.
4
To set the fan speed to... Then...
High Press the button on the remote control.
Low Press the button on the remote control.
Result: Each time you press a button, the unit beeps.
5
To control the direction of the air flow, refer to page 11.
POWER
Remote Control Control Panel
MODE
COOL
POWER
RESTART
FAN
FAN SPEED
HIGH
LOW
Open
Position Closed
Position
FANSPEED
C
Hr.
E-10
Ce manuel convient aux modèles suivants
5
Table des matières
Autres manuels Samsung Climatiseur
Samsung
Samsung PC4NUC N Series Manuel utilisateur
Samsung
Samsung ACN016NDEHA Manuel utilisateur
Samsung
Samsung AW0801B Manuel utilisateur
Samsung
Samsung AC NN1PKC Series Manuel utilisateur
Samsung
Samsung FH052EAMC Manuel utilisateur
Samsung
Samsung AW05M0YEA Manuel utilisateur
Samsung
Samsung EH052EAMC Manuel utilisateur
Samsung
Samsung AC BNPDKH Series Manuel utilisateur
Samsung
Samsung AWT18PHHBB Manuel utilisateur
Samsung
Samsung AJ RB1DEG Series Manuel utilisateur
Samsung
Samsung AJ***JNADCH Series Mode d’emploi
Samsung
Samsung AR BX Z Series Manuel utilisateur
Samsung
Samsung AQ07**SER Series Manuel utilisateur
Samsung
Samsung MWR-TH00 Manuel utilisateur
Samsung
Samsung AQ09A5(6)MAF Manuel utilisateur
Samsung
Samsung AP30N0A Manuel utilisateur
Samsung
Samsung AG026MN1DEH/EU Manuel utilisateur
Samsung
Samsung PL-50D4H Manuel utilisateur
Samsung
Samsung AQ09A2MD Manuel utilisateur
Samsung
Samsung AD18A1C09 Manuel utilisateur
